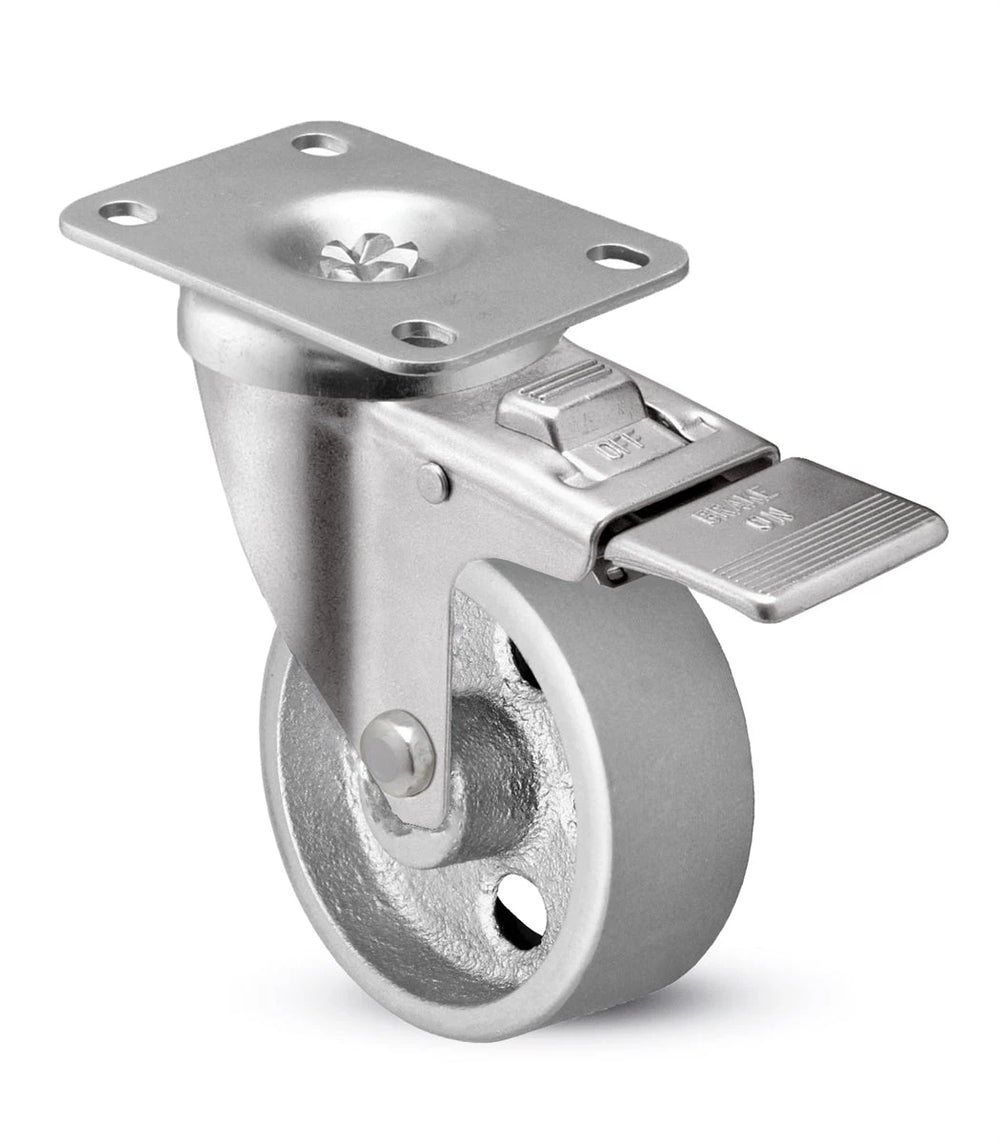

3" x 1-1/4" Semi-Steel Total Lock Caster – 350 lb | 2-3/8" x 3-5/8" Plate

This 3" x 1-1/4" Semi-Steel Total Lock Caster – 350 lb is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

This caster runs a Cast Iron wheel with a 1-1/4" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

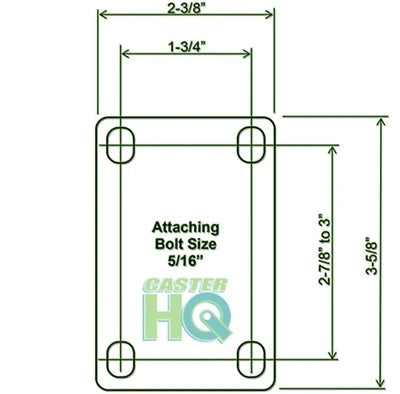

This caster uses a top-plate mount with a 2-3/8" x 3-5/8" plate and a 1-3/4" x 2-7/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

Rated for 600°F to -45°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
