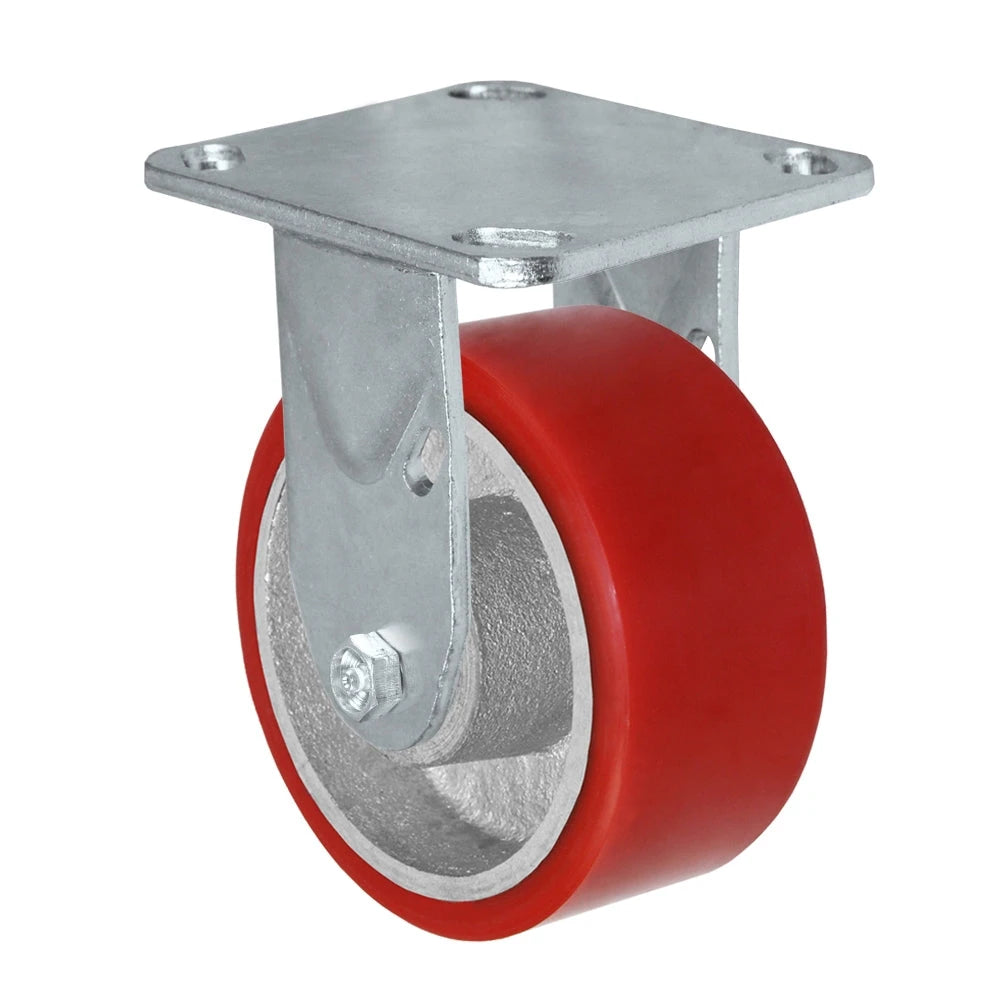

Caster HQ's Polyurethane elastomer tread chemically bonded to cast iron
core offers high weight capacities while providing good floor
protection and a quiet rolling operation. Optional precision ball bearings require less effort to start up and maintain a rolling load; they
also generate less friction heat and may prolong the life of
the wheel. This Caster and Wheel Work well in indoor and outdoor environments; however, the cast iron core can rust with lots of exposure to wet environments; if this is an issue, consider using aluminum or plastic core wheels.
CASTERHQ PART#: HQ2040R-PL1-PIR-RED
TECHNICAL SPECIFICATIONS:
| Wheel Diameter: 4" |
| Tread Width: 2" |
| Tread Face: Flat |
| Durometer: 95A (+/-5) |
| Hub Length ( Width where Axle Goes Through ): 2-7/16" |
| Maximum Capacity: 800 lbs each |
| Wheel Bearing: 3/4" Roller Bearing Included or Upgraded to a Sealed precision using the options menu on the right-hand side |
| Spanner: 1/2" |
| Axle Diameter: 1/2" |
| Color: Red Polyurethane on Silver Cast Iron Core |
CASTER FORK:
• Features wheels with 1-1/2” and 2” tread widths
• Large selections of wheels, bearings
and brake options
• Matching total-locking casters available
• Bright zinc finish
• Majority of this series and wheel types
are NSF listed
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 4" x 2" Polyurethane Rigid Caster – 800 lb is rated to 700 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$31.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 700 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
5" x 2" Semi-Steel Swivel Caster – 1000 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 1000 lbs
$52
5" x 2" Semi-Steel Rigid Caster 4" x 4-1/2" Top Plate – 1000 lb | CasterHQ
5" x 2" · 1000 lbs
$31
8" x 2" Semi-Steel Swivel Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
8" x 2" · 1250 lbs
$80
View all plate casters →
Your selection is highlighted. Step up or down in load rating without leaving the page — all in-stock, ready to ship.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|

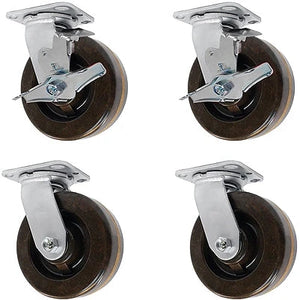

| 600 lbsLighter duty | 4" × 2"High Temp Phenolic | Swivel with Brake + brake | 5-5/8" | $265.00 | View → | |
| 600 lbsLighter duty | 4" × 2"Cast Iron | — | — | $23.00 | View → | |
| 700 lbs | 4" × 2"Cast Iron | Rigid | — | $31.00 | Viewing | |
| 700 lbsSame capacity | 4" × 2"Ductile Iron | — | — | $19.00 | View → | |
| 700 lbsSame capacity | 4" × 2"Cast Iron | Rigid | 5-5/8" | $38.00 | View → |
