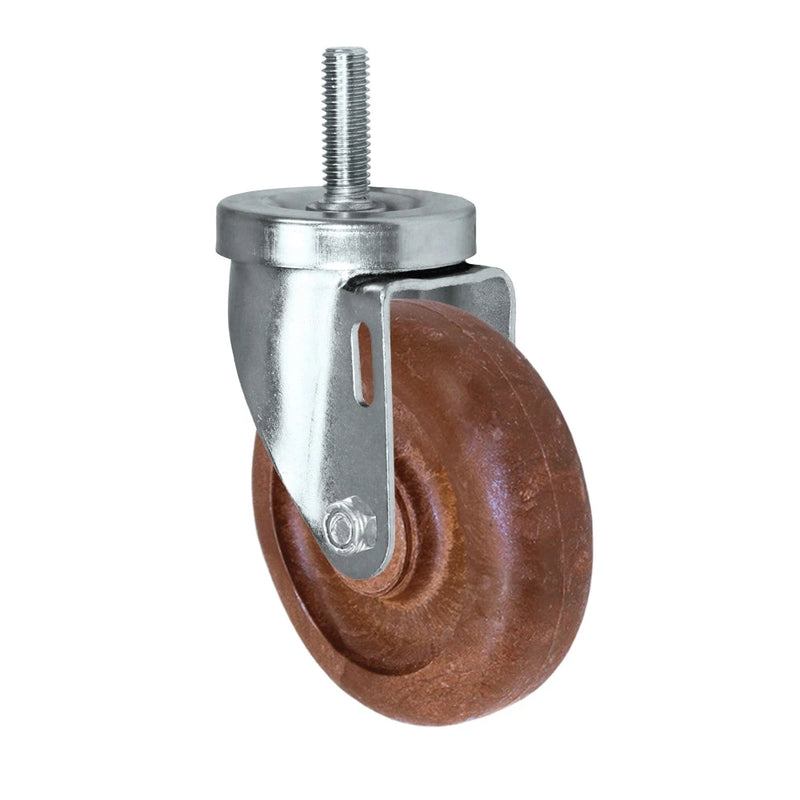

This 4" High Temp Nylon Swivel Caster – 350 lb is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a High Temp Phenolic wheel with a 1-1/4" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

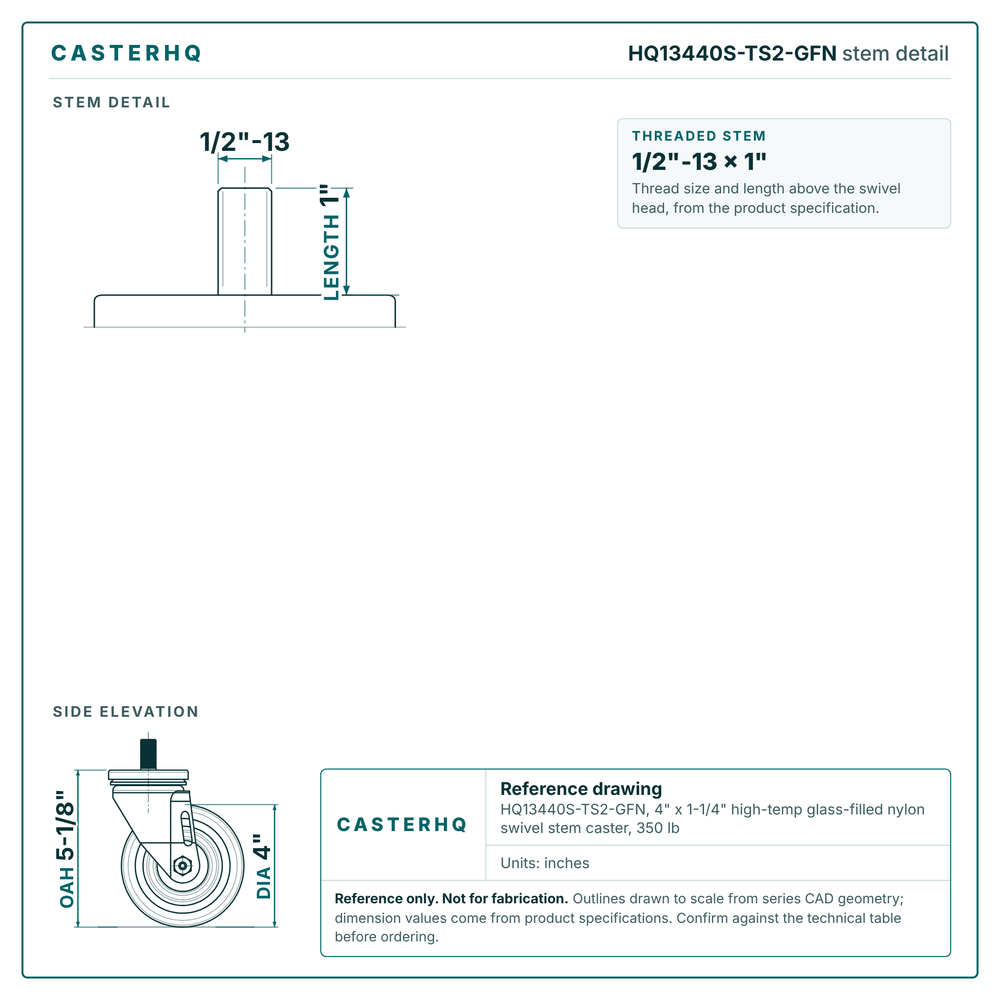

This caster uses a Threaded Stem mount (1/2"-13 x 1" stem). Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 550°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The High Temp Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

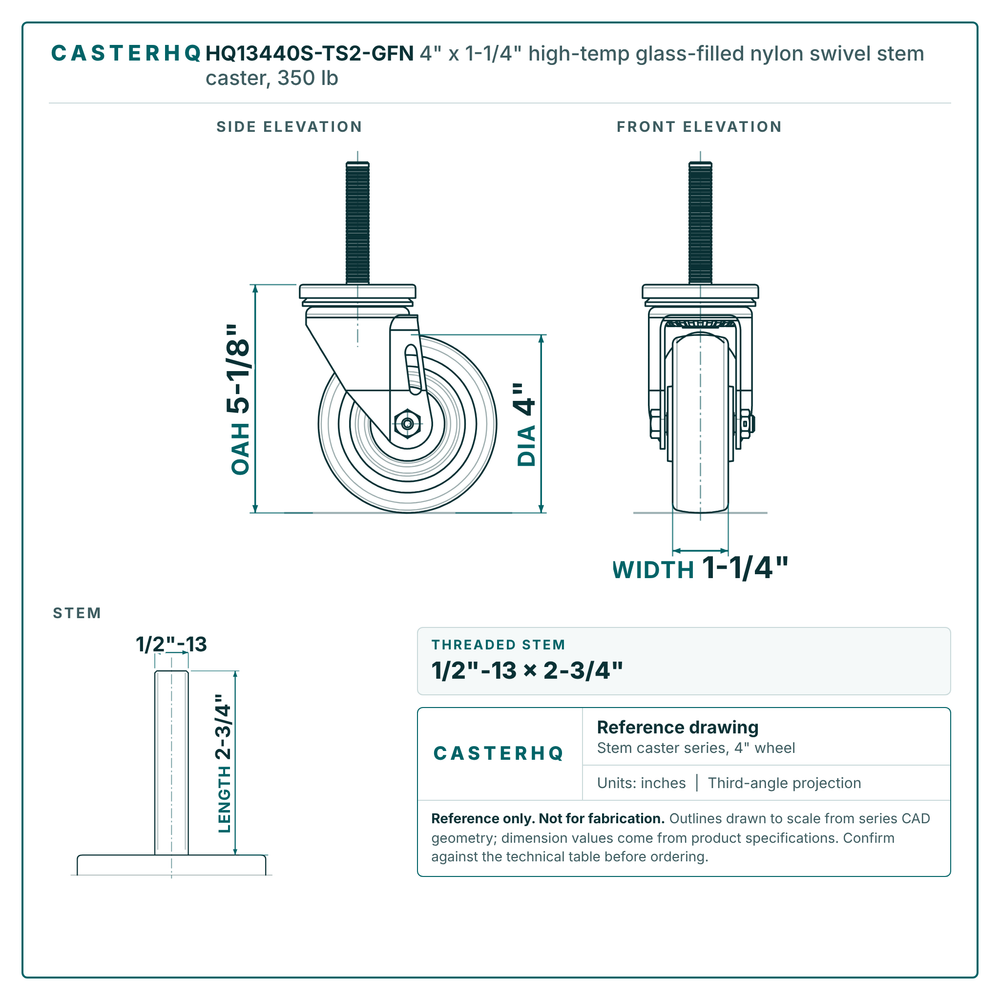

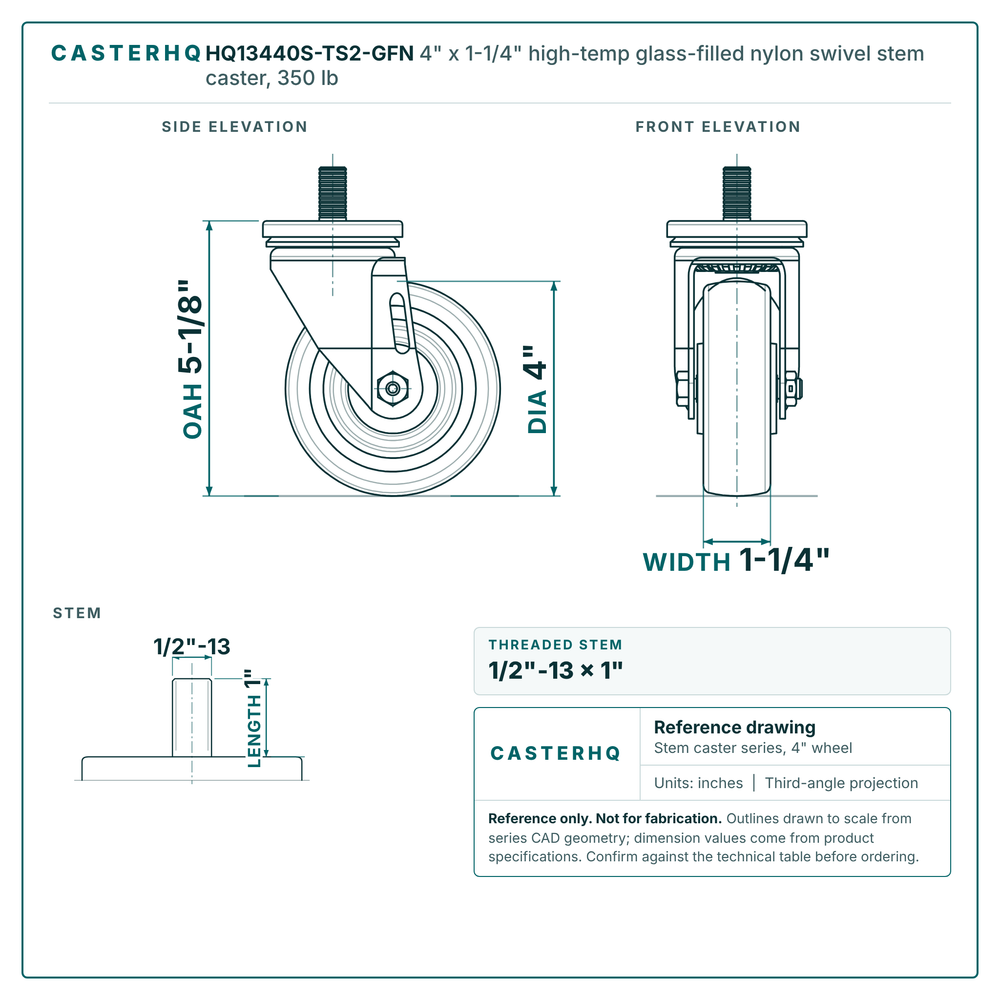

The overall height (floor to top of plate or stem) is 5-1/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$31.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 5-1/8" |
| Stem Size | 1/2"-13 x 1" |
| Mount Style | Threaded Stem |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 350 lbs |
| Temp Range | Up to 550°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | High Temp Phenolic |
| Wheel Core Material | Phenolic |
| Frame Material | Zinc Plated Steel |
4" Polyurethane Swivel Caster – 350 lb | 1/2" x 1-1/2" Threaded Stem | CasterHQ
4" x 1-1/4" · 350 lbs
$23
4" Phenolic Swivel Caster – 350 lb | 1/2" x 1-1/2" Threaded Stem | CasterHQ
4" x 1-1/4" · 350 lbs
$23
4" x 1-1/4" Swivel Expandable Adaptor Caster – 350 lb | CasterHQ
4" x 1-1/4" · 350 lbs
$20
View all 4′ x 1-1/4′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 325 lbsLighter duty | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $26.00 | View → | |
| 325 lbsLighter duty | 4" × 1-1/4"Polyurethane | Swivel | 6-1/4" | $29.00 | View → | |
| 350 lbs | 4" × 1-1/4"High Temp Phenolic | Swivel | 5-1/8" | $31.00 | Viewing | |
| 350 lbsSame capacity | 4" × 1-1/4"Blue Solid Polyurethane | Swivel | 5-1/8" | $23.00 | View → | |
| 350 lbsSame capacity | 4" × 1-1/4"Phenolic | Swivel | 5-1/8" | $23.00 | View → |
