Up to 350 lbs
Up to 6,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
High-capacity loads
Shock absorbing
Corrosion resistant
Outdoor / rough terrain
OEM replacements
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

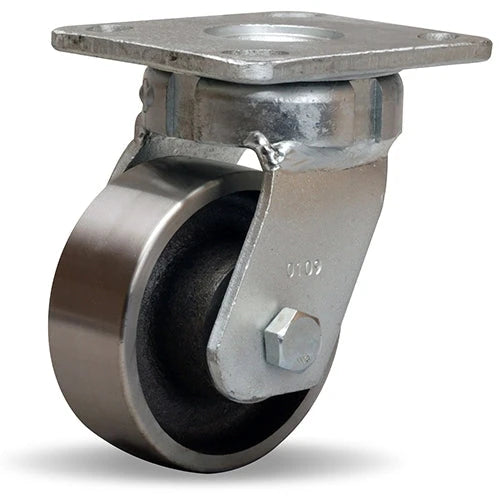

PRODUCT CODE: S-52K-4FSB
The Hamilton Standard Duty Kingpinless Swivel Caster (S-52K-4FSB) is a reliable solution for all your heavy-duty industrial needs. This robust caster features a 4" x 2" Forged Steel Wheel designed for durability and performance.
Our kingpinless swivel caster is equipped with 1/2" sealed precision ball bearings that ensure smooth operation and longevity. Perfect for a wide range of industrial and commercial applications.
Hamilton's commitment to quality means you can trust in the high standard of our products. The Kingpinless design of our caster further enhances its strength, making it a sturdy choice for any heavy-duty use.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
The Hamilton Standard Duty Kingpinless Swivel Caster (S-52K-4FSB) is built to last. With a 4" x 2" Forged Steel Wheel and 1/2" Sealed Precision Ball Bearings, this caster promises high performance and durability.
| Feature | Specification |
|---|---|
| Swivel or Rigid Caster | Swivel |
| Load Capacity (lbs.) @ 3 mph | 1400 |
| Wheel Diameter (in.) | 4 |
| Wheel Face (in.) | 2 |
| Overall Height (in.) | 5.625 |
| Swivel Offset (in.) | 1.1875 |
| Mounting Plate (in.) | 4 x 4 1/2 |
| Bolt Hole 1 (in.) | 2 5/8 x 3 5/8 |
| Bolt Hole 2 (in.) | 3 x 3 |
| Mounting Bolt (in.) | 0.375 |
| Caster Color/Finish | Bright Zinc Plated |
| Wheel Type | Forged Steel |
| Wheel Color/Finish | Clearcoat |
| Bearing Type | Precision Sealed Ball |
| Replacement Wheel | W-4-FSB-1/2 |
| Wheel Material @ Tread | Metal |
| Shipping Weight (lbs.) | 10 |
The Hamilton Standard Duty Kingpinless Swivel Caster ensures smooth and efficient operation. Whether for commercial or industrial use, this caster stands up to demanding environments, carrying loads of up to 1400 lbs at 3 mph.
Hamilton is a recognized name in industrial tools, known for high-quality products. Our kingpinless swivel caster continues that legacy with its sturdy construction, precision-sealed ball bearings, and bright zinc plated finish.
$194.00
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Temp Range | -22°F to 750°F |
| Wheel Material | Forged Steel |
| Frame Material | Zinc Plated Steel |
| Mount Style | Plate |
| Rig Type | Swivel |
| Brake Type | No Brake |
Designed for engineers, manufacturers, and material handling professionals
