This 4" x 2" swivel caster is your one-stop solution for smooth and efficient movement of heavy equipment. The robust polyurethane wheel boasts a 600 lb capacity, ensuring it can handle even the most demanding tasks.
Unsure which caster is right for your needs? Our team of caster specialists are available weekdays from 8 am to 5 pm to answer your questions and provide personalized recommendations. Let us help you find the perfect solution for your project!
These heavy-duty 4" swivel casters are designed to handle demanding industrial applications with a weight capacity of 600 lbs. The polyurethane wheel material ensures smooth rolling operation and excellent durability, even on rough surfaces.
These casters feature a zinc plated steel yoke with a lacquer dip finish for enhanced corrosion resistance. The blue A98 TPU crown tread on tan wheel offers excellent grip and floor protection. Precision bearings and a secure axle ensure smooth rolling operation and long service life.
Got questions about these casters or need help finding the right solution for your application? Our Caster Experts are here weekdays 8 am - 5 pm to provide expert advice. Contact us today!
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
These heavy-duty swivel casters are the perfect solution for a wide range of applications, including:
When you need a caster that can handle the toughest jobs, look no further. Our heavy-duty casters are designed for durability and reliability, with a high weight capacity to meet your needs.
Got questions about finding the right caster for your project? Our Caster Experts are here weekdays 8 am - 5 pm to provide expert advice. Don't hesitate to reach out!

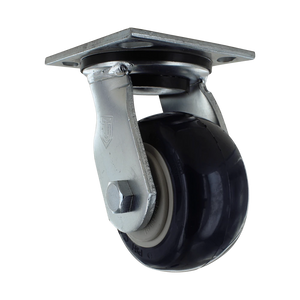

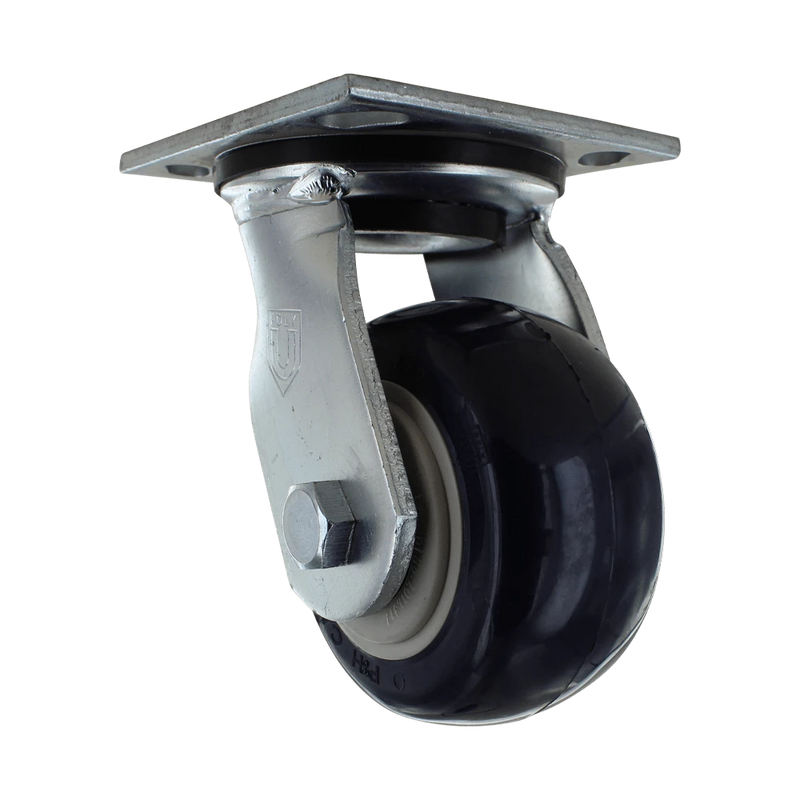

This P&H 4" x 2" Polyurethane Swivel Caster 4" x 4.5" Top Plate – 600 lb is rated to 600 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

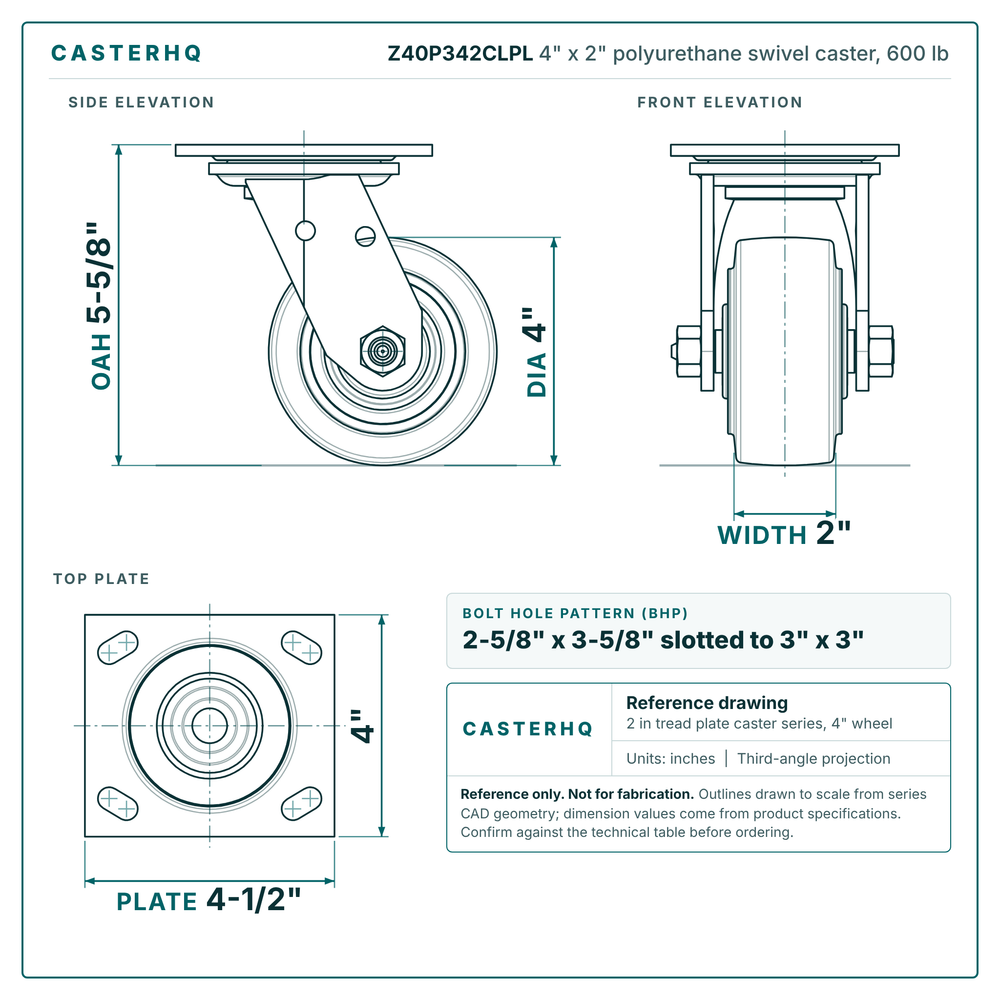

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$28.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 600 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
4" x 2" Phenolic Swivel Caster Set with Brakes – 2,400 lb | CasterHQ
4" x 2" · 600 lbs · Direct fit
$265
4" x 2" Polyurethane on Iron Rigid Caster – 700 lb | 4-1/2" x 6-1/4" Plate
4" x 2" · 700 lbs
$41
4" x 2" Cast Iron Rigid V-Groove Caster – 700 lb | 4-1/2" x 6-1/4" Plate | CasterHQ
4" x 2" · 700 lbs
$48
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 400 lbsLighter duty | 4" × 2"Rubber | Rigid | 5-5/8" | $23.00 | View → | |
| 400 lbsLighter duty | 4" × 2"Rubber | Swivel | 5-5/8" | $24.00 | View → | |
| 600 lbs | 4" × 2"Polyurethane | Swivel | — | $28.00 | Viewing | |
| 600 lbsSame capacity | 4" × 2"High Temp Phenolic | Swivel with Brake + brake | 5-5/8" | $265.00 | View → | |
 Direct fit4" x 2" Semi-Steel Rigid Caster – 700 lb |
700 lbsHeavier duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $38.00 | View → |
