4" x 2" Polyurethane on Iron Swivel Caster – 700 lb | 4-1/2" x 6-1/4" Plate

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HQ2040S-PL3-PIR-RED

Product Overview

4" x 2" Red Polyurethane on Iron Wheel | Swivel Caster | Capacity: 700 lbs | Plate Size: 4-1/2" x 6-1/4"

Sizes: 4" thru 8" - Capacities up to 1,400 lbs per Caster

Plate Size: 4-1/2" x 6-1/4"
4

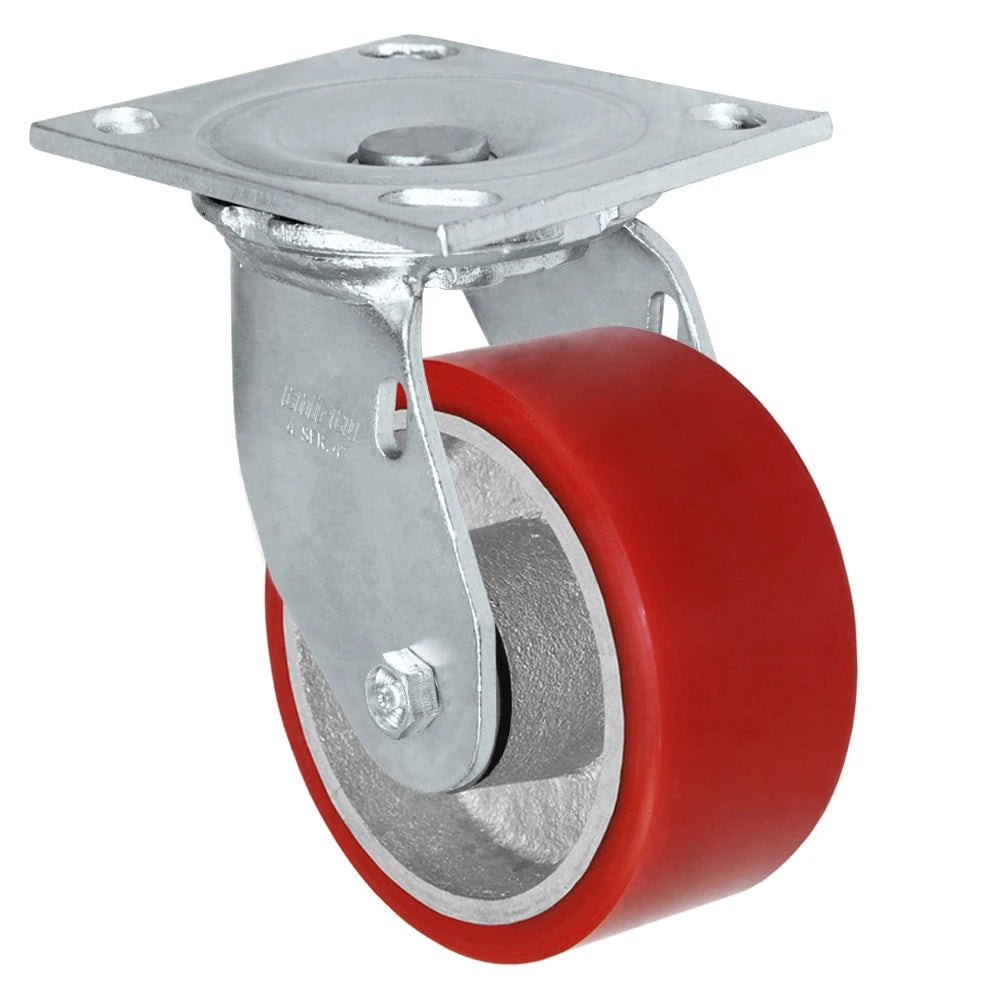

This listing is for a 4" inch Diameter by 2" Tread Width Polyurethane on Cast Iron Wheel Swivel Caster. This caster comes with a larger 4-1/2" x 6-1/4" overall plate size and holds 700 lbs per caster. Polyurethane provides a higher weight capacity than rubber but offers the same floor protection due to the protective poly tread. The tread is between 90-95 Durometer Shore (A) with a 10mm Thick Polyurethane Tread chemically bonded to a heavy steel iron core. Polyurethane is non-marking, non-conductive, and non-staining. Polyurethane resists oil, grease, water, and solvents. Every wheel comes with zerk / grease fittings in the hub of the wheel for easy lubrication of the bearings. The axles provided are also zerk / grease axles for easy lubrication and maintenance of the bearings.

Features:
  • Large Double Ball Raceways and Top Plate
  • Zinc Plate Finish for Added Rust Resistance
  • 1/4" Cold Forged Steel Top Plate
  • 3/4" Diameter Heat Treated Kingpin and Nut
  • 1/2" Diameter Zerk Axle and Lock Nut
  • Grease Fitting in Swivel Raceway
  • Grease Fittings in all Axles for easy bearing maintenance and lubrication
    Questions? Please Call us @ 844-439-4335 or Contact Us Here

    For quick online service please email us: info@casterhq.com and a Caster Expert will help you answer any questions.
    We ship Fast!!!
    If ordered before 12-noon we ship all orders typically ship SAME DAY!
    All orders received after 12-noon will ship the following business day!
Key Features
  • Large Double Ball Raceways and Top Plate
  • Zinc Plate Finish for Added Rust Resistance
  • 1/4" Cold Forged Steel Top Plate
  • 3/4" Diameter Heat Treated Kingpin and Nut
  • 1/2" Diameter Zerk Axle and Lock Nut
  • Grease Fitting in Swivel Raceway
  • Grease Fittings in all Axles for easy bearing maintenance and lubrication
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

4
4" x 2" Polyurethane on Iron Swivel Caster – 700 lb | 4-1/2" x 6-1/4" Plate

$44.00

Add 49 more for 5% off
10% off unlocked
1
Order in 2h 14m for same-day processing

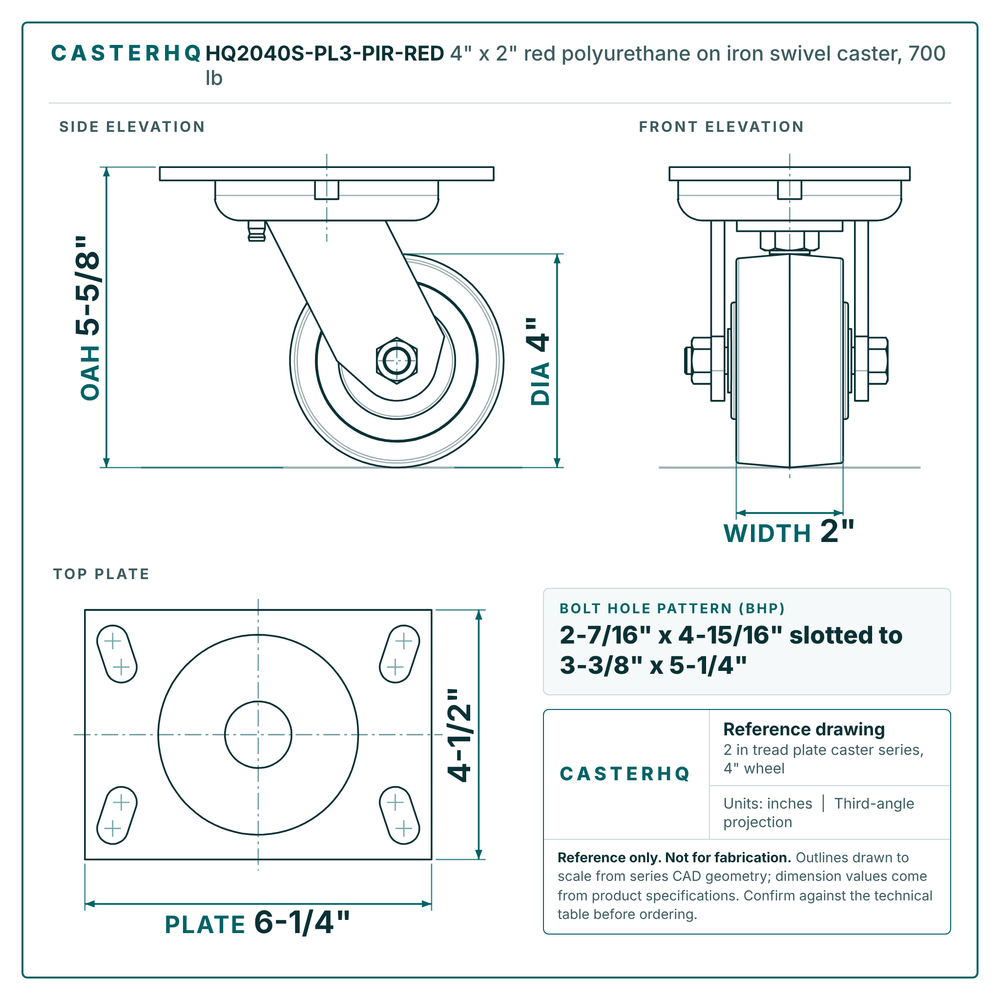

Technical Specifications

Wheel Diameter 4"
Wheel Tread Width 2"
Overall Height 5-5/8"
Wheel Capacity 700 lbs
Temp Range Up to 180°F
Wheel Material Polyurethane
Wheel Core Material Iron
Frame Material Zinc Plated Steel

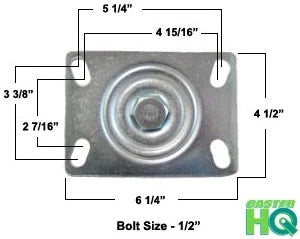

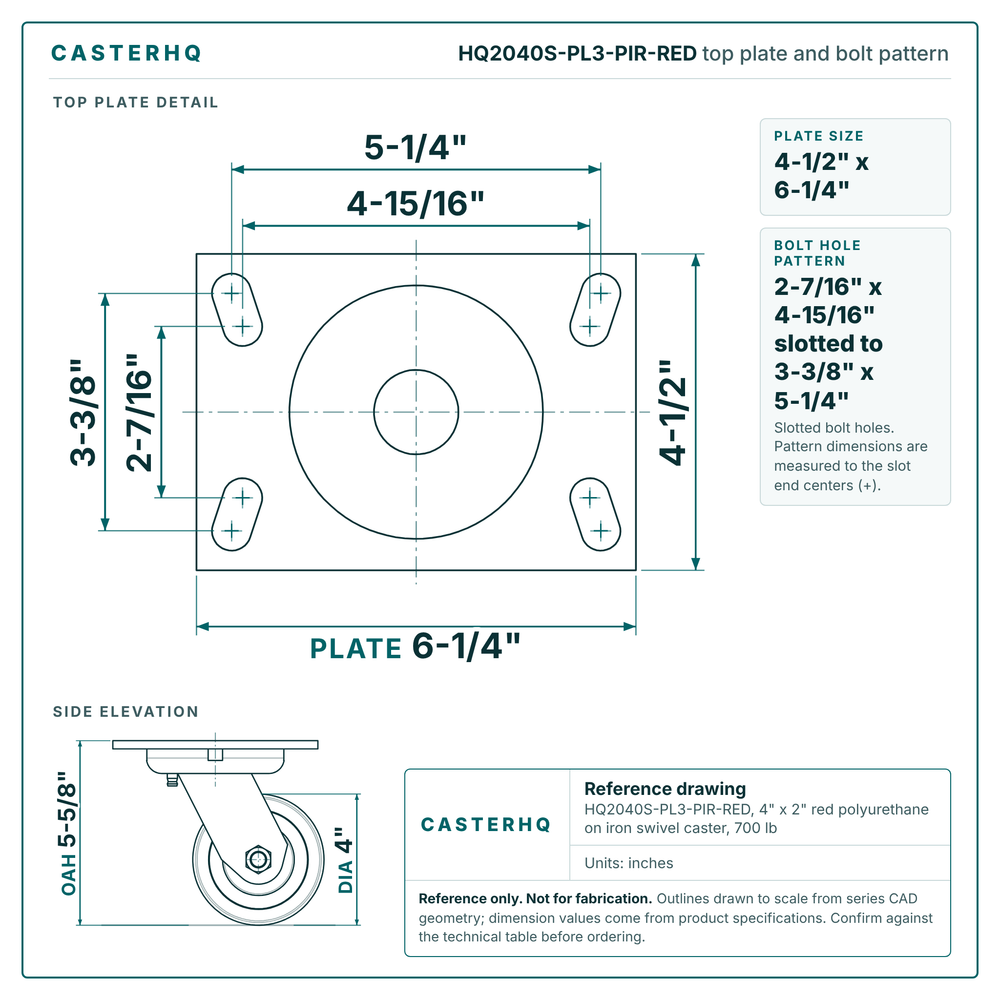

Bolt Hole Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Mount Style Plate
Plate Size 4-1/2" x 6-1/4"
Rig Type Swivel
Brake Type No Brake
