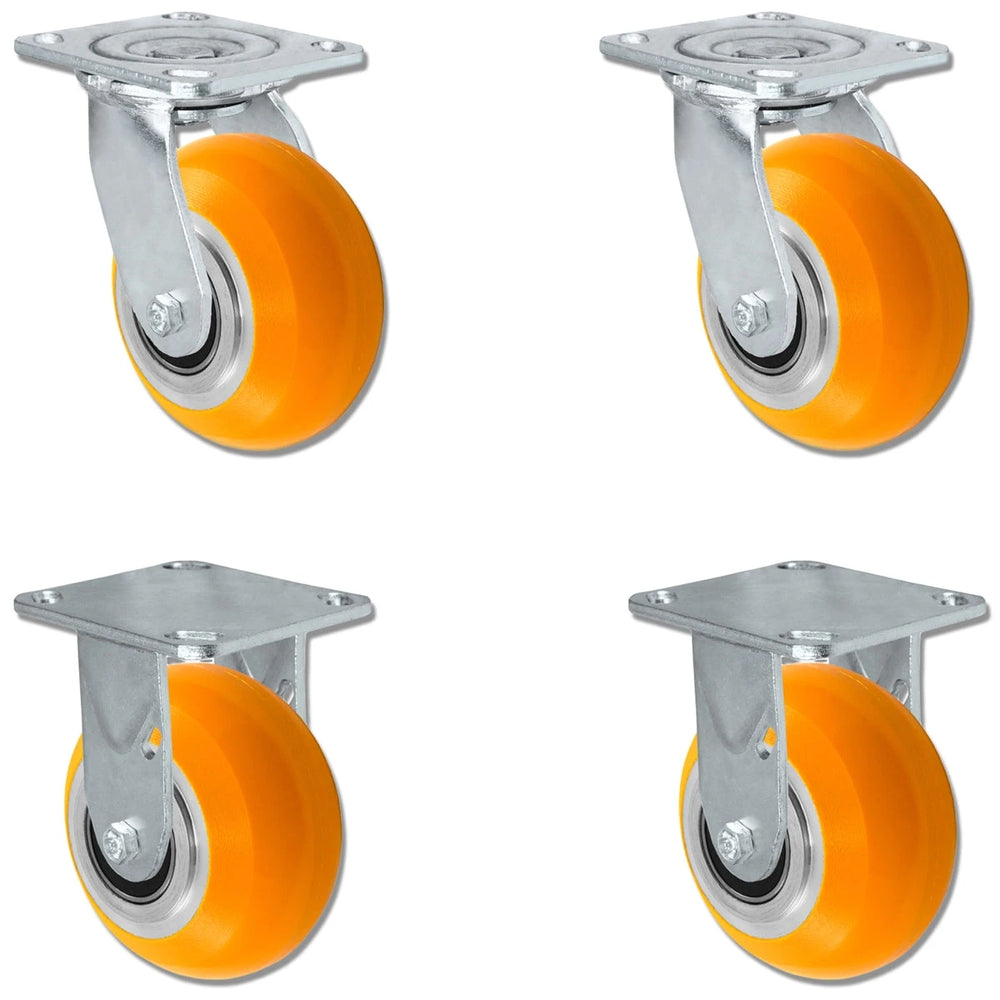

This 4" x 2" Polyurethane on Aluminum Swivel & Rigid Caster – 4,000 lb is rated to 4000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

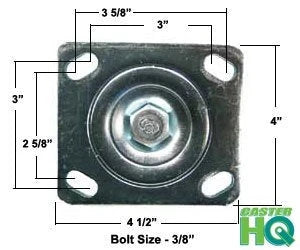

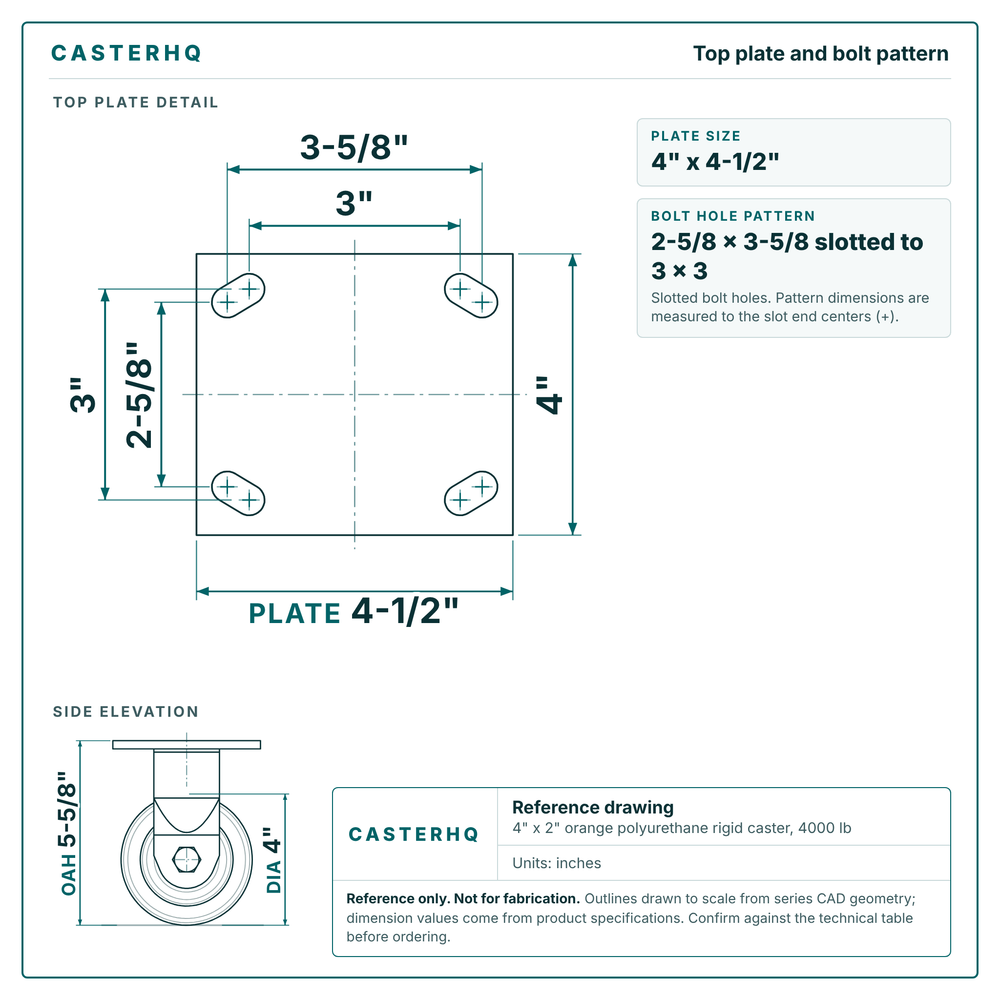

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

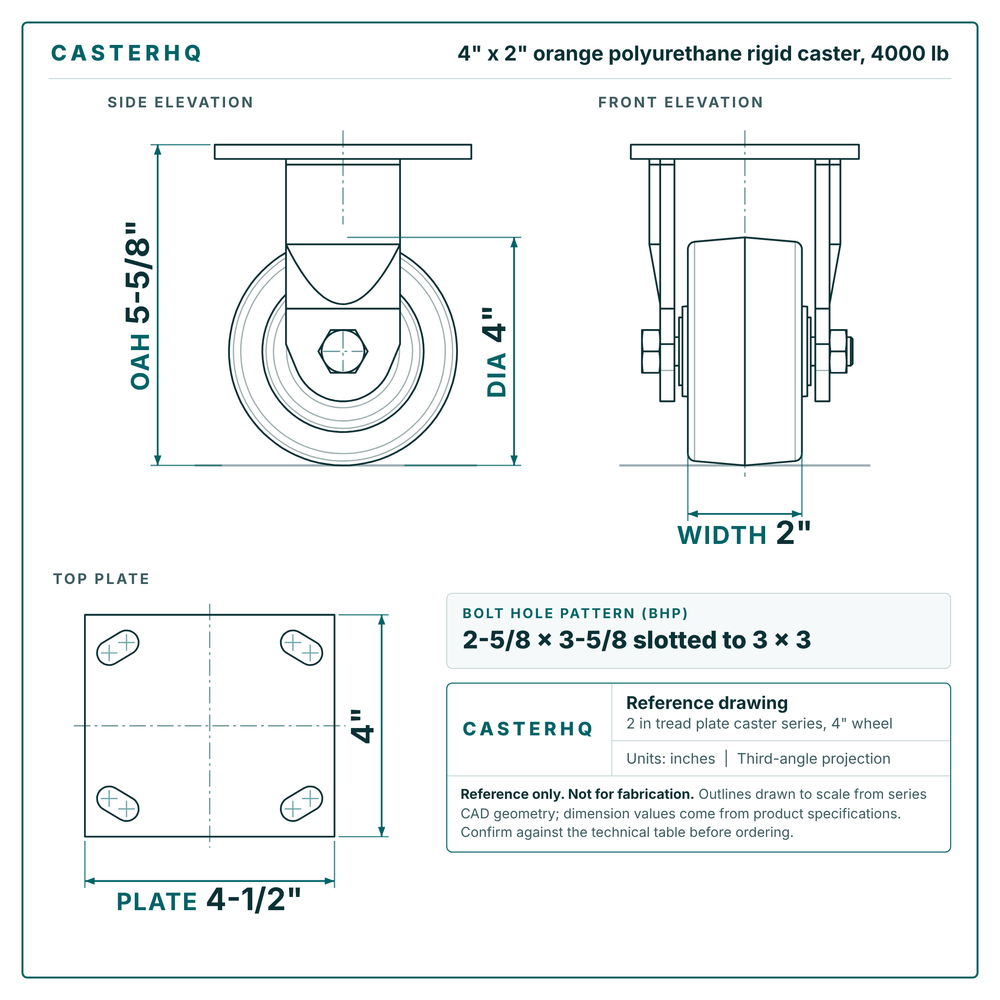

The overall height (floor to top of plate or stem) is 5-5/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$299.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5-5/8" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 4000 lbs |
| Temp Range | Up to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
5" x 2" Red Polyurethane Swivel Caster with Brake – 4000 lb | CasterHQ
5" x 2" · 4,000 lbs
$144
5" x 2" Red Polyurethane Swivel & Rigid Caster – 4000 lb | CasterHQ
5" x 2" · 4,000 lbs
$144
6" x 2" Polyurethane on Aluminum Swivel Caster – 1,250 lb | CasterHQ
6" x 2" · 1250 lbs
$76
View all plate casters →
Your selection is highlighted. Step up or down in load rating without leaving the page — all in-stock, ready to ship.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|

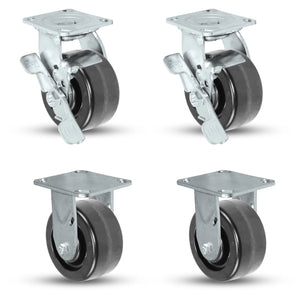

| 3200 lbsLighter duty | 4" × 2"Phenolic | Rigid | 5-5/8" | $117.00 | View → | |

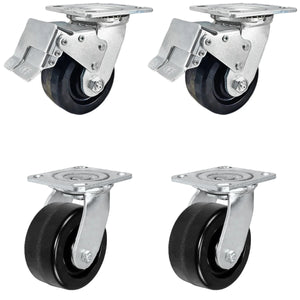

| 3200 lbsLighter duty | 4" × 2"Phenolic | Swivel with Total Lock Brake + brake | 5-5/8" | $168.00 | View → | |
