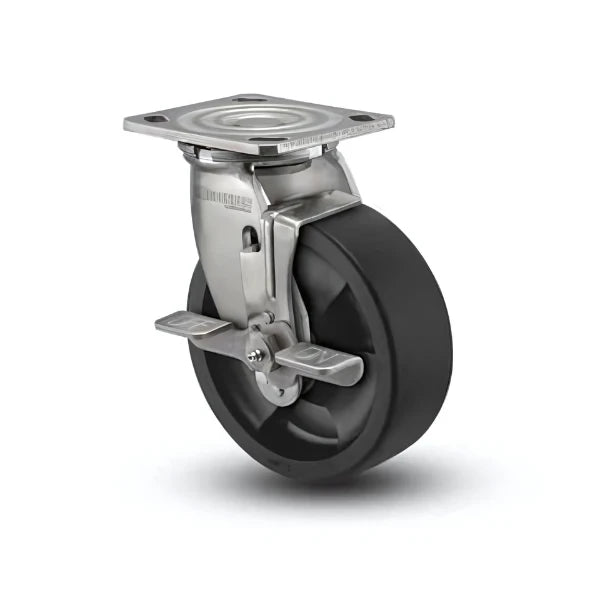

The 4" x 2" Stainless Hi-Temp Nylon Delrin Bearing Top Lock Caster is expertly engineered for optimal performance in demanding environments. Constructed from high-quality stainless steel and nylon, this caster provides exceptional durability and resistance to wear and high temperatures, making it perfect for industrial settings. The robust 4" x 4.5" plate ensures a secure attachment to your equipment, while the innovative top lock mechanism enhances stability, preventing accidental movement. Designed for smooth mobility under heavy loads, this caster is the ideal choice for those who require reliability and efficiency in their operations.
Opt for the 4" x 2" Stainless Hi-Temp Nylon Delrin Bearing Top Lock Caster for unmatched performance and safety in high-temperature applications. Its heavy-duty construction and effective locking mechanism guarantee that your equipment remains secure and mobile, even in the toughest conditions. Elevate your operations with this reliable and high-performing caster.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 4" x 2" Stainless Hi-Temp Nylon Delrin Bearing Top Lock Caster (Model: D4.04109.831 HTBLK BRK7 SS) is engineered for high-performance applications in challenging environments. This caster combines advanced materials and robust design to ensure reliable mobility and stability, making it ideal for industrial and commercial use.
This caster is perfect for a wide range of applications, including:
This product comes with a 3-year warranty, ensuring that you can rely on its performance and durability. Additionally, it conforms to RoHS standards and is NSF component compliant, reinforcing its suitability for various industries.
The 4" x 2" Stainless Hi-Temp Nylon Delrin Bearing Top Lock Caster is an exceptional choice for those in need of a reliable, heavy-duty caster. Its combination of high-quality materials, thoughtful design, and excellent load capacity makes it an indispensable tool for ensuring efficiency and stability in demanding applications. Invest in this caster to enhance your equipment's mobility and performance in any challenging environment.
This Colson D4.04109.831 4" x 2" Nylon Stainless Caster with Wheel Lock Brake – CasterHQ is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

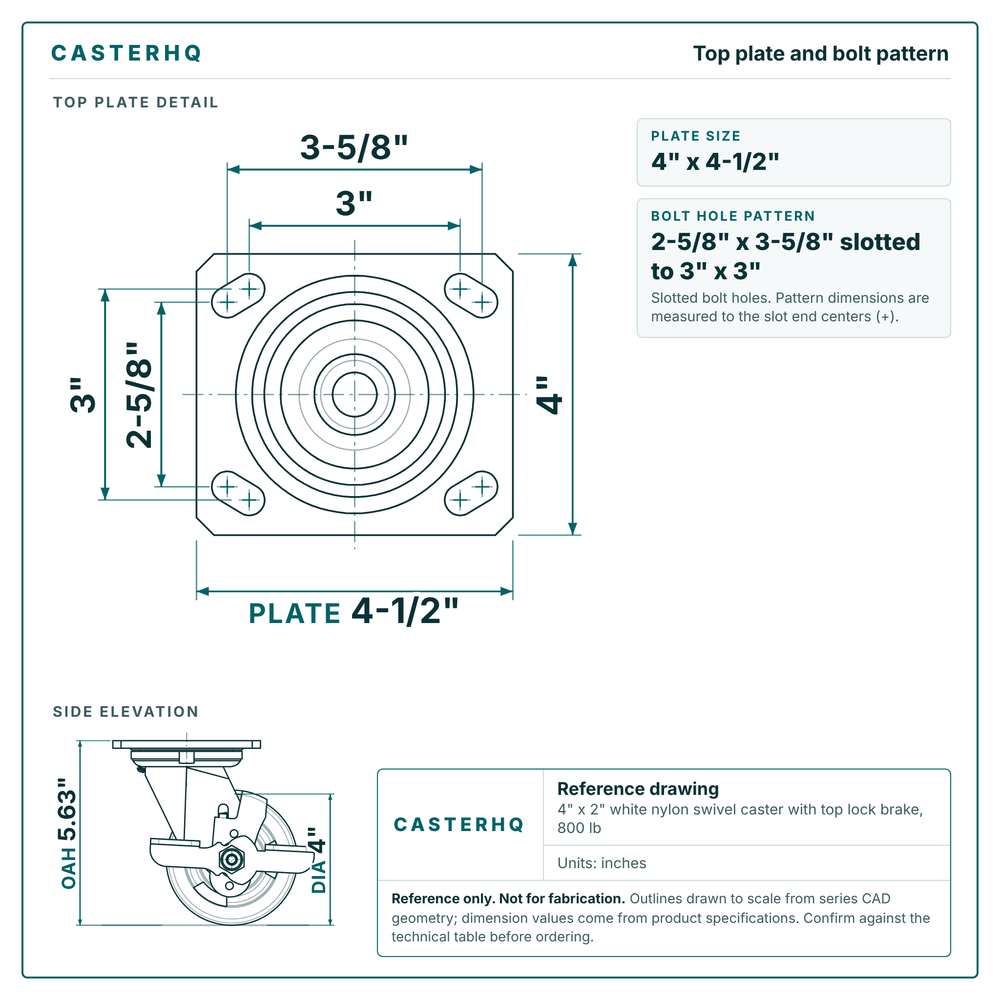

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 350°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$213.00
| Identification | |
|---|---|
| Part Number / SKU | D4.04109.831-HTBLK-BRK7-SS |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5.63" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 4-15/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Nylon |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 75-80 Shore D |
| Bearing Type | Delrin Bearing |
| Axle Diameter | 1/2" |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | Up to 350°F |
| Warranty | 3 Years |
| Compliance | |
| Buy American | Yes |

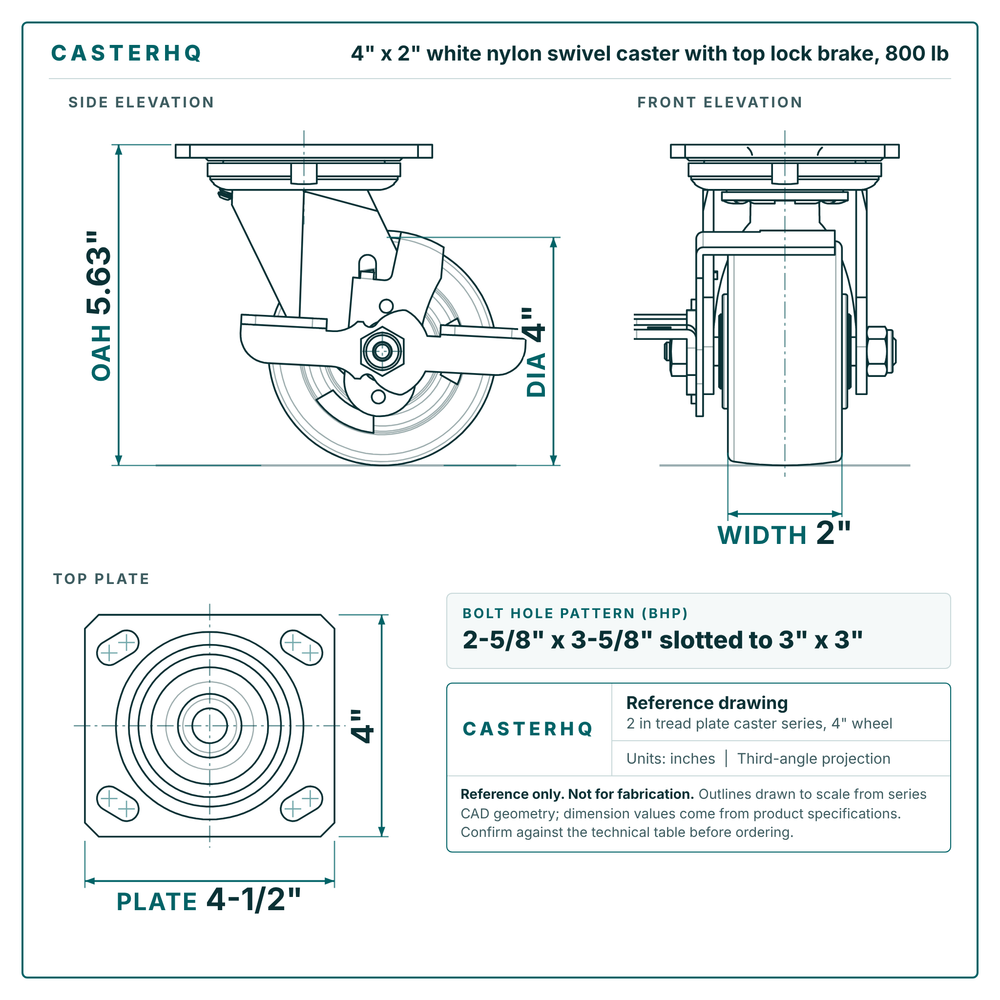

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | Brake | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Nylon | Swivel with Brake + brake | 5.63" | $213.00 | Viewing | |
 Direct fit4" x 2" Phenolic Rigid Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → |
 Direct fit4" x 2" Phenolic Swivel Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
