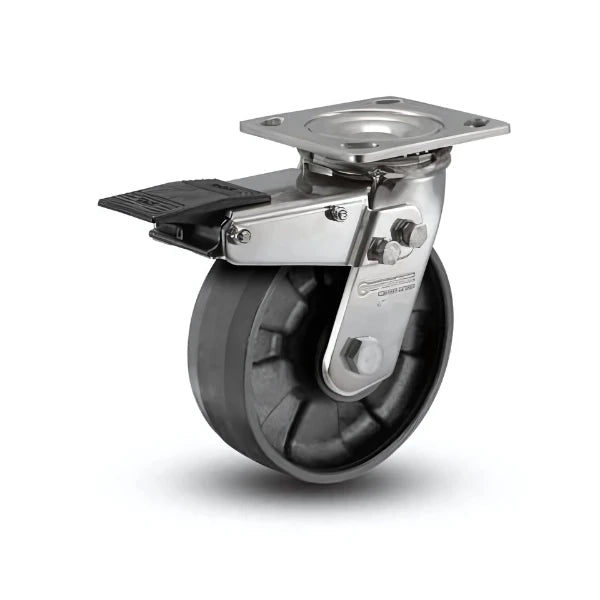

Discover the ultimate in mobility solutions with the 4" x 2" Stainless Max Nylon Delrin Bearing Caster, featuring a Total Lock mechanism for enhanced safety and stability. Engineered from premium materials, this caster ensures long-lasting performance, making it ideal for both indoor and outdoor applications. Its 4" x 4.5" plate provides a solid foundation for secure attachment to various equipment. The Delrin bearing system offers smooth and effortless movement, while the Total Lock feature keeps your equipment stationary when needed. Perfect for heavy-duty tasks in commercial and industrial settings, this caster delivers exceptional reliability and ease of use.
Enhance your operational efficiency with the 4" x 2" Stainless Max Nylon Delrin Bearing Caster. Its superior design, combined with a Total Lock feature, ensures that your equipment remains secure while providing effortless mobility. Trust in this high-performance caster for your demanding industrial needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 4" x 2" Stainless Max Nylon Delrin Bearing Caster with Total Lock is engineered for exceptional performance in demanding industrial applications. Designed to provide both mobility and stability, this caster is an essential component for any heavy-duty equipment. With a load capacity of up to 800 lbs, it is suitable for a wide range of uses, from manufacturing to warehousing.
This caster is perfect for various settings, including:
Upgrade your mobility solutions with the 4" x 2" Stainless Max Nylon Delrin Bearing Caster. Its robust design, combined with high-performance features, ensures reliable operation across a variety of demanding applications. Invest in quality and performance with this exceptional caster designed to meet the needs of modern industry.
This D4.04109.531 BRK4 SS 4" x 2" Nylon Stainless Total Lock Caster is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

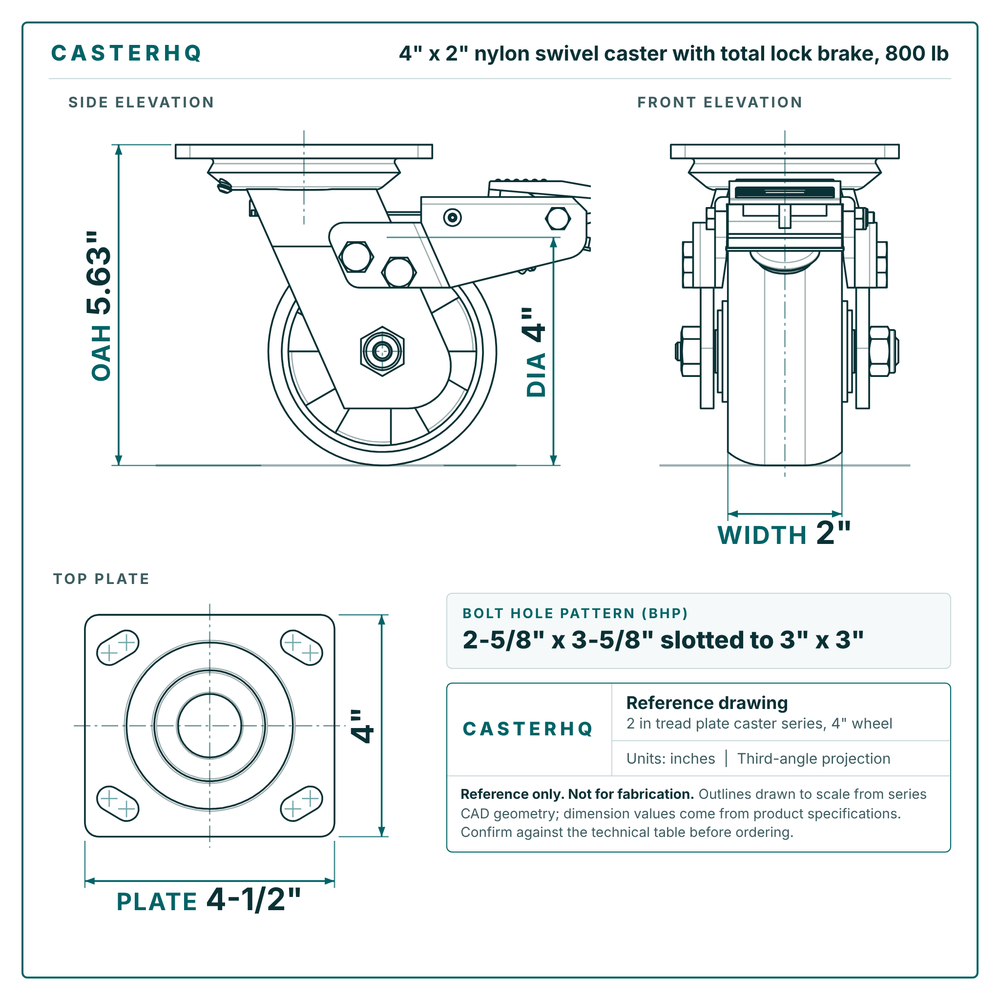

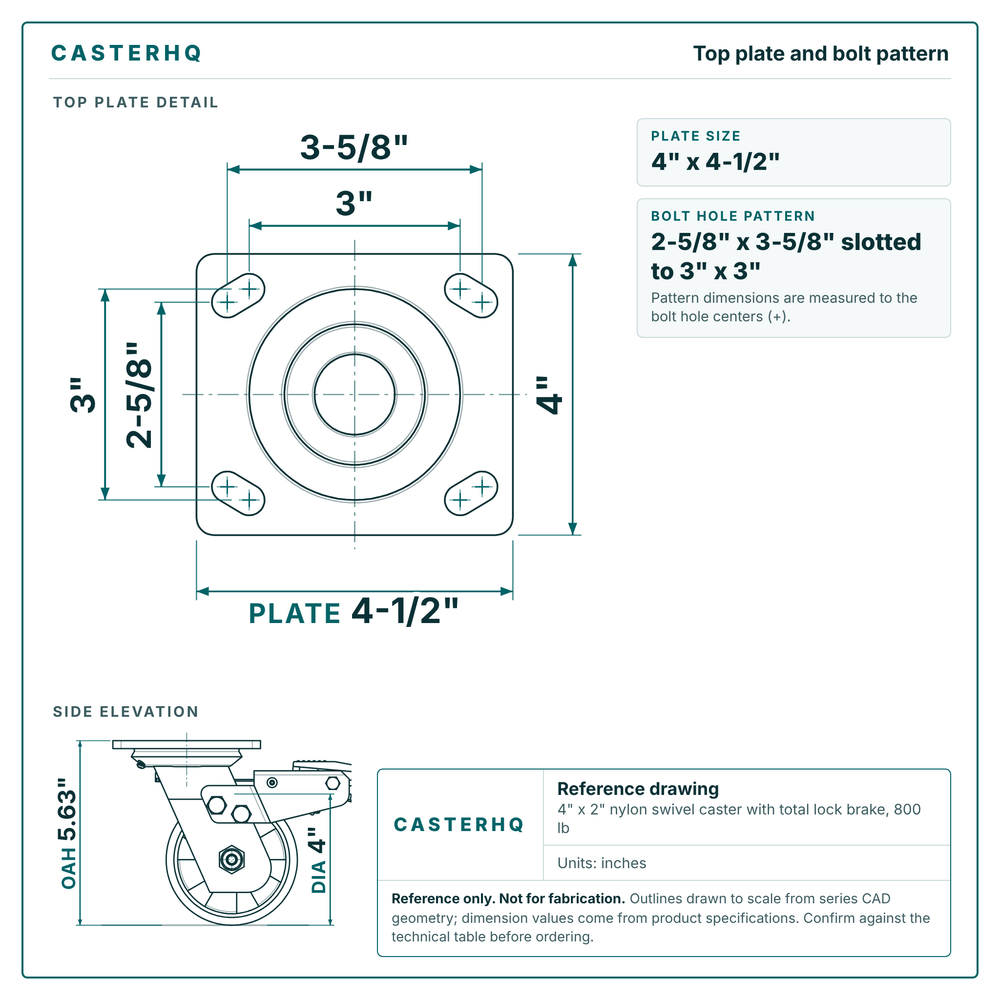

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$198.00
| Identification | |
| Brand | colson header1 |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -40°F to 600°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Zinc Plated Steel |
