Discover superior mobility and reliability with the 4" x 2" Stainless Max Nylon Precision Ball Bearing Side Lock Caster. Crafted from high-quality stainless steel and nylon, this caster is engineered for precision and longevity. The 4" x 4.5" plate ensures a stable attachment, making it an excellent choice for various applications, including industrial and commercial settings. The side lock feature provides added security, preventing accidental movement and enhancing safety in your workspace. Experience seamless movement and enhanced durability, perfect for heavy-duty tasks in warehouses, factories, and more.
Upgrade your equipment with the 4" x 2" Stainless Max Nylon Precision Ball Bearing Side Lock Caster for unmatched performance and reliability. Its innovative design guarantees smooth operation and stability, ensuring your industrial tasks are executed efficiently and safely.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 4" x 2" Stainless Max Nylon Precision Ball Bearing Side Lock Caster is designed for optimal performance in demanding industrial and commercial environments. This caster combines high-quality materials with advanced engineering to deliver reliability and durability, making it an essential component for heavy-duty applications.
Choosing the 4" x 2" Stainless Max Nylon Precision Ball Bearing Side Lock Caster means investing in quality and reliability. This caster is specifically designed for high-demand environments where safety, durability, and performance are paramount. Its innovative design and construction not only enhance equipment mobility but also ensure that it meets the rigorous standards required for commercial and industrial applications.
This versatile caster is perfect for various applications, including:
This D4.04109.535 BRK7 SS 4" x 2" Nylon Side Lock Stainless Caster – CasterHQ is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

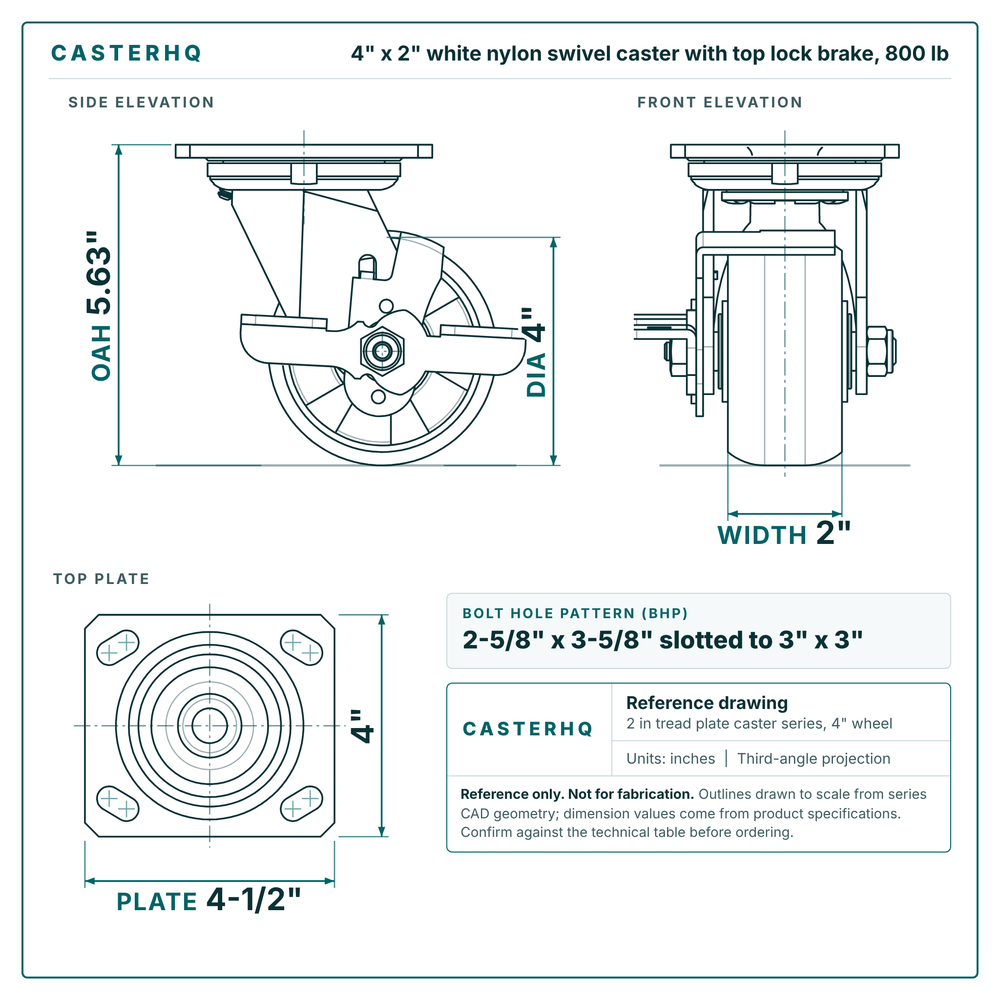

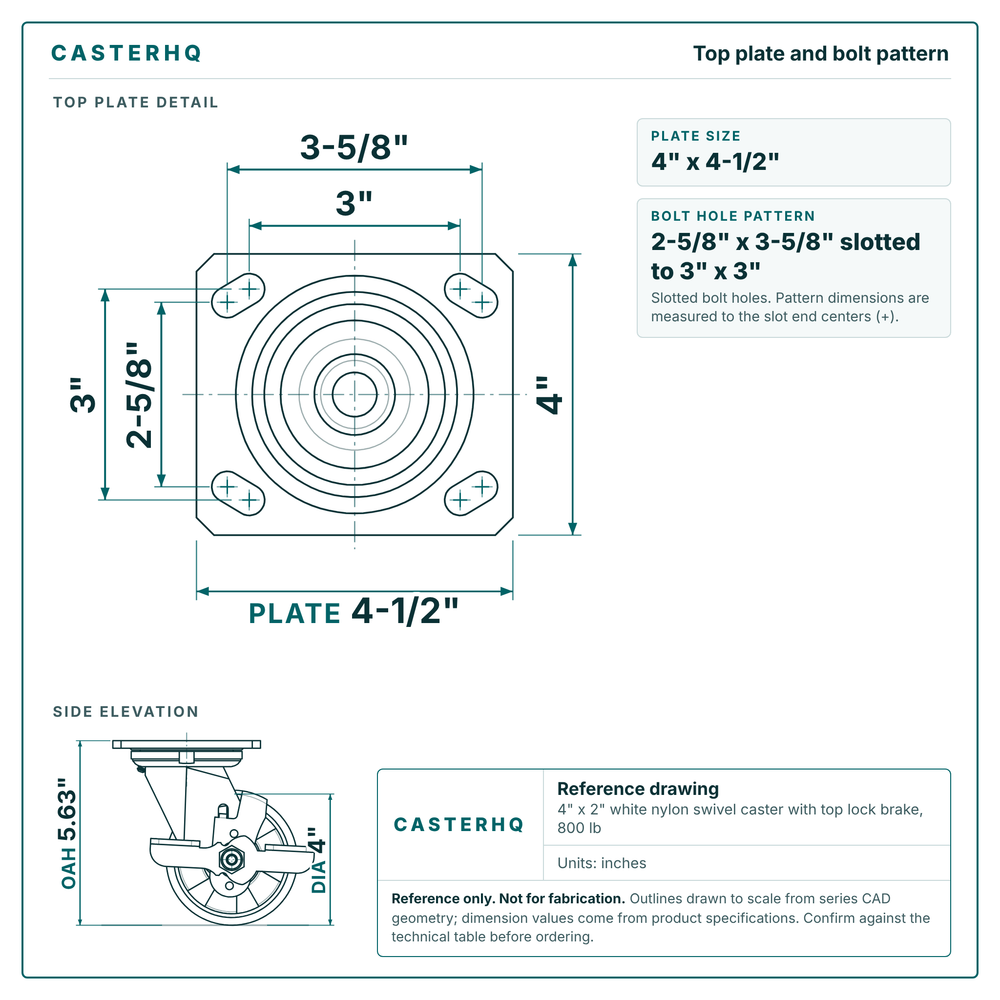

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$196.00
| Identification | |
| Brand | colson header1 |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -40°F to 600°F |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Zinc Plated Steel |
