The 4" x 2" Stainless Performa Rubber (Flat/Conductive) Roller Bearing CAM-Brake Caster is expertly crafted to meet the needs of high-demand environments. This caster features a flat rubber wheel that is both conductive and durable, ideal for use in settings where static control is essential. Its robust stainless steel construction ensures longevity and resistance to corrosion, while the roller bearing design allows for smooth and efficient movement. The integrated CAM-brake provides additional safety by securely locking the caster in place when needed. The compact 4" x 4.5" plate facilitates easy installation on various equipment, making it a versatile choice for industrial applications.
Optimize your operations with the 4" x 2" Stainless Performa Rubber CAM-Brake Caster. Designed for safety and performance, this caster ensures reliable operation under demanding conditions. Its conductive properties make it suitable for environments requiring static control, while the durable materials guarantee long-lasting use. Invest in a caster that provides both functionality and peace of mind, enhancing the efficiency of your equipment.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 4" x 2" Stainless Performa Rubber (Flat/Conductive) Roller Bearing CAM-Brake Caster (Model: D4.04109.459 COND BRK3 SS WB29) is expertly designed for high-performance applications where durability and safety are paramount. This caster combines a robust construction with innovative features to ensure reliability in demanding industrial environments.
This caster is perfect for use in various settings, including:
The caster features a 4" x 4.5" top plate for easy installation, allowing for quick integration into existing equipment. The 3/8" recommended bolt size ensures a secure fit. Maintenance is straightforward, thanks to the absence of thread guards, which simplifies cleaning and upkeep.
The product comes with a 3-year warranty, providing peace of mind for your investment. Additionally, it is RoHS compliant and features NSF certification (less thread guards), ensuring it meets regulatory standards for safety and quality.
The 4" x 2" Stainless Performa Rubber CAM-Brake Caster is an excellent choice for those seeking reliability, durability, and safety in an industrial caster. Invest in this high-quality product to enhance your operational efficiency and ensure smooth movement of your equipment in demanding environments.
This D4.04109.459 4" x 2" Performa Rubber Stainless Caster with Brake – CasterHQ is rated to 300 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

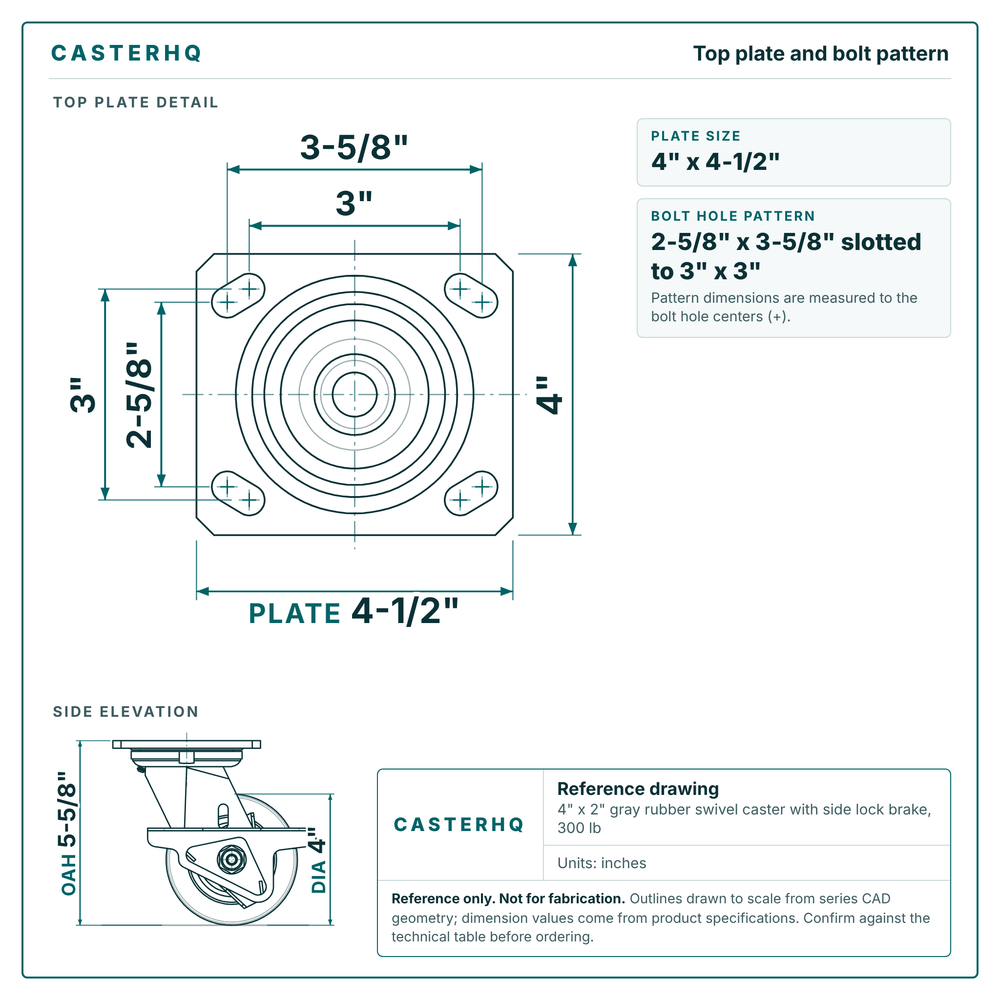

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5-5/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$257.00
| Identification | |
|---|---|
| Part Number / SKU | D4.04109.459-COND-BRK3-SS-WB29 |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 300 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5-5/8" |
| Rig Type | Swivel with Brake |
| Brake | Side Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 4-15/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel | |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Bearing Type | Roller Bearing |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | -40°F to 600°F |
| Compliance | |
| Buy American | Yes |

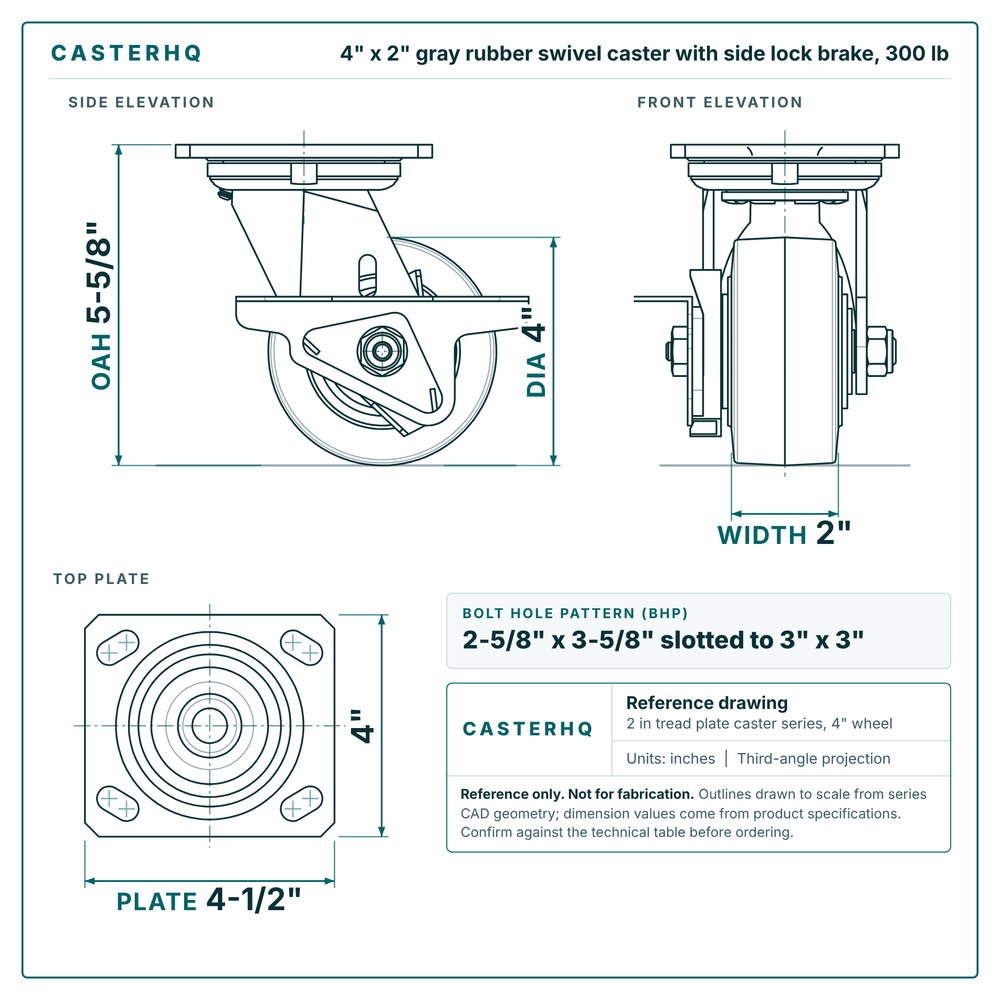

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 200 lbsLighter duty | 4" × 2"Gray Rubber | Rigid | 5-5/8" | $39.00 | View → | |
| 250 lbsLighter duty | 4" × 2"Gray Rubber | Swivel | 5-5/8" | $40.00 | View → | |
| 300 lbs | 4" × 2"Gray Rubber | Swivel with Brake + brake | 5-5/8" | $257.00 | Viewing | |
| 300 lbsSame capacity | 4" × 2"Gray Rubber | Rigid | 5-5/8" | $26.00 | View → | |
| 350 lbsHeavier duty | 4" × 2"Gray Rubber | — | — | $14.00 | View → |
