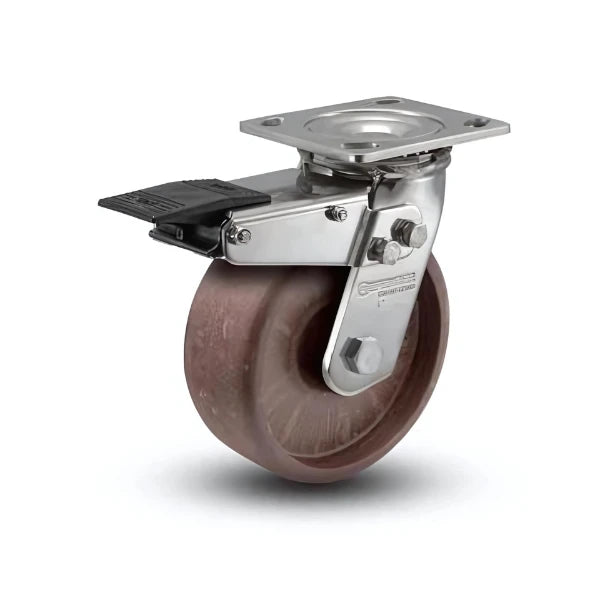

Discover the durability and reliability of the 4" x 2" Stainless Thermo Hi-Temp Roller Bearing Caster. Engineered for high-temperature environments, this caster features a robust stainless steel construction that resists corrosion and wear. Its roller bearing design allows for smooth mobility, while the total lock mechanism ensures secure positioning during operation. The 4" x 4.5" plate provides a stable base for various applications, making it ideal for use in food processing, pharmaceutical, and industrial settings. Elevate your equipment's efficiency and reliability with this high-performance caster, designed to withstand the demands of tough working conditions.
Upgrade to the 4" x 2" Stainless Thermo Hi-Temp Roller Bearing Caster for superior performance and reliability in extreme conditions. With its total lock feature and high-temperature resistance, this caster is engineered to meet the needs of demanding environments while providing exceptional stability and ease of use.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 4" x 2" Stainless Thermo Hi-Temp Roller Bearing Caster is engineered for high-performance and durability in demanding environments. With a robust stainless steel construction and specialized features, this caster is ideal for industries requiring reliable mobility and temperature resistance. Designed to withstand extreme conditions, it is perfect for applications in food processing, pharmaceuticals, and manufacturing.
The versatility of the 4" x 2" Stainless Thermo Hi-Temp Roller Bearing Caster makes it suitable for a wide range of applications, including:
Upgrade your equipment with the 4" x 2" Stainless Thermo Hi-Temp Roller Bearing Caster for its unmatched performance, durability, and safety features. Whether you are in a food processing facility or a manufacturing plant, this caster will provide the reliable mobility needed to enhance your operational efficiency.
This 4" x 2" Stainless Steel Total Lock Caster – 4" x 4.5" Plate is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

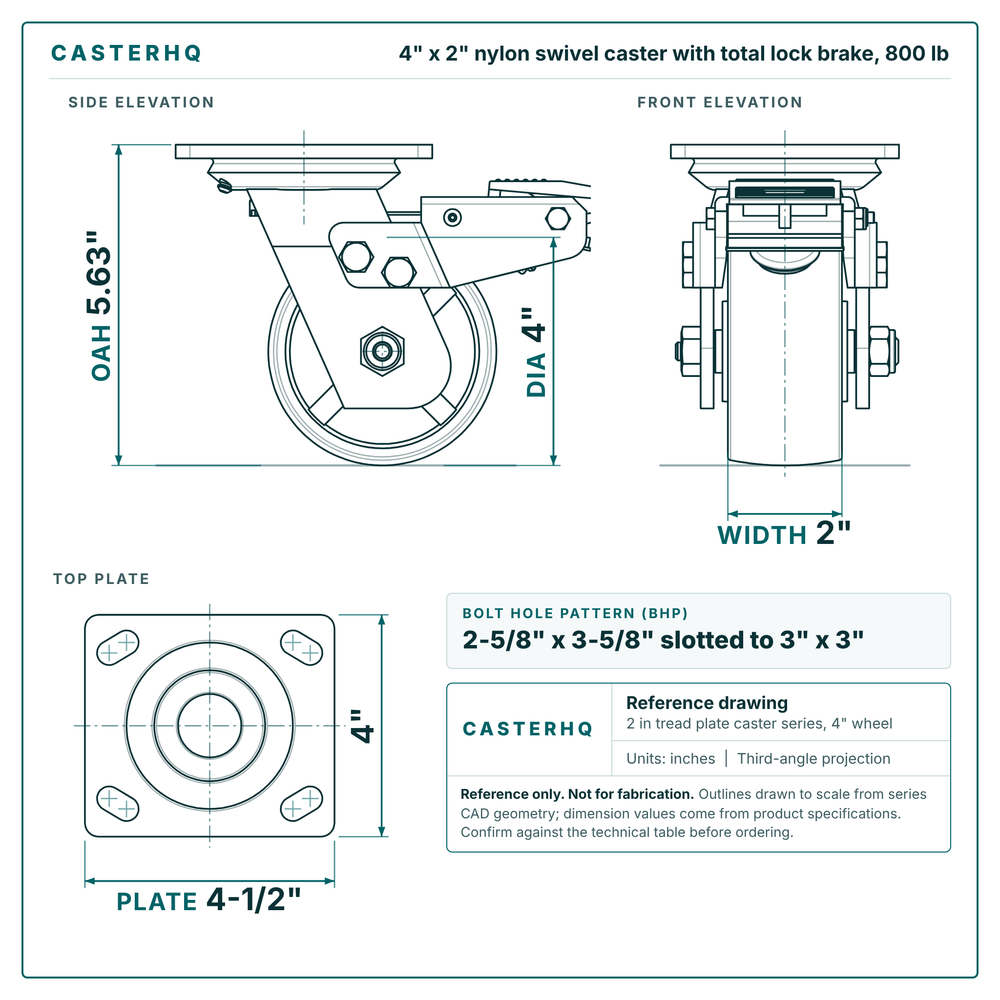

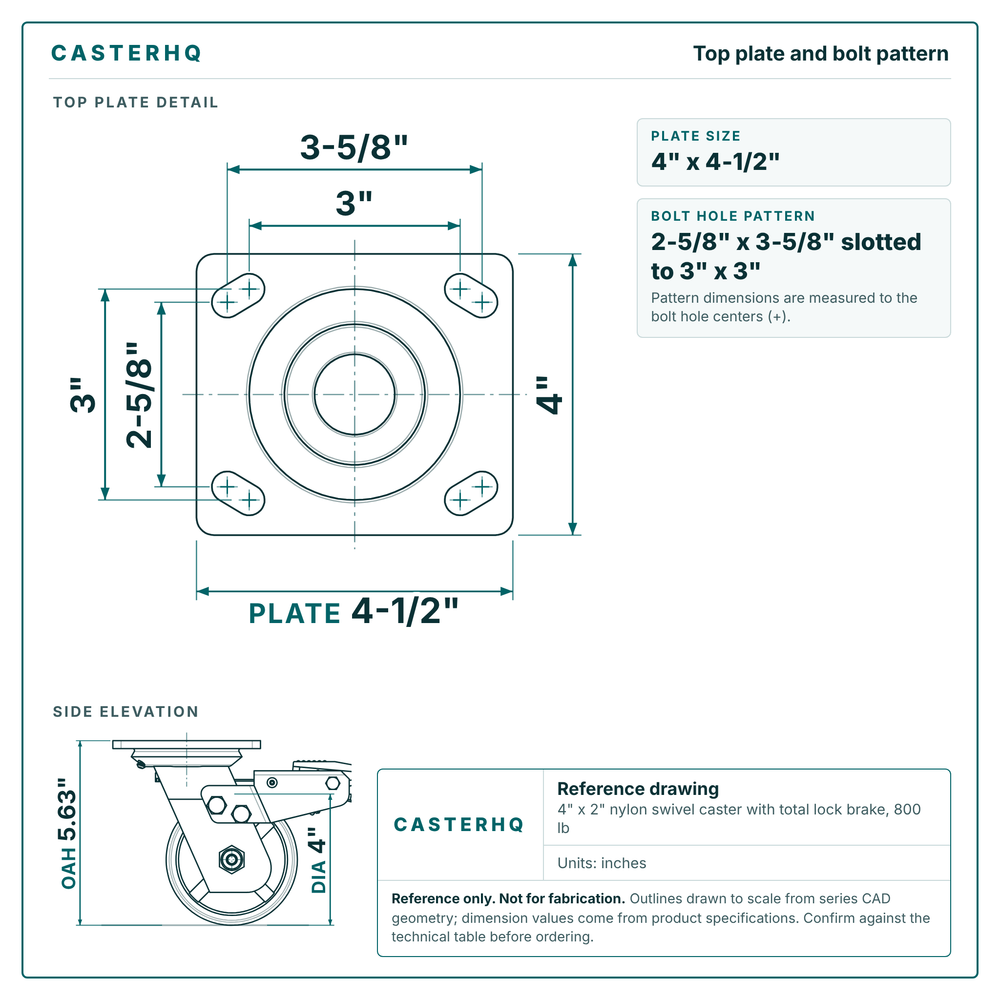

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$223.00
| Identification | |
| Brand | colson header1 |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -40°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
4" x 2" Phenolic Swivel Caster 4-1/2" x 6-1/4" Plate – 800 lb | CasterHQ
4" x 2" · 800 lbs
$29
4" x 2" Phenolic Rigid Caster – 800 lb | 4" x 4-1/2" Top Plate | CasterHQ
4" x 2" · 800 lbs · Direct fit
$21
4" x 2" Phenolic Swivel Caster – 800 lb | 4" x 4-1/2" Top Plate | CasterHQ
4" x 2" · 800 lbs · Direct fit
$25
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | — | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Polyurethane | Swivel with Total Lock Brake + brake | 5.63" | $223.00 | Viewing | |
 Direct fit4" x 2" Phenolic Rigid Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → |
 Direct fit4" x 2" Phenolic Swivel Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
