PRODUCT CODE: 16XA04201SFBA
| Specification | Details |
|---|---|
| SKU | 16XA04201SFBA |
| Raceway Type | 3/4" Kingpin Hardened Dual Ball Bearing Raceway |
| Brake | FBA Face Brake (FBA) |
| Load Capacity | 600 lb |
| Mounting Height | 5.63 in |
| Wheel Tread Width | 2 in |
| Wheel Description | XA - Polyurethane (Polypropylene Core) |
| Wheel Color | Grey Tread on Grey Polypropylene Core |
| Wheel Bearing | Roller |
| Wheel Profile | Crowned Tread |
| Wheel Hardness | 63(±5) Shore D |
| Wheel Thread Guards | None |
| Fastening | 4" x 4-1/2" top plate |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Plate Bolt Size Recommended | 3/8" |
| Swivel Radius | 4.08 in |
| Swivel Lead | 1.63 in |
| Toe Guard | None |
| Finish | Zinc Plated |
| Operating Temperature Range | -40°F to +180°F |
| Manufacturing Code | 16XA04201SFBA |
| Warranty | 3 year |
| Conformity | RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability |

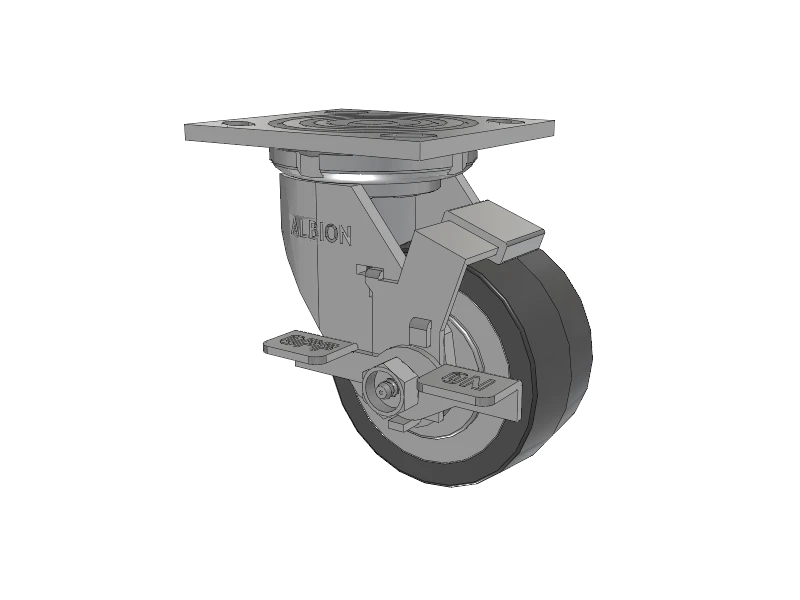

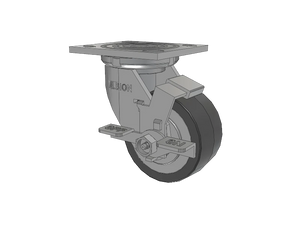

Enhance your equipment's mobility with the 4" x 2" USA-Rig Side Locking Caster, featuring a Floor Protective TPU Wheel. This caster is designed for industrial environments, providing superior load handling and durability. The 4" x 4-1/2" top plate ensures a secure attachment, making it ideal for applications requiring reliable and stable movement. With its high-performance TPU wheel, this caster offers excellent traction and is gentle on floors, even under heavy loads. Perfect for factory floors, warehouses, and other demanding settings, this caster enhances both mobility and equipment longevity.
Upgrade your operational efficiency with the 4" x 2" USA-Rig Side Locking Caster. Experience unmatched durability and load capacity, ensuring smooth and reliable performance in your industrial applications.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
The 4" x 2" USA-Rig Side Locking Caster with Floor Protective TPU Wheel is engineered to enhance your equipment's mobility and performance. This caster is designed for industrial environments, providing superior load handling and durability. The side locking feature ensures stability and safety during use, making it ideal for applications that require secure and stable movement.
The 4" x 4-1/2" top plate ensures a secure attachment, allowing for easy installation and reliable performance. The high-performance TPU wheel offers excellent traction and is resistant to wear and tear, even under heavy loads. This makes it perfect for factory floors, warehouses, and other demanding settings where durability and reliability are crucial.
The floor protective TPU wheel is designed to prevent damage to flooring surfaces, ensuring smooth and quiet operation. This feature is particularly beneficial in environments where maintaining the integrity of the flooring is important. The caster's heavy-duty performance makes it suitable for a wide range of applications, from industrial machinery to material handling equipment.
Upgrade your operational efficiency with the 4" x 2" USA-Rig Side Locking Caster. Experience unmatched durability and load capacity, ensuring smooth and reliable performance in your industrial applications. Invest in quality and reliability with this top-of-the-line caster, designed to meet the demands of the most challenging environments.
$38.00
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Wheel Capacity | 600 lbs |
| Temp Range | -20°F to 180°F |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
