Experience the difference exceptional casters can make. This heavy-duty model boasts a 300 lb load capacity and smooth-rolling Performa Rubber BB wheels, perfect for industrial and commercial applications.
Our Caster Experts are here weekdays 8 am - 5 pm to answer your questions and provide project-specific advice. Contact us today!
Upgrade your equipment with our top-of-the-line swivel caster and enjoy enhanced performance, durability, and convenience.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

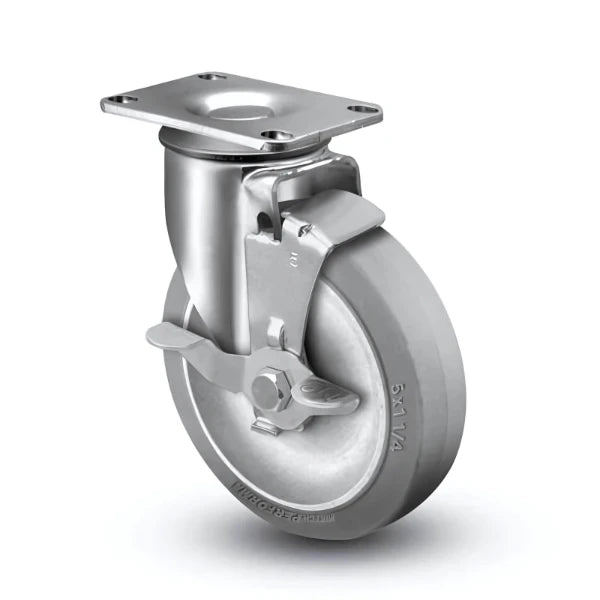

Our 4"x1.25" top locking swivel caster is designed to elevate your equipment's performance and durability. With its robust construction, smooth-rolling wheels, and versatile features, it's the ideal choice for a wide range of applications.
Upgrade your equipment with our 4"x1.25" top locking swivel caster and experience the difference. With its durability, performance, and versatility, it's the ideal choice for professionals who demand the best.
This 4" x 1.25" Performa Rubber Swivel Caster with Wheel Lock Brake – 300 lb is rated to 300 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 1-1/4" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

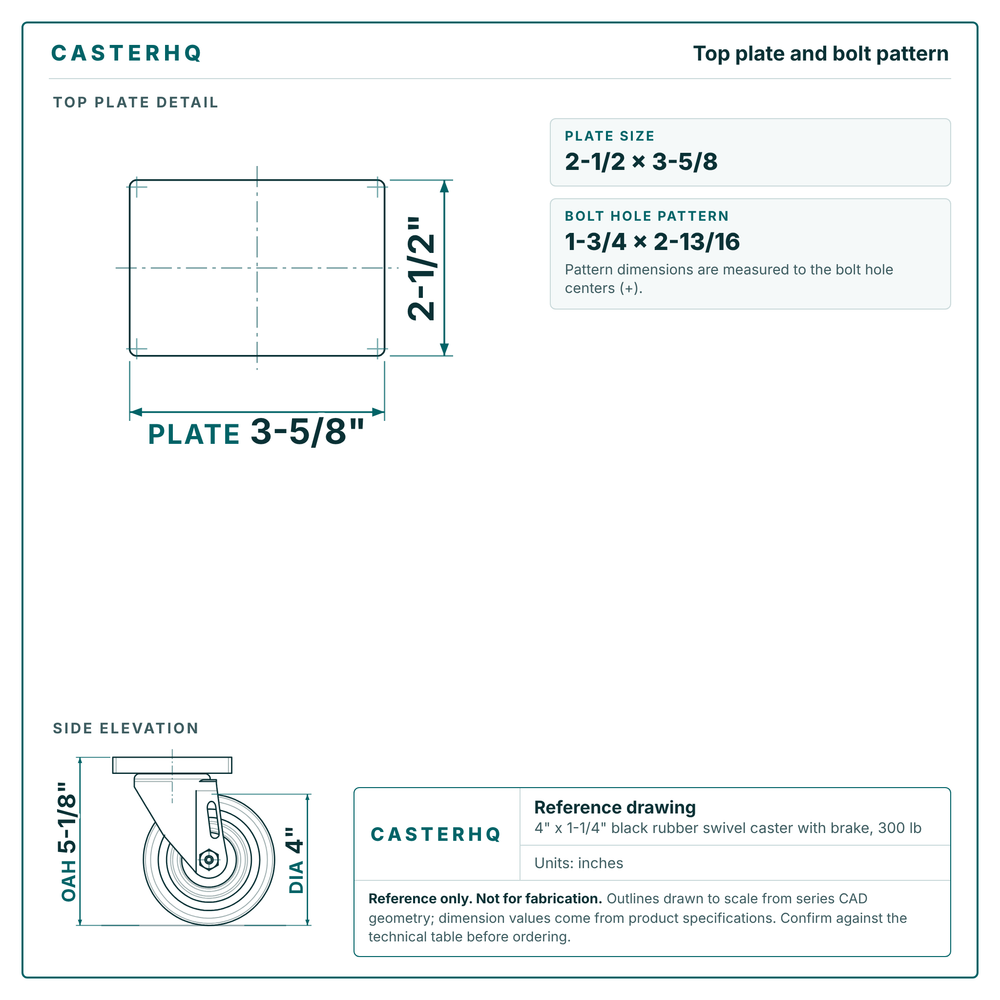

This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5-1/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$54.00
| Identification | |
|---|---|
| Part Number / SKU | 2.04256.445-BRK1 |
| Product Series | 22 Series (to 325 lb/ea) |
| Core | |
| Load Capacity | 300 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 1-1/4" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5-1/8" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 3-11/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 2-1/2" x 3-5/8" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 1-3/4" x 2-13/16" |
| Recommended Mounting Bolt | 5/16" |
| Wheel | |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 65(+/-5) Shore A |
| Wheel Color | Grey on Grey |
| Bearing Type | Precision Ball |
| Axle Diameter | 3/8" diameter |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -45F° to +180F° |

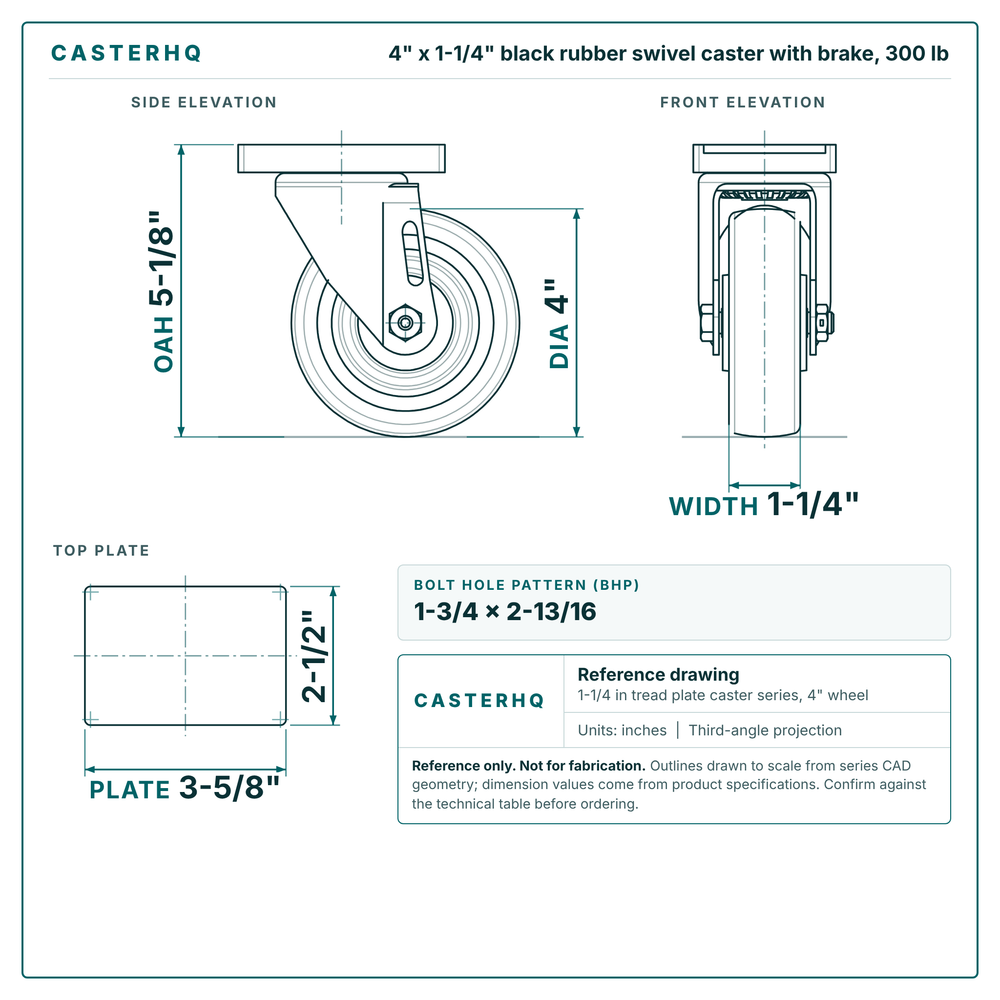

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 1-1/4" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 250 lbsLighter duty | 4" × 1-1/4"Gray Rubber | Swivel with Total Lock Brake + brake | 5-1/8" | $24.00 | View → | |
| 300 lbs | 4" × 1-1/4"Gray Rubber | Swivel with Brake + brake | 5-1/8" | $54.00 | Viewing | |
| 300 lbsSame capacity | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $19.00 | View → | |
| 300 lbsSame capacity | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $19.00 | View → | |
| 300 lbsSame capacity | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $19.00 | View → |
