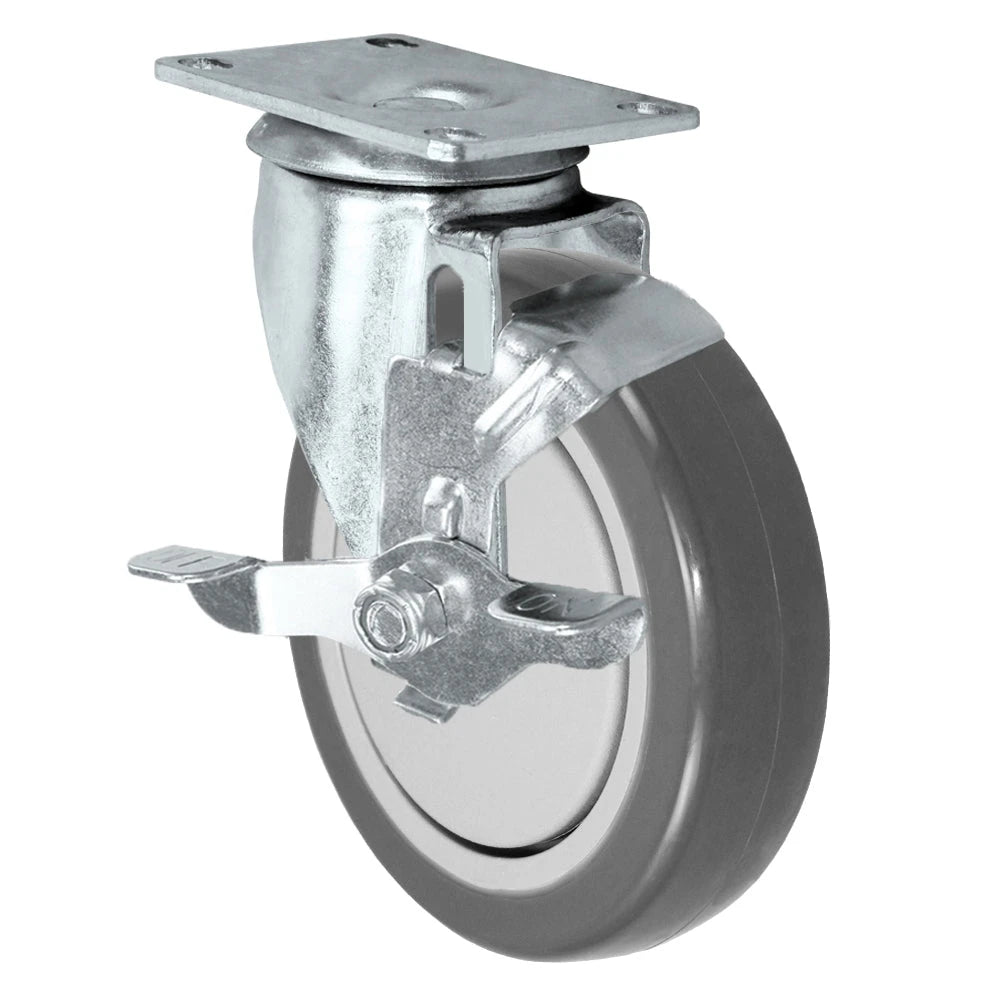

High-quality CasterHQ replacement swivel caster with a top locking brake for Cambro Ultra Pan Carriers, Service Carts, Beverage Service Carts, Ice Caddies, Camdollies, and Utility Trucks. Casters feature a zinc-plated finish, with polyurethane tread wheels that roll smoothly with an integrated ball bearing design. The polyurethane wheel performs well on most surfaces, and excels on hard surfaces like concrete, tile, and wood. They will not mark or mar floor surfaces. hnical Specificati
| Specification | Details |
|---|---|
| Wheel size | 5" x 1-1/4" |

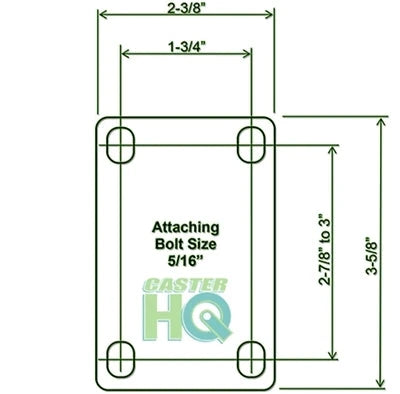

| Top plate size | 2-3/8" x 3-5/8" |
| Bolt hole pattern | 1-3/4" x 2-7/8" to 3" |
| Bolt size | 5/16" (hardware not included) |
| Mounting height | 6-1/8" |
| Load capacity | 350 pound per caster |
| Tread hardness | 60 +/- 5 Shore (D) Durometer |
| Brake Type | Top Locking Brake |
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Enhance the mobility of your Cambro Ultra Pan Carriers, Service Carts, Beverage Service Carts, Ice Caddies, Camdollies, and Utility Trucks with CasterHQ's top-quality replacement swivel caster. These casters are designed to deliver exceptional performance on a variety of surfaces, making your equipment easy to maneuver.
With a zinc-plated finish and polyurethane tread wheels, these swivel casters with brakes are built to last. The integrated ball bearing design ensures smooth rolling, while the polyurethane wheels excel on hard surfaces like concrete, tile, and wood. Plus, they won't leave marks or mar your floor surfaces.
Whether you're in the catering business, hospitality industry, or any other
This caster runs a Polyurethane wheel. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 1-1/4" x 5" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$21.00
| Dimensions & Mounting | |
| Overall Height | 6-1/8" |
| Plate Size | 1-1/4" x 5" |
| Mount Style | Plate |
| Rig Type | Swivel with Brake |
| Load & Performance | |
| Temp Range | -20°F to 180°F |
| Brake Type | Side Lock Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
