5" x 1.3125" Performa Ball Bearing Direction Lock Caster - Durable Industrial Caster with 2.5" x 3.625" Plate for Reliable Mobility and Load Handling (SKU: 2.05156.565) colson-header

COLSON HEADER

5" x 1.3125" Performa Direction Lock Caster – 2.5" x 3.625" Plate | CasterHQ

Wheel

5" x 1-5/16"

Capacity

250 lbs

Overall Height

6-3/16"

Plate Size

2-1/2" x 3-5/8"

Full specs Spec sheet (PDF)

$61.00 USD

Save 30%+ vs big-box distributors

In Stock · Ships in 1-3 Business Days

✉️ Email a Caster Solutions Expert (Mon–Fri 8–5 CST)

PO Net 30 ACH Tax-Exempt

Business Purchasing

Purchase orders accepted for approved accounts
Net 30 terms for qualified businesses
ACH, credit card, and tax-exempt ordering
Bulk and contract pricing on fleet quantities

Upload a PO / Quote·Request bulk pricing·844-439-4335

Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.

Call now

Product Overview

At a glance

Load capacity250 lbs

Wheel5" × 1-5/16" Gray Rubber

MountPlate — 2-1/2" x 3-5/8"

TypeSwivel with Brake with brake

Overall height6-3/16"

Temperature-20°F to 180°F

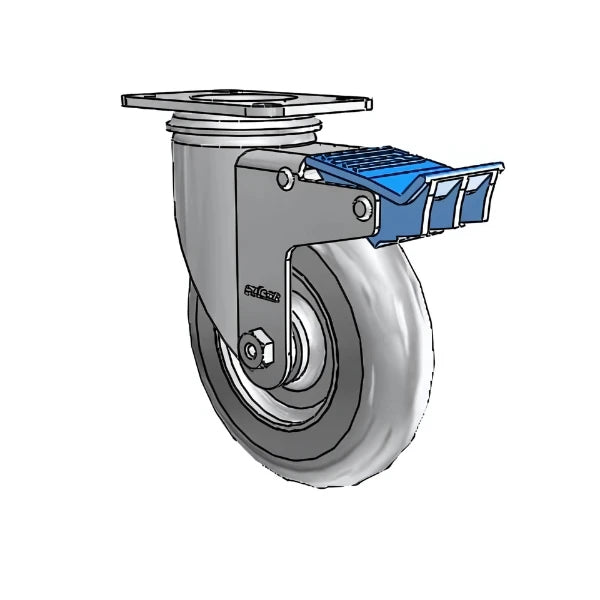

5" x 1.3125" Performa Ball Bearing Direction Lock Caster with 2.5" x 3.625" Plate - 2.05156.565

Product Features

Size: 5" diameter x 1.3125" width
Plate Dimensions: 2.5" x 3.625"
Type: Ball bearing direction lock for secure mobility
Material: Durable construction for long-lasting performance
Application: Ideal for industrial carts, furniture, and equipment
Weight Capacity: Engineered to handle substantial loads efficiently

The 5" x 1.3125" Performa Ball Bearing Direction Lock Caster - 2.05156.565 is expertly designed to offer optimal maneuverability and stability for various applications. With its robust ball bearing mechanism, this caster provides smooth movement and reliable locking capabilities, making it perfect for heavy-duty tasks in warehouses, workshops, and retail environments. The durable materials ensure a long service life, while the generous plate dimensions facilitate easy installation on a variety of surfaces. Enhance your operational efficiency with this high-quality caster, crafted for performance and reliability.

Why Choose Our Performa Ball Bearing Direction Lock Caster?

Opt for the 5" x 1.3125" Performa Ball Bearing Direction Lock Caster to upgrade your mobility solutions. Its solid construction and dependable locking feature make it an essential addition to any industrial or commercial setting. Maximize productivity and ensure safe, easy transport of goods with this premium caster. By selecting our Performa caster, you invest in a product that enhances workflow, improves safety, and boosts overall customer satisfaction.

Key Features

Top 10 Features of the 5" x 1.3125" Performa Ball Bearing Direction Lock Caster

Durable Construction: Features full double ball hardened raceways for exceptional performance and longevity.
Temperature Resistance: Equipped with multi-temp grease, this caster operates efficiently in extreme hot and cold temperatures, ranging from -45°F to +180°F.
High Load Capacity: Capable of supporting up to 250 lbs, making it ideal for heavy-duty applications.
User-Friendly Design: Direction lock feature allows for easy and reliable maneuverability, enhancing operational efficiency.
Versatile Mounting: Mounting height of 6.19 inches and a 2-1/2" x 3-5/8" top plate ensure compatibility with various setups.
Optimized Wheel Performance: Round tread design and 1.31-inch wheel width offer smooth movement and stability.
Quality Bearings: Ball bearing wheel provides enhanced maneuverability and reduced friction for easier movement.
Easy Installation: Bolt hole pattern (1-3/4" x 2-13/16" to 3-1/16") and recommended bolt size (5/16") streamline the installation process.
Rust-Resistant Finish: Zinc finish provides added protection against corrosion, extending the caster's lifespan.
Trusted Warranty: Comes with a 3-year warranty, ensuring reliability and customer satisfaction.

Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts

Net 30 terms — available on approved credit

ACH & all major cards — Visa, MC, Amex, Discover

Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Extended Information on the 5" x 1.3125" Performa Ball Bearing Direction Lock Caster

Product Overview

The 5" x 1.3125" Performa Ball Bearing Direction Lock Caster (SKU: 2.05156.565) is engineered for optimal performance in a variety of industrial and commercial applications. With a robust design and high-quality materials, this caster ensures reliable mobility and ease of use, making it an essential component for carts, equipment, and furniture. Its combination of durability and functionality provides a practical solution for businesses looking to enhance their operational efficiency.

Key Features

Durability: Constructed with full double ball hardened raceways and multi-temp grease, this caster performs exceptionally well in both hot and cold environments.
High Load Capacity: Designed to support up to 250 lbs, it is suitable for various heavy-duty applications.
Easy Maneuverability: The direction lock feature allows for precise control, making it ideal for moving heavy items safely.
Versatile Installation: The 2-1/2" x 3-5/8" top plate and user-friendly bolt hole pattern facilitate straightforward mounting on different surfaces.
Corrosion Resistance: Finished with a zinc coating, this caster resists rust and extends its lifespan.
Temperature Resilience: Operating efficiently within a temperature range of -45°F to +180°F ensures reliability in diverse conditions.
Trusted Warranty: Backed by a 3-year warranty, this product demonstrates confidence in quality and performance.

Applications

This caster is ideal for a variety of applications, including:

Industrial carts for transporting materials
Warehouse equipment for easy movement of goods
Office furniture requiring flexible mobility
Heavy-duty shelving units for stability and ease of access

Conclusion

The 5" x 1.3125" Performa Ball Bearing Direction Lock Caster is a versatile and reliable solution for those in need of quality mobility products. Its combination of robust features, durability, and high load capacity makes it a top choice for businesses aiming to improve their operational workflow. Invest in this caster to enhance your equipment's functionality and ensure a smooth, efficient moving experience.

Frequently Asked Questions

What is the load capacity of this caster?+

This 5" x 1.3125" Performa Direction Lock Caster – 2.5" x 3.625" Plate is rated to 250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Gray Rubber wheel with a 1-5/16" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

What plate size and bolt pattern does it use?+

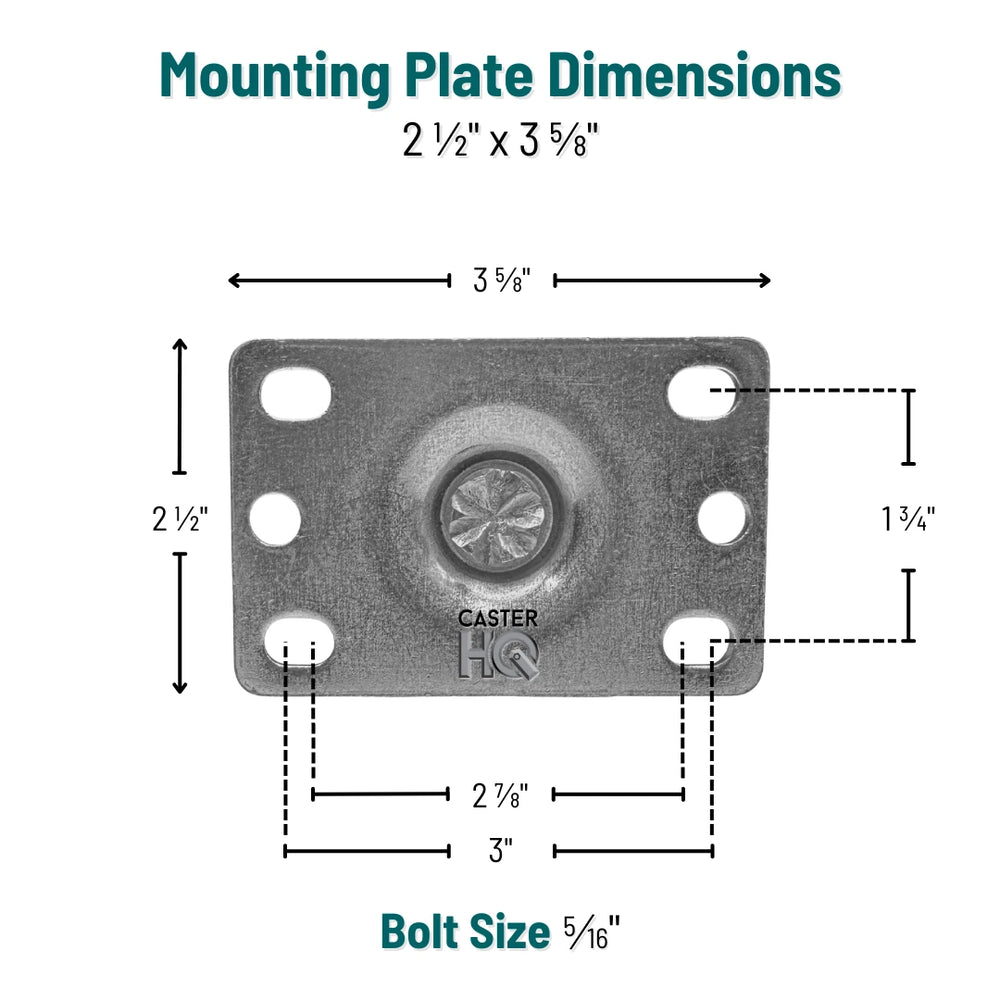

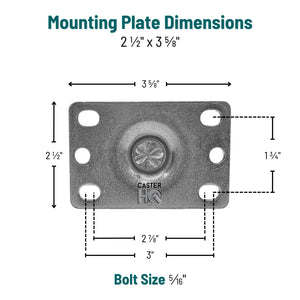

This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 6-3/16". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

5" x 1.3125" Performa Direction Lock Caster – 2.5" x 3.625" Plate | CasterHQ

$61.00

Technical Specifications

Identification
Brand	colson header
Dimensions & Mounting
Wheel Diameter	5"
Wheel Tread Width	1-5/16"
Overall Height	6-3/16"
Plate Size	2-1/2" x 3-5/8"
Bolt Hole Pattern	1-3/4" x 2-13/16"
Mount Style	Plate
Rig Type	Swivel with Brake
Load & Performance
Wheel Capacity	250 lbs
Temp Range	-20°F to 180°F
Brake Type	Side Lock Brake
Materials & Finish
Wheel Material	Gray Rubber
Wheel Core Material	Polyolefin
Frame Material	Zinc Plated Steel

Reference Dimensions

Overall Height6-3/16"

Wheel5" x 1-5/16"

Top Plate2-1/2" x 3-5/8"

Bolt Pattern1-3/4" x 2-13/16"

Wheel MaterialGray Rubber

Illustrative caster profile drawn to this item's proportions — dimensions are manufacturer specification values. Confirm against the technical table before ordering.

Compare Similar

5" x 1-1/4" Polyurethane Swivel Caster – 325 lb | 3-1/8" x 4-1/8" Plate | CasterHQ 5" x 1-1/4" · 325 lbs $27

5" x 1-1/4" Polyurethane Swivel Caster – 325 lb | 3-1/8" x 4-1/8" Plate | CasterHQ 5" x 1-1/4" · 325 lbs $23

5" x 1.25" Polyurethane Swivel Caster – 350 lb | 2-3/8" x 3-5/8" Plate | CasterHQ 5" x 1-1/4" · 350 lbs $23 View all plate casters →

Will This Caster Handle Your Load?

Enter your loaded weight — we derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.

Rated capacity: 250 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →

Fitment & Interchange

MountPlate

Plate Size2-1/2" x 3-5/8"

Bolt Pattern1-3/4" x 2-13/16"

Rig TypeSwivel with Brake

BrakeSide Lock Brake

Replacing an existing caster? Match the bolt pattern first, then wheel size · more 2-1/2" x 3-5/8" plate casters →

Documentation

Spec sheet (PDF) 30-day pricing honored Request STEP / CAD fileour engineers email it same day Caster selection guide Caster University Fleet & contract pricing Net 30 available

30-day returns · manufacturer warranty · spec support: 844-439-4335 (Mon–Fri 8–5 CST)
