These 5" x 2" swivel casters are built tough to handle your toughest jobs. With a weight capacity of 800 lbs, they can easily move heavy furniture, equipment, and other materials.
Got questions about caster wheels? Our Caster Experts are here weekdays 8 am - 5 pm to help you find the perfect solution for your project needs.
Got questions about our Heavy Duty Swivel Casters? Our Caster Experts are here weekdays 8 am - 5 pm to provide expert advice for your project needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Heavy-duty swivel casters are the workhorses of the industrial world, providing smooth and efficient mobility for a vast array of applications. Their robust construction and high weight capacity make them ideal for handling heavy loads in demanding environments. Let's explore some of the most common applications for heavy-duty swivel casters:
Need help finding the perfect heavy-duty swivel caster for your specific application? Our team of caster experts is here to assist you. Contact us during business hours and get expert advice to ensure you select the most suitable casters for your needs.
This P&H 4655 5" x 2" Polyurethane Swivel Caster 4" x 4-1/2" Top Plate – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

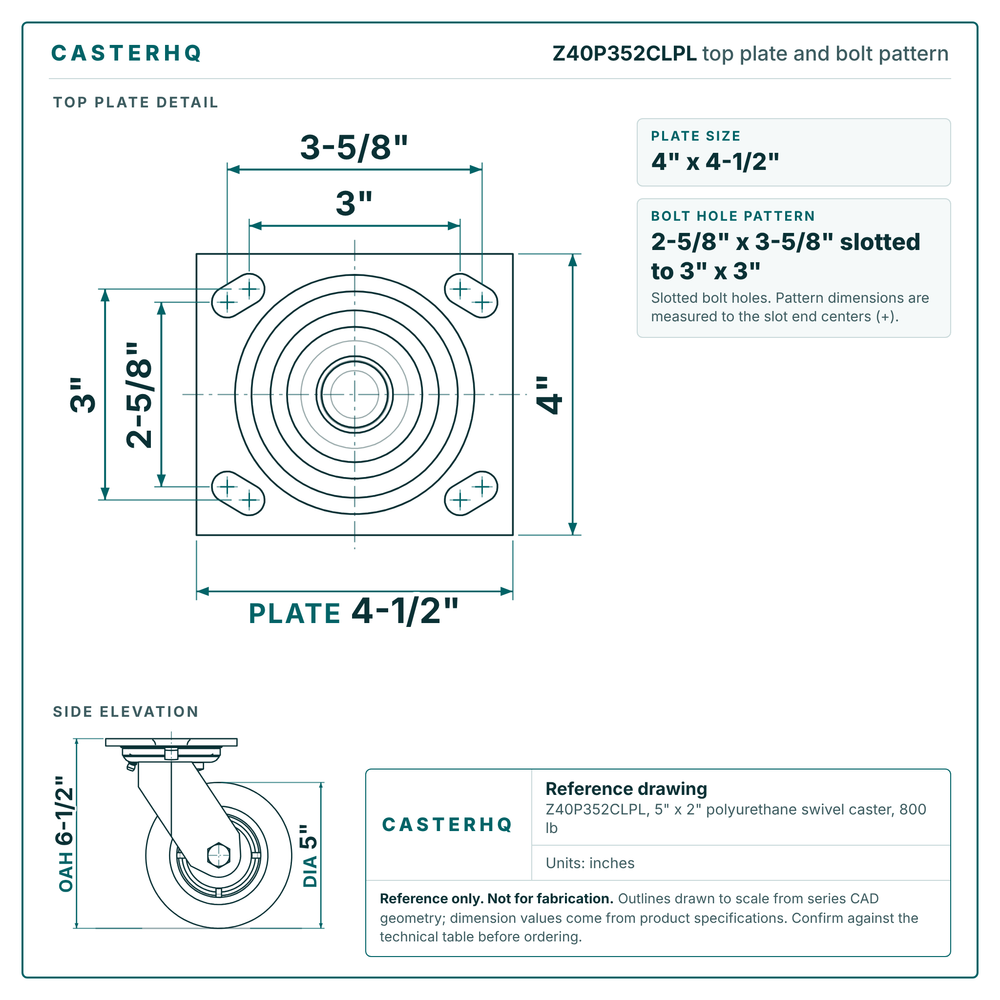

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$28.00

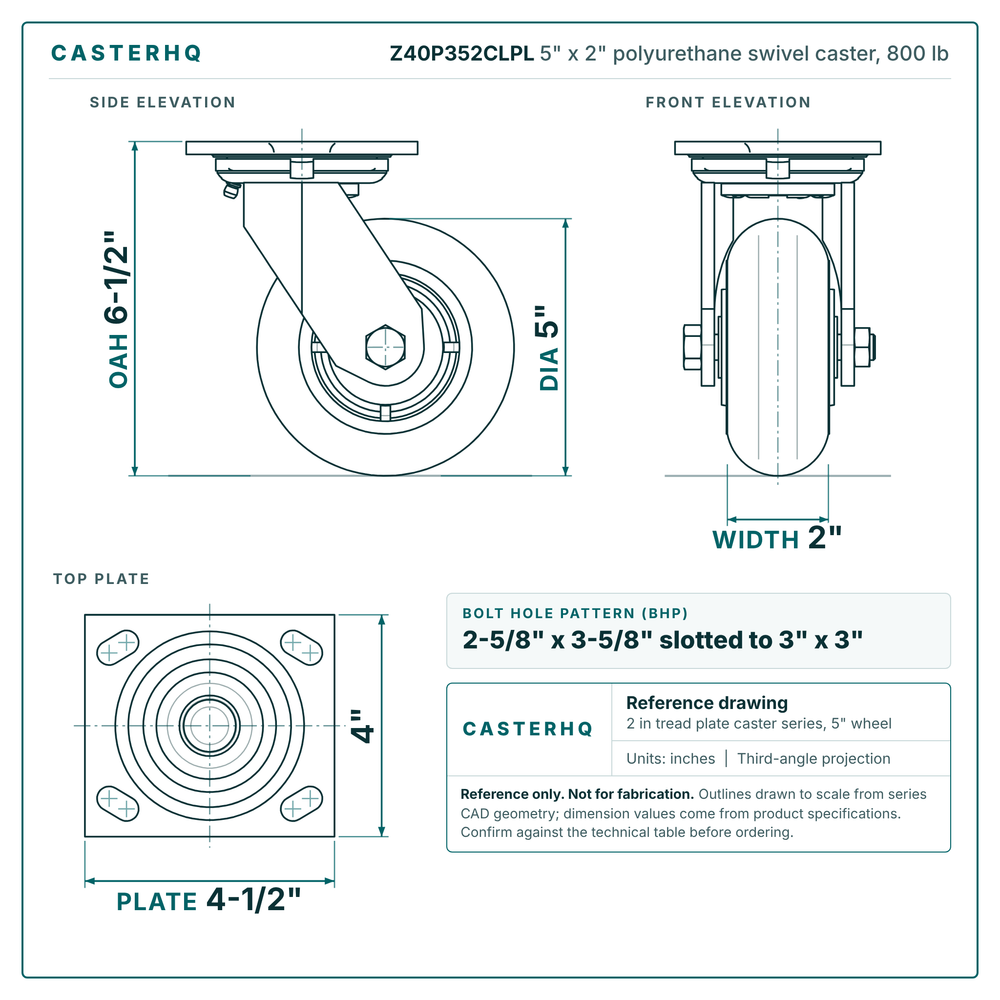

| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Zinc Plated Steel |
5" x 2" Polyurethane Rigid Caster – 750 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 750 lbs
$20
5" x 2" Phenolic Rigid Caster – 1000 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 1000 lbs
$20
5" x 2" Semi-Steel Rigid Caster 4" x 4-1/2" Top Plate – 1000 lb | CasterHQ
5" x 2" · 1000 lbs
$31
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 500 lbsLighter duty | 5" × 2"Gray Rubber | Rigid | 6-1/2" | $27.00 | View → | |
| 750 lbsLighter duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 800 lbs | 5" × 2"Nylon | Swivel | — | $28.00 | Viewing | |
| 1000 lbsHeavier duty | 5" × 2"Phenolic | Rigid | — | $20.00 | View → | |
| 1000 lbsHeavier duty | 5" × 2"Cast Iron | Rigid | 6-1/2" | $31.00 | View → |
