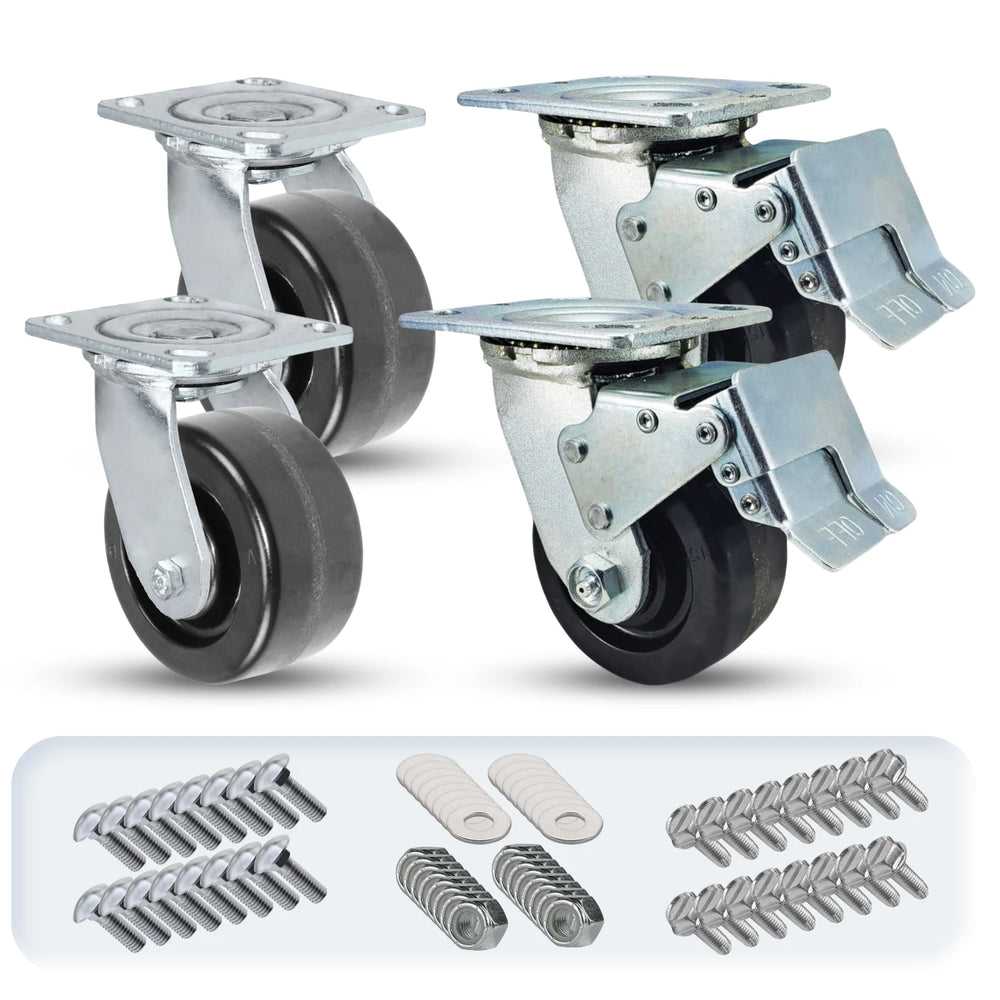

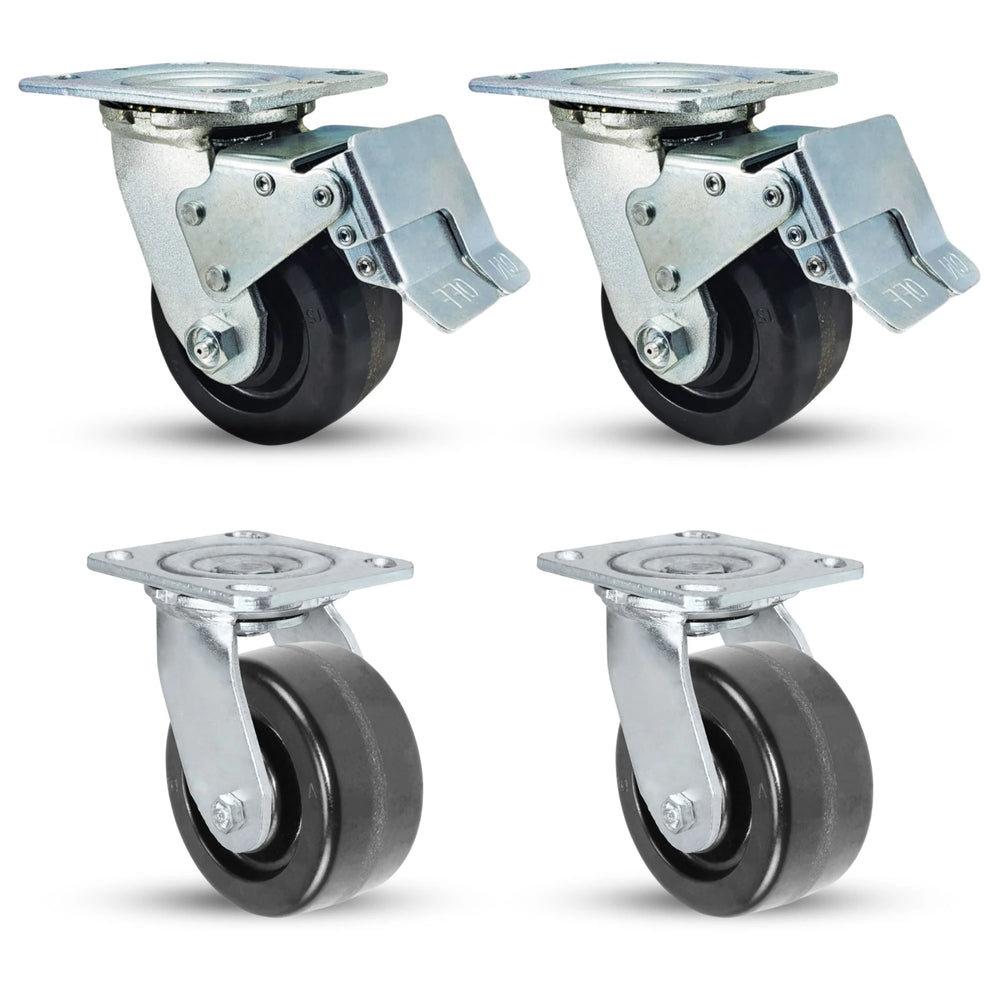

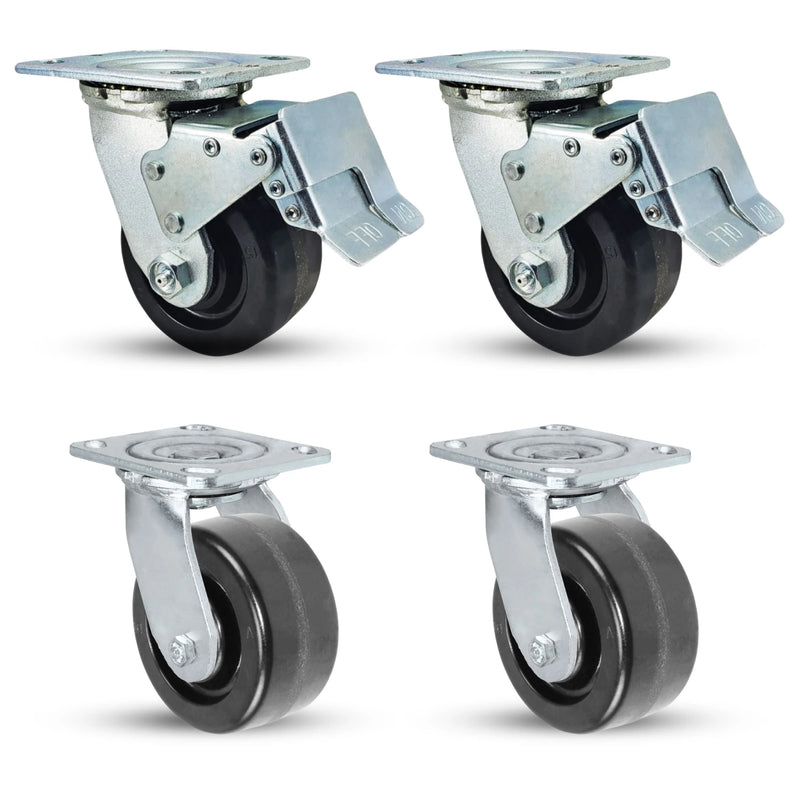

Elevate your equipment's functionality with our versatile 5" x 2" Caster Set. This set, part of our acclaimed Medium Duty 'HD' Series, is tailored for reliability and efficiency. It features two total lock casters for maximum stability and two swivel casters for agile movement, supporting a total capacity of 3,200 lbs.
Each caster is crafted from 1/4" thick cold-rolled steel, ensuring endurance and resilience in medium-duty applications. This robust design is engineered to handle the demands of various industrial environments.
The combination of two total lock casters and two standard swivel casters offers both secure placement and smooth maneuverability, making these casters ideal for dynamic workspace requirements.
These casters are perfect for a wide range of applications, including carts, trucks, dollies, and racks. They are a go-to choice in warehousing, hospitality, institutional, food service, and retail industries.
Available in both rivet kingpin and kingpinless versions, these casters can be customized to meet specific operational needs, offering flexibility and adaptability for various equipment types.
Selecting this caster set means opting for a blend of quality, functionality, and value. Backed by fast delivery and competitive pricing, they are an excellent choice for enhancing medium-duty equipment mobility.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 5" x 2" Caster Set, part of our Medium Duty 'HD' Series, is designed to elevate the mobility of your equipment. Each caster in this set supports up to 800 lbs, combining to handle a total load of 3,200 lbs. The set includes two total lock casters and two swivel casters, offering both secure immobilization and flexible movement.
This caster set features a 90 SHORE D wheel durometer for strength and resilience, a zinc-plated steel construction for rust resistance, and a temperature range of -50°F to 250°F, making it versatile for different operational conditions.
Adhering to high standards, the majority of the series and wheels are NSF listed and RoHS compliant, ensuring they meet both environmental and health safety standards.
Opting for our 5" x 2" Caster Set means selecting a product that offers a perfect balance of quality, performance, and value. Ideal for enhancing the mobility of medium-duty equipment, this set is a reliable choice for a variety of industrial applications.
This 5" x 2" Phenolic Swivel & Total Lock Caster Set – 3200 lb is rated to 3200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -50°F to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

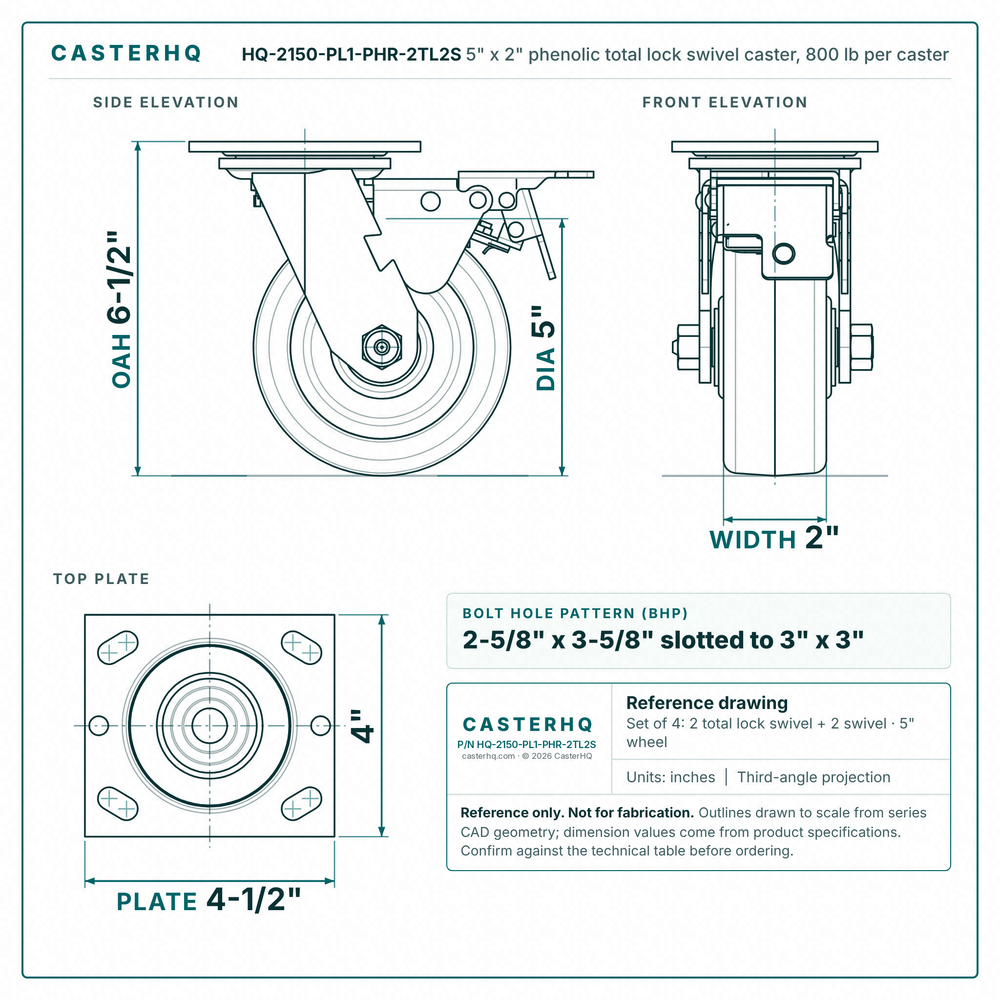

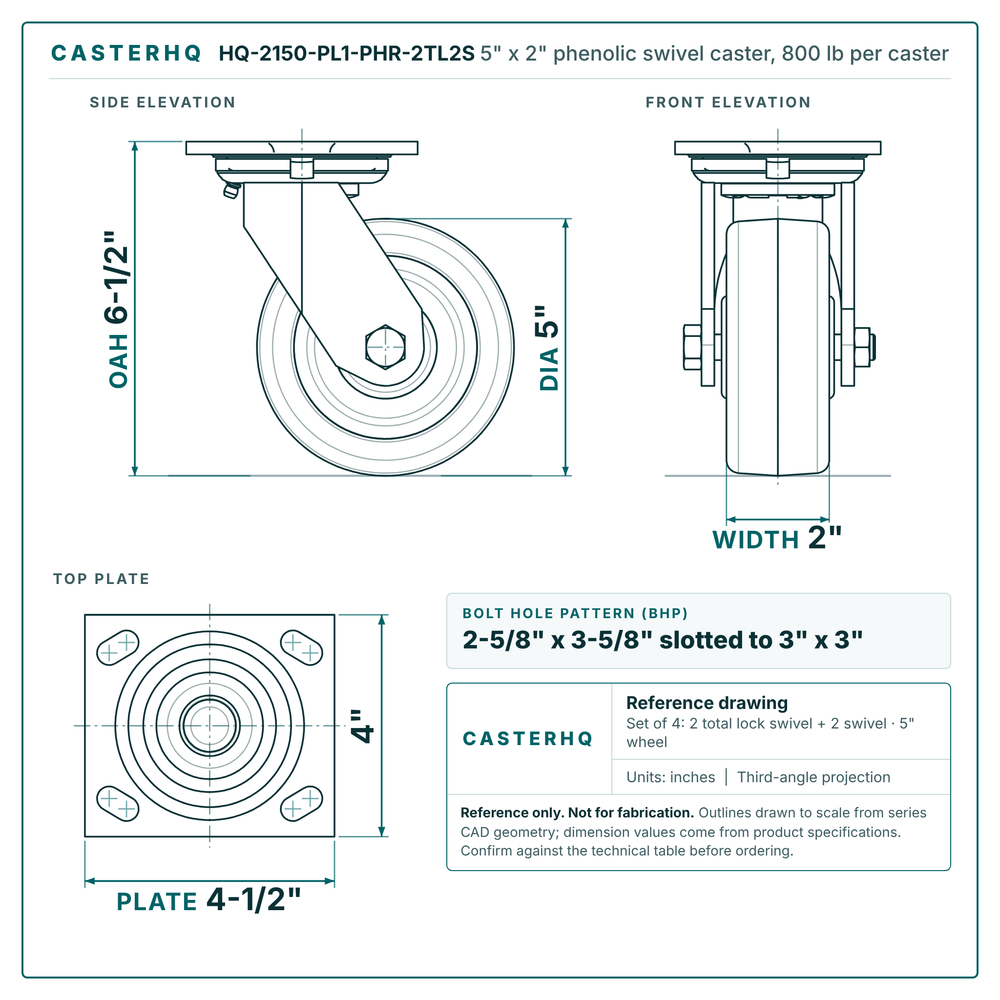

The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$143.00
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 3200 lbs |
| Temp Range | -50°F to 250°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
