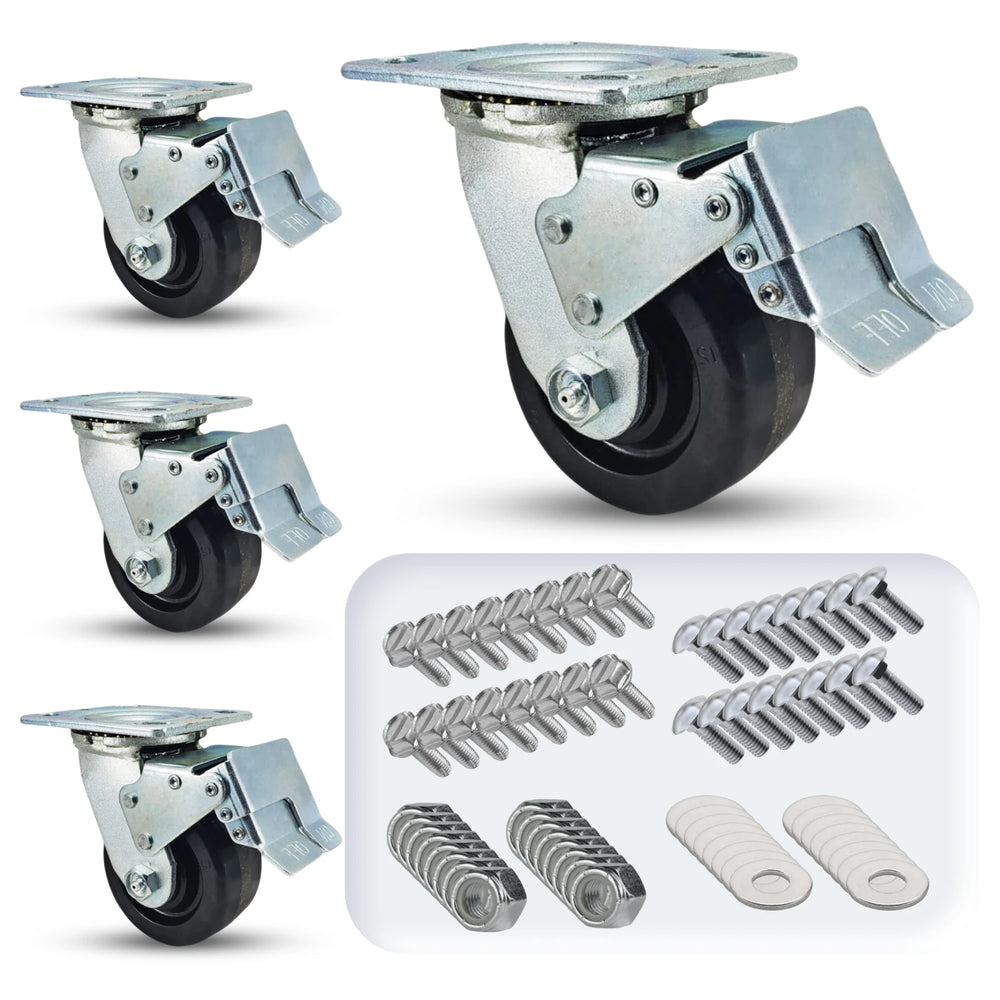

Discover the unmatched quality of our 5-inch by 2-inch Total Locks Caster Set, designed to cater to medium-duty requirements with an impressive total capacity of 3,200 lbs. Each caster in the set features a robust phenolic wheel, ensuring long-lasting performance in various industrial settings.
Our 4 Total Locks Caster Set not only provides exceptional strength and durability but also ensures ease of movement and total locking capability for stationary stability. These casters are a testament to our commitment to quality, offering unparalleled functionality in every application.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

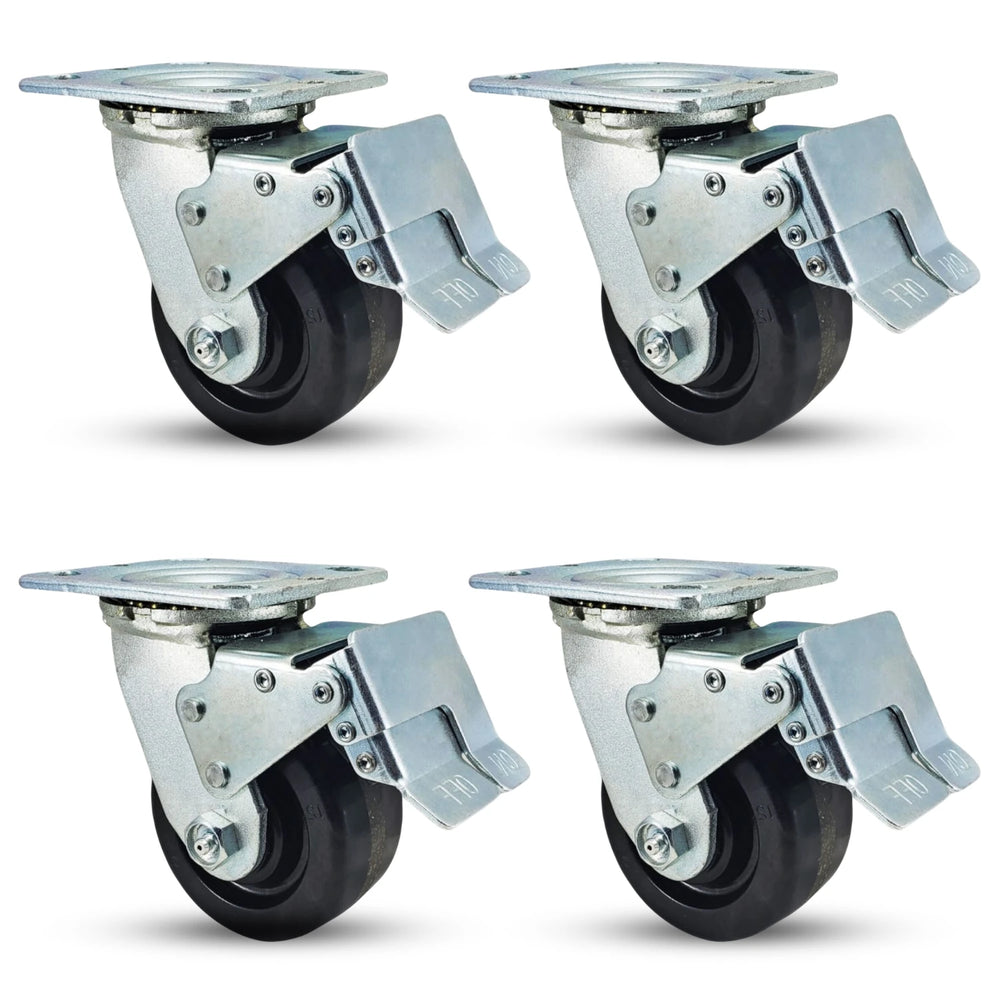

Elevate your industrial equipment's mobility with our 5" x 2" Phenolic Wheel Total Locks Caster Set. Designed to support a substantial weight capacity of 3,200 lbs, this set is perfect for medium-duty applications, offering unrivaled durability and efficiency.
Our caster set is designed with meticulous attention to detail, as reflected in its technical specifications:
The versatility of this caster set makes it an ideal choice for a range of applications, including:
This 5" x 2" Phenolic Total Lock Caster Set 4" x 4-1/2" Plate – 3,200 lb is rated to 3200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -50°F to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

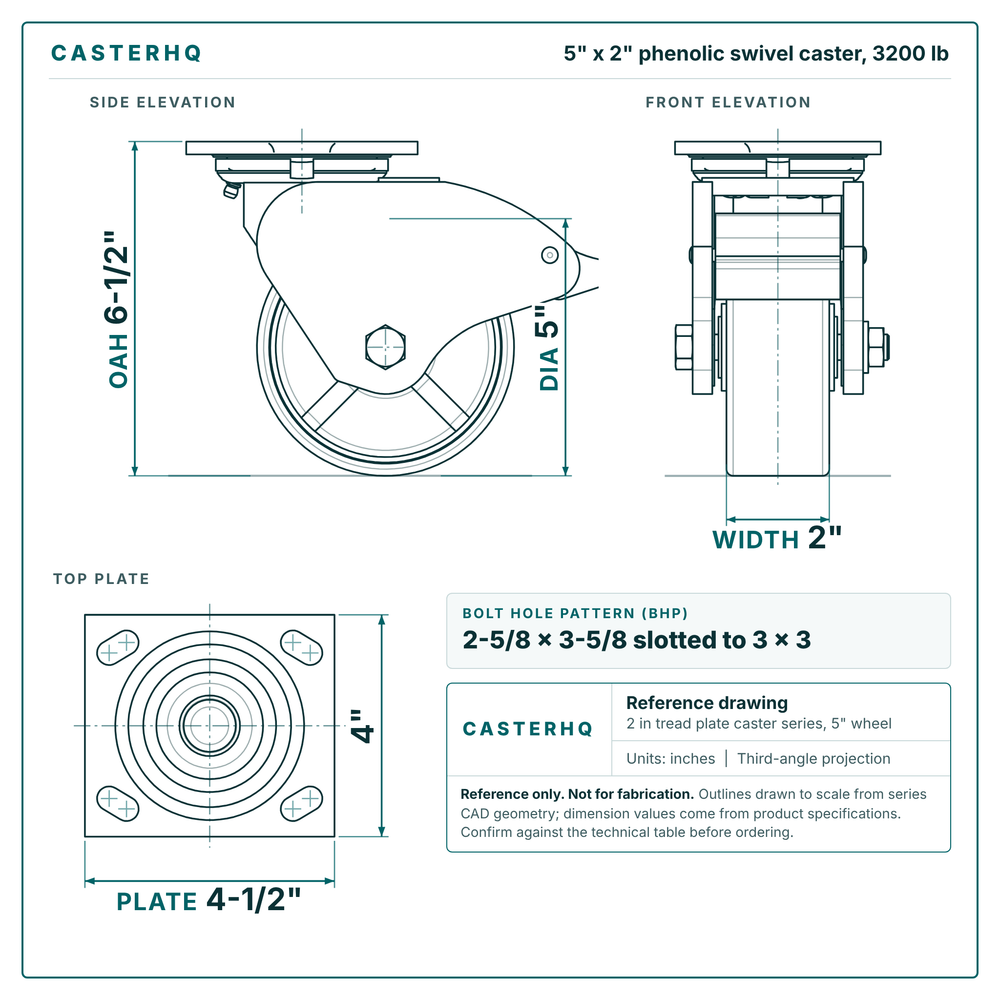

The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$143.00
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 3200 lbs |
| Temp Range | -50°F to 250°F |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
5" x 2" Phenolic Wheel Swivel & Rigid Caster Set – 3,200 lb | CasterHQ
5" x 2" · 3200 lbs · Direct fit
$121
5" x 2" Phenolic Swivel Caster with Brake – 3,200 lb | 4" x 4-1/2" Plate | CasterHQ
5" x 2" · 3200 lbs · Direct fit
$141
5" x 2" Phenolic Swivel Caster Set 4" x 4-1/2" Plate – 3200 lb | CasterHQ
5" x 2" · 3200 lbs · Direct fit
$113
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1200 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $67.00 | View → | |
| 2600 lbsLighter duty | 5" × 2"Polyolefin | Rigid | 6-1/2" | $113.00 | View → | |
| 3200 lbs | 5" × 2"Phenolic | — | 6-1/2" | $143.00 | Viewing | |
| 3200 lbsSame capacity | 5" × 2"Phenolic | Swivel, Rigid | 6-1/2" | $121.00 | View → | |
| 3200 lbsSame capacity | 5" × 2"Phenolic | Swivel with Brake + brake | 6-1/2" | $141.00 | View → |
