5 Inch x 2 Inch Swivel Caster - 1100 lbs Capacity | Polyurethane on Iron Wheel | Plate Mount CasterHQ

5 Inch x 2 Inch Swivel Caster - 1100 lbs Capacity | Polyurethane on Iron Wheel | Plate Mount

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$49.00 USD - $77.49 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HQ2050S-PL1-PIR-REDB

Product Overview

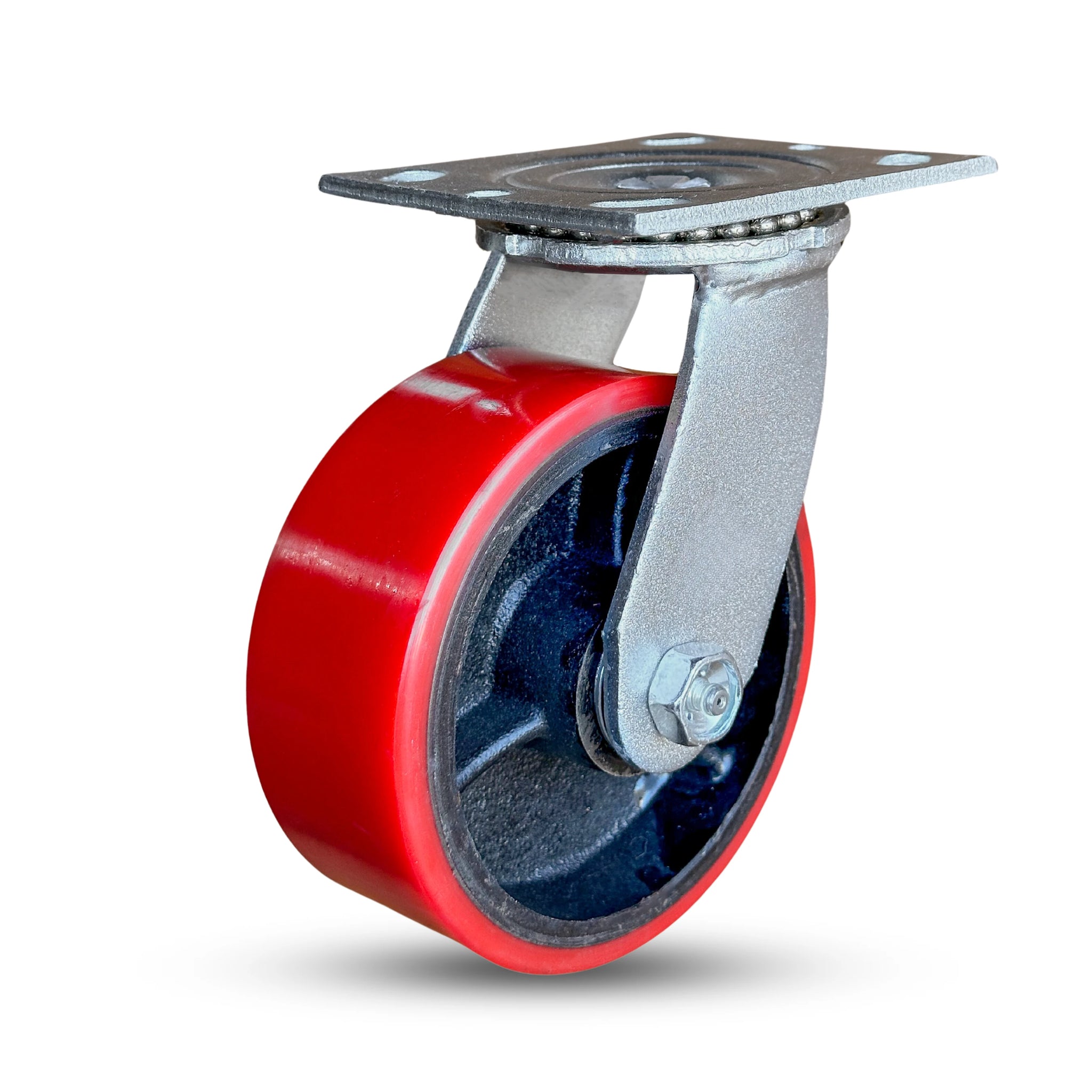

5" x 2" Swivel Caster with Polyurethane on Iron Wheel | 1100 lbs Capacity | 4" x 4-1/2" Mounting Plate

This listing is for an industrial swivel caster with a heavy-duty red polyurethane on the black cast iron wheel. These casters come with grease/zerk fittings in the raceway of the swivel section as well as the wheel hub and the axle that runs through the wheel, with multiple grease fittings this caster and wheel are extremely easy to maintain for the best functionality and movability to keep this caster rolling smoothly for years to come. The weight capacity of this caster is 1,100 lbs per caster and the polyurethane material on the wheel is non-marking and floor-protective allowing you to hold a tremendous amount of weight without worrying about harming or scratching your floors. The steel caster yoke/fork also known as housing is zinc plated for extra rust resistance and these casters are ICWM approved, NSF Listed, and RoHs Compliant meaning these casters can be used in just about any application or industry due to our strenuous safety regulations we require before we sell our casters to the public.

Quick Specs & Features:

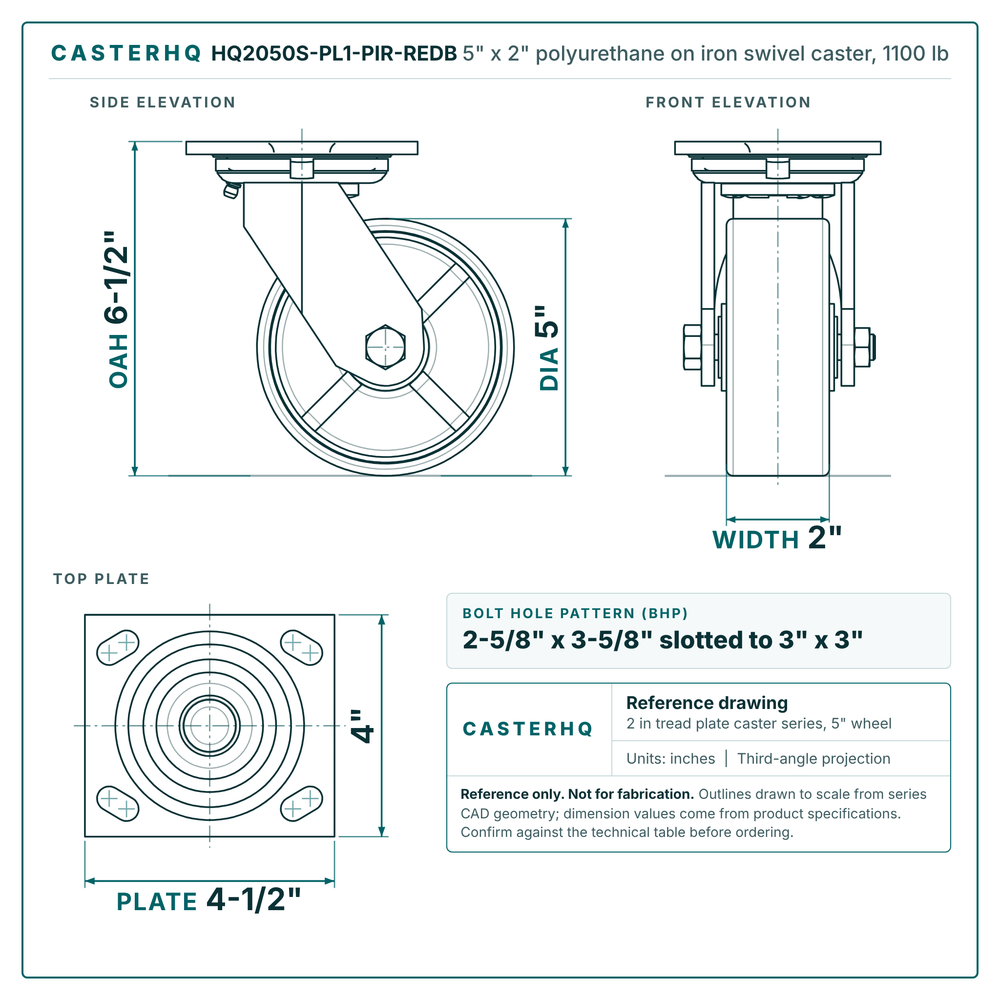

Wheel Diameter: 5"
Tread Width: 2"
Overall height of Caster: 6-1/2"
Swivel Radius: 6-1/4"

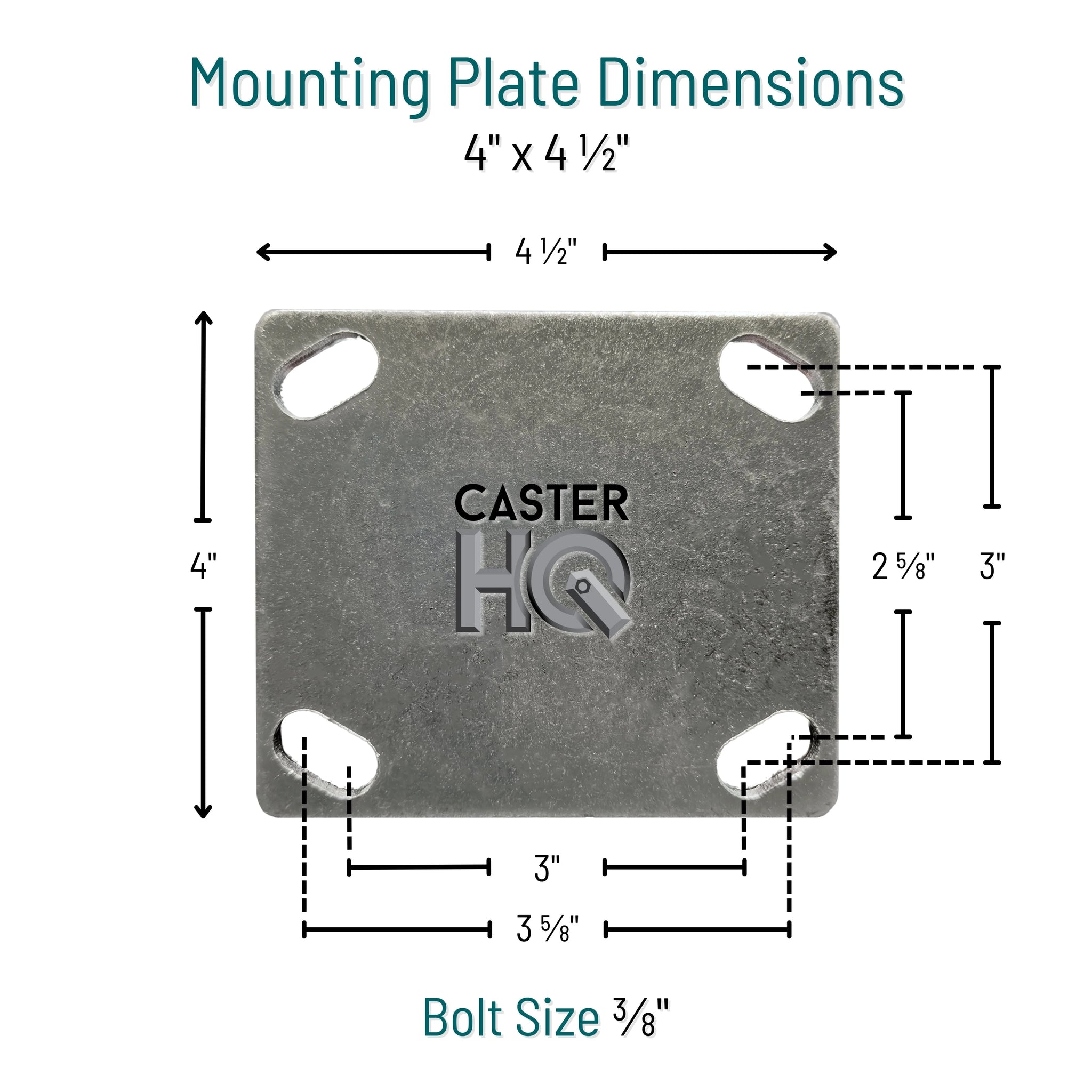

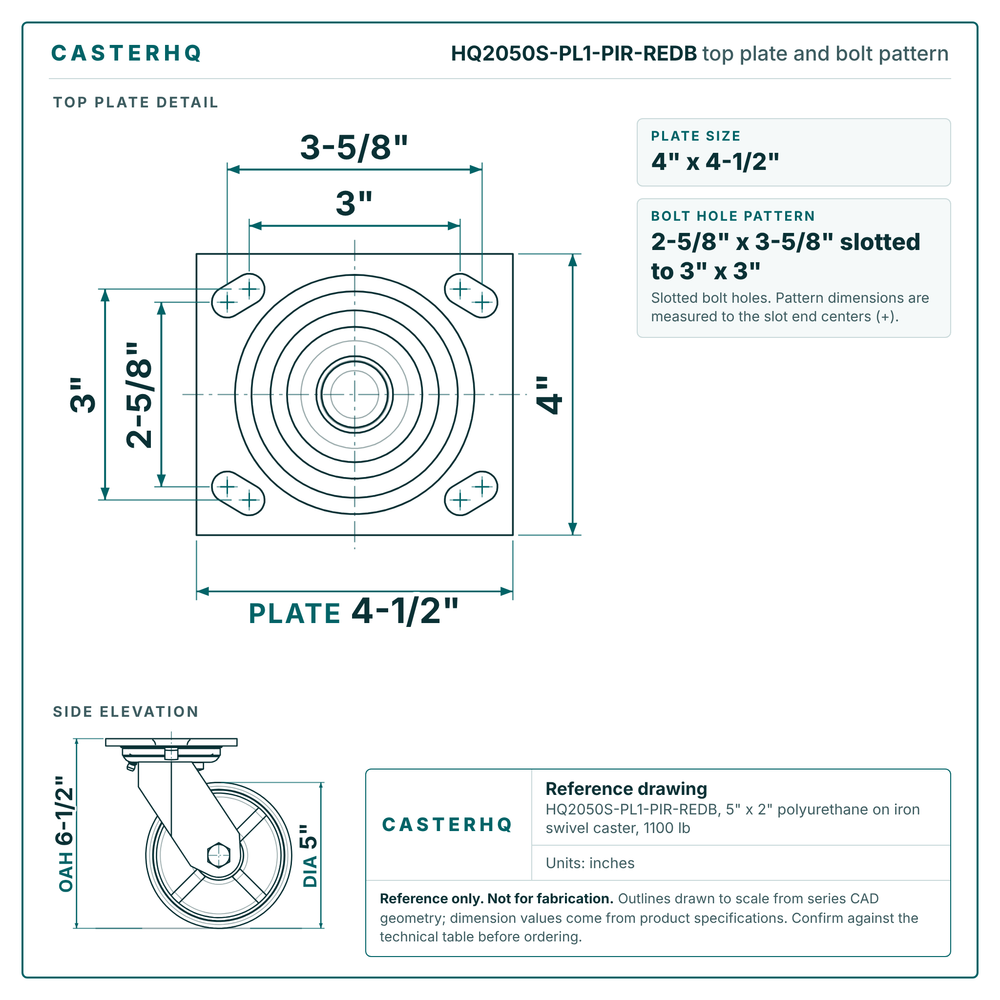

Mounting Plate Size: 4" x 4-1/2"
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x3"
Bearing Type: 3/4" Roller Bearing w/ 1/2" ID Spanner Included (Precision Bearings Available on the right-hand side of the product page)
Raceway: Double Ball Raceway with 5/8" kingbolt
Wheel Material: Polyurethane tread chemically bonded to cast iron core
Wheel Durometer: Shore A 95 (+/-5)
Temperature Range: -40°F to 180°F
Wheel Color: Red Tread on Black Iron Core

Technical Specs

Wheel Diameter: 5 inches
Tread Width: 2 inches
Overall Height: 6-1/2 inches
Swivel Radius: 6-1/4 inches
Mounting Plate Size: 4" x 4-1/2"
Bolt Hole Pattern: 2-5/8" x 3-5/8", slotted to 3"x3"
Bearing Type: 3/4" Roller Bearing with 1/2" ID Spanner (Precision Bearings option)
Raceway: Double Ball with 5/8" kingbolt
Wheel Material: Polyurethane on cast iron core
Wheel Durometer: Shore A 95 (±5)
Temperature Range: -40°F to 180°F
Wheel Color: Red Tread on Black Core
Mounting Hole Size: 3/8" (Mounting Hardware available for purchase)

Key Features

Heavy-Duty Construction: Steel pedals and zinc-plated yoke
Grease/Zerk Fittings: Ensures easy maintenance
Non-marking polyurethane: Floor protection guaranteed
High Weight Capacity: Up to 1100 lbs

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

Flat-rate shipping by order size. Final shipping cost shown before payment.
No post-checkout shipping adjustments or re-billing.
Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Additional Information

Our 5" x 2" Swivel Caster is ICWM approved, NSF Listed, and RoHs Compliant, ensuring it meets the highest safety standards. Its double ball raceway and roller bearing design offer smooth maneuverability, making it perfect for various industrial applications.
