6" X 2-1/2" Red Ductile V-Groove Wheel - 3,500 lbs Capacity CasterHQ

6" x 2-1/2" Red Ductile V-Groove Industrial Wheel – 3,500 lb | CasterHQ

Wheel

6" x 2-1/2"

Capacity

3500 lbs

Full specs Spec sheet (PDF)

$138.00 USD

Save 30%+ vs big-box distributors

In Stock · Ships 1-2 Business Days

✉️ Email a Caster Solutions Expert (Mon–Fri 8–5 CST)

PO Net 30 ACH Tax-Exempt

Business Purchasing

Purchase orders accepted for approved accounts
Net 30 terms for qualified businesses
ACH, credit card, and tax-exempt ordering
Bulk and contract pricing on fleet quantities

Upload a PO / Quote·Request bulk pricing·844-439-4335

Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.

Call now

Product Overview

At a glance

Load capacity3500 lbs

Wheel6" × 2-1/2" Ductile Iron

Temperature-45°F to 800°F

6" X 2-1/2" Red Ductile V-Groove Wheel - 3,500 lbs Capacity

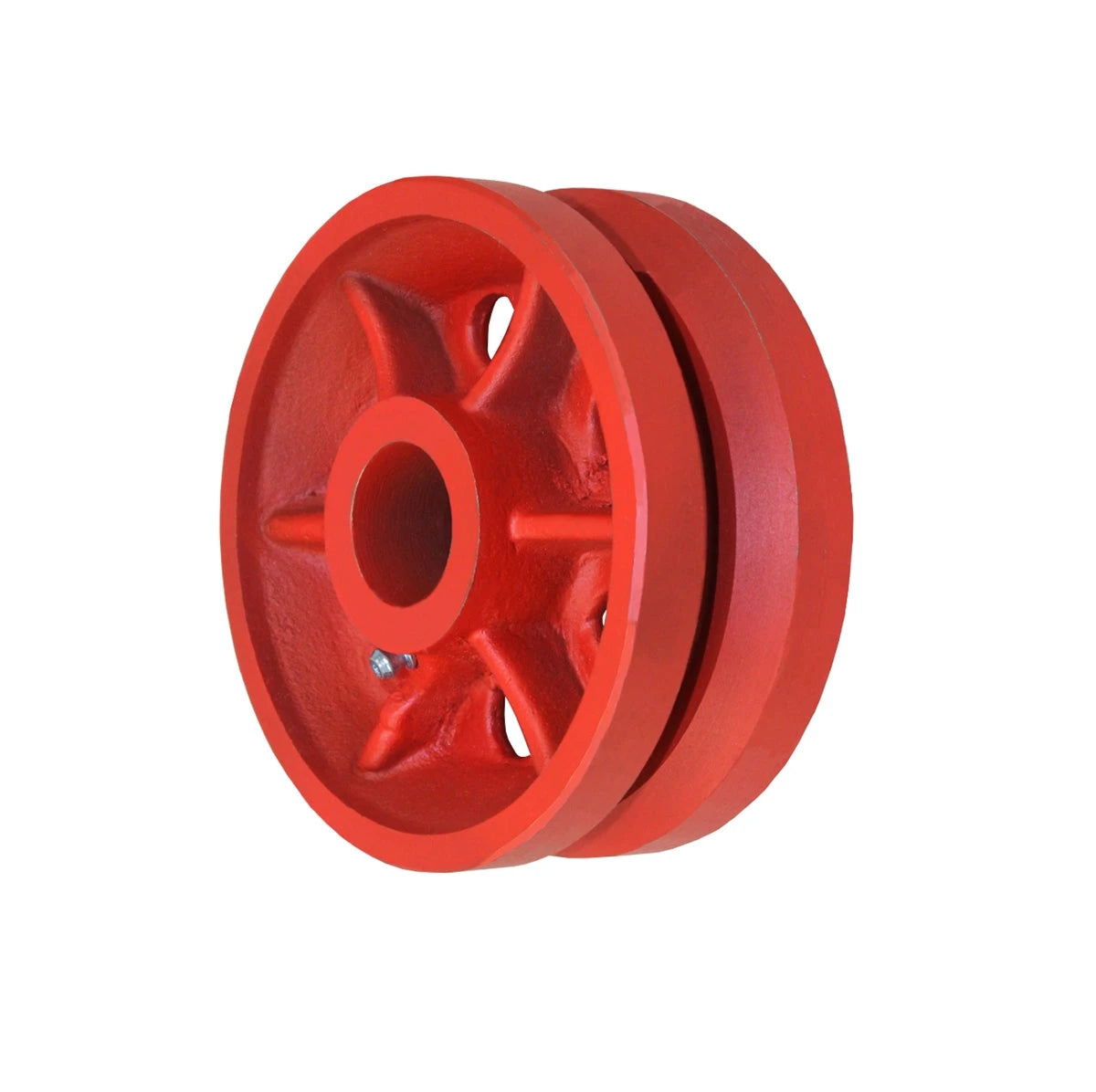

This listing is for a 6 inch diameter by 2.5 inch tread width Red Ductile Iron V-Groove Wheel. These wheels are made for extreme heavy duty applications. These wheels hold 1,500 lbs capacity per wheel and have a heavy core and wheel face for industrial applications. This high capacity grooved wheel has a tensile strength of 70,000 PSI and the ductile v-groove wheels are precision machined 90 degrees with a standard 7/8" relief groove. We use all Metal Components for high temperature applications higher than 180 degrees fahrenheit. This Ductile V Groove wheel comes with a zerk / grease fitting so you can easily maintenance and grease your bearings with ease.

The wheel has a plain bore size of 1-15/16" but has two bearing options to choose from using the drop-down menu on the right hand side of this product page.

Available Bearing Options:

Roller Bearing: Needles Nose Roller Bearings are designed to be used with heavy loads in mind. These type of bearings are based around a cylinder, which allows the bearing to distribute the load over a larger area, withstanding heavy loads much easier than a ball bearing. Roller bearing are not meant to handle thrust loads which is what a ball bearing is typically used for.

Precision Bearing: Precision Bearings are able to handle both thrust and radial loads, making it a popular bearing with many production and manufacturing engineers. While Precision Ball Bearings are in motion their job is to help transfer the load from the outer raceway to the inner raceway much easier than a roller bearing. A Precision Ball Bearing allows the wheel to spin much easier than a roller bearing but they can be prone to deformation and failures when under too much weight and pressure. If the application is heavy duty with a lot of weight on the wheels we highly recommend a roller bearing instead of a precision ball bearing. Precision Ball Bearings are easier to roll, initiate, and maintain speed than a roller bearing.

If you need application on selecting the perfect bearing for your application please contact us at info@casterhq.com with your application, floor material, and weight capacity to see which bearing option is best suited for you.

Key Features

EXTREME HEAVY DUTY APPLICATIONS
HEAVY CORE AND WHEEL FACE
HIGH CAPACITY
TENSILE STRENGTH: 70,000 PSI
DUCTILE V-GROOVE WHEELS PRECISION MACHINED 90 DEGREES WITH 7/8" RELIEF GROOVE
USE METAL ONLY BEARING COMPONENTS FOR TEMPERATURES HIGHER THAN 180F
ZERK FITTING INCLUDED IN HUB OF WHEEL

Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts

Net 30 terms — available on approved credit

ACH & all major cards — Visa, MC, Amex, Discover

Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

EXTREME HEAVY DUTY APPLICATIONS
HEAVY CORE AND WHEEL FACE
HIGH CAPACITY
TENSILE STRENGTH: 70,000 PSI
DUCTILE V-GROOVE WHEELS PRECISION MACHINED 90 DEGREES WITH 7/8" RELIEF GROOVE
USE METAL ONLY BEARING COMPONENTS FOR TEMPERATURES HIGHER THAN 180F
ZERK FITTING INCLUDED IN HUB OF WHEEL

Frequently Asked Questions

What is the load capacity of this wheel?+

This 6" x 2-1/2" Red Ductile V-Groove Industrial Wheel – 3,500 lb is rated to 3500 lbs per wheel. Divide the total load across the number of wheels in your rig and keep working loads within about 75-80% of the rating for continuous use.

What wheel material is this, and where does it perform best?+

This is a Ductile Iron wheel. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

What are the wheel dimensions and bore?+

6" diameter x 2-1/2" tread width. Verify your axle diameter and hub/bore length against your existing wheel before ordering.

Can this wheel be supplied in a caster rig?+

Yes. Most wheels can be paired with a swivel or rigid rig to build a complete caster. Tell us your mount and load and we will spec the rig - request it on our bulk pricing page.

What temperature range is it rated for?+

Rated for -45°F to 800°F. Operating outside the rated range can shorten wheel life and reduce capacity.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

6" x 2-1/2" Red Ductile V-Groove Industrial Wheel – 3,500 lb | CasterHQ

$138.00

Technical Specifications

Dimensions & Mounting
Wheel Diameter	6"
Wheel Tread Width	2-1/2"
Load & Performance
Wheel Capacity	3500 lbs
Temp Range	-45°F to 800°F
Materials & Finish
Wheel Material	Ductile Iron
Wheel Core Material	Steel
Frame Material	Zinc Plated Steel

Reference Dimensions

Wheel6" x 2-1/2"

Wheel MaterialDuctile Iron

Illustrative wheel profile drawn to this item's proportions — dimensions are manufacturer specification values. Confirm against the technical table before ordering.
