The 6" x 2" Stainless Thermo Hi-Temp Delrin Bearing Caster is expertly crafted to meet the demands of high-temperature environments. With a robust stainless steel structure combined with thermo-resistant Delrin, this caster ensures outstanding durability against heat, wear, and corrosion. The 4" x 4.5" plate provides excellent stability for your equipment, while the high-quality bearing ensures smooth and reliable mobility, even under heavy loads. This caster is the ideal choice for industrial settings where both performance and reliability are paramount.
Enhance your operations with the 6" x 2" Stainless Thermo Hi-Temp Delrin Bearing Caster. Its superior construction and high-temperature resilience make it an essential component for industrial applications. Invest in a caster that not only offers exceptional performance but also ensures safety and reliability in challenging environments. Make the smart choice for your equipment with this high-quality caster.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

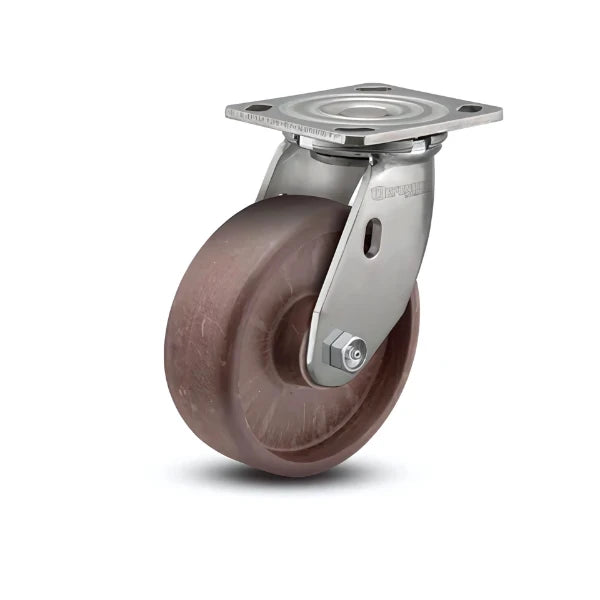

The 6" x 2" Stainless Thermo Hi-Temp Delrin Bearing Caster (Model: D4.06109.831 HT SS) is designed for high-performance applications where durability and temperature resistance are essential. With a robust construction that combines stainless steel and thermo-resistant Delrin, this caster is engineered to handle extreme conditions, making it an ideal choice for industrial environments.
This caster is particularly well-suited for a wide range of industrial and commercial applications, including:
Backed by a 3-year warranty, the 6" x 2" Stainless Thermo Hi-Temp Delrin Bearing Caster is compliant with RoHS standards and certified as an NSF component (excluding thread guards), ensuring it meets the necessary safety and quality regulations for industrial use.
Upgrade your operational efficiency with the 6" x 2" Stainless Thermo Hi-Temp Delrin Bearing Caster. Its robust design, high load capacity, and excellent temperature resistance make it a reliable choice for challenging environments. Invest in quality and performance today to enhance the mobility of your equipment and ensure smooth operations.
This 6" x 2" Thermo Stainless Caster – 4" x 4.5" Plate Delrin Bearing is rated to 1100 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

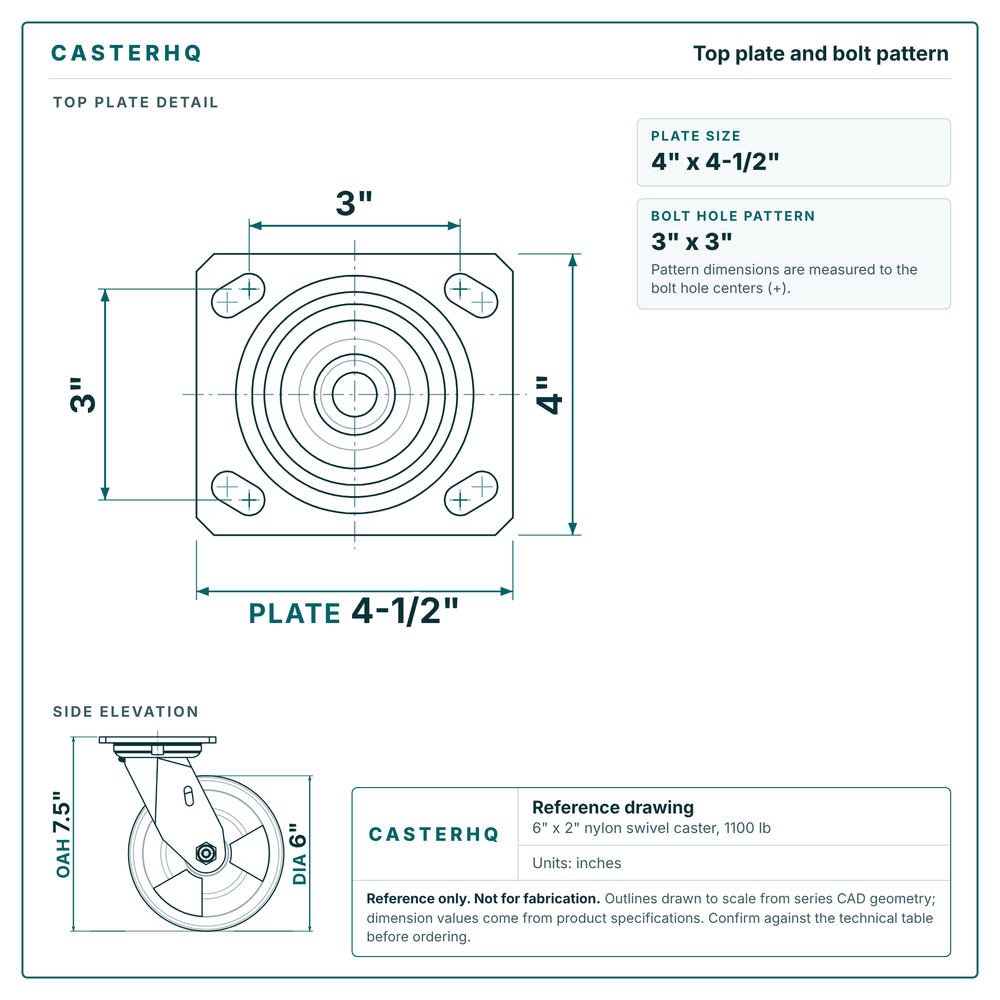

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

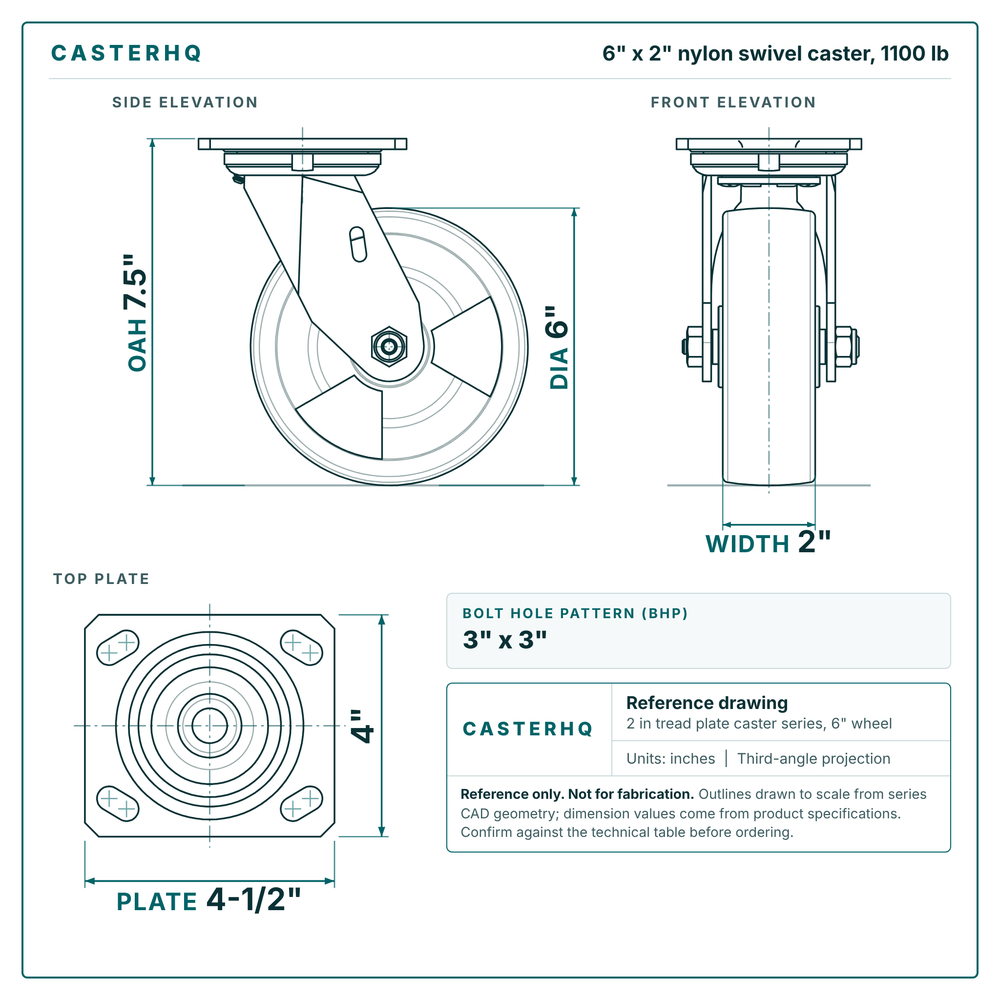

The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$191.00
| Identification | |
| Brand | colson header |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Overall Height | 7.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1100 lbs |
| Temp Range | -40°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
