6 Inch x 2 Inch Swivel Caster - 550 lbs Capacity | Mold-On Rubber Wheel | NSF Listed Food Safe - | CasterHQ

6 Inch x 2 Inch Swivel Caster - 550 lbs Capacity | Mold-On Rubber Wheel | NSF Listed Food Safe

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$38.00 USD - $55.99 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: CB-9SC6-RI

Product Overview

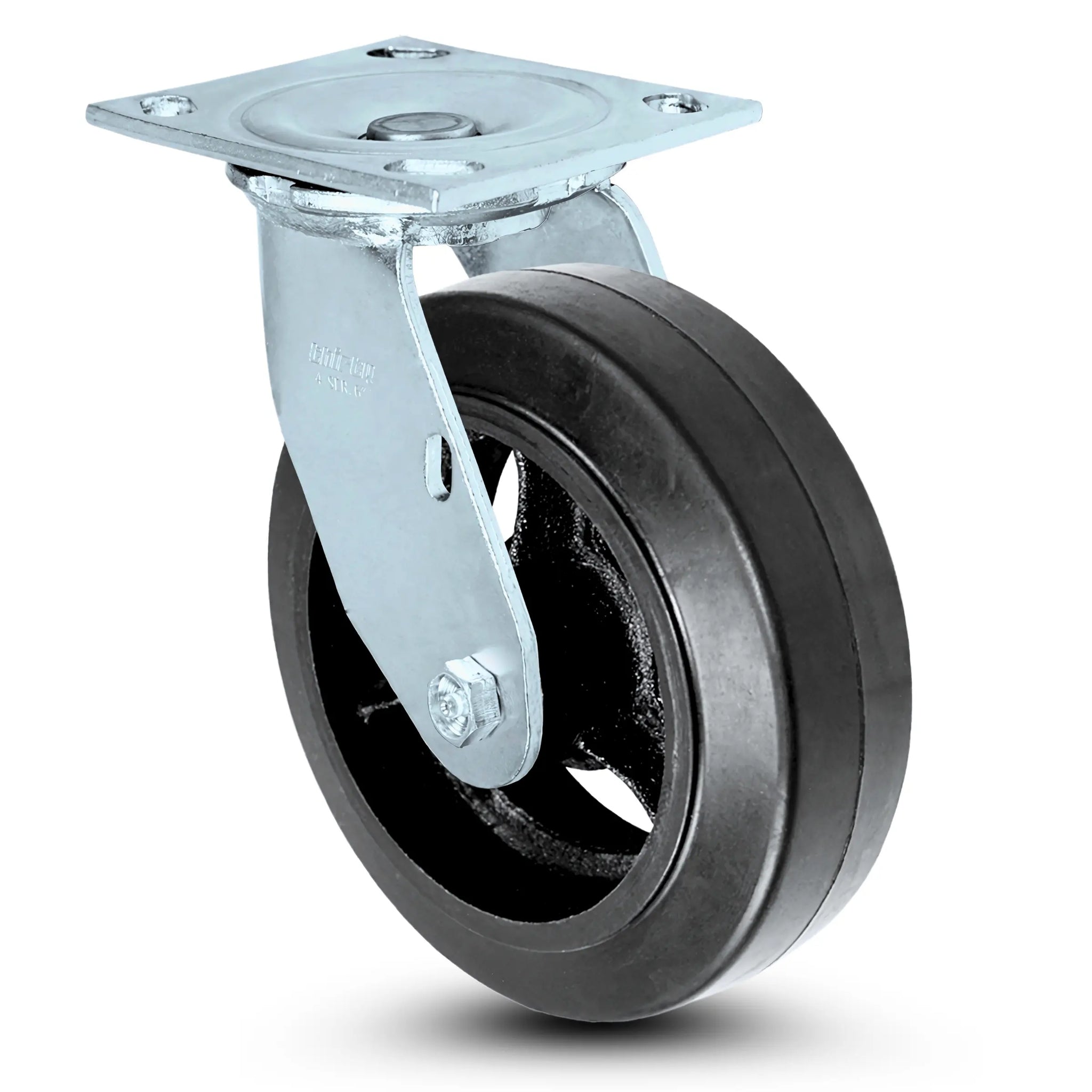

6" x 2" Swivel Caster | Mold-On Rubber Wheel | 550 lbs Capacity

This 6-inch heavy-duty swivel caster is designed for industrial mobility, durability, and performance. Built from 1/4" thick cold-rolled steel, the zinc-plated bracket provides exceptional rust and corrosion resistance, making it ideal for industrial, warehousing, hospitality, institutional, food service, and retail applications.

Equipped with a mold-on rubber wheel with a cast iron core, this caster ensures a smooth, quiet roll while providing shock absorption and impact resistance. The double ball raceway and 5/8” kingpin allow for seamless 360-degree rotation, while the roller bearing system enhances stability for heavy loads. A built-in grease zerk in the raceway and axle allows for easy maintenance and long-term durability.

With a 550 lbs load capacity, this caster is NSF-listed, RoHS-compliant, and compatible with matching total lock casters for added security.

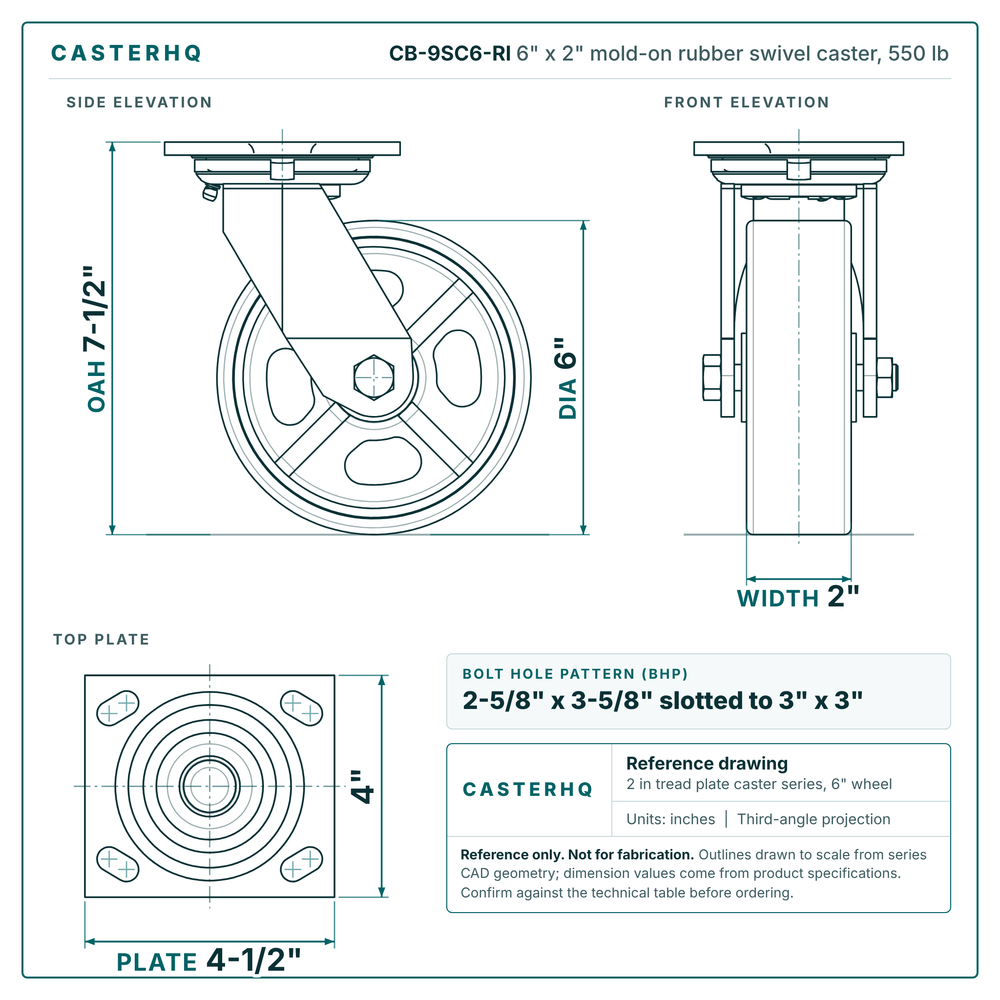

Technical Specs

Wheel Diameter: 6 inches
Tread Width: 2 inches
Load Capacity: 550 lbs per caster
Wheel Material: Mold-On Rubber with Cast Iron Core

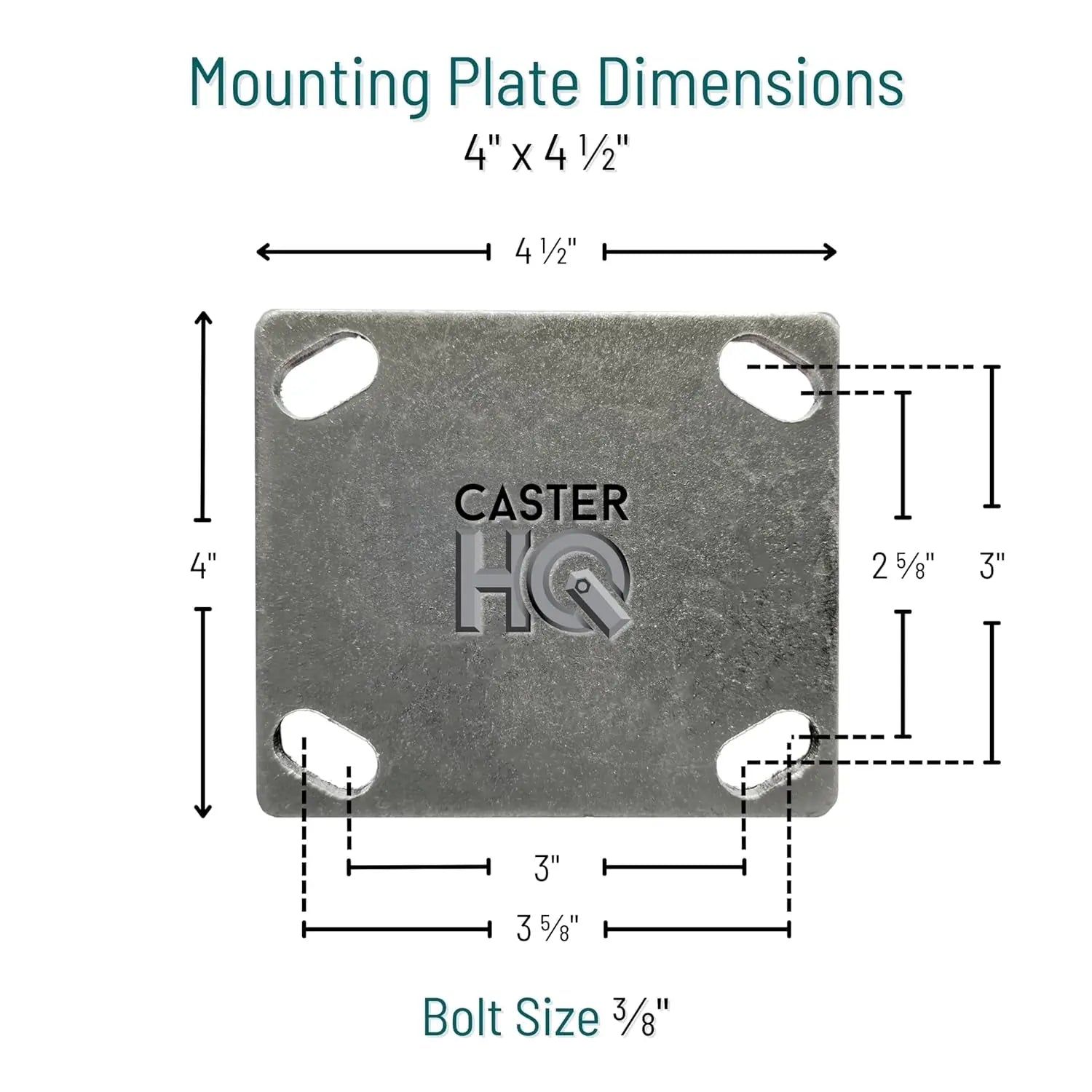

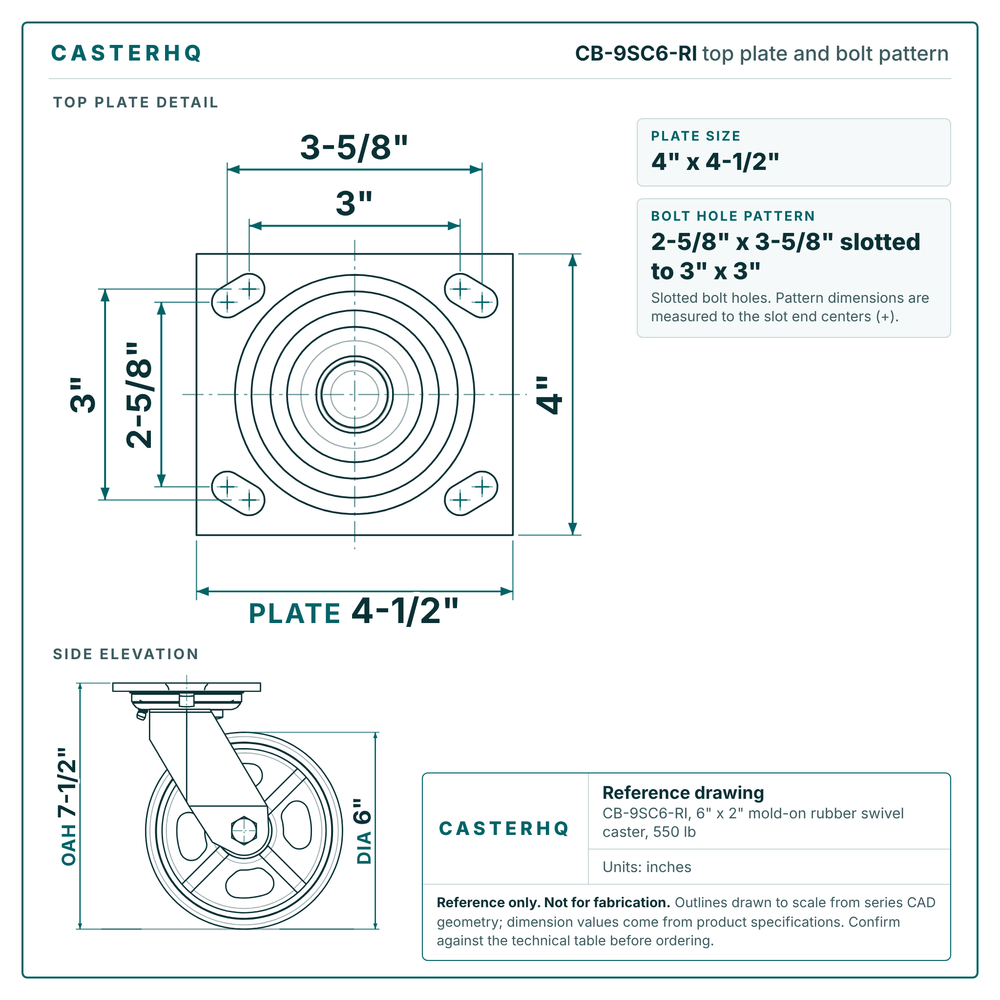

Top Plate Size: 4” x 4-1/2”
Bolt Hole Spacing: 2-5/8” x 3-5/8” (Slotted to 3” x 3”)
Swivel Radius: 4-1/2” (varies with brake options)
Wheel Durometer: 80 Shore A (+/-5)
Mounting Bolt Size: 3/8”
Overall Height: 7-1/2”
Bearing Type: Roller Bearing
Wheel Color: Black
Temperature Range: -40°F to 180°F
Bracket Material: Zinc-Plated Steel
Grease Zerk: Yes (Raceway & Axle)
NSF Listed: Yes
RoHS Compliant: Yes

Key Features

Durable Zinc-Plated Steel Bracket – Resists rust and corrosion for long-lasting durability.
Heavy-Duty Load Capacity – Supports up to 550 lbs per caster, perfect for industrial and commercial use.
Smooth & Shock-Absorbing Ride – Mold-on rubber wheel with cast iron core absorbs impact and reduces noise.
360° Swivel Raceway for Easy Maneuverability – Double ball raceway enhances turning precision.
Low-Maintenance Design – Grease fittings in raceway & axle ensure smooth performance and long lifespan.

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

Flat-rate shipping by order size. Final shipping cost shown before payment.
No post-checkout shipping adjustments or re-billing.
Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Additional Information

Frequently Asked Questions (FAQ)

1. What applications are best suited for this caster?
This caster is ideal for carts, dollies, racks, trucks, and material handling equipment used in industrial, food service, hospitality, warehousing, and retail industries.

2. What makes mold-on rubber wheels better than polyurethane or steel?
Mold-on rubber wheels provide a cushioned ride, reduce vibration, and roll quietly, making them ideal for noise-sensitive environments.

3. Does this caster resist rust and corrosion?
Yes! The zinc-plated steel bracket protects against moisture, chemicals, and oxidation, ensuring long-lasting durability.

4. How much weight can this caster support?
Each caster has a 550 lbs load capacity, making it a medium to heavy-duty caster for demanding applications.

5. How does the double ball raceway improve maneuverability?
The double ball raceway enhances swivel movement, allowing for smoother turns and improved handling.

6. Is this caster NSF listed and RoHS compliant?
Yes! This caster meets NSF and RoHS compliance standards, making it safe for food processing and commercial use.

7. Does this caster require maintenance?
Minimal maintenance is required. The grease zerk fittings in the raceway and axle allow for easy lubrication, extending the lifespan.

8. Can I purchase a matching total lock caster?
Yes! Matching total lock casters are available to provide full mobility control when needed.
