6 Inch x 3 Inch Drop Forged Heavy Duty Swivel Caster - 2000 lbs Capacity | Poly on Iron Wheel

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$131.00 USD - $176.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: CB-10SCP63

Product Overview

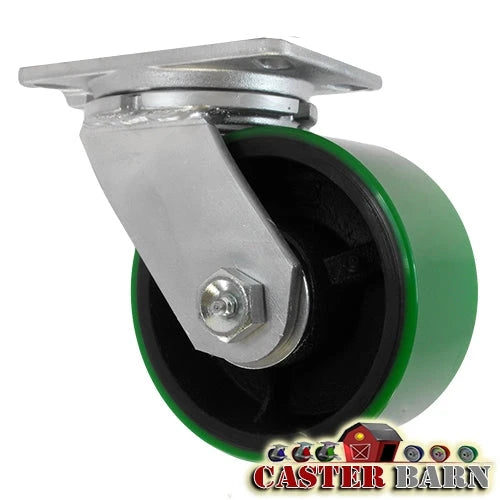

6" x 3" Drop Forged Heavy Duty Swivel Caster - Poly on Iron Wheel - 2,000 Lb Cap

This series is made to provide long service life and top performance; made from ASTM 1045 drop forged steel, polished and hardened (HRC45) steel ball bearings run in deeply groved, precision machined and hardened raceways, held together with a 3/4” heat treated kingpin. Legs are made from 3/8” steel and are robotically welded inside and out for maximum strength. Caster Headquarters has over a dozen wheel materials, bearings, brakes, and options to choose from.

• Drop forged (ASTM 1045) construction. Precision machined and hardened double ball raceways.
• 3/4” Heat treated kingpin.
• 3/8” thick legs are robotically welded inside and out.
• 3/4” axle bolt & locknut.
• Zinc plated finish is attractive & corrosion resistant.
• Large selection of wheel, bearing & brake options.
• Zerk grease fitting in raceway & axle for easy maintenance.
• Standard stock series = Quick Deliveries

Technical Specs

WHEEL MATERIAL: POLYURETHANE ON CAST IRON
WHEEL DIAMETER: 6”
WHEEL TREAD WIDTH: 3”
LOAD CAPACITY: 2,000 LBS /EA
TOP PLATE SIZE: 4-1/2” X 6-1/4”
BOLT HOLE SPACING: 2-7/16 x 4-15/16 slotted to 3-3/8 x 5-1/4
SWIVEL RADIUS: 4-3/4” (INCREASES W/ CERTAIN BRAKE OPTONS)
WHEEL DUROMETER: 90 SHORE D (+/-5)
MOUNTING BOLT SIZE: 3/8”
OVERALL HEIGHT: 8”
BEARING TYPE: CHOOSE YOUR PRECISION BEARING IN THE OPTIONS SECTION
WHEEL COLOR: GREEN POLY ON BLACK IRON
TEMPERATURE RANGE: -40F – 180F
CASTER BRACKET MATERIAL: ZINC PLATED STEEL
GREASE ZERK: YES
AXLE: ZERK AXLE

Key Features

Drop Forged raceways; 1 piece integrally forged top plate and inner raceway design.
3/8” thick legs are robotically welded inside and out.
3/4” axle bolt & locknut.
Zinc plated finish is attractive & corrosion resistant.
Zerk grease fitting in raceway & axle.
Standard stock series = Quick Deliveries.
