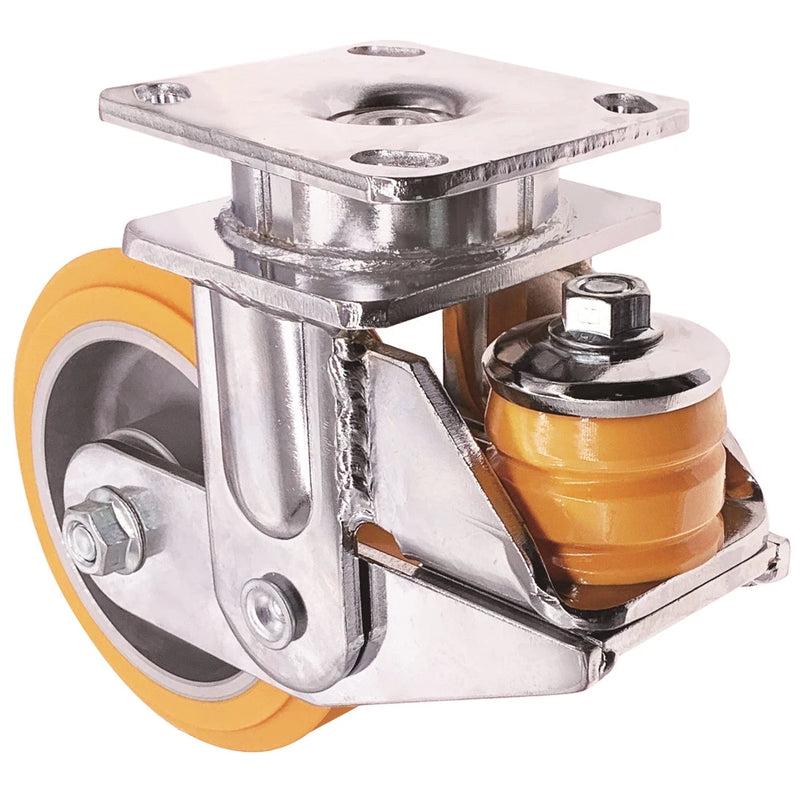

This 8" x 2" Polyurethane Aluminum Swivel Spring Loaded Caster – 2000 lb is rated to 2000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

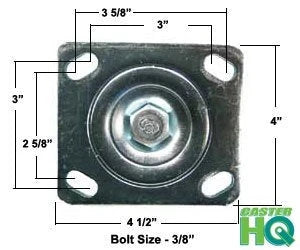

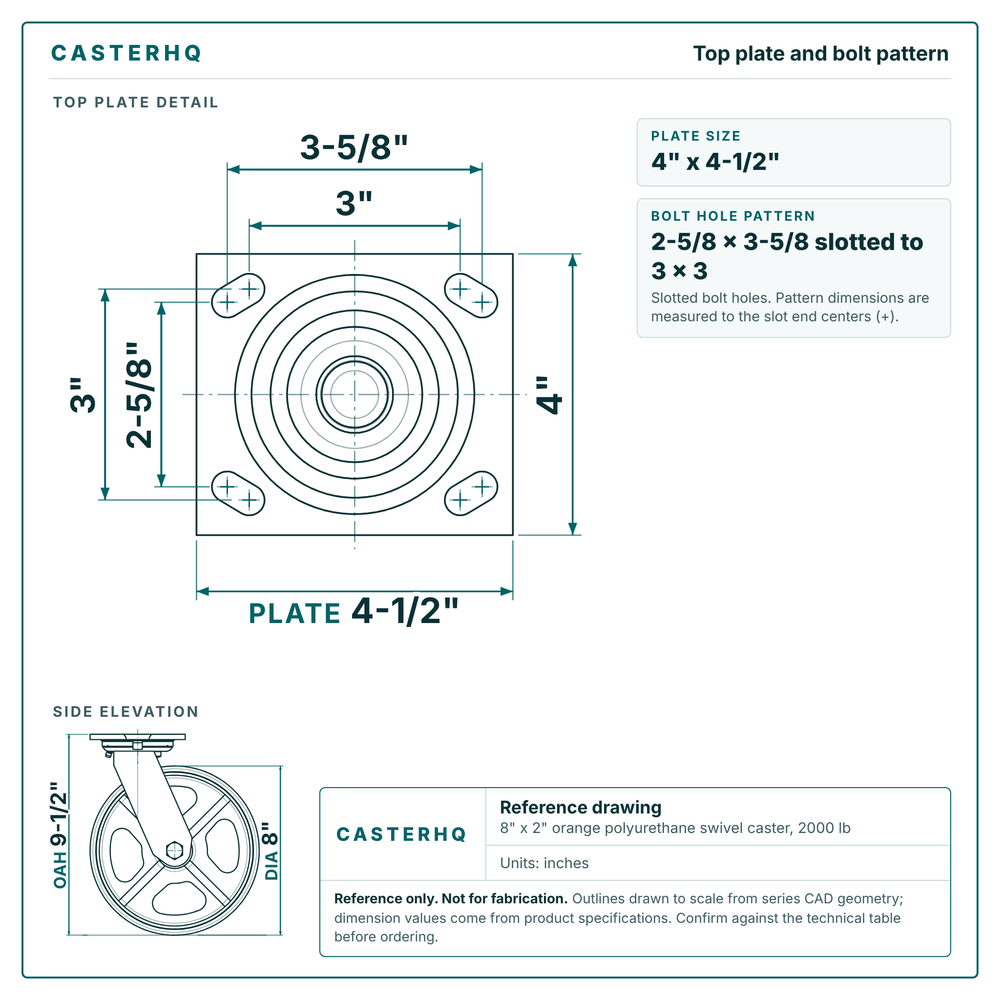

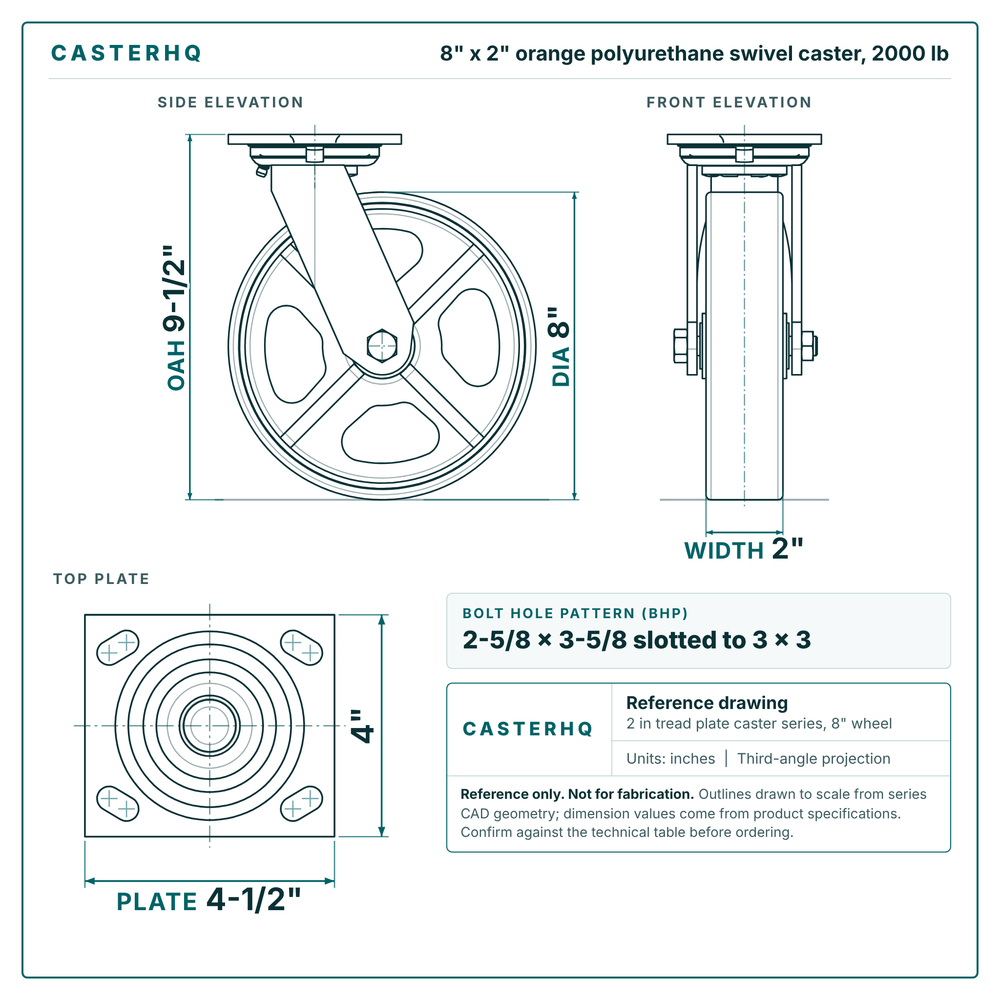

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$248.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 2000 lbs |
| Temp Range | Up to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Solid Polyurethane |
| Frame Material | Zinc Plated Steel |
8" x 2" Red Ductile Steel Swivel Caster – 1,500 lb | 4-1/2" x 6-1/4" Plate
8" x 2" · 1500 lbs
$89
8" x 2" Phenolic Swivel Caster – 1,400 lb | 4-1/2" x 6-1/4" Top Plate | CasterHQ
8" x 2" · 1400 lbs
$38
8" x 2" Phenolic Rigid Kingpinless Caster – 1,400 lb | 4" x 4-1/2" Top Plate
8" x 2" · 1400 lbs · Direct fit
$36
View all 8′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1400 lbsLighter duty | 8" × 2"Cast Iron | Swivel | 9-1/2" | $38.00 | View → | |
| 1500 lbsLighter duty | 8" × 2"Ductile Iron | Swivel | 9-1/2" | $89.00 | View → | |
| 2000 lbs | 8" × 2"Solid Polyurethane | Swivel | — | $248.00 | Viewing | |
| 4000 lbsHeavier duty | 8" × 2"Phenolic | Swivel, Rigid | — | $132.00 | View → | |
| 4000 lbsHeavier duty | 8" × 2"Phenolic | Swivel | — | $134.00 | View → |
