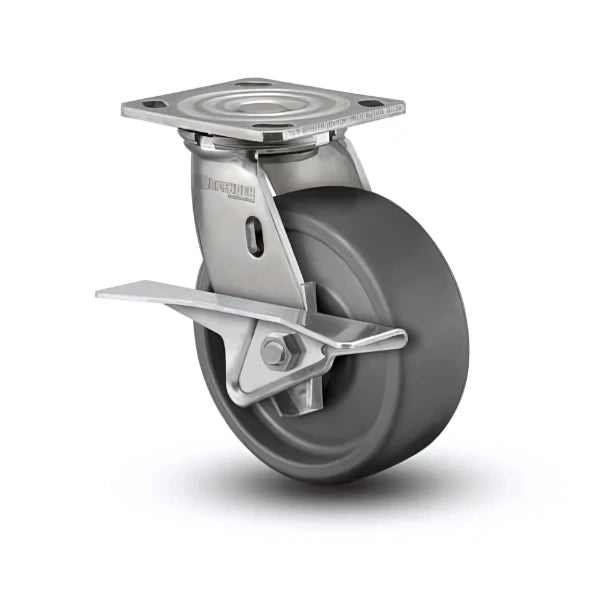

8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster - Heavy-Duty 4" x 4.5" Plate for Industrial and Warehouse Applications - D4.08109.839 EN BRK3 SS WB29 colson-header

COLSON HEADER

Colson D4.08109.839 8" x 2" Elastomer Stainless Caster with Brake – CasterHQ

Wheel

8" x 2"

Capacity

1200 lbs

Overall Height

9-1/2"

Plate Size

4" x 4-1/2"

Full specs Spec sheet (PDF)

$302.00 USD - $324.00 USD

Save 30%+ vs big-box distributors

In Stock · Ships in 1-3 Business Days

✉️ Email a Caster Solutions Expert (Mon–Fri 8–5 CST)

PO Net 30 ACH Tax-Exempt

Business Purchasing

Purchase orders accepted for approved accounts
Net 30 terms for qualified businesses
ACH, credit card, and tax-exempt ordering
Bulk and contract pricing on fleet quantities

Upload a PO / Quote·Request bulk pricing·844-439-4335

Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.

Call now

Product Overview

At a glance

Load capacity1200 lbs

Wheel8" × 2" Solid Elastomer

MountPlate — 4" x 4-1/2"

TypeSwivel with Brake with brake

Overall height9-1/2"

Temperature-45°F to 230°F

8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster with 4" x 4.5" Plate - D4.08109.839 EN BRK3 SS WB29

Product Features

Size: 8" diameter x 2" width
Material: Stainless steel and solid elastomer for durability
Plate Size: 4" x 4.5" for easy installation
Brake Type: CAM-brake for reliable stopping power
Load Capacity: Designed to handle heavy loads with ease
Application: Ideal for industrial carts, warehouse equipment, and heavy-duty applications

The 8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster - D4.08109.839 EN BRK3 SS WB29 is engineered to provide robust performance and exceptional durability in demanding environments. Crafted from high-quality stainless steel and solid elastomer, this caster combines strength and resilience, making it perfect for industrial carts and heavy-duty applications. The CAM-brake mechanism ensures secure stopping and enhances safety during operation. With a plate size of 4" x 4.5", installation is straightforward, allowing for quick setup on various equipment. This caster is designed to efficiently support heavy loads, enhancing your workflow and ensuring reliability in your operations.

Why Choose Our CAM-Brake Caster?

Invest in the 8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster - D4.08109.839 EN BRK3 SS WB29 for unparalleled performance and safety. This caster's durable construction and efficient braking system make it a vital addition to your industrial or warehouse equipment. Maximize your operational efficiency with a caster that not only provides stability and control but also enhances your overall productivity. Choose our CAM-brake caster for a reliable solution that meets all your mobility and handling needs, ensuring a smoother workflow and increased customer satisfaction.

Key Features

Top 10 Features of the 8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster

High Load Capacity: Supports up to 1200 lb, making it ideal for heavy-duty applications.
Durable Construction: Made with stainless steel and solid elastomer for enhanced longevity and resistance to wear.
Versatile Operating Temperature: Functions effectively in a wide temperature range from -45°F to +230°F.
Efficient Raceway Design: Features full double ball hardened raceways with FDA-approved grease for improved performance.
User-Friendly Side Lock Brake: The BRK3 brake system ensures reliable stopping power for added safety.
Easy Installation: Equipped with a 4" x 4-1/2" top plate for quick and straightforward mounting.
Optimal Wheel Hardness: Features a wheel hardness of 63 Shore D, providing excellent support and stability.
Streamlined Design: The wheel tread width of 2 in ensures smooth movement and efficient handling.
Customizable Axle Options: Available with a standard ½" diameter zerk axle; solid axle can be ordered as needed.
Warranty Assurance: Backed by a 3-year warranty, providing peace of mind and confidence in your purchase.

Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.

Payment & procurement terms

Purchase orders — accepted from approved accounts

Net 30 terms — available on approved credit

ACH & all major cards — Visa, MC, Amex, Discover

Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Extended Information for 8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster

The 8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster (SKU: D4.08109.839 EN BRK3 SS WB29) is engineered for exceptional performance and durability in heavy-duty environments. This caster is an ideal choice for a variety of applications, including industrial carts, warehouse equipment, and material handling systems.

Key Features and Benefits

Heavy-Duty Load Capacity: With a load capacity of 1200 lb, this caster is designed to support substantial weights, ensuring reliability in demanding situations.
Stainless Steel Construction: Crafted from high-quality stainless steel, this caster resists corrosion and wear, enhancing its longevity and making it suitable for various environments.
Solid Elastomer Wheel: The Endura Solid Elastomer wheel provides excellent traction and stability, minimizing the risk of slipping during operation.
Versatile Temperature Range: This caster operates efficiently within a temperature range of -45°F to +230°F, allowing it to perform in extreme conditions.
FDA-Approved Grease: Utilizing full double ball hardened raceways lubricated with FDA-approved food-grade grease, this caster ensures superior performance and safety in food handling applications.
Efficient Swivel Design: The 6.5-inch swivel radius allows for tight turns and enhanced maneuverability, making it easy to navigate confined spaces.
Side Lock Brake System: The reliable Side Lock Brake (BRK3) provides secure stopping capabilities, enhancing safety when loading and unloading materials.
Easy Installation: The 4" x 4-1/2" top plate simplifies mounting, ensuring quick installation on a variety of equipment.
Warranty Assurance: Backed by a 3-year warranty, this caster reflects confidence in its quality and performance, giving customers peace of mind.
Compliance and Safety: This product is RoHS compliant and is an NSF component, ensuring it meets rigorous safety and environmental standards.

Applications

The 8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster is perfect for use in various settings, including:

Industrial carts
Warehouse equipment
Material handling systems
Food service environments
Retail displays and fixtures

Conclusion

Choose the 8" x 2" Stainless Solid Elastomer Roller Bearing CAM-Brake Caster for a robust and reliable solution that enhances your operational efficiency. With its combination of durable materials, superior load capacity, and user-friendly features, this caster is an invaluable asset for any business looking to optimize their handling processes.

Frequently Asked Questions

What is the load capacity of this caster?+

This Colson D4.08109.839 8" x 2" Elastomer Stainless Caster with Brake – CasterHQ is rated to 1200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Solid Elastomer wheel with a 2" tread width. This wheel material balances load capacity, rolling ease, and floor protection for the intended application.

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for -45°F to 230°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Solid Elastomer wheel performs best on smooth concrete and finished warehouse floors. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Colson D4.08109.839 8" x 2" Elastomer Stainless Caster with Brake – CasterHQ

$302.00

Technical Specifications

Identification
Brand	colson header
Dimensions & Mounting
Wheel Diameter	8"
Wheel Tread Width	2"
Overall Height	9-1/2"
Plate Size	4" x 4-1/2"
Bolt Hole Pattern	3" x 3"
Mount Style	Plate
Rig Type	Swivel with Brake
Load & Performance
Wheel Capacity	1200 lbs
Temp Range	-45°F to 230°F
Brake Type	Side Lock Brake
Materials & Finish
Wheel Material	Solid Elastomer
Frame Material	Stainless Steel

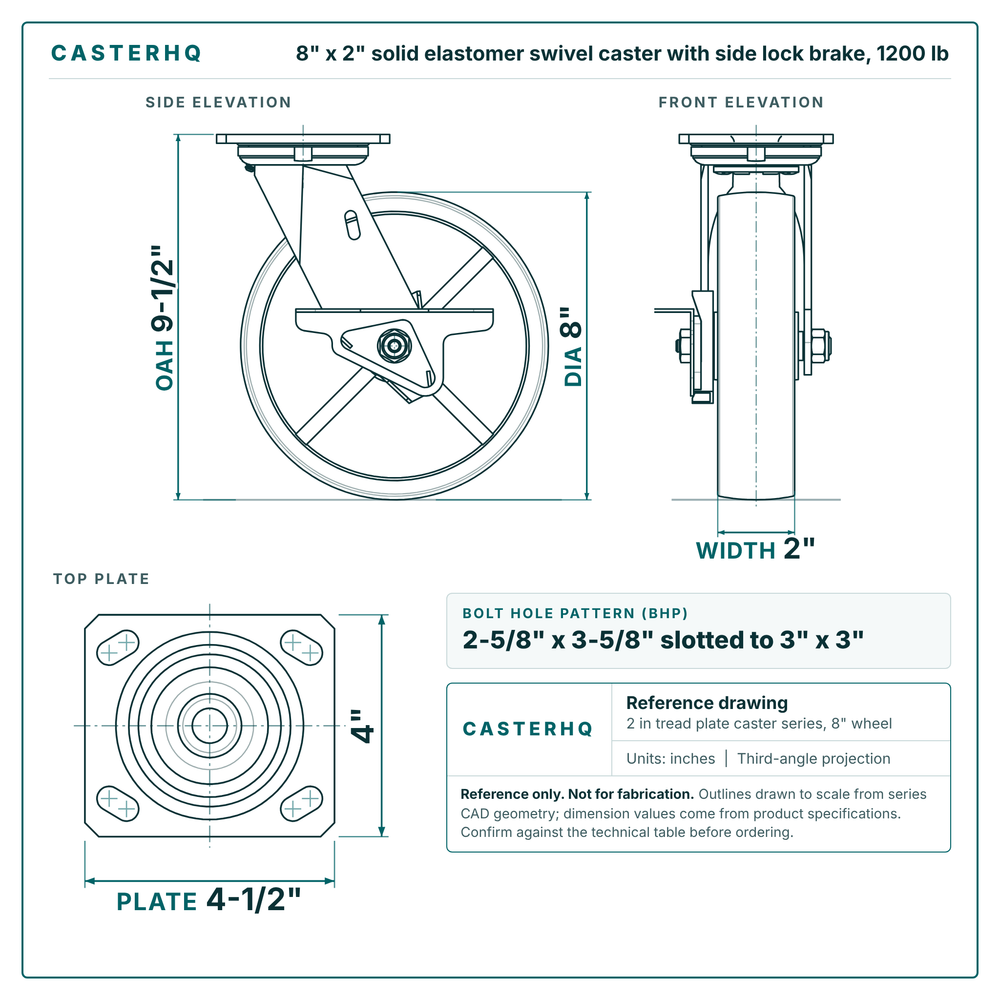

Reference Dimensions

Overall Height9-1/2"

Wheel8" x 2"

Top Plate4" x 4-1/2"

Bolt Pattern3" x 3"

Wheel MaterialSolid Elastomer

Illustrative caster profile drawn to this item's proportions — dimensions are manufacturer specification values. Confirm against the technical table before ordering.

Compare Similar

8" x 2" Swivel Caster Yoke 4" x 4-1/2" Top Plate Zinc 1,250 lb | CasterHQ 8" x 2" · 1250 lbs $16

8" x 2" Phenolic Rigid Caster 4" x 4-1/2" Plate – 1,250 lb | CasterHQ 8" x 2" · 1250 lbs · Direct fit $30

8" x 2" Semi-Steel Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ 8" x 2" · 1250 lbs · Direct fit $43 View all 8′ x 2′ casters & wheels →

Will This Caster Handle Your Load?

Enter your loaded weight — we derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.

Rated capacity: 1200 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →

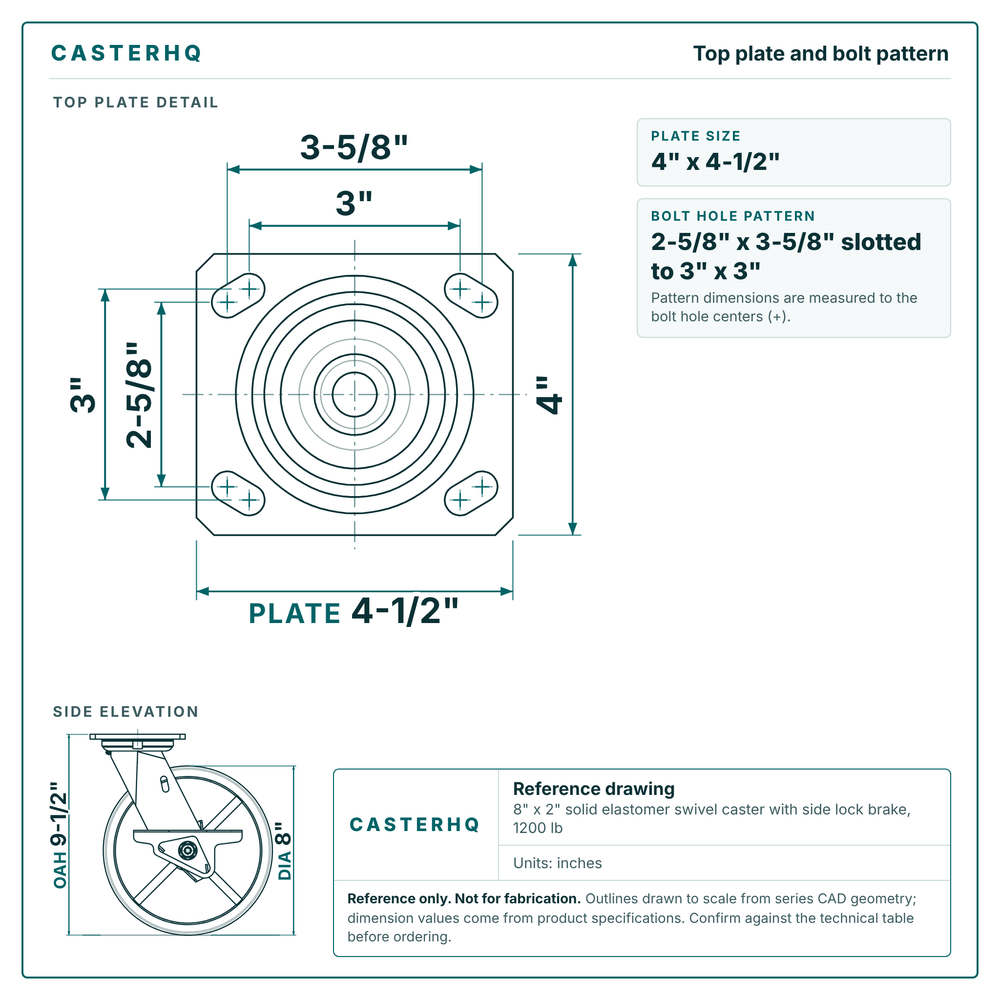

Fitment & Interchange

MountPlate

Plate Size4" x 4-1/2"

Bolt Pattern3" x 3"

Rig TypeSwivel with Brake

BrakeSide Lock Brake

Replacing an existing caster? Match the bolt pattern first, then wheel size · more 4" x 4-1/2" plate casters →

Documentation

Spec sheet (PDF) 30-day pricing honored Request STEP / CAD fileour engineers email it same day Caster selection guide Caster University Fleet & contract pricing Net 30 available

30-day returns · manufacturer warranty · spec support: 844-439-4335 (Mon–Fri 8–5 CST)
