The 6" x 2" Stainless Performa Rubber Precision Ball Bearing Top-Lock Caster is expertly designed for optimal functionality and reliability in a variety of industrial settings. Constructed from durable stainless steel, this caster ensures exceptional resistance to corrosion and wear, while the high-quality rubber wheel provides excellent grip and smooth maneuverability.
Featuring a precision ball bearing system, this caster allows for effortless movement, making it an ideal choice for applications requiring frequent transportation of heavy loads. The integrated top-lock mechanism secures the caster in place, enhancing safety during use. With a 4" x 4.5" plate, this caster offers enhanced stability and easy installation on various equipment and furniture.
Upgrade your operational efficiency with the 6" x 2" Stainless Performa Rubber Top-Lock Caster. Designed for heavy-duty performance, this caster combines durability, safety, and smooth movement, making it a smart choice for industrial applications. Invest in a product that not only meets but exceeds your mobility needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

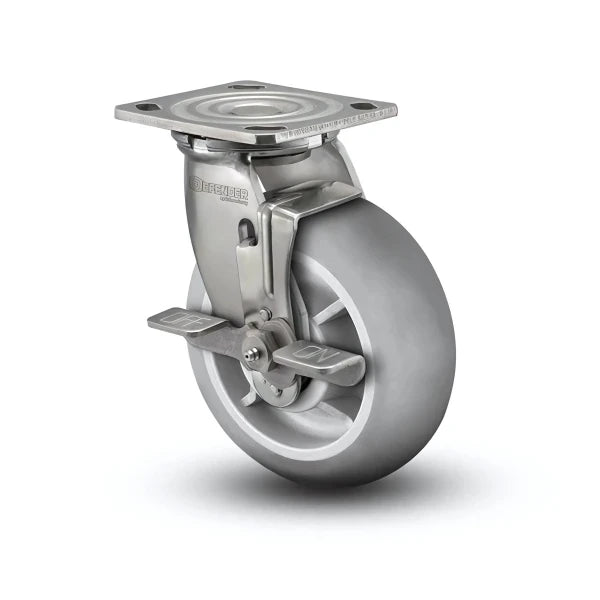

The 6" x 2" Stainless Performa Rubber (Round) Precision Ball Bearing Top-Lock Caster is engineered for exceptional performance and durability in demanding industrial applications. This caster is ideal for environments that require reliable mobility and stability, offering a load capacity of up to 450 lbs.
Crafted with a stainless steel finish, this caster provides superior corrosion resistance, making it suitable for various working conditions, including those with exposure to moisture or chemicals. The Performa Rubber wheel ensures excellent grip and durability, facilitating smooth movement across multiple surfaces without sacrificing performance.
This caster features precision ball bearings that minimize friction, allowing for effortless maneuverability. The wheel hardness of 65 Shore A (+/- 5) strikes the perfect balance between flexibility and support, making it suitable for both soft and hard surfaces. With a mounting height of 7.5 inches and a wheel tread width of 2 inches, this caster is designed for optimal functionality in heavy-duty applications.
The 4" x 4-1/2" top plate ensures secure attachment to equipment, while the swivel radius of 5.38 inches enhances maneuverability, allowing for easy navigation in tight spaces. This caster is built to withstand operating temperatures ranging from -40°F to +180°F, ensuring reliability in various environmental conditions.
The D4.06109.555 BRK7 SS model is RoHS compliant and NSF certified, confirming that it meets stringent safety and environmental standards. With a warranty of 3 years, customers can trust in the durability and performance of this product.
Ideal for a wide range of applications, the 6" x 2" Stainless Performa Rubber Caster is perfect for moving carts, dollies, and heavy machinery in manufacturing, warehousing, and logistics environments. Its robust design and advanced features make it a valuable addition to any operational setup.
This Colson D4.06109.555 BRK7 SS 6" x 2" Performa Stainless Caster with Wheel Lock Brake is rated to 450 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

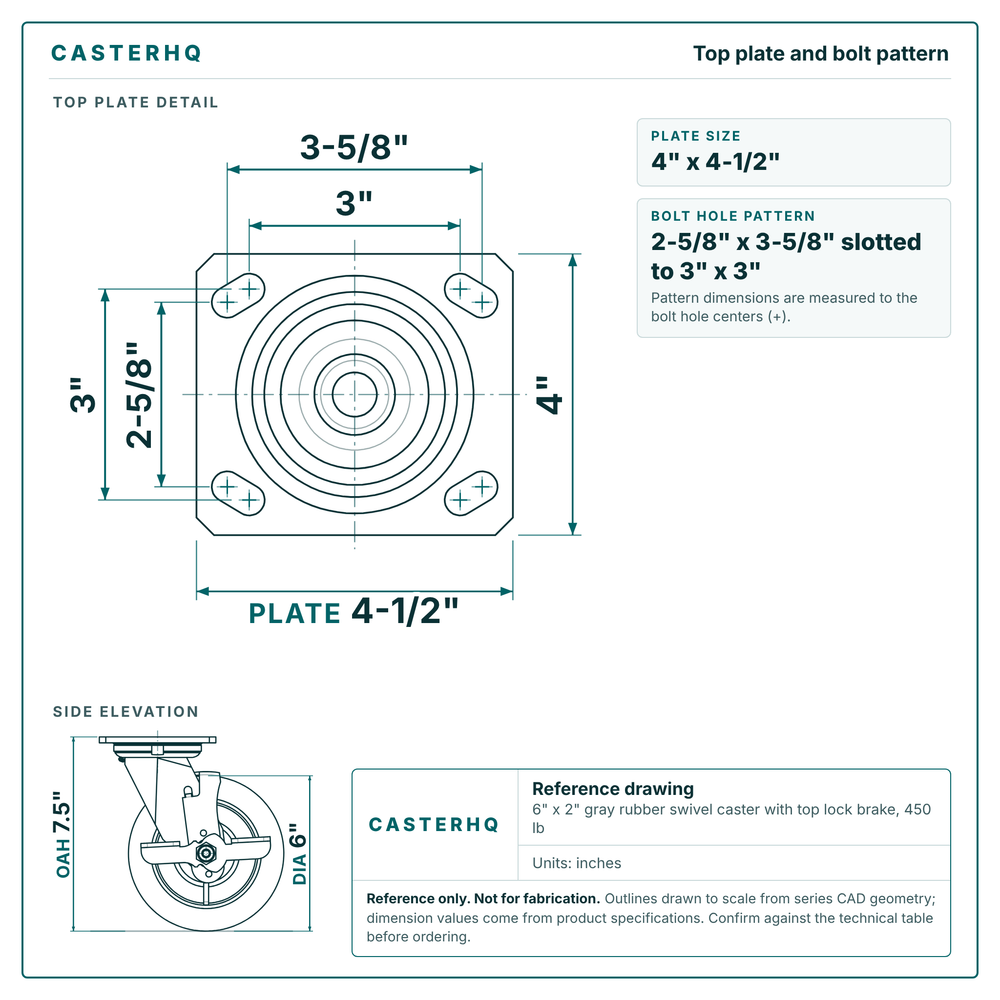

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$228.00
| Identification | |
|---|---|
| Part Number / SKU | D4.06109.555-BRK7-SS |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 450 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 7.5" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-3/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 65 Shore A ±5 |
| Bearing Type | Pedestal Precision Ball Bearing |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | -40°F to 600°F |
| Warranty | 3 Years |
| Compliance | |
| Conformity | RoHS compliant; NSF component (less thread guards) ensuring safety and environmental standards. |
| Buy American | Yes |

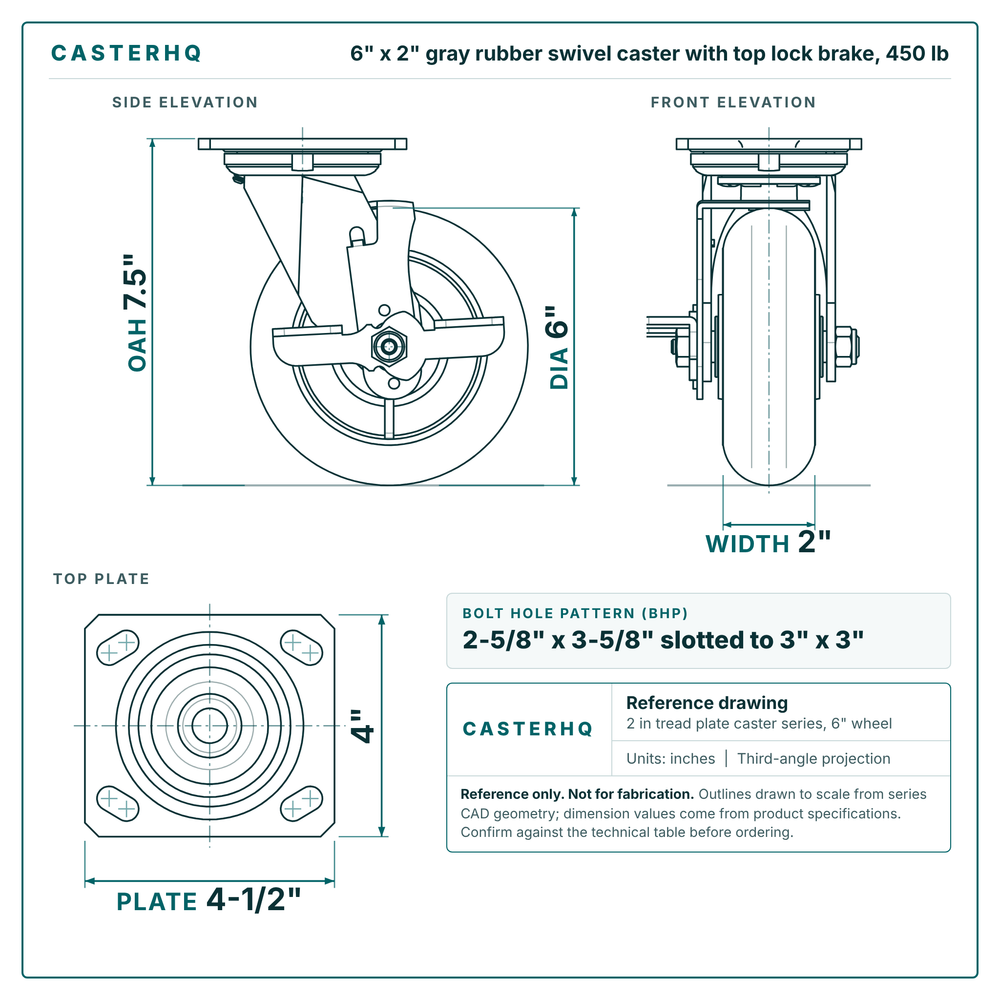

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 350 lbsLighter duty | 6" × 2"Gray Rubber | Rigid | 7-1/2" | $46.00 | View → | |
| 350 lbsLighter duty | 6" × 2"Gray Rubber | Swivel | 7-1/2" | $53.00 | View → | |
| 450 lbs | 6" × 2"Gray Rubber | Swivel with Brake + brake | 7.5" | $228.00 | Viewing | |
| 500 lbsHeavier duty | 6" × 2"Gray Rubber | — | — | $25.00 | View → | |
| 500 lbsHeavier duty | 6" × 2"Gray Rubber | — | — | $25.00 | View → |
