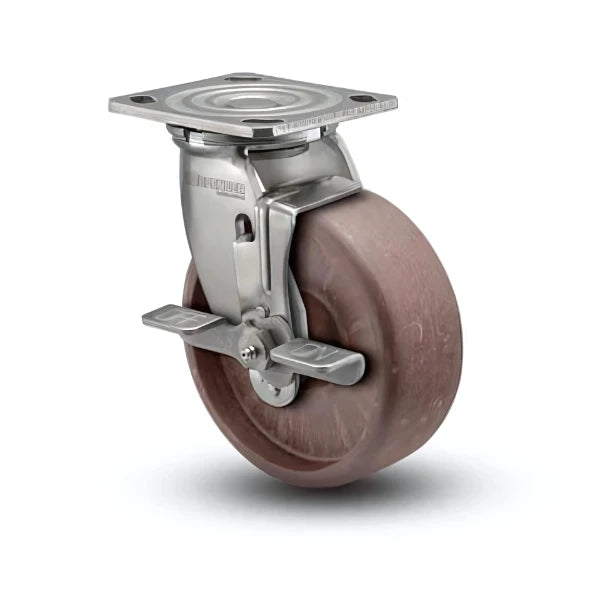

The 8" x 2" Stainless Thermo Hi-Temp Roller Bearing Top-Lock Caster is expertly designed for superior performance in challenging environments. Crafted from high-quality stainless steel and thermo-resistant nylon, this caster provides exceptional durability against heat, wear, and corrosion. The top-lock mechanism ensures stability and security for your equipment, allowing for effortless mobility while preventing accidental movement. The 4" x 4.5" plate ensures a robust attachment to machinery, making this caster an ideal choice for industrial applications requiring reliability and performance.
Enhance your equipment with the 8" x 2" Stainless Thermo Hi-Temp Roller Bearing Top-Lock Caster. Its robust construction, combined with the top-lock feature, provides the reliability and safety needed in high-temperature settings. Invest in a caster that delivers performance, durability, and peace of mind for your operations. Choose a solution designed for demanding environments and elevate your operational efficiency today.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The 8" x 2" Stainless Thermo Hi-Temp Roller Bearing Top-Lock Caster is engineered for exceptional performance in demanding environments. Its robust design incorporates high-quality materials to ensure durability, safety, and efficiency in heavy-duty applications. This caster is ideal for industries requiring reliable movement in high-temperature settings.
This caster is ideal for a range of applications, including:
The 8" x 2" Stainless Thermo Hi-Temp Roller Bearing Top-Lock Caster comes with a 3-year warranty, providing customers with confidence in its quality and performance. It is RoHS compliant and an NSF component, ensuring that it meets strict safety and environmental standards.
When selecting a caster for your operations, the 8" x 2" Stainless Thermo Hi-Temp Roller Bearing Top-Lock Caster stands out due to its exceptional durability, load capacity, and temperature resilience. It’s designed not just to meet but exceed the demands of heavy-duty applications, making it a smart investment for businesses focused on performance and reliability.
This 8" x 2" Thermo Stainless Caster with Wheel Lock Brake – 4" x 4.5" Plate is rated to 1200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

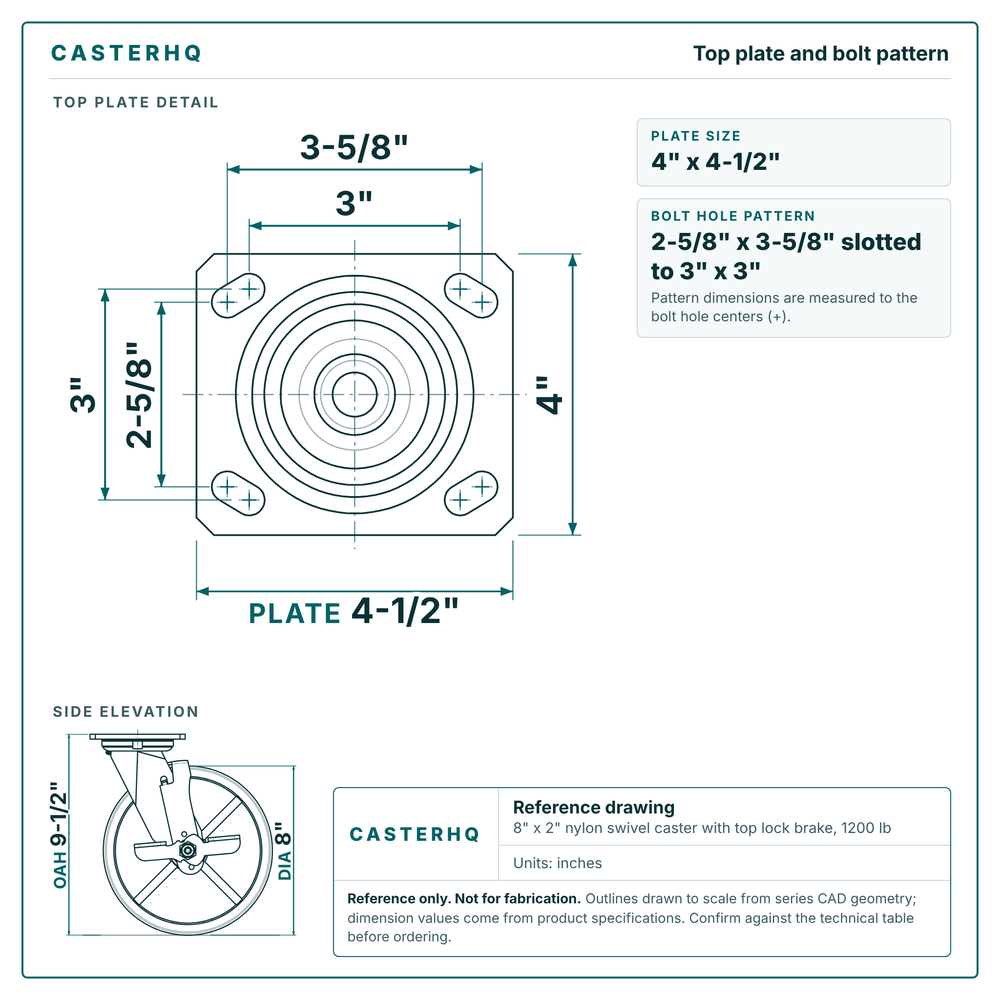

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 350°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$248.00
| Identification | |
|---|---|
| Part Number / SKU | D4.08109.839-HT-BRK7-SS-WB29 |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 1200 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 9-1/2" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 6-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Nylon |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 85 Shore D ±5 |
| Wheel Color | Brown for a professional appearance. |
| Bearing Type | Roller Bearing |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | Up to 350°F |
| Warranty | 3 Years |
| Compliance | |
| Conformity | RoHS compliant; NSF component (less thread guards). |
| Buy American | Yes |

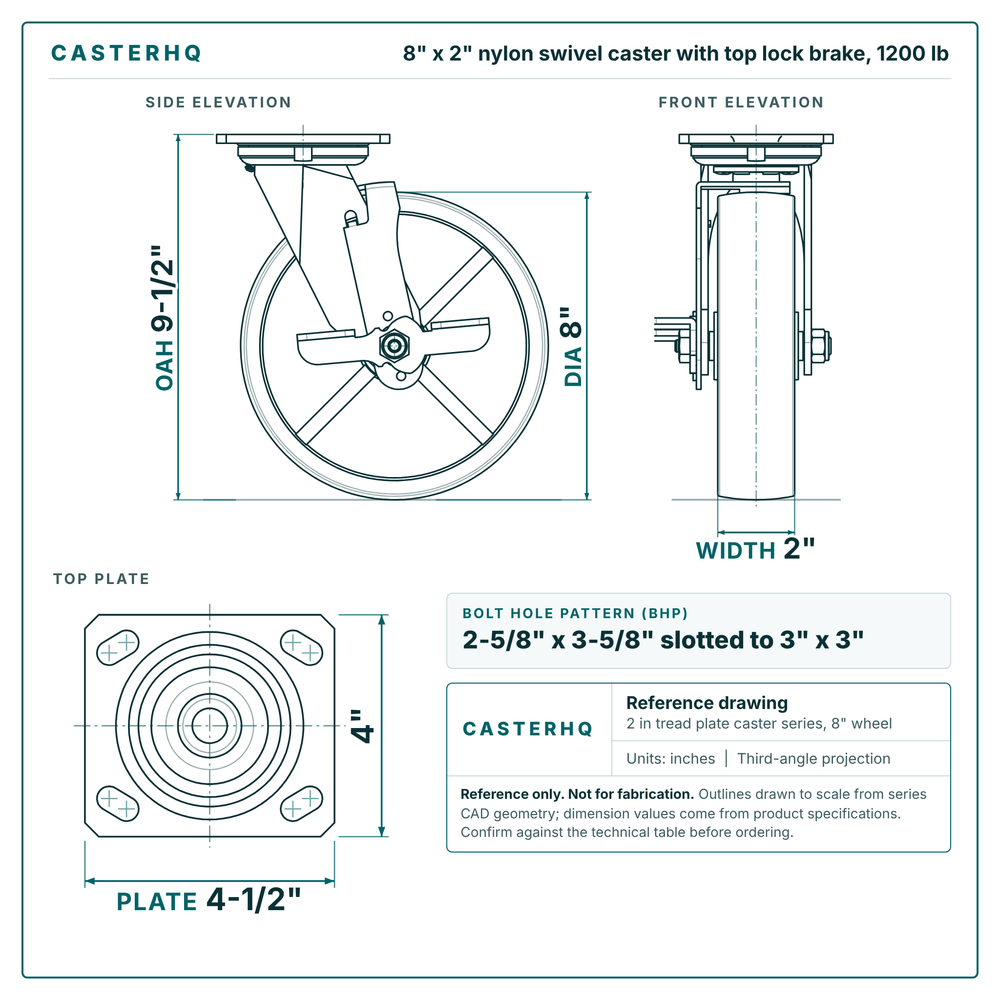

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 8" × 2"Blue Solid Polyurethane | — | 9-1/2" | $199.00 | View → | |
| 1000 lbsLighter duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → | |
| 1200 lbs | 8" × 2"Nylon | Swivel with Brake + brake | 9-1/2" | $248.00 | Viewing | |
| 1250 lbsHeavier duty | 8" × 2"Phenolic | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbsHeavier duty | 8" × 2"Semi-Steel | Rigid | 9-1/2" | $43.00 | View → |
