8 Inch x 2 Inch Swivel Caster - 600 lbs Capacity | Mold-On Rubber Wheel | NSF Listed Food Safe

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$36.00 USD - $61.99 USD$41.00 USD - $66.99 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: CB-9SC8-RI

Product Overview

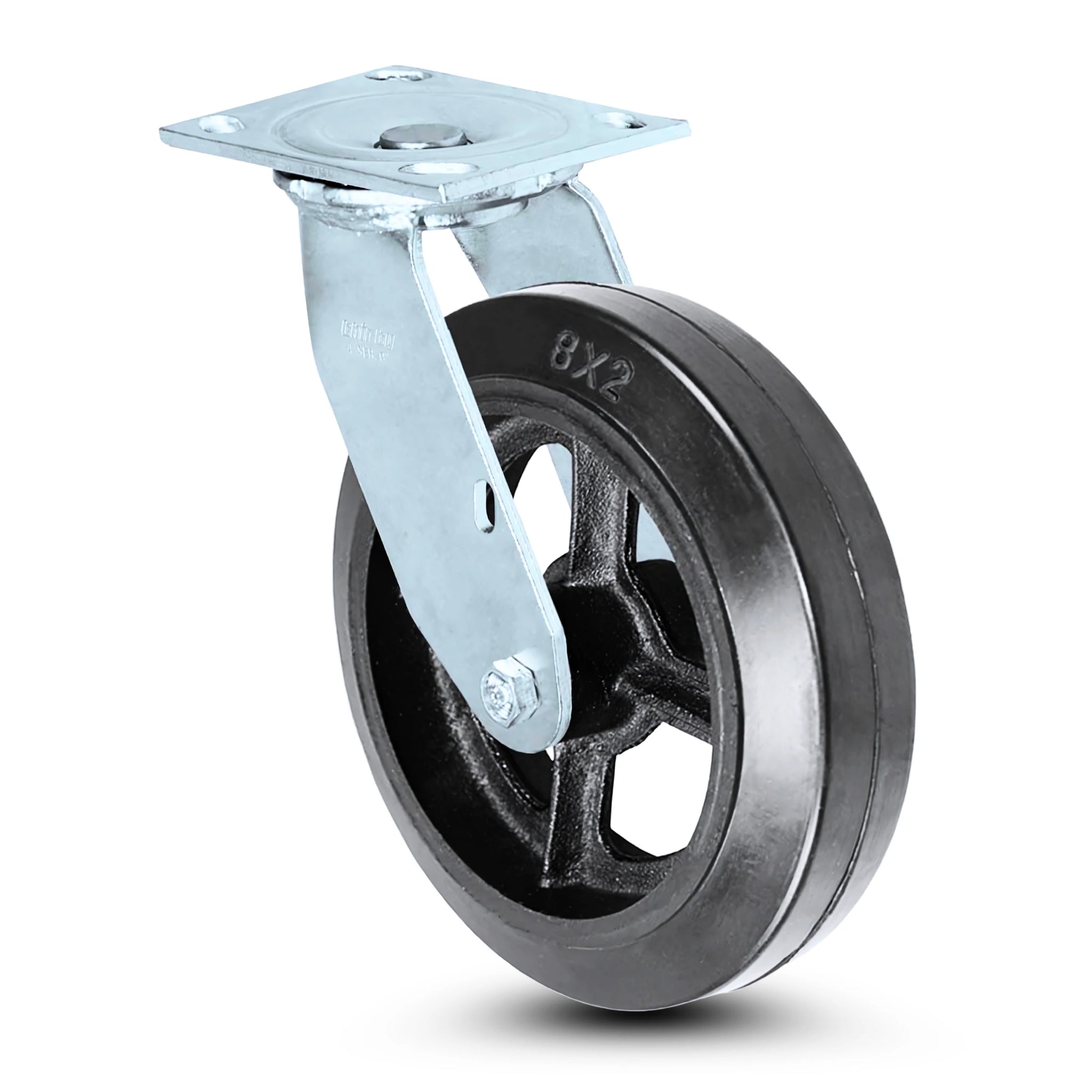

8" x 2" Swivel Caster | Mold-On Rubber Wheel | 600 lbs Capacity

This heavy-duty 8-inch swivel caster is engineered for maximum durability, performance, and reliability across multiple industries. Crafted from 1/4" thick cold-rolled steel, the zinc-plated bracket ensures superior corrosion resistance, making it ideal for industrial, warehousing, hospitality, food service, retail displays, and OEM applications.

Featuring a mold-on rubber wheel with a cast iron core, this caster offers a smooth, cushioned ride with excellent shock absorption, reducing vibration and noise. The double ball raceway and 5/8” nut & kingpin provide seamless 360-degree rotation, while the roller bearing system enhances load stability. Integrated grease fittings in the raceway and axle ensure long-lasting performance with minimal maintenance.

Designed for medium to heavy-duty applications, this caster supports 600 lbs per unit and is NSF listed for food-grade safety compliance. Matching total lock casters are also available for added stability and security.

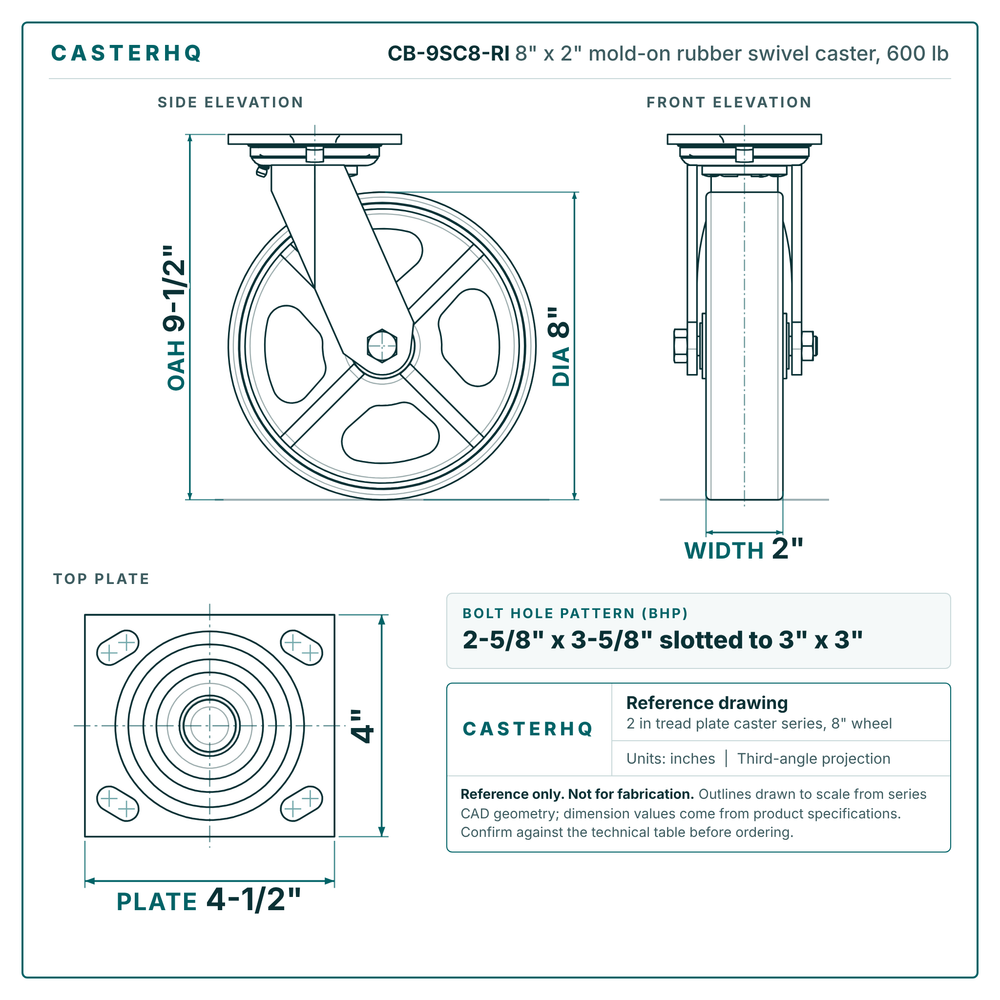

Technical Specs

Wheel Diameter: 8 inches
Tread Width: 2 inches
Load Capacity: 600 lbs per caster

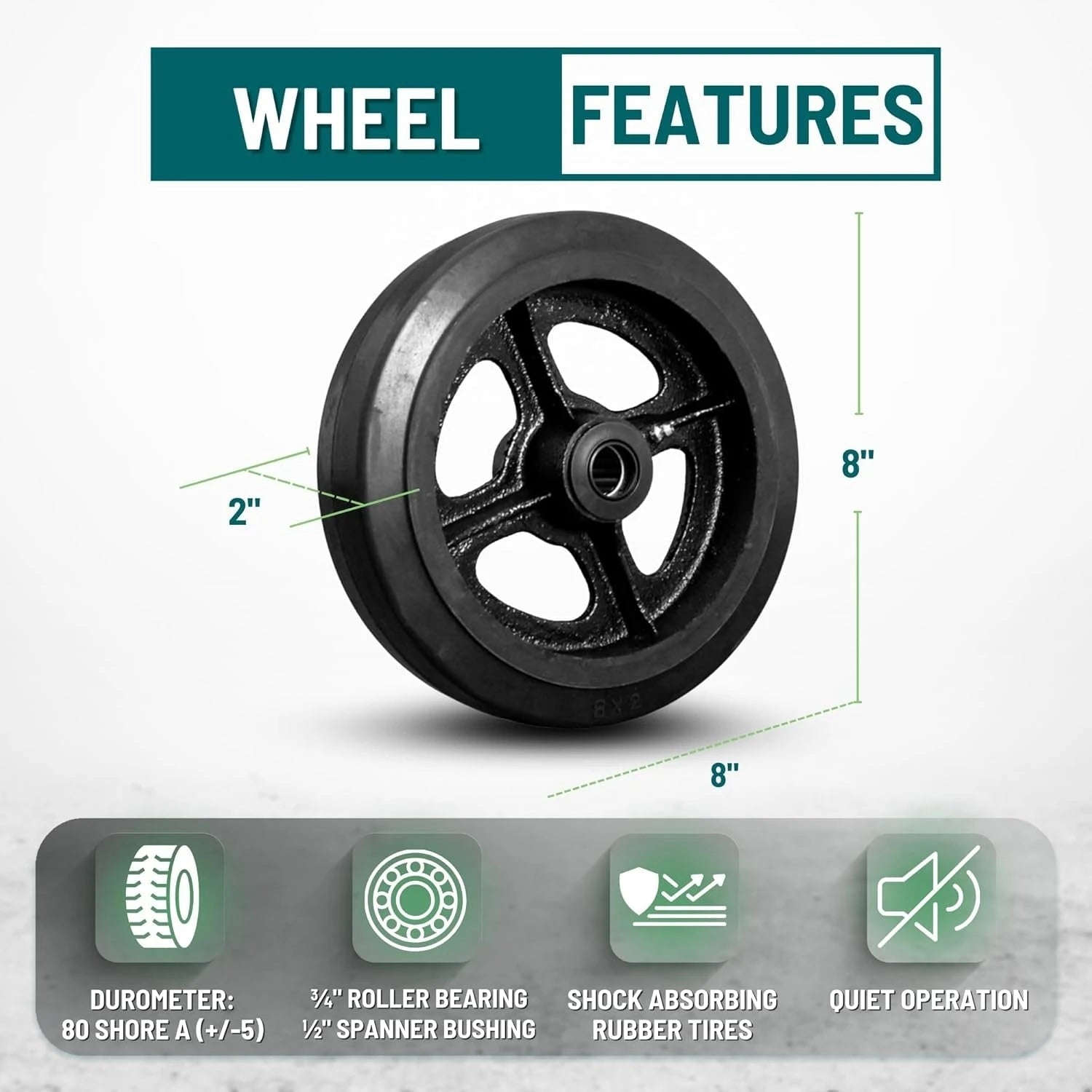

Wheel Material: Mold-On Rubber with Cast Iron Core

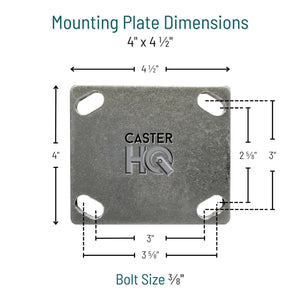

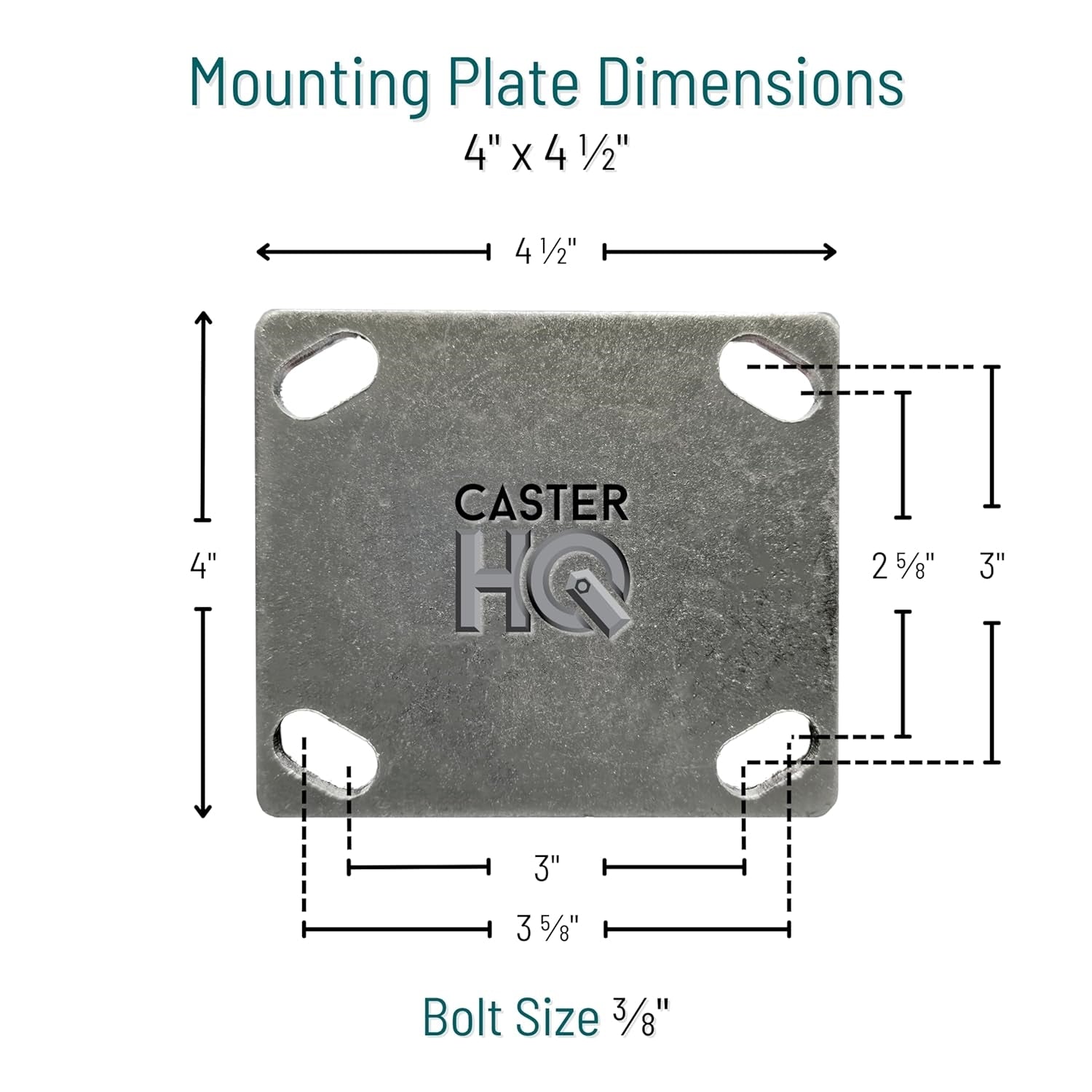

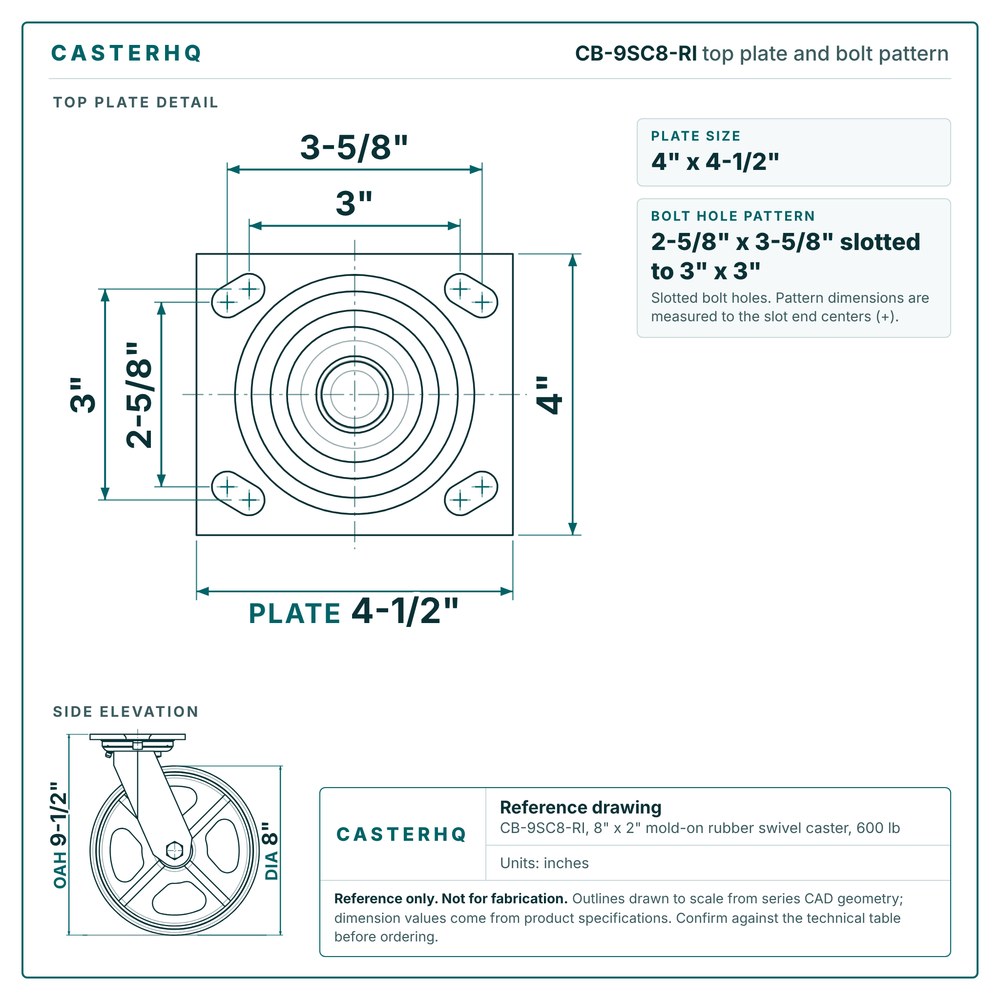

Top Plate Size: 4” x 4-1/2”
Bolt Hole Spacing: 2-5/8” x 3-5/8” (Slotted to 3” x 3”)
Swivel Radius: 6” (varies with brake options)
Wheel Durometer: 80 Shore A (+/-5)
Mounting Bolt Size: 3/8”
Overall Height: 9-1/2”
Bearing Type: Roller Bearing
Wheel Color: Black
Temperature Range: -40°F to 180°F
Bracket Material: Zinc-Plated Steel
Grease Zerk: Yes (Raceway & Axle)
NSF Listed: Yes
RoHS Compliant: Yes

Key Features

Durable Construction – 1/4” thick cold-rolled steel bracket, zinc-plated for rust & corrosion resistance.
Heavy-Duty Load Capacity – Supports up to 600 lbs per caster, making it ideal for industrial applications.
Smooth & Quiet Performance – Mold-on rubber wheel with cast iron core absorbs shock and reduces noise.
Double Ball Raceway for Easy Swivel – Improves maneuverability and turning precision.
Low-Maintenance Design – Grease zerks in the raceway & axle for smooth operation and long-term durability.

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

Flat-rate shipping by order size. Final shipping cost shown before payment.
No post-checkout shipping adjustments or re-billing.
Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Additional Information

1. What applications are best suited for this caster?
This caster is ideal for carts, dollies, racks, trucks, and material handling equipment in industries like warehousing, hospitality, food service, and retail displays.

2. What makes mold-on rubber wheels better than other types?
Mold-on rubber wheels provide excellent shock absorption, reduce noise, and roll smoothly compared to harder wheels like polyurethane or steel.

3. Does this caster resist rust and corrosion?
Yes! The zinc-plated steel bracket protects against moisture, chemicals, and wear, making it suitable for industrial and commercial use.

4. What is the load capacity of this caster?
Each caster supports 600 lbs, making it a heavy-duty solution for medium to high-load applications.

5. How does the double ball raceway improve performance?
The double ball raceway enhances swiveling ability, allowing for easier maneuverability and smoother turns.

6. Is this caster NSF listed and RoHS compliant?
Yes! This caster meets NSF and RoHS compliance standards, ensuring safety for food processing and commercial applications.

7. How does the roller bearing improve rolling efficiency?
Roller bearings reduce friction, making it easier to move heavy loads with minimal force.

8. Can I purchase matching total lock casters?
Yes! We offer matching total lock casters to provide full mobility control when needed.
