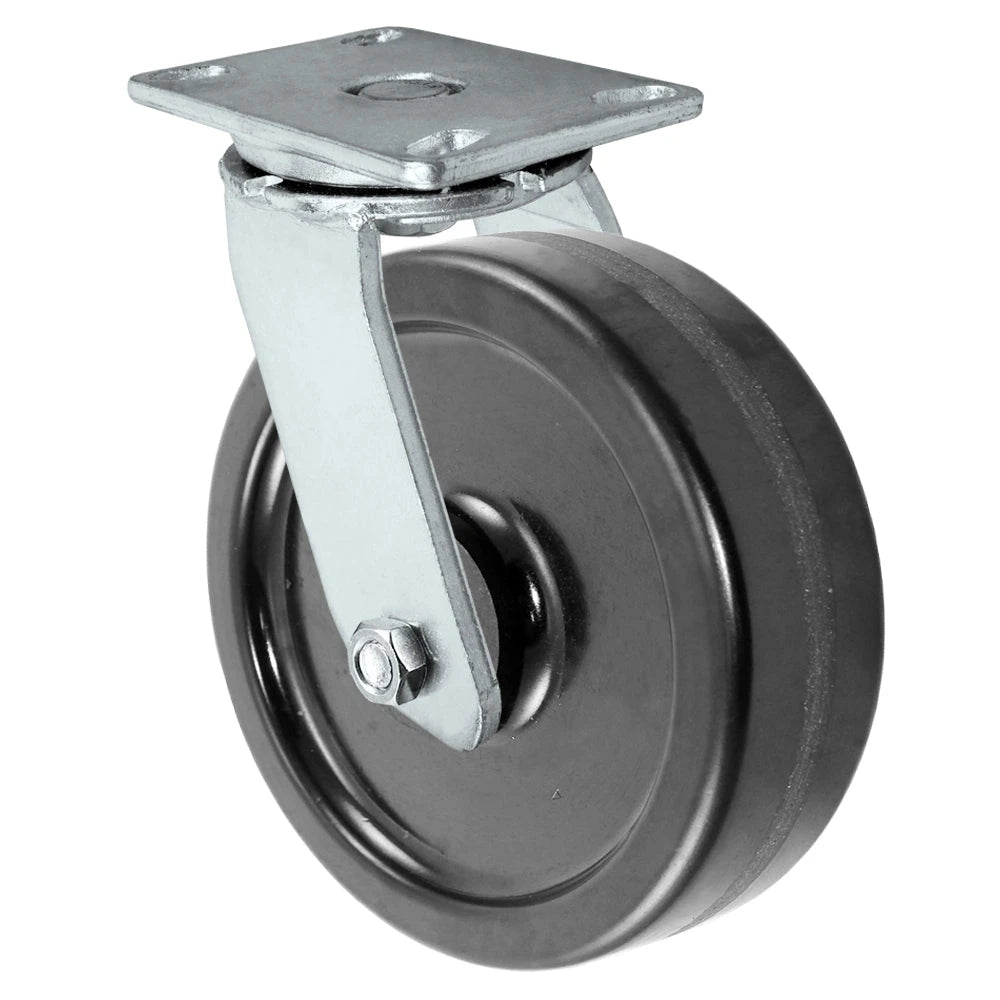

This product listing is for an 8" diameter by 3" tread width Swivel Caster with a Phenolic Wheel. Great for smooth concrete floors. Phenolic Wheels will not damage your floors and they hold the same capacity as steel wheels. Easy to roll, heavy-duty, and affordable.
Phenolic resin wheels are mixed with phenolic resin with macerated canvas and other compressed materials; These wheels are molded under high pressure and temperature. Phenolic caster wheels are recommended for smooth concrete floors and can be used for storage loads without permanent compression set to the wheel. These phenolic wheels are highly resistant to oil, grease, gasoline, and mild acids. Phenolic caster wheels will carry loads as great as the same size Gray Iron Wheel Casters. The wheel tread may show wear from repeated travel over rough floor surfaces. Phenolic Wheel Casters are one of the most commonly used casters due to the inexpensive costs and high weight capacities and durability these types of wheels offer. If your looking for a true heavy-duty caster that won't break the budget buy phenolic wheel casters from CasterHQ. Phenolic Casters can be used in many industries and applications due to their durability and strength. These wheels can hold large amounts of weight, will not tear up concrete floors, and will not flat spot. Phenolic wheels perform best on smooth surfaces due to the wheel's hardness. Phenolic wheels do not perform well on un-even floors with chipped concrete or obstacles in the path of the wheels. Phenolic Wheels should NOT be exposed to water. The material of phenolic wheels will eventually swell and the wheel could fall apart over time if exposed to water. These should be used in clean, dry environments such as warehouses, garages, buildings, retail stores, and anywhere that has clean, dry floors. I would not recommend Phenolic floors on custom wood floors as these could leave slight indentions if the weight of the cart is too heavy since real hardwood is a naturally softer and expensive floor type. If you need replacement phenolic wheels only please Click Here.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This 8" x 3" Phenolic Swivel Caster – 2,500 lb is rated to 2500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

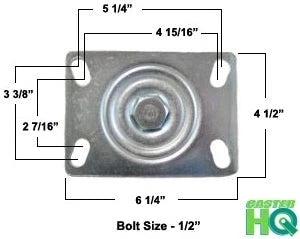

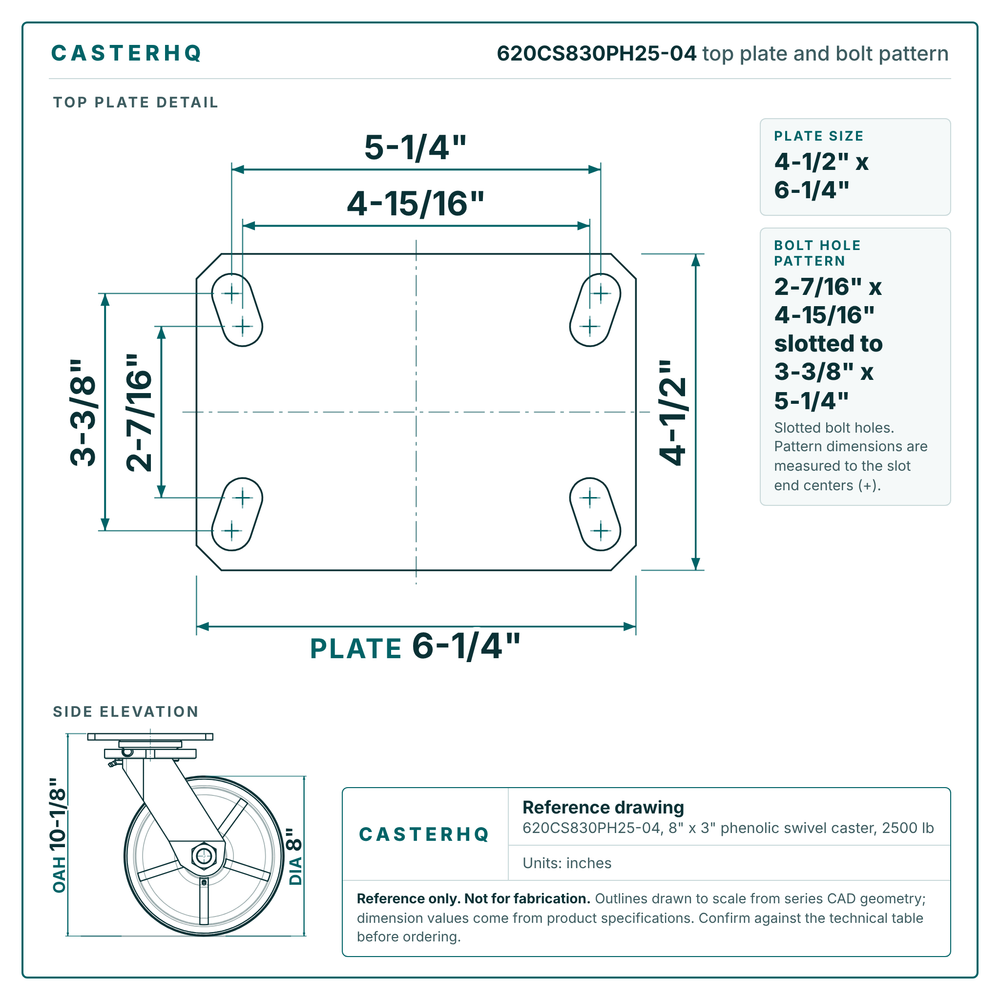

This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -50°F to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

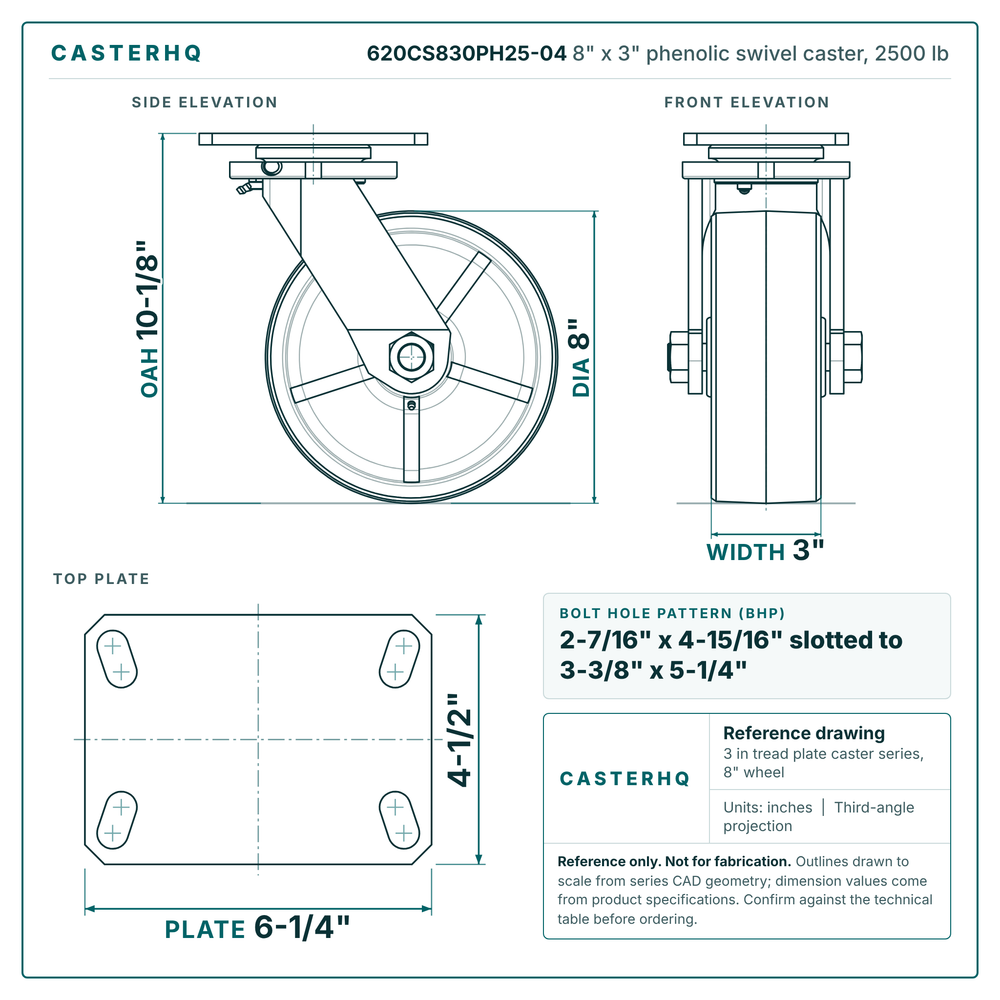

The overall height (floor to top of plate or stem) is 10-1/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$283.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 3" |
| Overall Height | 10-1/8" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 2500 lbs |
| Temp Range | -50°F to 250°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
Albion 470TM08501S 8"x3" Phenolic Kingpinless Caster – 2500 lb | CasterHQ
8" x 3" · 2500 lbs
$265
Albion 470TM08501SFBB 8" x 3" Phenolic Kingpinless Caster w/ Brake | CasterHQ
8" x 3" · 2500 lbs
$314
8" x 3" Green Polyurethane Steel Rigid Caster – 2,500 lb | CasterHQ
8" x 3" · 2500 lbs · Direct fit
$117
View all 8′ x 3′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 275 lbsLighter duty | 8" × 3"Polyurethane | Swivel | 9-3/4" | $74.00 | View → | |
| 275 lbsLighter duty | 8" × 3" | Swivel | 9-3/4" | $110.00 | View → | |
| 2500 lbs | 8" × 3"Cast Iron | Swivel | 10-1/8" | $283.00 | Viewing | |
| 2500 lbsSame capacity | 8" × 3"Polyurethane | Rigid | 10-1/8" | $117.00 | View → | |
 Direct fit8" x 3" Phenolic Rigid Caster – 2,500 lb |
2500 lbsSame capacity | 8" × 3"Cast Iron | Rigid | 10-1/8" | $150.00 | View → |
