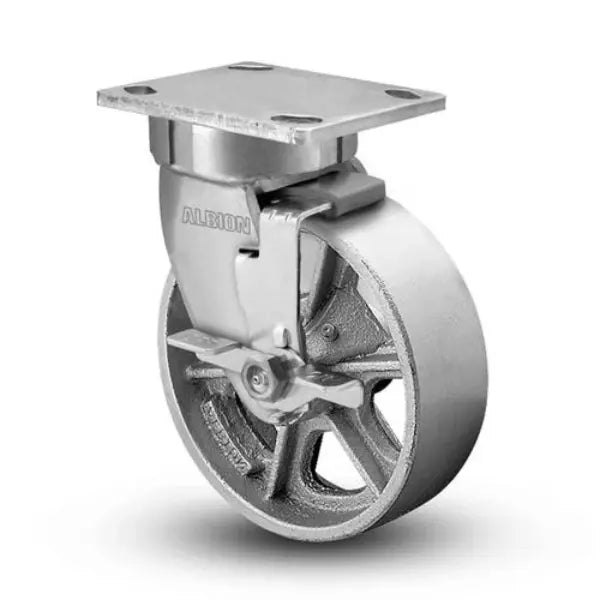

Move heavy equipment with ease using our industrial-grade 8"x2" Kingpinless Side Locking Caster. This caster boasts a heavy-duty cast iron wheel, capable of supporting up to 1800 lbs, for superior load handling.
Not sure which caster is right for your project? Our caster experts are here to help! Contact us weekdays from 8 am to 5 pm for expert guidance.
Indulge in unmatched value and performance with our top-quality 8"x2" Kingpinless Side Locking Casters!
Elevate your industrial operations with our exceptional 8"x2" Kingpinless Side Locking Caster. Engineered for unparalleled durability and top-notch performance, this caster is your one-stop solution for handling heavy loads and conquering demanding environments.
Our Caster Specialists are on hand to answer any questions you may have during weekdays, 8 am - 5 pm. Get the expert advice you need to ensure your project achieves peak efficiency.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Unmatched Durability for Demanding Applications
Kingpinless casters are the ideal choice for industrial settings and applications that require continuous use and can withstand significant impact. Traditional casters often fail under these demanding conditions, leading to costly downtime and replacements.
By eliminating the kingpin, a common point of weakness, kingpinless casters offer superior strength and longevity. This translates to fewer repairs and replacements, saving you money in the long run.
Not sure if kingpinless casters are the right solution for your needs? Our experienced staff is here to help! Contact us today and we'll be happy to discuss your specific requirements and recommend the perfect caster for your application.
This Albion 8"x2" Cast Iron Kingpinless Side Lock Caster – 1800 lb is rated to 1800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

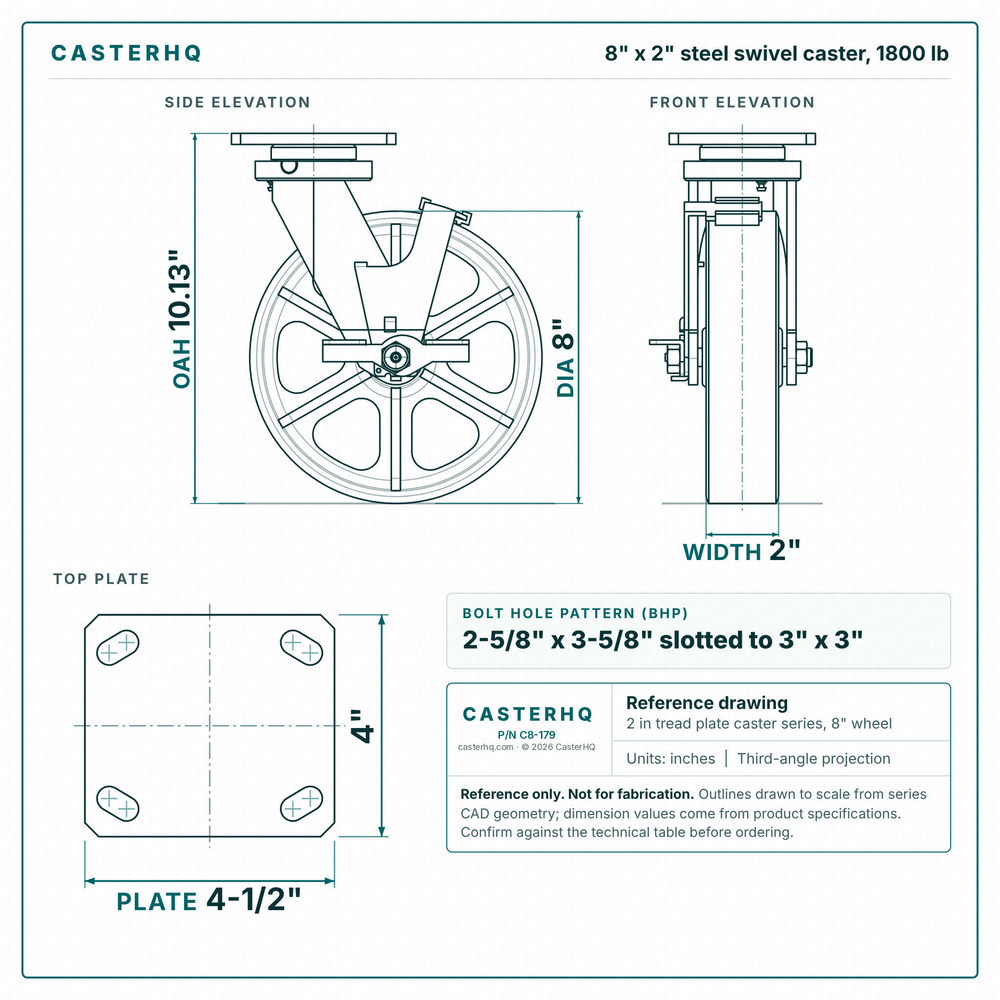

The overall height (floor to top of plate or stem) is 10.13". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$145.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 10.13" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1800 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
8" x 2" Red Ductile Steel Swivel Caster – 1,500 lb | 4-1/2" x 6-1/4" Plate
8" x 2" · 1500 lbs
$89
8" x 2" Phenolic Swivel Caster – 1,400 lb | 4-1/2" x 6-1/4" Top Plate | CasterHQ
8" x 2" · 1400 lbs
$38
8" x 2" Phenolic Rigid Kingpinless Caster – 1,400 lb | 4" x 4-1/2" Top Plate
8" x 2" · 1400 lbs · Direct fit
$36
View all 8′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1400 lbsLighter duty | 8" × 2"Cast Iron | Swivel | 9-1/2" | $38.00 | View → | |
| 1500 lbsLighter duty | 8" × 2"Ductile Iron | Swivel | 9-1/2" | $89.00 | View → | |
| 1800 lbs | 8" × 2"Cast Iron | — | 10.13" | $145.00 | Viewing | |
| 4000 lbsHeavier duty | 8" × 2"Phenolic | Swivel, Rigid | — | $132.00 | View → | |
| 4000 lbsHeavier duty | 8" × 2"Phenolic | Swivel | — | $134.00 | View → |
