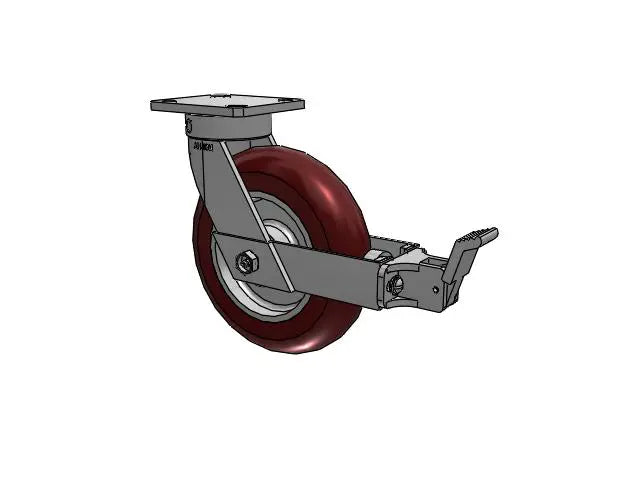

9.5" Kingpinless Caster with Face Brake - 8"x2" Maroon Swivel Caster, 1500 lb Capacity, 4"x4.5" Plate, Ergonomic Wheel by Albion Casters Albion-Casters

Albion 110AX08228S01FBB 8"x2" Maroon Swivel Kingpinless Caster – 1500 lb | CasterHQ

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
$230.00 USD
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 110AX08228S01FBB

Technical Specs

Technical Specifications | Detailed Product Info

Product Specifications

  • 1. SKU: 110AX08228S01FBB
  • 2. Wheel Type: Kingpinless Ergonomic
  • 3. Load Capacity: 1500 lbs
  • 4. Mounting Plate Size: 4" x 4.5"
  • 5. Fastening Plate Size: 4 1/2" x 4"
  • 6. Mount Height: 9.5 inches
  • 7. Swivel Radius: 10.75 inches
  • 8. Color: Maroon
  • 9. Additional Features: Face Brake for enhanced control and stability
Product Overview

9.5" Height Kingpinless 8"x2" MAX-Efficiency Maroon Caster with Face Brake and 4"x4.5" Plate

Best Prices Online | High Load Capacity

Product Specifications

SKU: 110AX08228S01FBB

Wheel Type: Kingpinless Ergonomic

Profile: Swivel Caster with Face Brake

Load Capacity: 1500 lb

Mounting Plate: 4" x 4.5"

Fastening: 4 1/2" x 4" top plate

Mount Height: 9.5 inches

Swivel Radius: 10.75 inches

Expert Support On Standby

Got questions? Our Caster Experts are here weekdays 8 am - 5 pm. Get expert advice for your project needs.

Key Features

High-Performance Casters | Durable & Reliable

Product Features

  • 1. Kingpinless Design: Provides enhanced durability and performance by eliminating weak points.
  • 2. Heavy-Duty Construction: Supports a load capacity of 1500 lb with robust materials.
  • 3. Ergonomic Maroon Wheel: Ensures smooth and efficient movement with minimal effort.
  • 4. Low Maintenance: Designed for long-lasting use with minimal upkeep, saving time and costs.
  • 5. Versatile Mounting Plate: Features a 4" x 4.5" plate for secure and easy installation.
  • 6. High Load Capacity: Handles up to 1500 lb, suitable for various heavy-duty applications.
  • 7. Enhanced Stability: Kingpinless design and face brake provide excellent control and stability.
  • 8. Smooth Mobility: Precision-engineered for smooth and quiet operation over different surfaces.
  • 9. Superior Durability: Maroon poly-on-iron material resists wear and tear, ensuring longevity.
  • 10. Industry-Leading Performance: Reliable and trusted for demanding industrial and commercial environments.
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Additional Product Information | Key Details & Benefits

Product Information

  • 1. Ideal Applications: Perfect for industrial settings, heavy-duty carts, and equipment requiring high load capacities and smooth mobility.
  • 2. Design Benefits: Kingpinless design minimizes maintenance needs and enhances durability, making it a reliable choice for demanding environments.
  • 3. Mobility Features: Precision-engineered wheels ensure smooth, quiet operation, reducing noise and effort in various applications.
  • 4. Brake Mechanism: Includes a face brake for added control, providing stability and preventing unwanted movement.
  • 5. Material Composition: Constructed with durable poly-on-iron material to resist wear and tear, ensuring a long lifespan even under heavy use.
  • 6. Installation Ease: Versatile 4" x 4.5" mounting plate allows for easy installation on a wide range of equipment.
  • 7. Aesthetic Appeal: Maroon color provides a sleek, professional appearance suitable for various settings.
  • 8. Warranty Information: Backed by a manufacturer warranty to ensure quality and customer satisfaction.
Albion 110AX08228S01FBB 8
Albion 110AX08228S01FBB 8"x2" Maroon Swivel Kingpinless Caster – 1500 lb | CasterHQ

$230.00

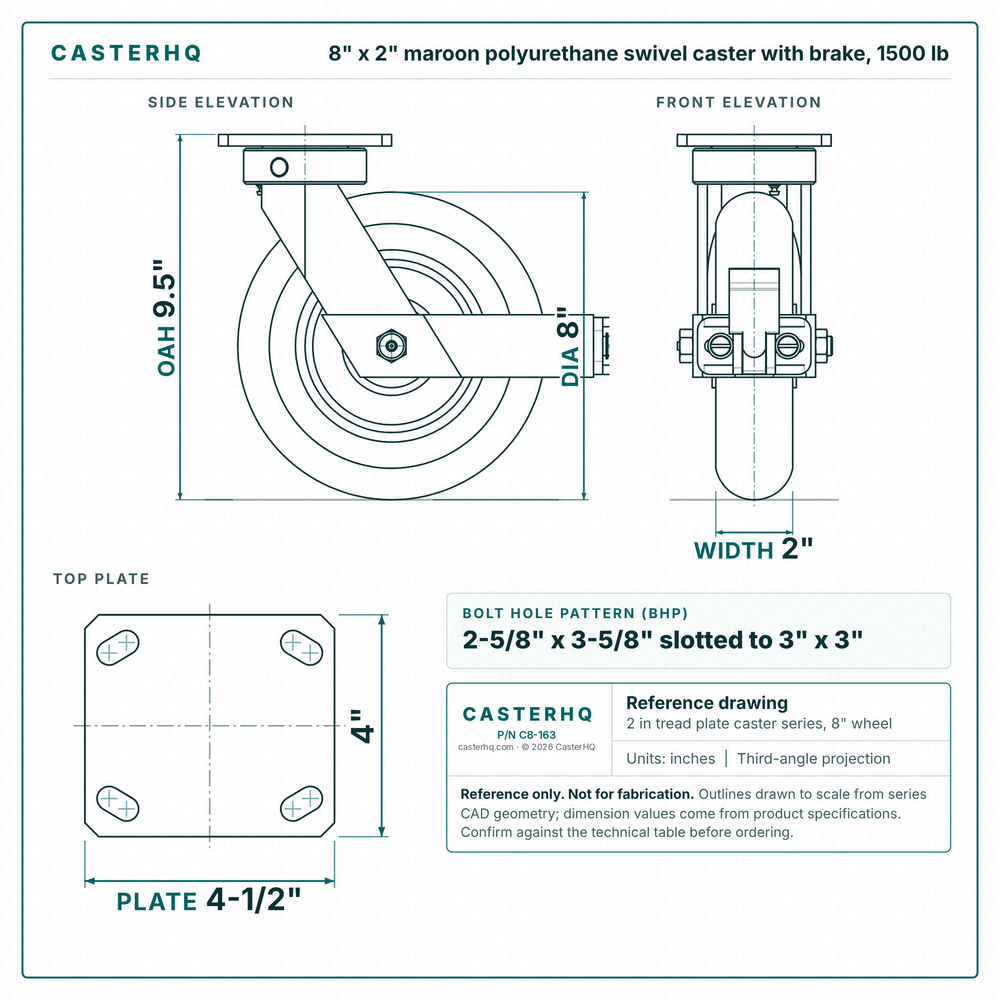

Technical Specifications:

Wheel Diameter 8"
Wheel Tread Width 2"
Overall Height 9.5"
Wheel Capacity 1500 lbs
Frame Material Zinc Plated Steel
Bolt Hole Pattern 2-5/8" x 3-3/8" slotted to 3" x 3"
Mount Style Plate
Plate Size 4" x 4-1/2"
Rig Type Swivel with Face Contact Brake
Brake Type Face Contact Brake
