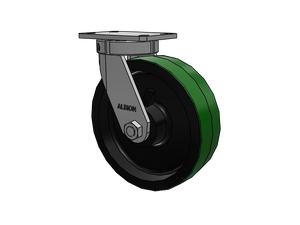

Upgrade your equipment with the Albion Casters 10" x 3" Kingpinless Swivel Caster, crafted with high-quality polyurethane-on-iron for superior performance. Made in the USA, this caster features a large 10-inch diameter wheel and a sturdy 6-1/4" x 4-1/2" top plate, designed to handle heavy loads with ease. The kingpinless swivel mechanism ensures enhanced maneuverability and durability, reducing maintenance needs and increasing operational efficiency. Ideal for industrial and commercial use, this caster provides a smooth, quiet ride and excellent resistance to wear and tear.
Improve your operational efficiency and durability with the Albion Casters Kingpinless Swivel Caster. Engineered for strength and reliability, this caster is perfect for demanding applications where smooth movement and resilience are critical.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 10" x 3" Kingpinless Swivel Caster is engineered for superior performance and durability in demanding environments. Made in the USA, this caster features a large 10-inch diameter wheel and a robust 3-inch width, ensuring exceptional stability and load distribution. The kingpinless swivel mechanism enhances maneuverability and minimizes maintenance needs by eliminating the traditional kingpin, thus reducing the risk of mechanical failure.
Constructed with polyurethane-on-iron, this caster offers a perfect balance of flexibility and strength, providing a quiet and smooth ride even on uneven surfaces. The 6-1/4" x 4-1/2" top plate ensures a secure and stable attachment, making it ideal for heavy-duty industrial applications. Designed to handle substantial weight, it is perfect for equipment that requires reliable and long-lasting mobility solutions.
This caster’s advanced shock absorption technology effectively reduces impact and vibration, protecting both the caster and the surface on which it operates. With the model number 310PY10501S, it is easily identifiable and ensures compatibility with various industrial setups. Whether used in warehouses, manufacturing plants, or other industrial settings, the Albion Casters 10" x 3" Kingpinless Swivel Caster delivers performance and durability you can trust.
Upgrade your industrial equipment with the Albion Casters Kingpinless Swivel Caster. Experience unparalleled performance, durability, and smooth operation with this USA-made caster designed to handle the toughest tasks with ease. Order now and ensure your equipment operates at its best!
This Albion 310PY10501S 10" x 3" Poly-on-Iron Swivel Kingpinless Caster is rated to 3000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

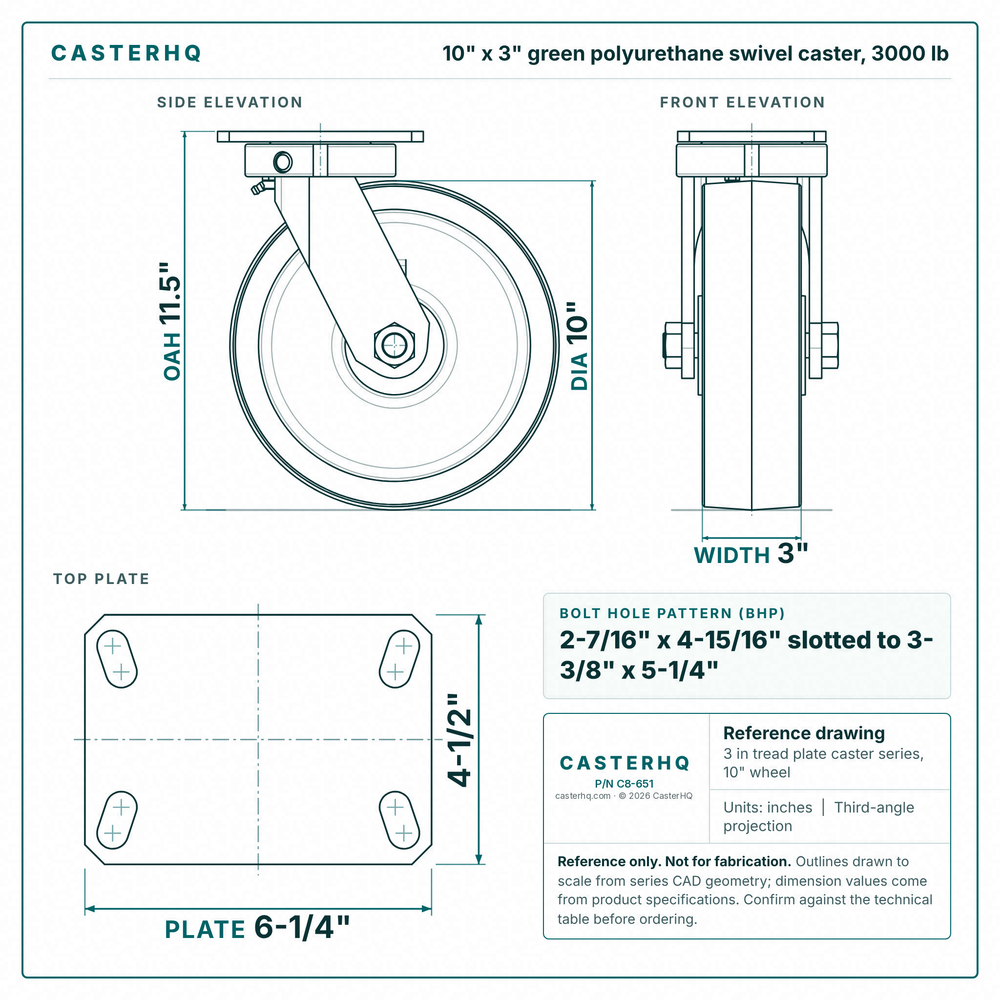

The overall height (floor to top of plate or stem) is 11.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$231.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 11.5" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 3000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
Albion 90PY10501SL 10" x 3" Py Caster — 3000 lb | CasterHQ
10" x 3" · 3000 lbs
$613
Albion 90PY10501R 10" x 3" Poly-on-Iron Rigid Caster 7.25" x 5.25" Plate | CasterHQ
10" x 3" · 3000 lbs
$386
Albion 90TM10501SP 3" Tm Caster — 2900 lb | CasterHQ
10" x 3" · 2900 lbs
$523
View all 10′ x 3′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2900 lbsLighter duty | 10" × 3"Phenolic | Swivel | 11-1/2" | $237.00 | View → | |
| 2900 lbsLighter duty | 10" × 3"Phenolic | Swivel | 12.5" | $523.00 | View → | |
| 3000 lbs | 10" × 3"Cast Iron | Swivel | 11.5" | $231.00 | Viewing | |
| 3000 lbsSame capacity | 10" × 3"Cast Iron | Swivel | 12.5" | $613.00 | View → | |
| 3000 lbsSame capacity | 10" × 3"Cast Iron | Rigid | 12.5" | $386.00 | View → |
