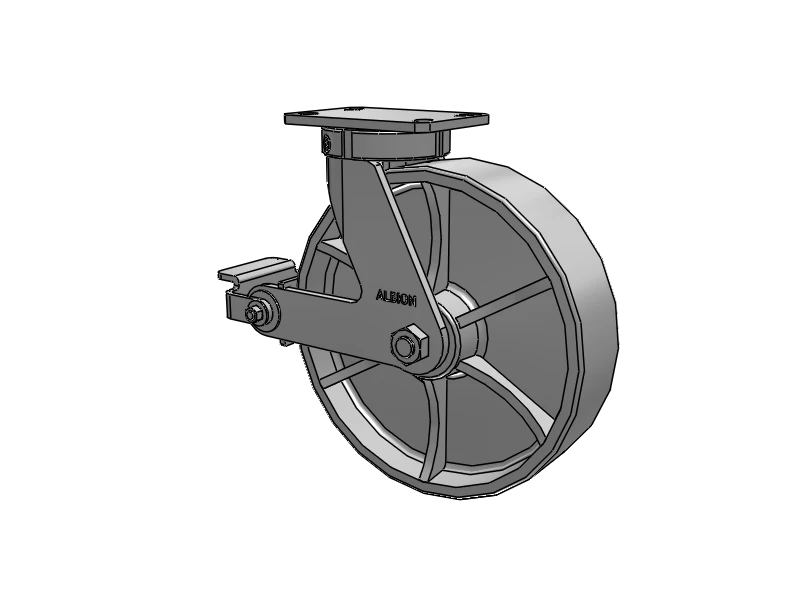

The Albion Casters Kingpinless USA-rig 12" x 3" Cast Iron Wheel Caster is designed for heavy-duty performance and reliability. Featuring a robust 12-inch diameter cast iron wheel, this caster is ideal for high-load applications requiring durability and strength. The kingpinless design minimizes wear and tear while enhancing maneuverability, making it perfect for demanding industrial environments. The integrated Poly-Cam brake system provides secure, reliable braking with easy operation. With a large 6.25" x 4.5" plate, this caster supports substantial loads while ensuring smooth, stable movement.
Upgrade to the Albion Casters Kingpinless USA-rig Caster for superior strength, performance, and safety in high-load applications. Experience the benefits of cast iron durability and advanced Poly-Cam braking technology.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters Kingpinless USA-rig 12" x 3" Cast Iron Wheel Caster is engineered for superior performance and durability in demanding environments. This caster features a large 12-inch diameter wheel and a 3-inch width, providing exceptional load-bearing capabilities and stability for heavy-duty applications. The kingpinless design minimizes wear and enhances maneuverability, reducing maintenance and extending the caster's lifespan.
Constructed from durable cast iron, this caster includes a Poly-Cam brake system that ensures reliable and effective braking, improving safety and control. The 6.25" x 4.5" plate size offers a secure and stable mounting base, making it suitable for a wide range of industrial and machinery applications. With its heavy-duty design, the Albion Casters Kingpinless Caster supports substantial loads while maintaining smooth, reliable operation even under the most demanding conditions.
Optimize your equipment's performance with the Albion Casters Kingpinless Caster. With its robust cast iron construction, advanced Poly-Cam brake system, and heavy-duty design, this caster is engineered to handle high loads and provide smooth, stable movement. Upgrade to Albion Casters for enhanced durability, reduced maintenance, and superior performance in industrial settings.
This Albion 310CA12501SP 12" x 3" Cast Iron Kingpinless Caster w/ Brake is rated to 2800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

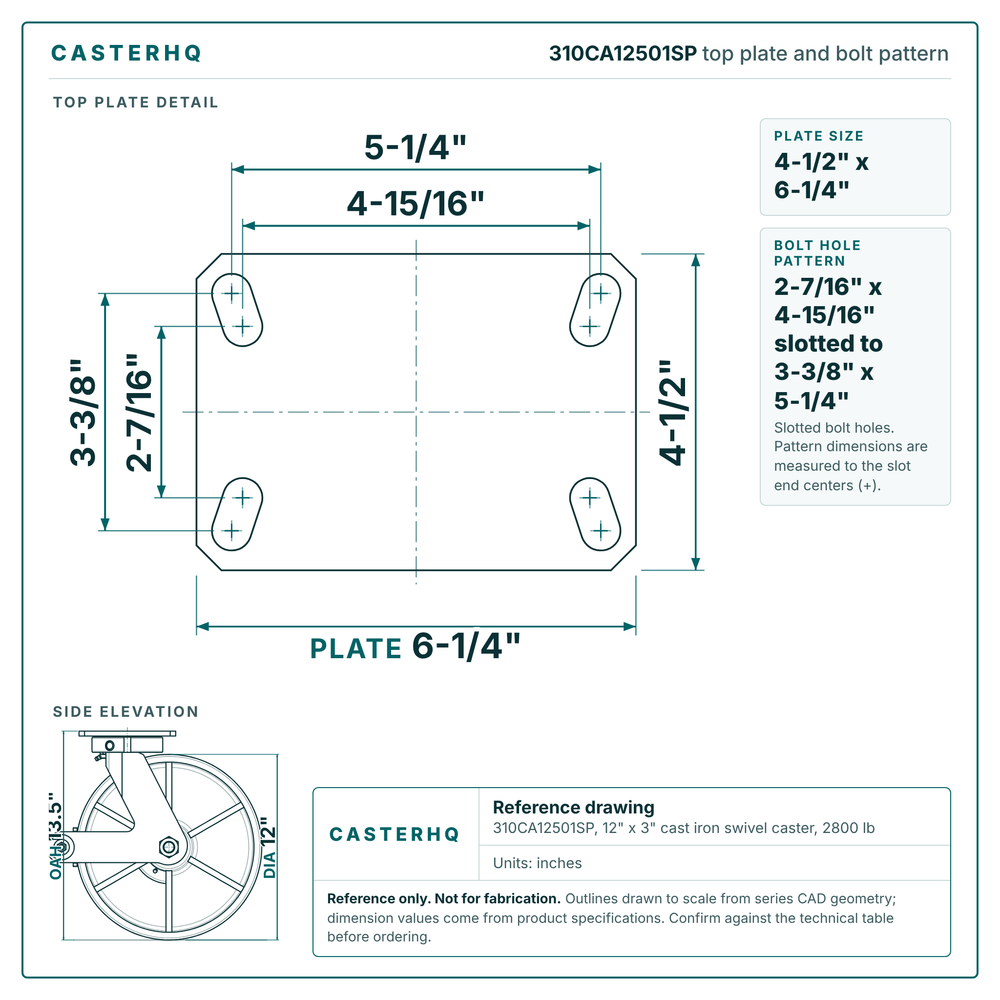

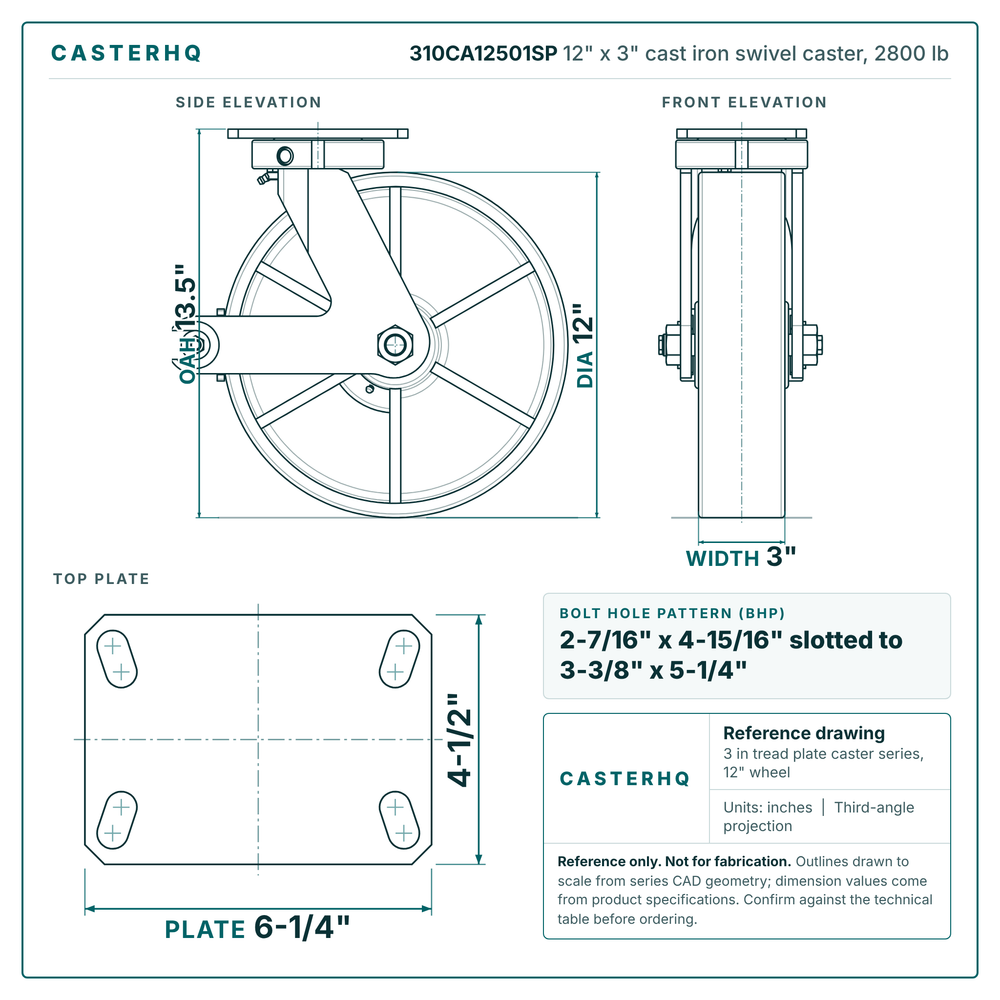

This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 13.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$411.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 12" |
| Wheel Tread Width | 3" |
| Overall Height | 13.5" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 2800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
