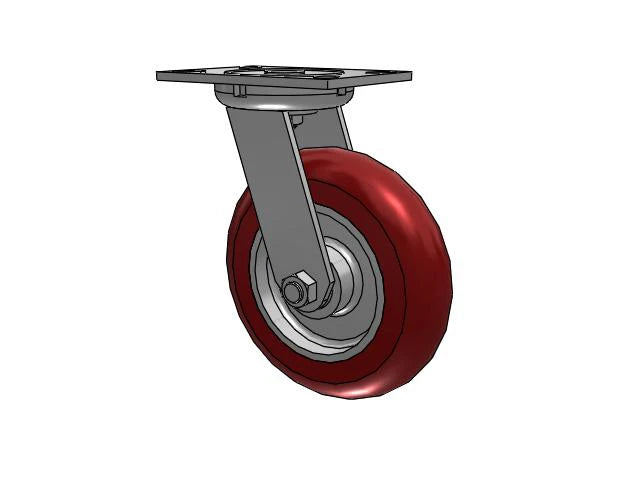

Unlock enhanced performance and longevity for your industrial equipment with the Albion Casters 3/4" King-Bolt 8" x 2" MAX-Efficiency Maroon Caster. Built with a heavy-duty 6.25" x 4.5" plate, this caster is designed for high load-bearing applications and offers maximum efficiency with its precision King-Bolt swivel mechanism. The maroon tread ensures long-lasting durability, superior resistance to wear, and smooth, quiet mobility on various surfaces. The MAX-Efficiency design minimizes friction, making it an ideal choice for heavy-duty applications where reliability and reduced wear are critical.
Upgrade your equipment with the Albion Casters 3/4" King-Bolt MAX-Efficiency Maroon Caster, and experience unmatched durability, performance, and ease of movement. Built for industrial applications requiring superior load handling and reduced friction, this caster is a must-have for maximizing operational efficiency.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 3/4" King-Bolt 8" x 2" MAX-Efficiency Maroon Caster with a 6.25" x 4.5" plate is engineered for high performance and industrial durability. Ideal for applications that require robust load handling and precision movement, this caster provides smooth mobility while resisting wear and tear in harsh environments. Featuring the innovative King-Bolt swivel design and MAX-Efficiency maroon tread, it’s the perfect solution for industries where operational efficiency is key.
The Albion Casters 62AX08228S model offers unparalleled benefits for industrial applications, where reliability, efficiency, and durability are paramount. Its ability to absorb shocks and reduce vibration not only protects your equipment but also ensures a quieter, smoother ride. The MAX-Efficiency maroon tread further enhances this caster’s lifespan, reducing downtime and maintenance costs for your operations.
Designed to withstand the rigors of constant use in warehouses, manufacturing plants, and other industrial settings, this caster helps improve operational flow while enhancing the safety of equipment handling. With its high load capacity, it’s a critical component for industries that need robust mobility solutions for heavy equipment and materials.
Invest in the Albion Casters 3/4" King-Bolt MAX-Efficiency Maroon Caster and experience the unmatched combination of durability, precision, and performance. Optimize your equipment for smoother operations and longer lifespan, reducing downtime and improving efficiency across the board.
This Albion 62AX08228S 8" x 2" Maroon Swivel King-Bolt Caster 6.25" x 4.5" Plate is rated to 1500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 10.13". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$178.00
| Identification | |
|---|---|
| Part Number / SKU | 62AX08228S |
| Core | |
| Load Capacity | 1500 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 10.13" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-3/4" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-3/4" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4-1/2" x 6-1/4" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 85 Shore A |
| Wheel Color | Maroon Tread on Aluminum Core |
| Bearing Type | Precision Ball Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -40°F to 180°F |
| Warranty | 1 Year |

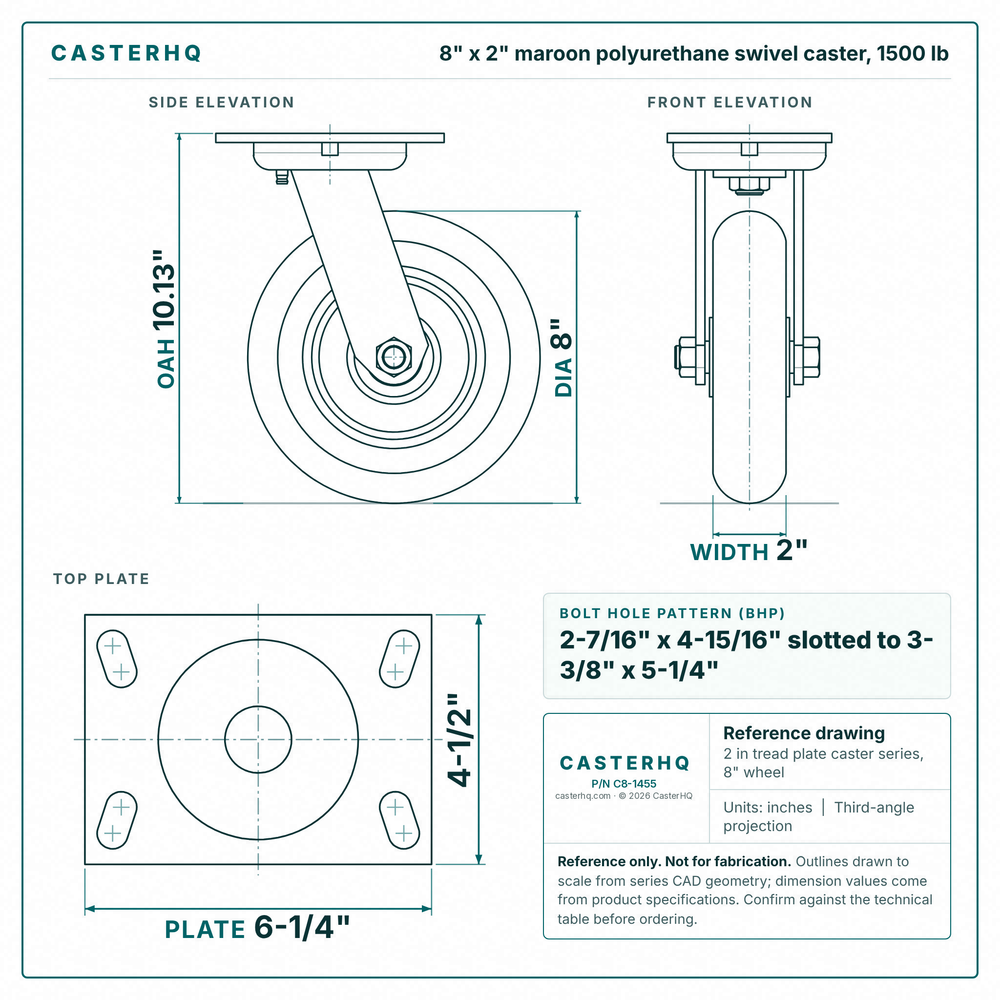

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1400 lbsLighter duty | 8" × 2"Polyurethane | Swivel | 9-1/2" | $97.00 | View → | |
| 1400 lbsLighter duty | 8" × 2"Phenolic | Swivel | 9-1/2" | $38.00 | View → | |
| 1500 lbs | 8" × 2"Polyurethane | Swivel | 10.13" | $178.00 | Viewing | |
| 1500 lbsSame capacity | 8" × 2"Ductile Iron | Swivel | 9-1/2" | $89.00 | View → |
