Brand: Albion Casters
SKU: 16AX04228SFBA
Size: 4" x 2"
Type: Side Locking Caster
Material: MAX-Efficiency Maroon Wheel
Load Capacity: 700 lb
Mount Height: 5.63 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

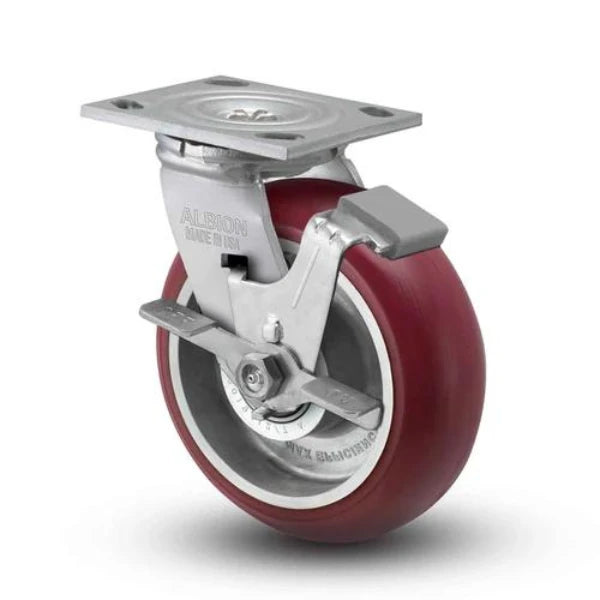

The Albion Casters 4" x 2" Floor-Protective USA-Rig Side Locking Caster, equipped with a MAX-Efficiency Maroon Wheel, is expertly designed in the USA to offer exceptional performance while protecting sensitive flooring. This caster features a side locking mechanism that ensures stability and safety in demanding applications. With a load capacity of 700 lbs, it is ideal for medium-duty use. The 5.63" mount height and 4" x 4-1/2" top plate provide a reliable fit for various equipment and fixtures. Albion Casters' commitment to quality ensures that this caster delivers reliable operation and floor protection, making it a preferred choice for professionals seeking efficiency and durability.
Our dedicated Caster Specialists are available Monday through Friday, 8 am - 5 pm, to assist with any questions or support needs, helping you find the best solutions for your specific requirements.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" Floor-Protective Side Locking Caster with MAX-Efficiency Maroon Wheel is engineered for superior performance and durability. Designed and manufactured in the USA, this caster provides an exceptional solution for protecting sensitive flooring while delivering robust support in industrial and commercial settings.
Our knowledgeable Caster Specialists are available Monday through Friday, 8 am - 5 pm, to provide assistance and answer any questions. We are dedicated to helping you find the perfect caster solution for your needs.
This Albion 16AX04228SFBA 4" x 2" Maroon Side Lock Caster – 700 lb is rated to 700 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$95.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 700 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
