Brand: Albion Casters
SKU: 16AN04228S
Size: 4"x2"
Type: USA Rig Swivel Caster
Material: MAX Efficiency Orange Wheel
Load Capacity: 800 lb
Mount Height: 5.63 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

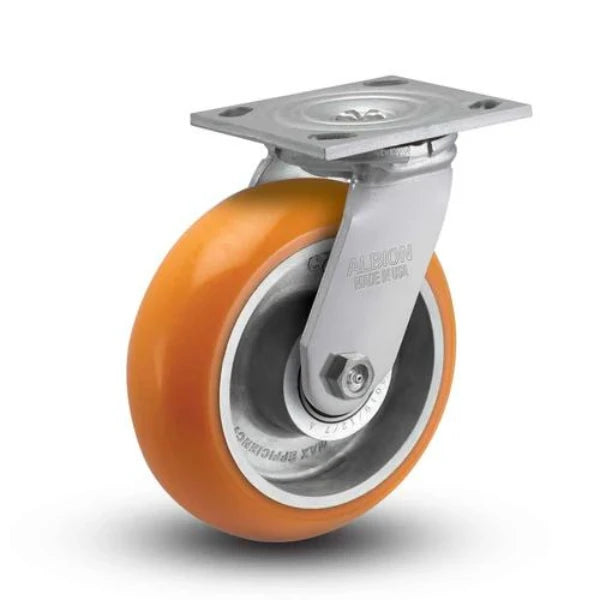

The Albion Casters 4" x 2" Floor Protective Caster with MAX Efficiency Orange Wheel is designed to offer exceptional durability and performance. Made in the USA, this caster is engineered for high efficiency and floor protection. With a robust 800 lb load capacity and a 5.63" mount height, it ensures reliable support for heavy-duty applications. The 4" x 4-1/2" top plate provides a secure attachment to various equipment, while its swivel design enhances maneuverability. This caster is ideal for environments requiring both stability and protection.
Our expert team is available Monday through Friday, 8 am - 5 pm, to assist with any inquiries or support needs. We are committed to helping you find the perfect caster for your requirements.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" Floor Protective USA Rig Swivel Caster is engineered for superior durability and high performance in demanding environments. Designed with a MAX Efficiency Orange Wheel, this caster is perfect for applications requiring both strength and smooth movement. Made in the USA, it reflects exceptional craftsmanship and reliability.
With a robust 800 lb load capacity, this caster is capable of handling heavy-duty tasks while maintaining stability and ease of use. The 5.63" mount height allows for compatibility with a wide range of equipment, providing flexibility and convenience. The 4" x 4-1/2" top plate ensures a secure fit, while the swivel design facilitates effortless maneuverability.
One of the key features of this caster is its ability to protect floors from damage while ensuring smooth and efficient movement. The top-lock design adds an extra layer of stability, making it ideal for environments where secure positioning is crucial.
Our dedicated team is here to assist you with any questions or concerns. Available Monday through Friday, 8 am - 5 pm, our experts are committed to providing the support you need to ensure you find the perfect caster for your specific requirements.
This Albion 16AN04228S 4"x2" Orange Swivel Caster 4"x4-1/2" Plate – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$97.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
4" x 2" Phenolic Swivel Caster 4-1/2" x 6-1/4" Plate – 800 lb | CasterHQ
4" x 2" · 800 lbs
$29
4" x 2" Phenolic Rigid Caster – 800 lb | 4" x 4-1/2" Top Plate | CasterHQ
4" x 2" · 800 lbs · Direct fit
$21
4" x 2" Phenolic Swivel Caster – 800 lb | 4" x 4-1/2" Top Plate | CasterHQ
4" x 2" · 800 lbs · Direct fit
$25
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | — | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Polyurethane | Swivel | 5.63" | $97.00 | Viewing | |
 Direct fit4" x 2" Phenolic Rigid Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → |
 Direct fit4" x 2" Phenolic Swivel Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
