Enhance your equipment's maneuverability with the 4" x 2" Industrial Line USA Rig Polypropylene Wheel Side Lock Caster. This caster combines a durable polypropylene wheel with a sturdy 4" x 4.5" plate, designed for reliable performance in demanding environments. The side lock feature ensures additional security and stability, making it ideal for industrial and commercial settings. With its robust construction and practical design, this caster provides excellent load-bearing capabilities and long-lasting durability, meeting the needs of heavy-duty applications and ensuring smooth, controlled movement.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" Industrial Line caster with a USA Rig Polypropylene wheel is engineered for outstanding performance and durability in industrial applications. This caster combines advanced design features with high-quality materials to offer a reliable solution for demanding environments.
The caster features a robust 4" x 2" polypropylene wheel, known for its resistance to impacts and wear. The USA Rig design ensures that this caster meets high standards for strength and reliability. The side lock mechanism provides enhanced stability, making it ideal for heavy-duty tasks.
Upgrade your equipment with the Albion Casters 4" x 2" Industrial Line caster, designed to meet the toughest challenges with ease. Its combination of durability, high load capacity, and advanced features make it a top choice for industrial applications.
This Albion 16PB04251SFBA 4" x 2" Polypropylene Side Lock Caster – 4" x 4.5" Plate is rated to 500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polypropylene wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Face Contact Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polypropylene wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

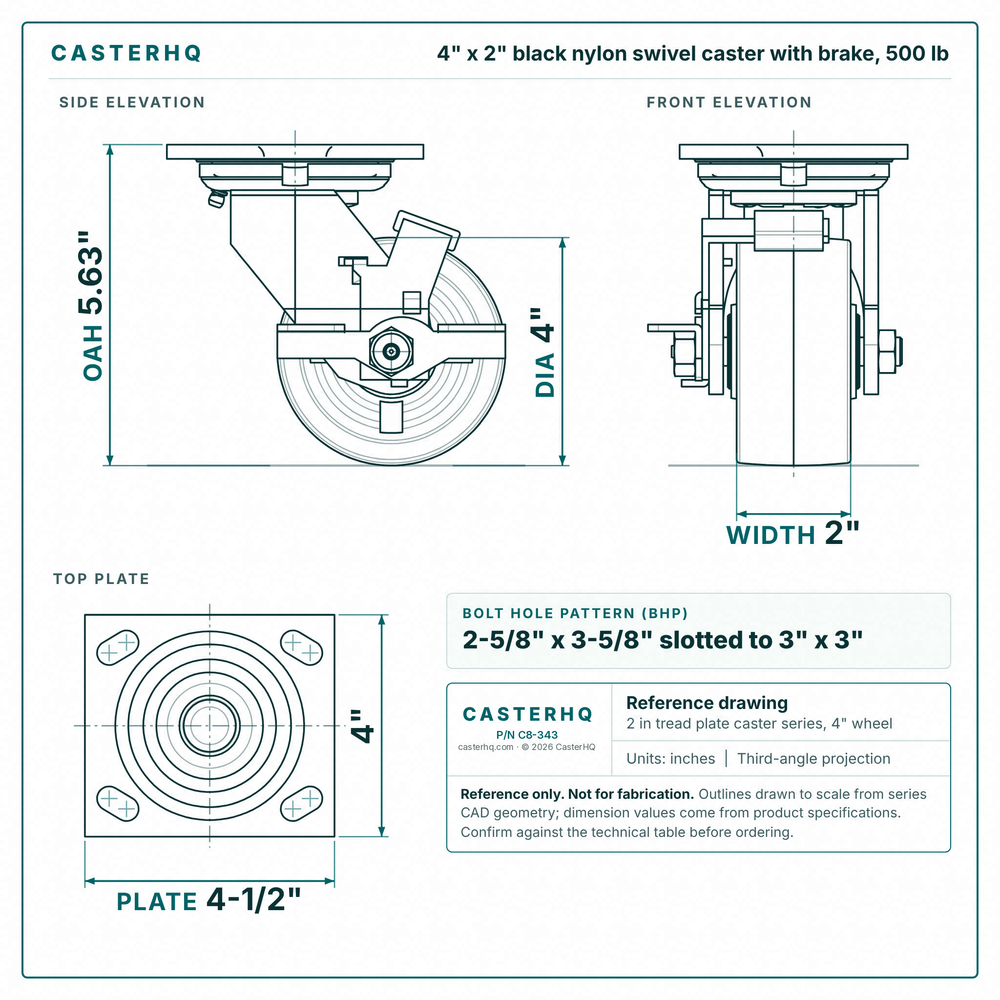

The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$70.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Face Contact Brake |
| Load & Performance | |
| Wheel Capacity | 500 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Face Contact Brake |
| Materials & Finish | |
| Wheel Material | Polypropylene |
| Frame Material | Zinc Plated Steel |
4" x 2" Phenolic Swivel Caster Set with Brakes – 2,400 lb | CasterHQ
4" x 2" · 600 lbs · Direct fit
$265
4" x 2" Mold-On Rubber Rigid Caster 4" x 4-1/2" Plate – 400 lb | CasterHQ
4" x 2" · 400 lbs · Direct fit
$23
4" x 2" Mold-On Rubber Swivel Caster – 400 lb | 4" x 4-1/2" Top Plate | CasterHQ
4" x 2" · 400 lbs · Direct fit
$24
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 400 lbsLighter duty | 4" × 2"Rubber | Rigid | 5-5/8" | $23.00 | View → | |
| 400 lbsLighter duty | 4" × 2"Rubber | Swivel | 5-5/8" | $24.00 | View → | |
| 500 lbs | 4" × 2"Polypropylene | Swivel with Face Contact Brake + brake | 5.63" | $70.00 | Viewing | |
| 600 lbsHeavier duty | 4" × 2"High Temp Phenolic | Swivel with Brake + brake | 5-5/8" | $265.00 | View → | |
 Direct fit4" x 2" Semi-Steel Rigid Caster – 700 lb |
700 lbsHeavier duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $38.00 | View → |
