Brand: Albion Casters
SKU: 18AN04228SFBB
Size: 4" x 2"
Type: Swivel Caster with Face Brake
Material: MAX Efficiency Orange Wheel
Feature: Maintenance-Free, Face Brake
Load Capacity: 800 lb
Mount Height: 5.63 in
Fastening: 4" x 4.5" top plate
Origin: Made in USA

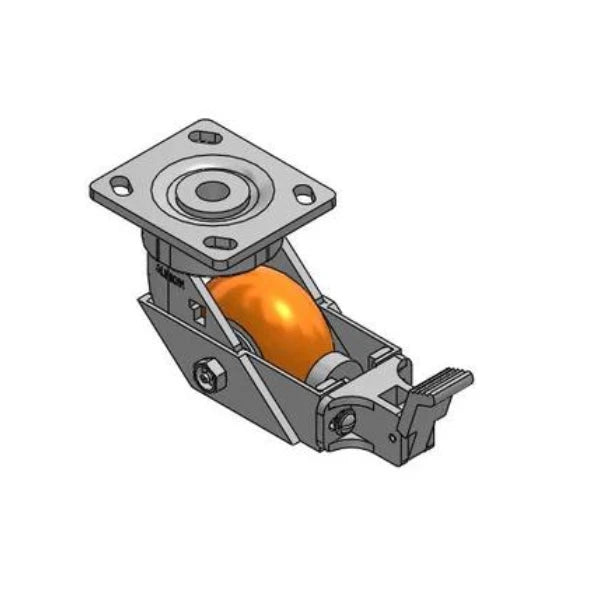

The Albion Casters 4" x 2" Maintenance-Free Swivel Caster with MAX Efficiency Orange Wheel and Face Brake combines innovative design with exceptional functionality. Perfect for industrial and commercial environments, this caster offers a robust load capacity of 800 lb while featuring a face brake for added control and stability. The maintenance-free design ensures minimal upkeep, while the advanced wheel technology and high-quality construction guarantee long-lasting performance. With its versatile 4" x 4.5" top plate, this caster is easy to install and provides smooth maneuverability, making it an ideal solution for demanding applications.
Our dedicated team is available Monday through Friday, 8 am - 5 pm to assist you with any questions and help you select the ideal caster solution for your specific needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" MAX Efficiency Orange Caster with Face Brake and 4" x 4.5" Plate is engineered to deliver outstanding performance and durability. Perfect for demanding industrial and commercial applications, this caster provides a robust solution with advanced features designed to enhance mobility and stability.
The Albion Casters 4" x 2" MAX Efficiency Orange Caster is ideal for a variety of industrial and commercial uses, including warehouse trolleys, manufacturing equipment, and more. Its advanced wheel technology and maintenance-free design reduce downtime and operational costs, making it a valuable investment for any business looking to enhance efficiency and performance.
Our dedicated support team is available Monday through Friday, 8 am - 5 pm to assist with any inquiries or support needs. Contact us to ensure you have the best caster solution for your specific requirements.
This Albion 18AN04228SFBB 4"x2" Orange Swivel Caster w/ Brake – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

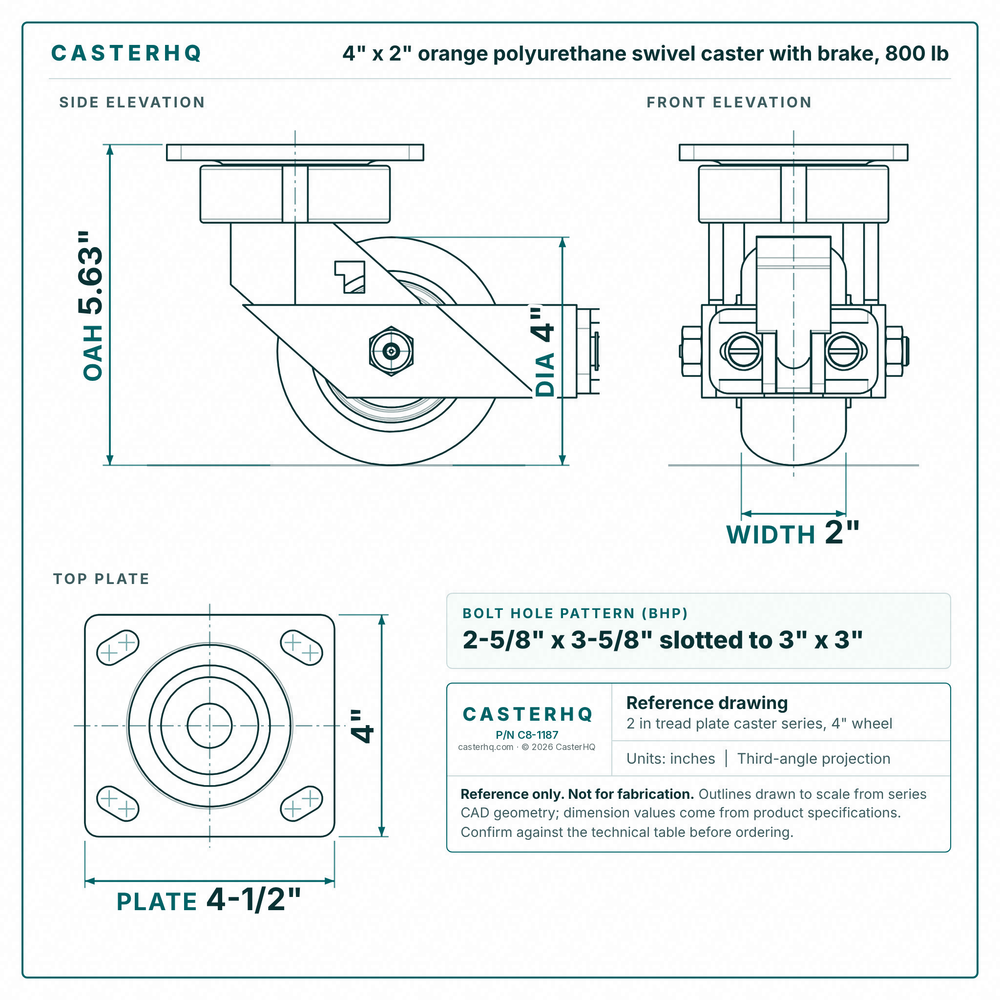

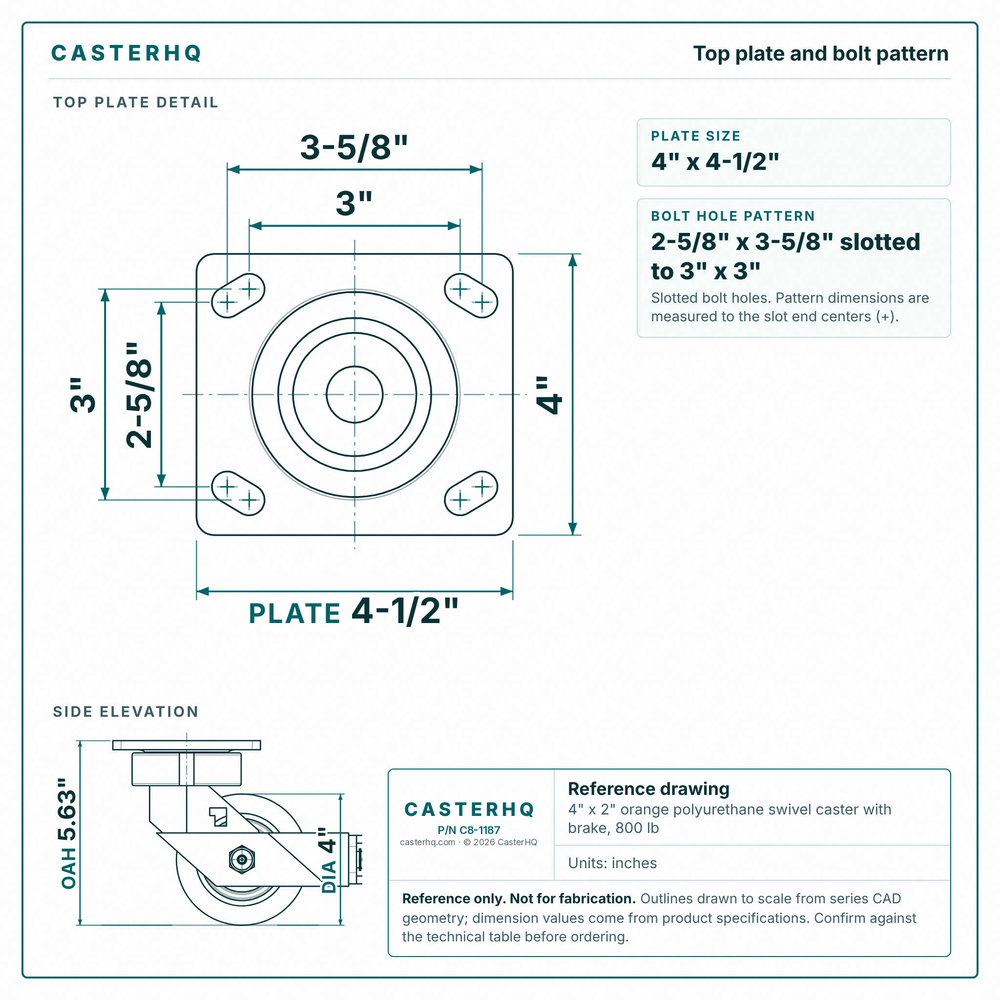

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Face Contact Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$146.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Face Contact Brake |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Face Contact Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
