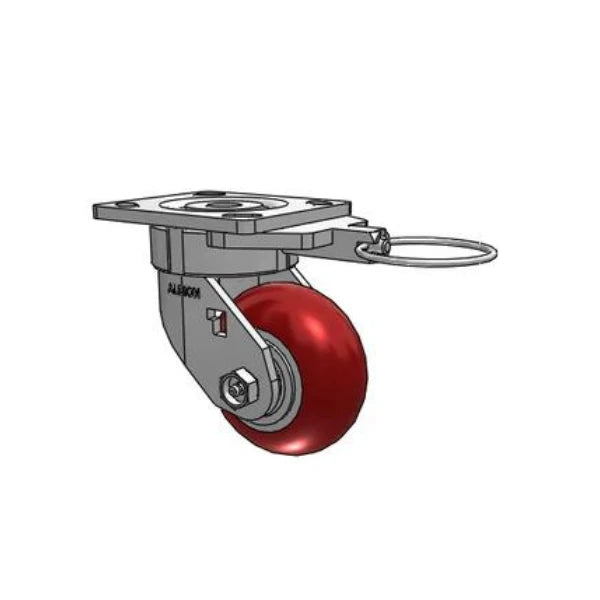

Albion Casters 4" x 2" Maintenance Free Ergonomic - MAX Efficiency Maroon Caster with 4" x 4.5" Plate and Swivel Lock - 18AX04228SL

Product Overview

Brand: Albion Casters

SKU: 18AX04228SL

Size: 4" x 2"

Type: Swivel Caster with Swivel Lock

Material: MAX Efficiency Maroon Wheel

Feature: Maintenance-Free, Swivel Lock

Load Capacity: 800 lb

Mount Height: 5.63 in

Fastening: 4" x 4.5" top plate

Origin: Made in USA

The Albion Casters 4" x 2" Maintenance-Free Caster with MAX Efficiency Maroon Wheel is designed to deliver exceptional performance with minimal maintenance. This swivel caster features a convenient swivel lock for added control and stability, making it perfect for various industrial and commercial uses. With its 4" x 2" size and robust construction, it supports a load capacity of up to 800 lb while ensuring smooth movement and reliable operation. The advanced wheel technology and maintenance-free design reduce the need for frequent upkeep, enhancing overall operational efficiency.

Reliable Customer Support

Our dedicated support team is available Monday through Friday, 8 am - 5 pm to assist you with any inquiries and help you select the ideal caster solution for your specific needs.

Technical Specifications

• Part Number: 48XMB42S-SL
• SKU: 18AX04228SL
• Raceway Type: Large, sealed precision ball bearing raceway eliminates need for routine maintenance
• Brake: None
• Load Capacity: 800 lb
• Mounting Height: 5.63 in
• Wheel Tread Width: 2 in
• Wheel Description: AX - Round Polyurethane (Aluminum Core)
• Wheel Color: Maroon Tread on Aluminum Core
• Wheel Bearing: Precision Ball
• Wheel Profile: Radius Tread
• Wheel Hardness: 85 Shore A
• Wheel Thread Guards: None
• Fastening: 4-1/2'' x 4'' top plate
• Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
• Plate Bolt Size Recommended: 3/8"
• Swivel Radius: 3.69 in
• Swivel Lock: Hand Operated Swivel Lock (L)
• Toe Guard: None
• Finish: Zinc
• Operating Temperature Range: -40°F to +180°F
• Manufacturing Code: 18AX04228SL
• Warranty: 1 year
• Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

Top 10 Features

• Maintenance-Free Design: Reduces the need for regular upkeep, enhancing convenience and long-term performance.
• Swivel Lock Mechanism: Provides stability and control, ensuring secure positioning and easy maneuverability.
• MAX Efficiency Maroon Wheel: Engineered for superior efficiency, offering smooth and reliable movement.
• 800 lb Load Capacity: Supports heavy loads with ease, making it suitable for industrial and commercial use.
• 4" x 2" Size: Compact yet robust, designed to fit a variety of applications while ensuring optimal performance.
• 4" x 4.5" Top Plate: Facilitates easy installation and secure fastening for reliable operation.
• Enhanced Durability: Built to withstand rigorous use and high-impact environments, extending the caster's lifespan.
• Floor Protective: Minimizes damage to flooring surfaces, making it ideal for delicate or high-maintenance floors.
• Made in USA: Ensures high-quality manufacturing standards and supports local production.
• Versatile Applications: Perfect for a range of uses including industrial carts, equipment, and furniture, providing flexibility and functionality.

• Flat-rate shipping by order size. Final shipping cost shown before payment.
• No post-checkout shipping adjustments or re-billing.
• Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Detailed Product Information

The Albion Casters 4" x 2" Maintenance-Free Swivel Caster with MAX Efficiency Maroon Wheel is engineered to provide exceptional performance and durability. Ideal for a variety of industrial and commercial applications, this caster combines advanced features with high-quality materials to deliver reliability and efficiency.

Key Features

• Maintenance-Free Design: The large, sealed precision ball bearing raceway eliminates the need for routine maintenance, ensuring long-lasting performance with minimal upkeep.
• Swivel Lock Mechanism: Equipped with a hand-operated swivel lock, this caster provides enhanced stability and control, making it easier to secure and maneuver heavy loads.
• MAX Efficiency Maroon Wheel: Featuring a round polyurethane wheel with an aluminum core, designed for superior efficiency, smooth movement, and a distinctive maroon tread.
• Robust Load Capacity: Capable of supporting up to 800 lb, this caster is built to handle heavy-duty applications, offering reliable strength and durability.
• Versatile Mounting Options: The 4-1/2'' x 4'' top plate and slotted bolt hole pattern (2-5/8" x 3-3/8" slotted to 3" x 3") ensure easy installation and secure attachment to a variety of equipment.
• Durable Construction: With a zinc finish, this caster is resistant to corrosion and designed to withstand challenging environments, making it suitable for both indoor and outdoor use.
• Operating Temperature Range: Functional within a temperature range of -40°F to +180°F, allowing it to perform reliably in diverse environmental conditions.
• Conformity and Standards: RoHS compliant zinc plating and tested to ANSI ICWM:2012 standards for capacity and durability, ensuring adherence to industry quality and safety standards.
• Enhanced Wheel Design: The precision ball bearings and 85 Shore A hardness provide smooth rolling and minimal friction, reducing wear and extending the lifespan of the caster.
• 1-Year Warranty: Comes with a 1-year warranty, reflecting the manufacturer’s commitment to quality and customer satisfaction.

Application Areas

This versatile caster is ideal for use in a range of industrial and commercial settings, including manufacturing facilities, warehouses, and retail environments. It is perfect for industrial carts, equipment, and furniture, providing reliable mobility and support for heavy-duty applications.
