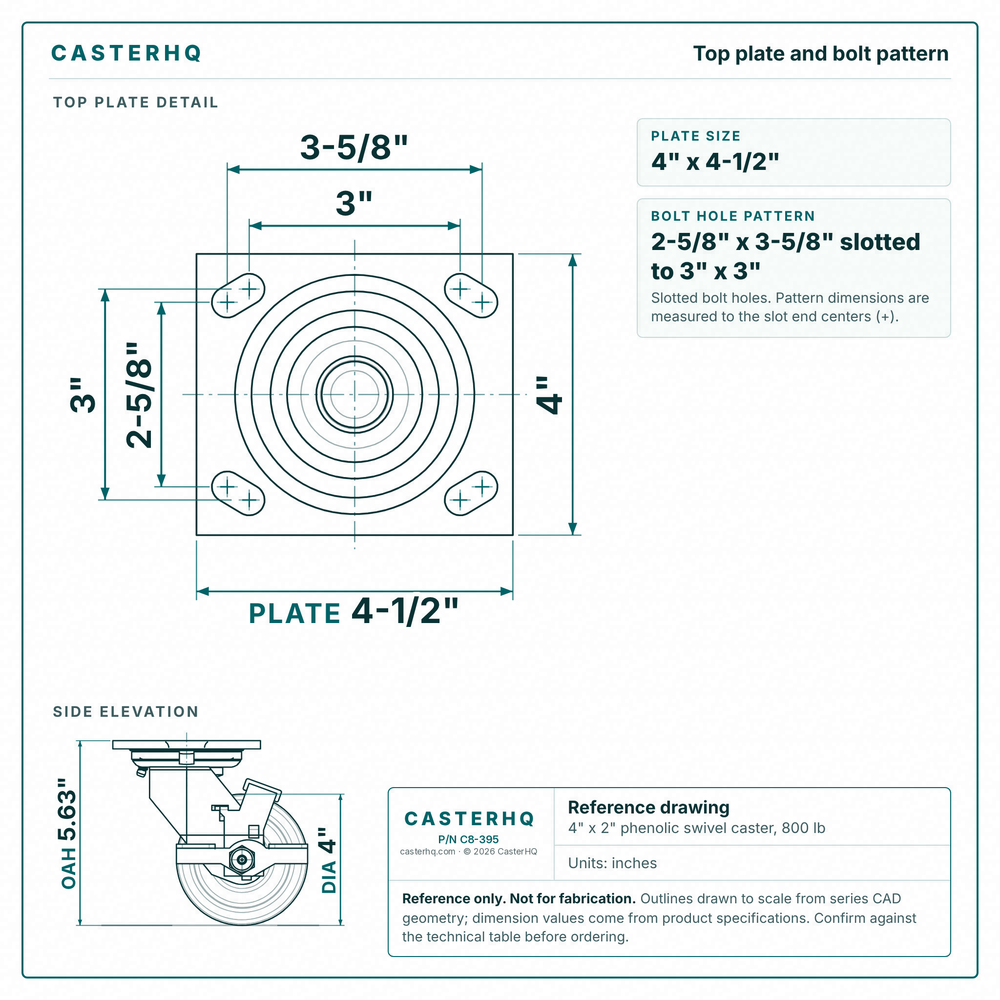

![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-395-top-plate-drawing_100x.png?v=1792278309)

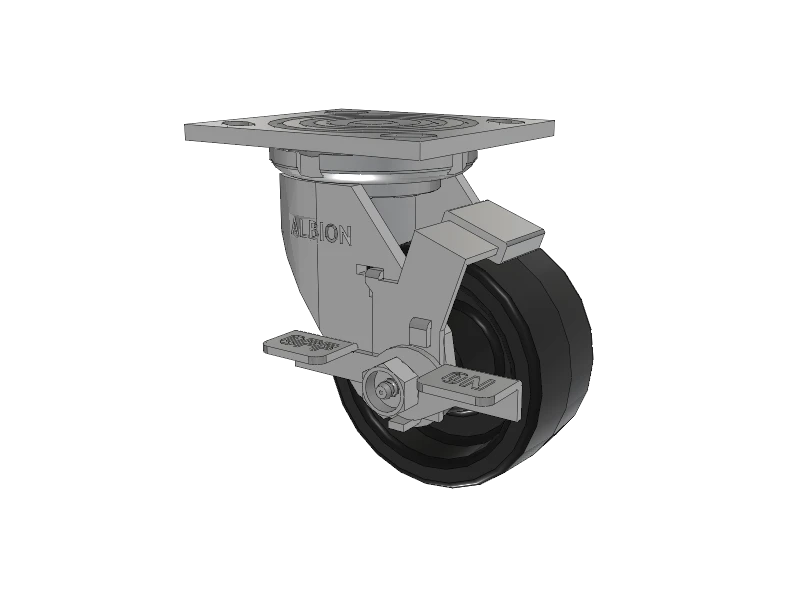

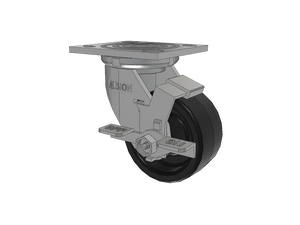

Upgrade your equipment's maneuverability with the Albion Casters 4" x 2" USA-Made Side Locking Caster. Featuring a durable phenolic wheel and a robust 4" x 4.5" top plate, this caster ensures reliable performance and stability. The side locking mechanism enhances safety by securing the caster in place, making it ideal for applications requiring secure stationary positioning. Made in the USA, this caster combines high-quality materials and craftsmanship for long-lasting durability. Perfect for industrial settings, it offers smooth rolling and robust load-bearing capabilities.
Choose the Albion Casters Side Locking Caster for a dependable and efficient solution to your mobility needs. Experience superior quality and performance with our USA-made caster, designed to provide lasting stability and smooth operation.
Made in the USA by Albion.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" Side Locking Caster with Phenolic Wheel and 4" x 4.5" Top Plate is a premium choice for enhancing equipment mobility in industrial settings. Crafted with high-quality materials and meticulous attention to detail, this caster provides robust performance and long-lasting durability.
Investing in the Albion Casters Side Locking Caster means upgrading to a product that combines durability, functionality, and ease of use. The phenolic wheel's impact resistance ensures a quiet and smooth ride even on uneven surfaces, while the side locking mechanism enhances safety by securing the caster firmly in place. This caster is a reliable choice for heavy-duty applications, reducing downtime and maintenance costs.
Upgrade your equipment's mobility and performance with the Albion Casters 4" x 2" Side Locking Caster. Click the link to purchase and experience top-quality industrial solutions designed to meet your needs.
This Albion 16TM04201SFBA 4" x 2" Phenolic Caster with Wheel Lock Brake – 4" x 4.5" Plate is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$25.00
| Identification | |
|---|---|
| Part Number / SKU | 16TM04201SFBA |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5.63" |
| Brake | Wheel Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 4.08" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-11/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Phenolic |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Rockwell 102 E |
| Wheel Color | Black Phenolic Resin |
| Bearing Type | Roller Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 250°F |
| Warranty | 3 Years |
| Compliance | |
| Country of Origin | United States |
| Buy American | Yes |

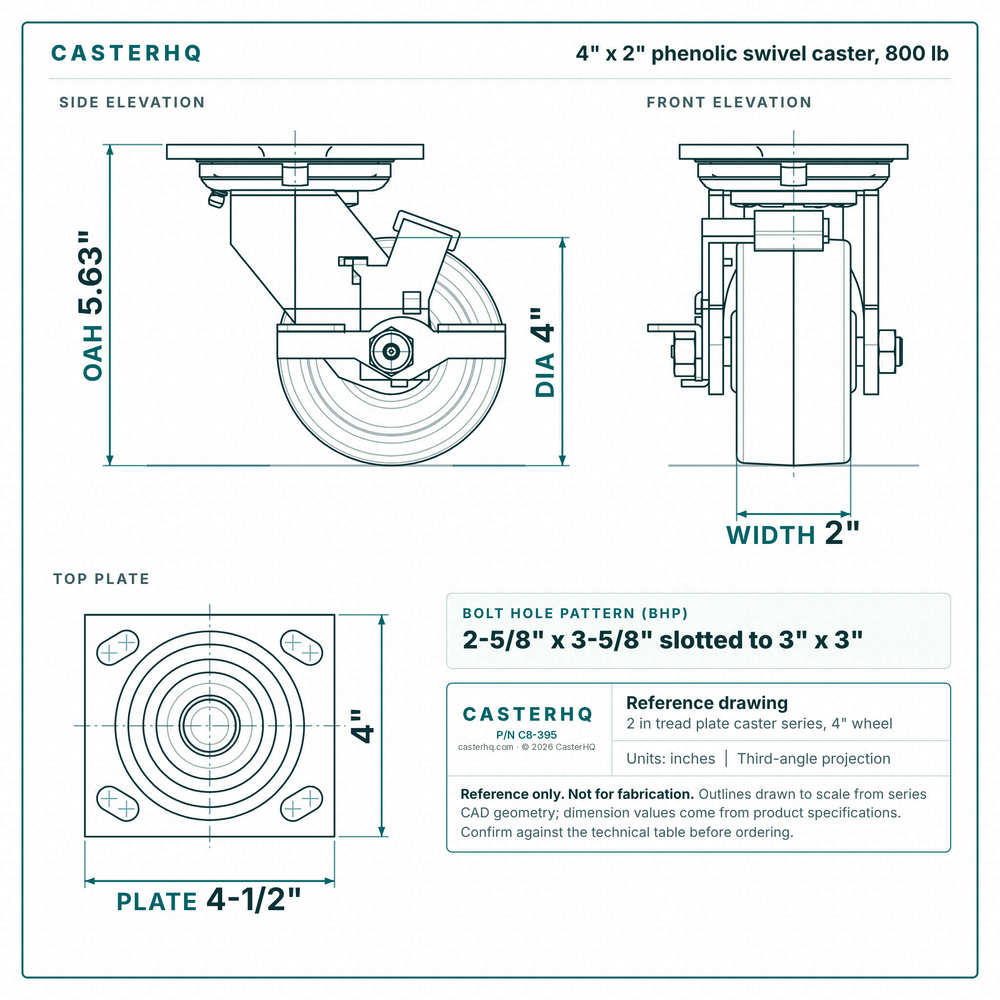

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | Brake | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Phenolic | — | 5.63" | $25.00 | Viewing | |
 Direct fit4" x 2" Phenolic Rigid Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → |
 Direct fit4" x 2" Phenolic Swivel Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
