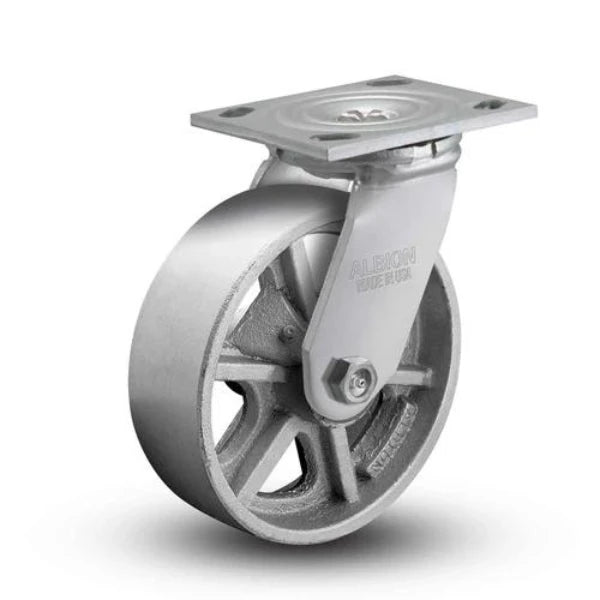

Upgrade your mobility solutions with the Albion Casters 4" x 2" USA-Rig Swivel Caster. Designed for high-performance applications, this caster features a robust heavy-duty cast iron wheel that provides excellent stability and durability. The 4" x 4-1/2" plate ensures easy installation and reliable support for your equipment.
The swivel design allows for smooth maneuverability in tight spaces, making it ideal for industrial settings and heavy-duty use. Whether you're moving carts, machinery, or other equipment, this caster offers a reliable solution that enhances mobility and reduces strain on your workspace.
Choose the Albion Casters 4" x 2" USA-Rig Swivel Caster for superior performance and reliability. Perfect for any heavy-duty application, this caster is engineered to meet your needs while ensuring a smooth and stable ride.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 4" x 2" USA-Rig Swivel Caster is engineered for exceptional performance in industrial settings. Featuring a robust heavy-duty cast iron wheel, this caster is designed to provide reliable mobility and stability, making it an essential addition to your equipment.
Installing the Albion Casters 4" x 2" USA-Rig Swivel Caster is straightforward, thanks to its compatible 4" x 4.5" plate. Regular maintenance, such as checking for wear and ensuring the wheel rotates smoothly, will prolong the life of the caster and maintain optimal performance.
Whether you are moving heavy equipment or navigating tight spaces, the Albion Casters 4" x 2" USA-Rig Swivel Caster provides the durability and performance you need. Experience enhanced mobility and efficiency in your industrial applications with this reliable caster solution.
This Albion 16CA04201S 4" x 2" Cast Iron Swivel Caster – 4" x 4-1/2" Plate is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

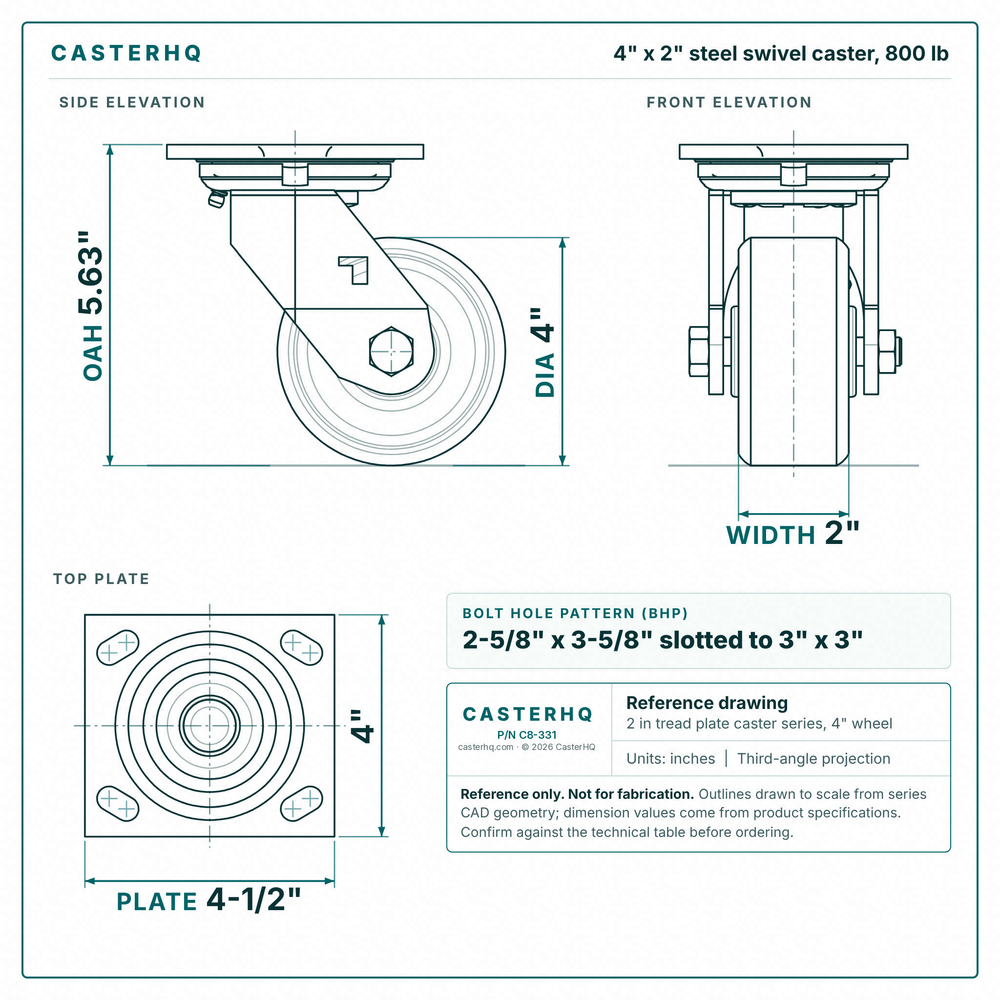

The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$60.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5.63" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
