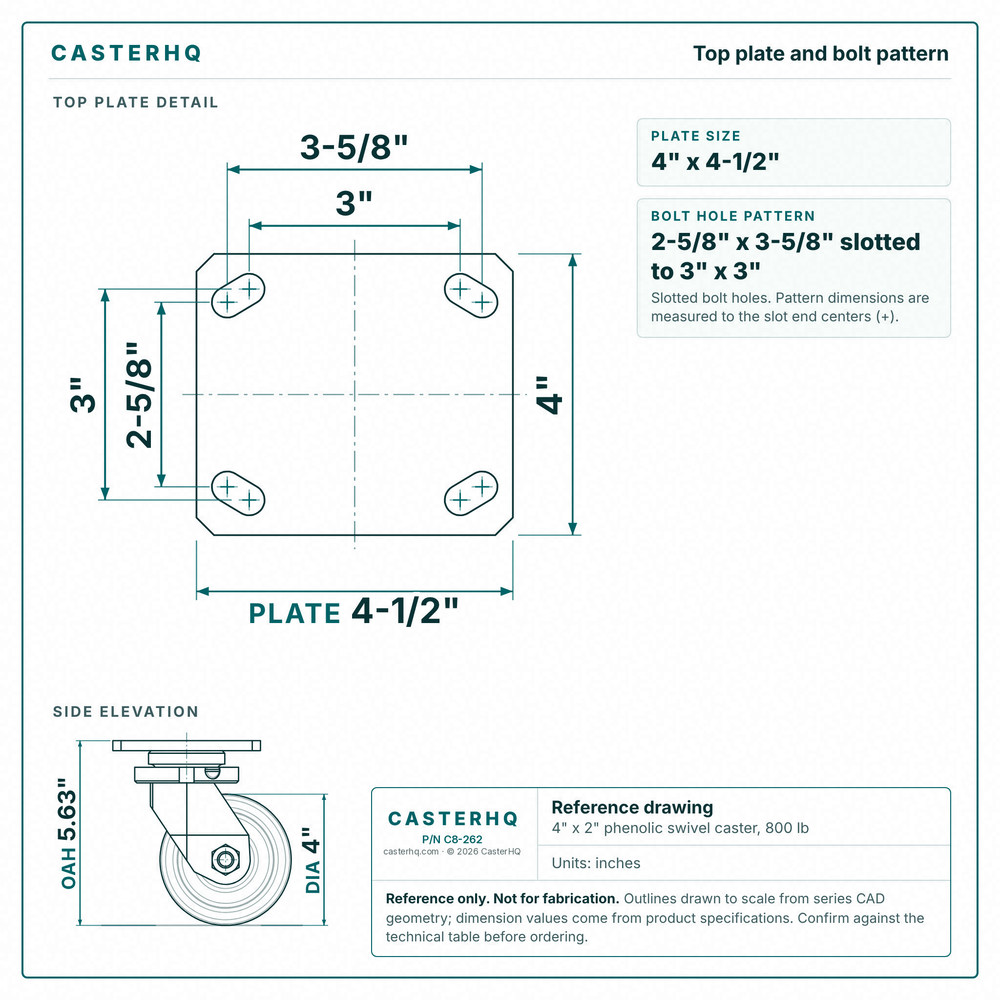

![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-262-top-plate-drawing_100x.png?v=1792277452)
Brand: Albion Casters
SKU: 110TM04201S
Size: 4"x2"
Type: Kingpinless Top Lock Caster
Material: Phenolic Wheel
Load Capacity: 800 lb
Mount Height: 5.63 inches
Fastening: 4" x 4*1/2'' Top Plate
Origin: Made in the USA
Designed for demanding industrial environments, the Albion-Casters 4"x2" Kingpinless Top Lock Caster delivers superior performance and durability. Engineered with a high-strength Phenolic Wheel, this USA-made caster can handle a load capacity of 1250 lbs, making it an ideal choice for heavy-duty applications. The 5.63" mount height and 4" x 4*1/2'' top plate ensure a secure fit, while the kingpinless design reduces the risk of failure under stress, enhancing overall safety and reliability. Albion Casters' commitment to quality and precision engineering makes this caster a top-tier solution for industrial mobility needs.
Albion Casters is a leading manufacturer of high-quality casters, known for their innovation, durability, and performance. Each caster is meticulously crafted in the USA to meet rigorous industry standards, ensuring that you receive a product that stands up to the toughest challenges. When you choose Albion Casters, you're investing in long-lasting performance and reliability.
Need assistance? Our team of Caster Experts is available Monday through Friday, 8 am - 5 pm, to help you find the perfect caster for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

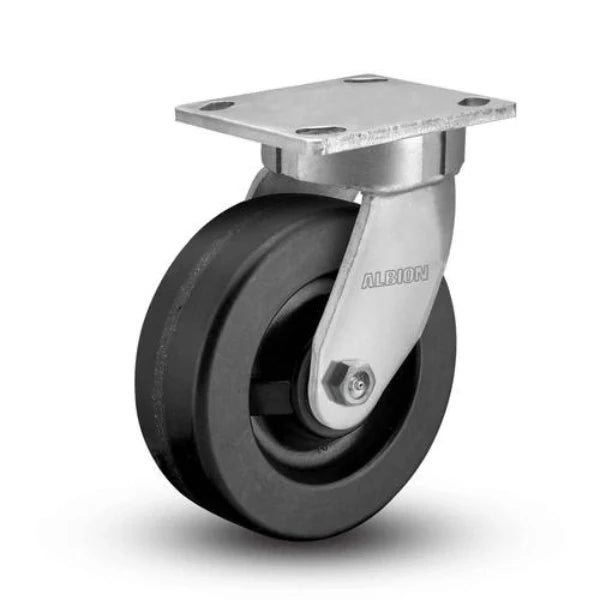

The Albion Casters 4"x2" Kingpinless Top Lock Caster with Phenolic Wheel is engineered to deliver top-tier performance in the most demanding industrial environments. With a robust load capacity of 800 lbs and a kingpinless design that enhances durability, this caster is ideal for heavy-duty applications requiring reliable mobility. The phenolic wheel is crafted from high-strength material, offering excellent wear resistance and the ability to withstand high temperatures, making it suitable for a wide range of industrial uses.
The 4" diameter wheel features a 2" tread width and is made from phenolic resin, a material known for its high resistance to wear, chemicals, and extreme temperatures. The crowned tread profile ensures smooth rolling and reduces friction, while the Rockwell 102 E hardness rating guarantees durability in tough conditions. The wheel operates efficiently in temperatures ranging from -65°F to +250°F, with intermittent use up to +300°F, making it suitable for both cold storage and high-temperature environments.
Installing the Albion Casters 4"x2" Kingpinless Top Lock Caster is straightforward, thanks to its 4" x 4-1/2" top plate and flexible bolt hole pattern that accommodates various mounting configurations. The recommended plate bolt size is 3/8", ensuring a secure and stable attachment. With a swivel radius of 3.19 inches and a swivel lead of 1.19 inches, this caster provides excellent maneuverability in tight spaces, making it perfect for use in industrial settings with limited space.
The caster is finished with zinc plating that is RoHS compliant, ensuring it meets environmental and safety standards. Additionally, the product has been rigorously tested to ANSI ICWM:2012 standards, confirming its capacity and durability in industrial applications. The inclusion of a 3-year warranty underscores Albion Casters' commitment to quality and reliability.
Manufactured by Albion Casters, a leader in industrial caster solutions, the 110TM04201S model is part of the 71 Series, known for its kingpinless design and high load capacity. Each caster is made in the USA, reflecting a commitment to superior craftsmanship and precision engineering. The product comes with a 3-year warranty, providing peace of mind and assurance of long-term performance.
This Albion 110TM04201S 4"x2" Phenolic Kingpinless Caster – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

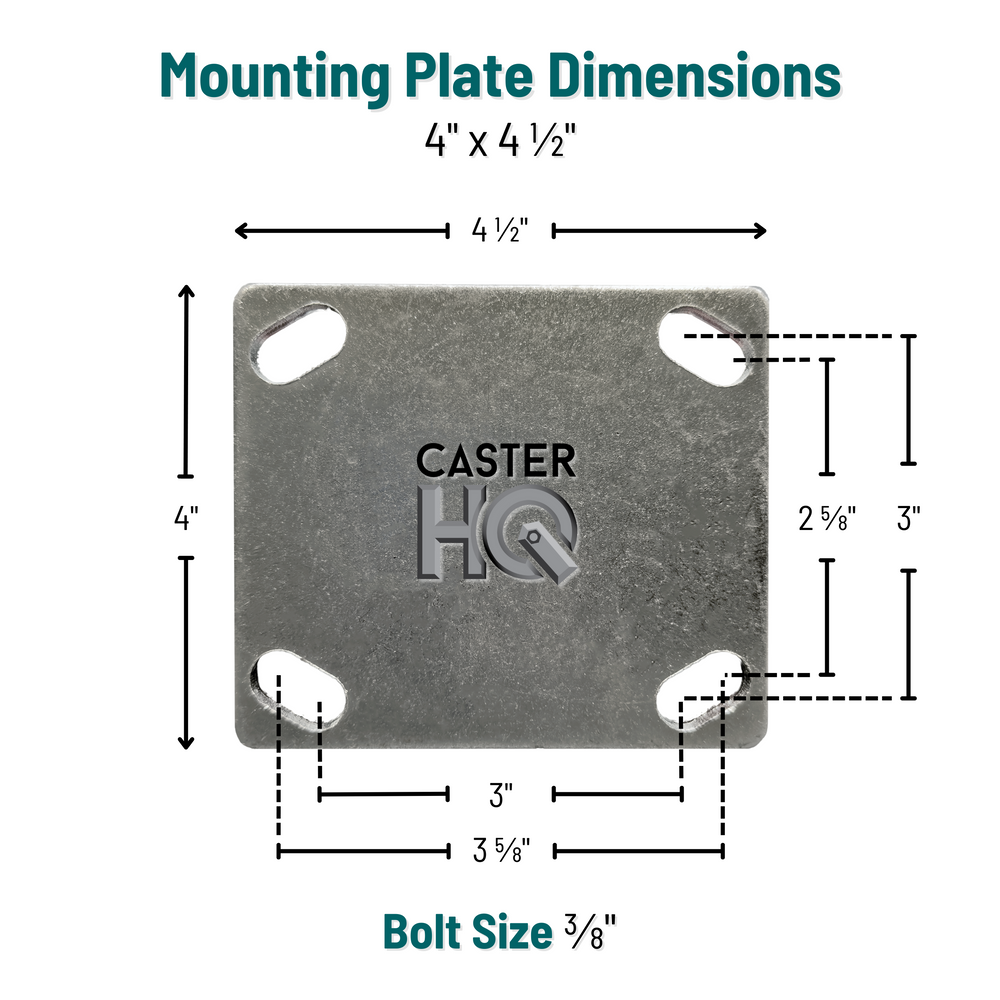

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$84.00
| Identification | |
|---|---|
| Part Number / SKU | 110TM04201S |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5.63" |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 3-3/16" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-3/16" |
| Swivel Construction | Kingpinless |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel | |
| Wheel Material | Phenolic |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Rockwell 102 E |
| Wheel Color | Black Phenolic Resin |
| Bearing Type | Roller Bearing |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 250°F |

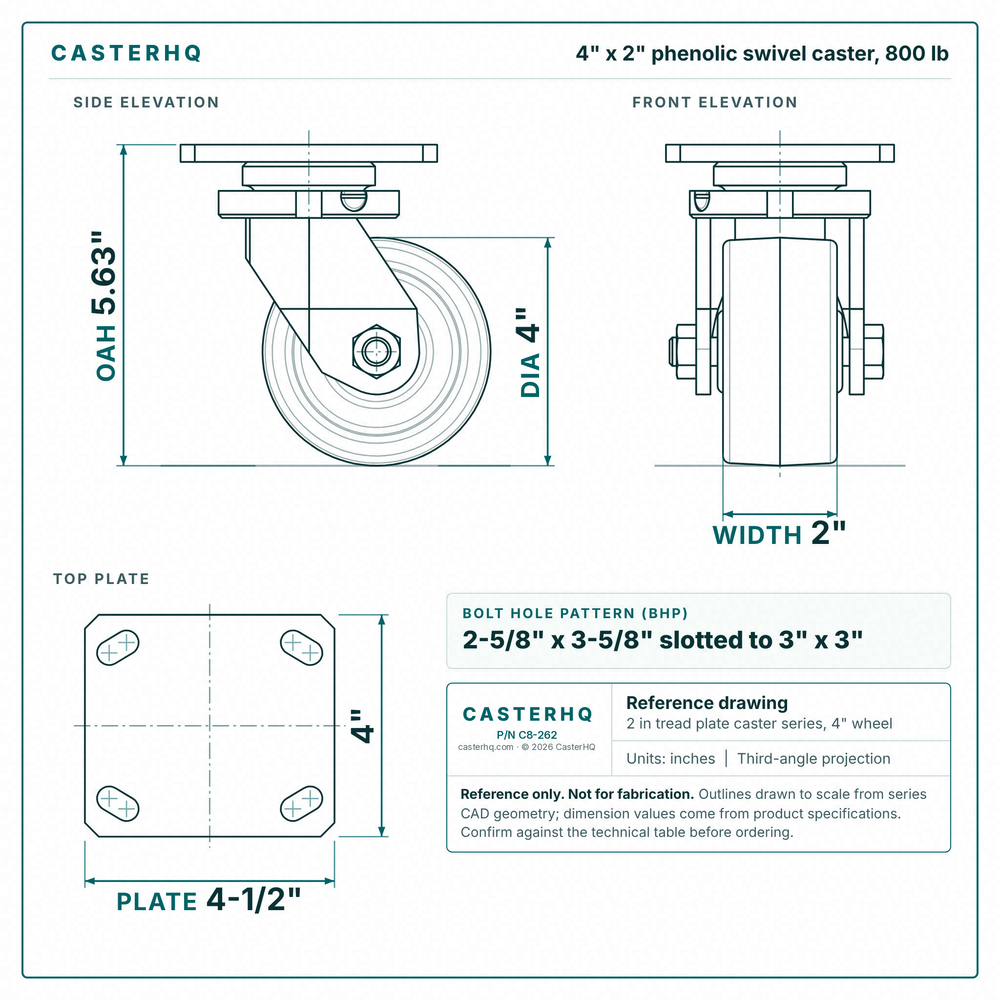

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | Brake | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Phenolic | — | 5.63" | $84.00 | Viewing | |
 Direct fit4" x 2" Phenolic Rigid Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → |
 Direct fit4" x 2" Phenolic Swivel Caster – 800 lb |
800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
