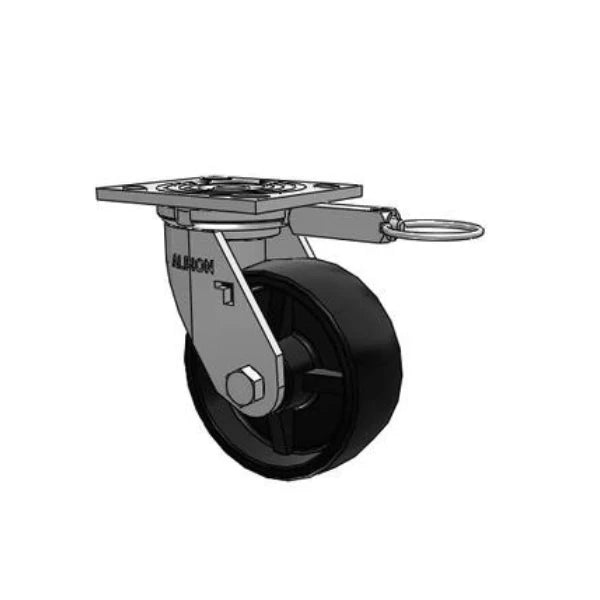

Enhance your equipment's maneuverability and durability with the Albion Casters 5" x 2" Industrial Line USA Rig Polypropylene Wheel Caster. Featuring a resilient polypropylene wheel, this caster is designed to offer exceptional load-bearing capability and long-lasting performance in industrial settings. The 4" x 4.5" plate ensures a stable and secure fit, while the swivel lock function provides added control and safety by preventing unwanted movement. Ideal for heavy-duty applications, this caster is built to withstand rigorous use in warehouses, factories, and other demanding environments. Upgrade your operational efficiency and reliability with this high-quality caster, engineered to meet your toughest challenges.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Industrial Polypropylene Wheel Caster is designed to offer exceptional performance and durability in challenging industrial environments. Its robust polypropylene wheel and advanced raceway design ensure smooth operation and reduced wear, while the swivel lock feature provides enhanced control. The caster’s high load capacity and corrosion-resistant finish make it an ideal choice for heavy-duty applications, supporting equipment and machinery with reliability and ease.
This Albion 16PB05201SL 5" x 2" Polypropylene Swivel Caster – 4" x 4.5" Plate is rated to 650 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polypropylene wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polypropylene wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$145.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 650 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polypropylene |
| Frame Material | Zinc Plated Steel |
5" x 2" Polyurethane Rigid Caster – 750 lb | 4" x 4-1/2" Top Plate | CasterHQ
5" x 2" · 750 lbs · Direct fit
$20
5" x 2" Thermo Rubber Rigid Caster – 500 lb | 4" x 4-1/2" Plate | CasterHQ
5" x 2" · 500 lbs · Direct fit
$27
5" x 2" Mold-On Rubber Swivel Caster – 450 lb | 4" x 4-1/2" Plate | CasterHQ
5" x 2" · 450 lbs · Direct fit
$25
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 450 lbsLighter duty | 5" × 2"Rubber | Swivel | 6-1/2" | $25.00 | View → | |
| 500 lbsLighter duty | 5" × 2"Gray Rubber | Rigid | 6-1/2" | $27.00 | View → | |
| 650 lbs | 5" × 2"Polypropylene | Swivel | 6.5" | $145.00 | Viewing | |
| 750 lbsHeavier duty | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
 Direct fit5" x 2" Phenolic Rigid Caster – 1000 lb |
1000 lbsHeavier duty | 5" × 2"Phenolic | Rigid | — | $20.00 | View → |
