Brand: Albion Casters
SKU: 16XS05228R
Size: 5" x 2"
Type: Rigid Caster
Wheel Material: Performance-Rubber
Ball Bearing: Yes
Load Capacity: 375 lb
Mount Height: 6.5 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

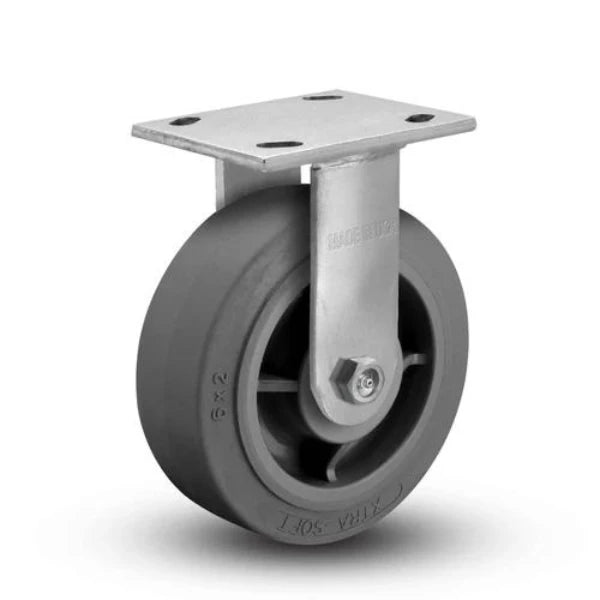

The Albion Casters 5" x 2" Rigid Performance-Rubber Ball Bearing Wheel Caster is a high-quality, USA-made solution designed for demanding applications. With a durable Performance-Rubber wheel and smooth ball bearing system, this caster provides excellent performance and reliability. It features a robust 375 lb load capacity, making it ideal for heavy-duty use. The 6.5" mount height and 4" x 4-1/2" top plate ensure a secure and stable fit for a variety of equipment. Whether for industrial or commercial use, this caster delivers the durability and efficiency you need to handle challenging environments.
Our knowledgeable Caster Specialists are available Monday through Friday, 8 am - 5 pm, to assist you with any questions or support you may need to ensure the best fit for your application.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 5" x 2" Rigid Performance-Rubber Ball Bearing Wheel Caster is a top-tier caster designed for medium to heavy-duty applications. Crafted with precision and high-quality materials in the USA, this caster is engineered to provide exceptional performance, durability, and reliability in demanding environments.
The Albion Casters 5" x 2" Rigid Performance-Rubber Ball Bearing Wheel Caster is an ideal choice for industrial and commercial applications where high load capacity and durability are essential. Its performance-rubber tread provides superior grip and smooth operation, while the precision ball bearings ensure easy maneuverability and reduced wear over time.
Designed with a crowned tread profile, this caster is perfect for navigating uneven surfaces and maintaining stability. The zinc-plated finish offers enhanced resistance to corrosion and wear, making it suitable for both indoor and outdoor use. With its broad operating temperature range, it adapts well to various environmental conditions.
This Albion 16XS05228R 5" x 2" Performance-Rubber Rigid Caster – 375 lb is rated to 375 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.

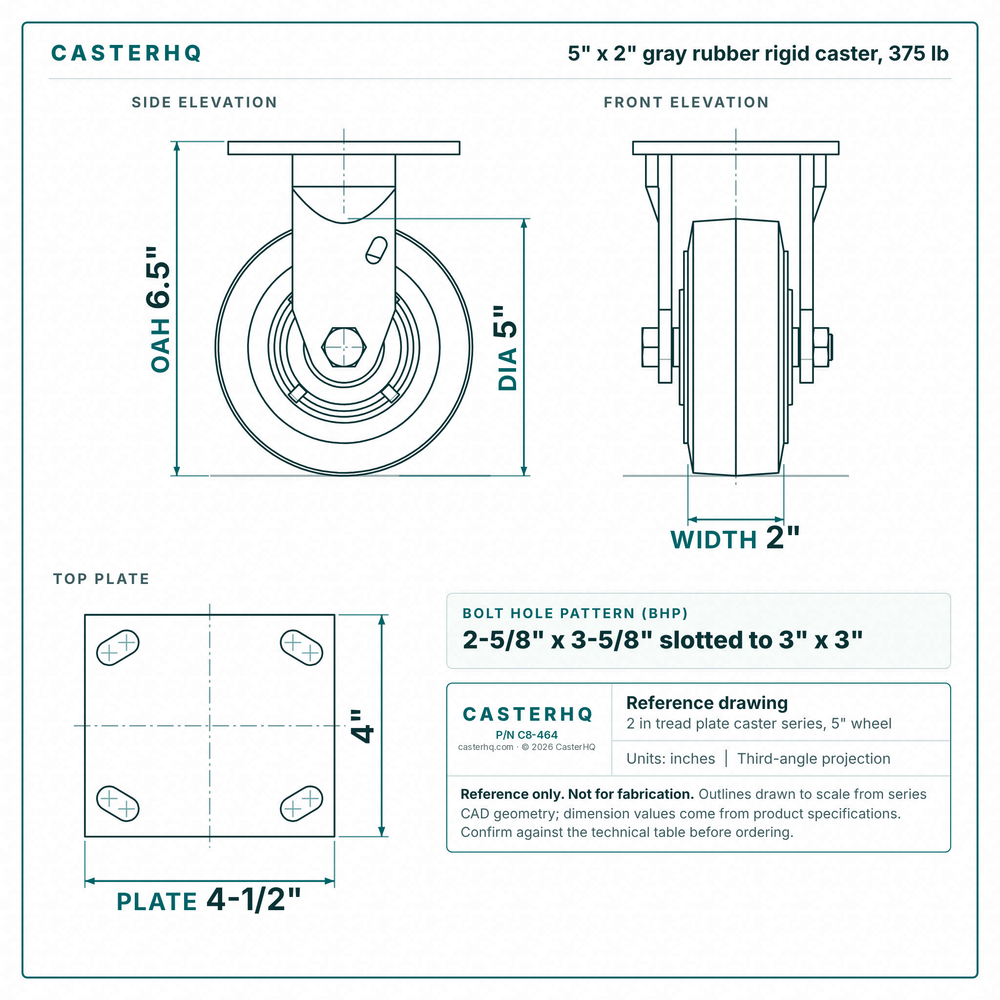

The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$31.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 375 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Frame Material | Zinc Plated Steel |
