All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

Free CAD files · no login, no email
STEP .step most common3D solid for SolidWorks, Inventor, Fusion 360, Creo, NXSeries geometry, reference only. Free for design use; redistribution or resale prohibited.
Free CAD files. No login.

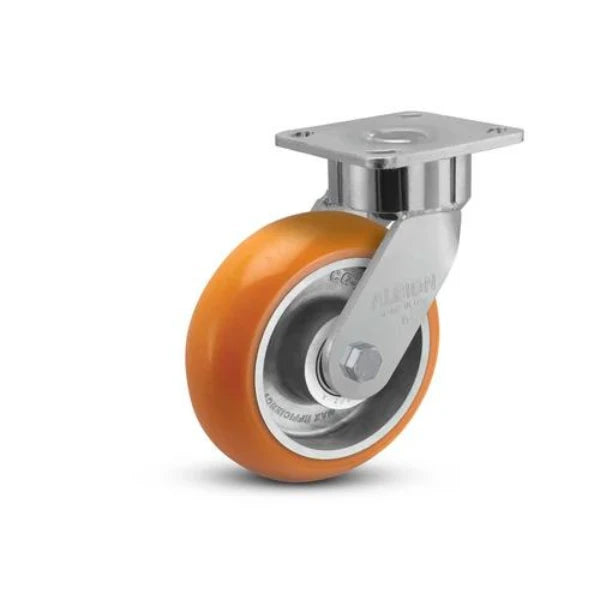

Brand: Albion Casters
SKU: 28AN06228S
Size: 6" x 2"
Type: Ergonomic Swivel Caster
Material: MAX Efficiency Orange Wheel
Feature: Maintenance-Free, Ergonomic Design
Load Capacity: 1250 lb
Mount Height: 7.5 in
Fastening: 4" x 4.5" top plate
Origin: Made in USA
The Albion Casters 6" x 2" Ergonomic Swivel Caster with MAX Efficiency Orange Wheel combines cutting-edge technology with practical design to deliver superior performance. Crafted for durability and ease of use, this caster is maintenance-free and offers exceptional floor protection. Its ergonomic design enhances maneuverability, making it an excellent choice for various industrial and commercial applications. With a load capacity of 1250 lb and a mount height of 7.5 inches, it ensures robust performance under heavy loads. The 4" x 4.5" top plate facilitates secure installation, while the caster’s advanced features promote long-lasting efficiency. Ideal for professionals seeking reliable and high-performance caster solutions, this product stands out for its quality and innovative design.
Our knowledgeable team is available Monday through Friday, 8 am - 5 pm to assist with any questions and help you select the ideal caster solution for your needs.
Made in the USA by Albion.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 6" x 2" Ergonomic Swivel Caster is a high-performance solution designed for demanding industrial and commercial environments. Combining robust construction with advanced materials, this caster ensures smooth operation and long-lasting durability.
The Albion Casters 6" x 2" Swivel Caster is engineered to enhance productivity and safety in various settings. Its ergonomic design and advanced materials contribute to reduced maintenance, lower operational costs, and improved efficiency. Ideal for both industrial and commercial use, this caster is designed to handle heavy loads while maintaining exceptional maneuverability and durability.
This product meets RoHS compliance standards, ensuring that it adheres to environmental and safety regulations. It also conforms to ANSI ICWM standards for safety and performance, reflecting its high-quality manufacturing and reliability.
Choose the Albion Casters 6" x 2" Ergonomic Swivel Caster for a high-quality, dependable solution that meets the demands of heavy-duty applications. With its robust construction, maintenance-free design, and superior performance, it is the optimal choice for enhancing operational efficiency and ensuring long-term durability.
This Albion 28AN06228S 6" x 2" Orange Swivel Ergonomic Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$128.00
| Identification | |
|---|---|
| Part Number / SKU | 28AN06228S |
| Core | |
| Load Capacity | 1250 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)?Floor to top of mounting plate (or stem shoulder). | 7.5" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel Radius?Distance from swivel centerline to the outer edge of the wheel when turned. | 5-1/2" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)?Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)?Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)?Wheel tread hardness. Shore D is hard; Shore A is softer. | 85 Shore A |
| Wheel Color | Orange tread on aluminum core |
| Bearing Type | Precision Ball Bearing |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -40°F to 180°F |
| Warranty | 5 Years |
| Compliance | |
| Country of Origin | United States |
| Buy American | Yes |
Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1200 lbsLighter duty | 6" × 2"Polyurethane | — | 7-1/2" | $76.00 | View → | |
| 1200 lbsLighter duty | 6" × 2"Polyurethane | Swivel | 7-1/2" | $65.00 | View → | |
| 1250 lbs | 6" × 2"Polyurethane | Swivel | 7.5" | $128.00 | Viewing | |
Direct fit6" x 2" Phenolic Rigid Caster – 1250 lb |
1250 lbsSame capacity | 6" × 2"Phenolic | Rigid | 7-1/2" | $23.00 | View → |
| 1250 lbsSame capacity | 6" × 2"Polyurethane | Rigid | 7-1/2" | $73.00 | View → |
