Brand: Albion Casters
SKU: 18AN06228SL
Size: 6" x 2"
Type: Swivel Caster with Swivel Lock
Material: MAX Efficiency Orange Wheel
Feature: Maintenance-Free, Floor Protective
Load Capacity: 1250 lb
Mount Height: 7.5 in
Fastening: 4" x 4.5" top plate
Origin: Made in USA

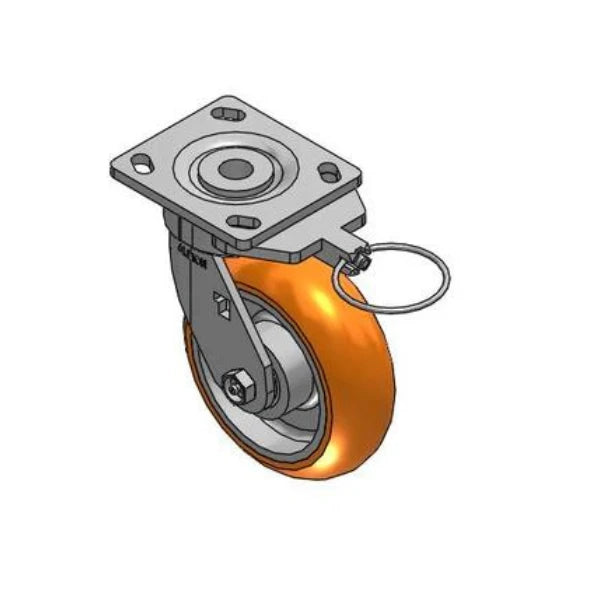

The Albion Casters 6" x 2" Maintenance-Free Caster with MAX Efficiency Orange Wheel and Swivel Lock is engineered to deliver high performance and reliability for demanding environments. Designed for maintenance-free operation, this caster provides superior floor protection and efficiency, making it an ideal choice for industrial and commercial applications. With its 6" x 2" size and 1250 lb load capacity, it ensures smooth maneuverability and enhanced control. The swivel lock feature adds extra stability, while the advanced wheel technology minimizes maintenance needs and maximizes operational efficiency. Choose this caster for robust and dependable performance.
Our dedicated team is available Monday through Friday, 8 am - 5 pm to assist you with any inquiries and help you select the ideal caster solution for your specific requirements.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 6" x 2" Maintenance-Free Swivel Caster with MAX Efficiency Orange Wheel is engineered for exceptional performance and durability in demanding environments. This high-quality caster is designed to handle heavy loads while offering superior maneuverability and floor protection. Its maintenance-free design ensures minimal downtime and lower operational costs, making it a reliable choice for industrial and commercial applications.
Our knowledgeable support team is available Monday through Friday, 8 am - 5 pm to assist with any inquiries and help you select the perfect caster for your needs. Contact us for personalized service and expert advice.
This Albion 18AN06228SL 6" x 2" Orange Swivel Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$165.00

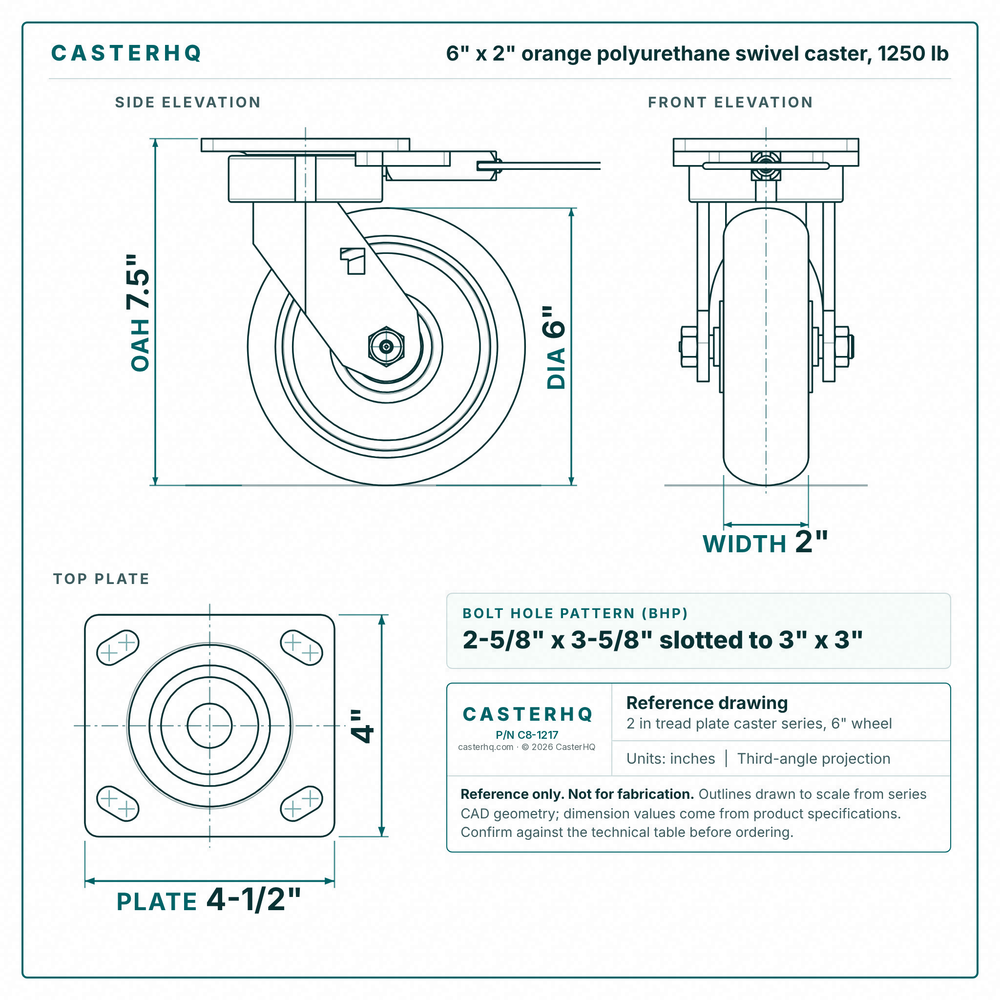

| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Overall Height | 7.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
