Brand: Albion Casters
SKU: 16AX06228SFBA
Size: 6" x 2"
Type: Side Locking MAX-Efficiency Caster
Material: Maroon Wheel
Load Capacity: 1250 lb
Mount Height: 7.25 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

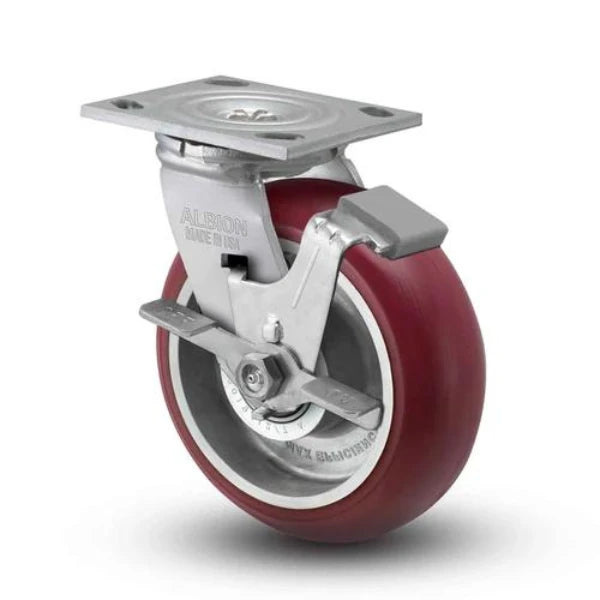

The Albion Casters 6" x 2" Floor Protective USA Rig Side Locking MAX-Efficiency Caster features a high-performance Maroon Wheel designed for exceptional floor protection and efficiency. Manufactured in the USA, this caster supports a substantial load capacity of 1250 lbs, making it ideal for demanding industrial environments. Its side-locking mechanism ensures secure positioning, while the 7.25" mount height and 4" x 4-1/2" top plate offer versatile installation options. With its advanced design and durable construction, this caster provides reliable performance and protection for a wide range of equipment.
Our knowledgeable Caster Experts are available Monday through Friday, 8 am - 5 pm, to address any questions and help you find the optimal solution for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 6" x 2" Side Locking MAX-Efficiency Caster is engineered to provide outstanding performance and durability for demanding industrial environments. Featuring a robust Maroon Polyurethane Wheel with an aluminum core, this caster ensures superior floor protection while offering a high load capacity of 1250 lbs. Its MAX-Efficiency design delivers reliable operation and enhanced maneuverability, making it a top choice for heavy-duty applications.
Albion Casters' 6" x 2" Side Locking MAX-Efficiency Caster stands out due to its advanced engineering and high-quality materials. The caster's design ensures long-lasting performance even in the most challenging environments. With features such as a precision ball bearing and a high-load capacity, this caster provides both reliability and safety. The Maroon Polyurethane Wheel not only protects floors but also enhances maneuverability, making it suitable for a wide range of industrial applications.
Albion Casters offers a 3-year warranty on this product, ensuring peace of mind with every purchase. Our dedicated customer support team is available Monday through Friday, 8 am - 5 pm, to assist with any inquiries or support needs, helping you find the best solutions for your caster requirements.
This Albion 16AX06228SFBA 6" x 2" Maroon Wheel Side Lock Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.25". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$112.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Overall Height | 7.25" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
6" x 2" Polyurethane on Aluminum Swivel Caster – 1,250 lb | CasterHQ
6" x 2" · 1250 lbs
$76
6" x 2" Phenolic Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
6" x 2" · 1250 lbs · Direct fit
$23
6" x 2" Polyurethane Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
6" x 2" · 1250 lbs · Direct fit
$73
View all 6′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1200 lbsLighter duty | 6" × 2"Polyurethane | Rigid | 7-1/2" | $41.00 | View → | |
| 1200 lbsLighter duty | 6" × 2"Polyurethane | — | 7-1/2" | $76.00 | View → | |
| 1250 lbs | 6" × 2"Polyurethane | — | 7.25" | $112.00 | Viewing | |
 Direct fit6" x 2" Phenolic Rigid Caster – 1250 lb |
1250 lbsSame capacity | 6" × 2"Phenolic | Rigid | 7-1/2" | $23.00 | View → |
| 1250 lbsSame capacity | 6" × 2"Polyurethane | Rigid | 7-1/2" | $73.00 | View → |
