![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-885-top-plate-drawing_100x.png?v=1792284171)
Brand: Albion Casters
SKU: 16AX06228S
Size: 6" x 2"
Type: Floor-Protective Swivel Caster
Material: MAX Efficiency Maroon Wheel
Load Capacity: 1250 lb
Mount Height: 7.25 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

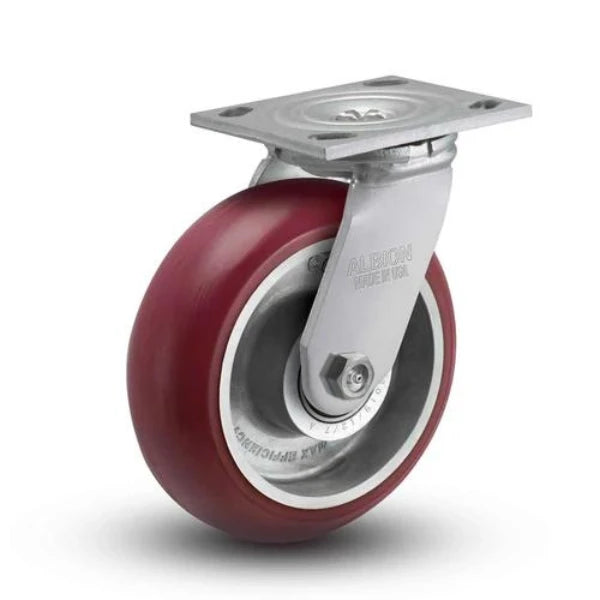

The Albion Casters 6" x 2" Floor-Protective Swivel Caster with MAX Efficiency Maroon Wheel is engineered for optimal performance and floor protection. Crafted in the USA, this caster features a high load capacity of 1250 lbs and a mount height of 7.25 inches, ensuring durability and stability in demanding environments. The 4" x 4-1/2" top plate allows for versatile installation across various applications. Designed to provide maximum efficiency and protect your flooring, this caster is an excellent choice for heavy-duty use and professional settings where reliability and performance are crucial.
Our dedicated team of experts is available Monday through Friday, 8 am - 5 pm to address any questions and help you select the ideal caster for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 6" x 2" Floor-Protective Swivel Caster with MAX Efficiency Maroon Wheel is a robust solution designed for demanding industrial and professional applications. Manufactured in the USA, this caster offers a high load capacity of 1250 lbs, ensuring it can handle heavy-duty tasks with ease.
Its floor-protective design prevents damage to surfaces, while the swivel feature provides smooth and easy maneuverability. The caster’s 7.25-inch mounting height and 4" x 4-1/2" top plate make it versatile and secure for various installations.
For any inquiries or support related to the Albion Casters 6" x 2" Floor-Protective Swivel Caster, our dedicated team of experts is available Monday through Friday, 8 am - 5 pm. We are committed to providing prompt and helpful assistance to ensure you get the most out of your purchase.
This Albion 16AX06228S 6"x2" Maroon Swivel Caster 4"x4-1/2" Plate – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

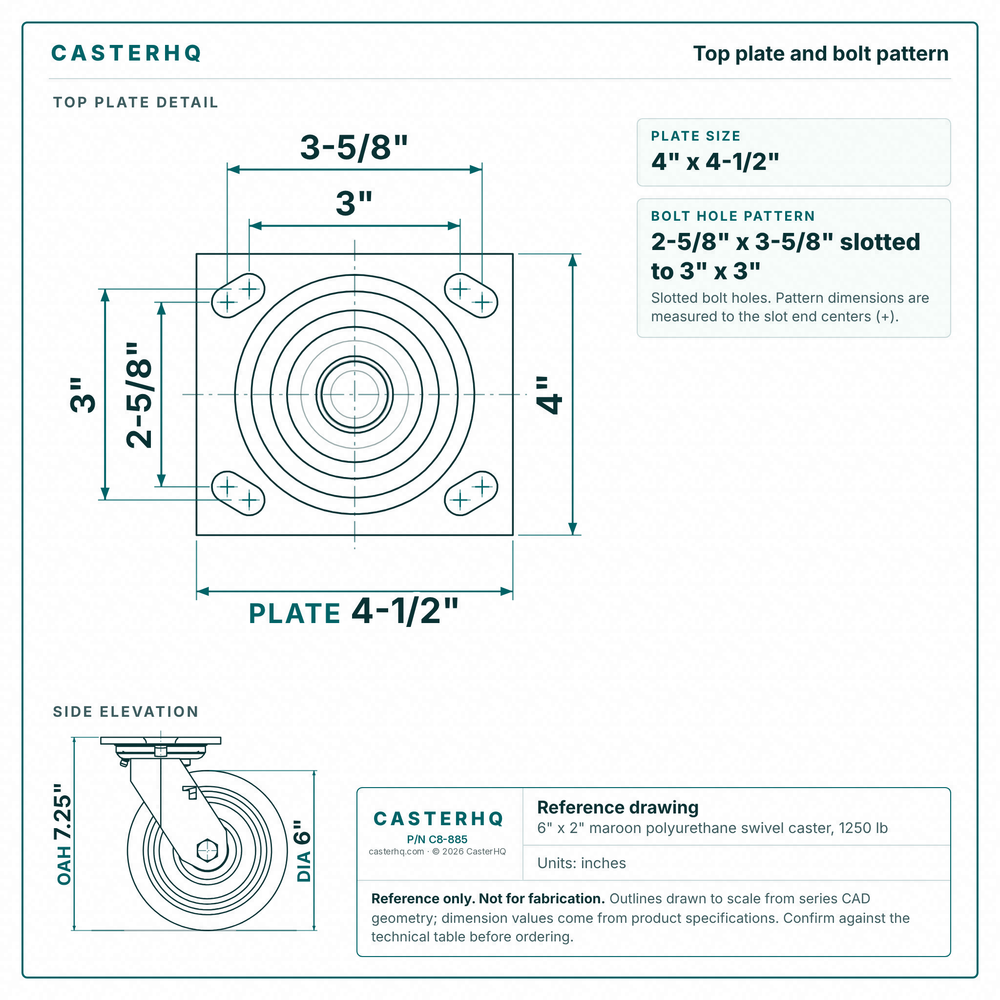

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 7.25". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$103.00
| Identification | |
|---|---|
| Part Number / SKU | 16AX06228S |
| Product Series | Albion 44 Series |
| Core | |
| Load Capacity | 1250 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 7.25" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 4-3/4" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-3/4" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 85 Shore A |
| Wheel Color | Maroon Tread on Aluminum Core |
| Bearing Type | Precision Ball Bearing |
| Axle Diameter | 1/2" |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -40°F to 180°F |
| Warranty | 3 Years |

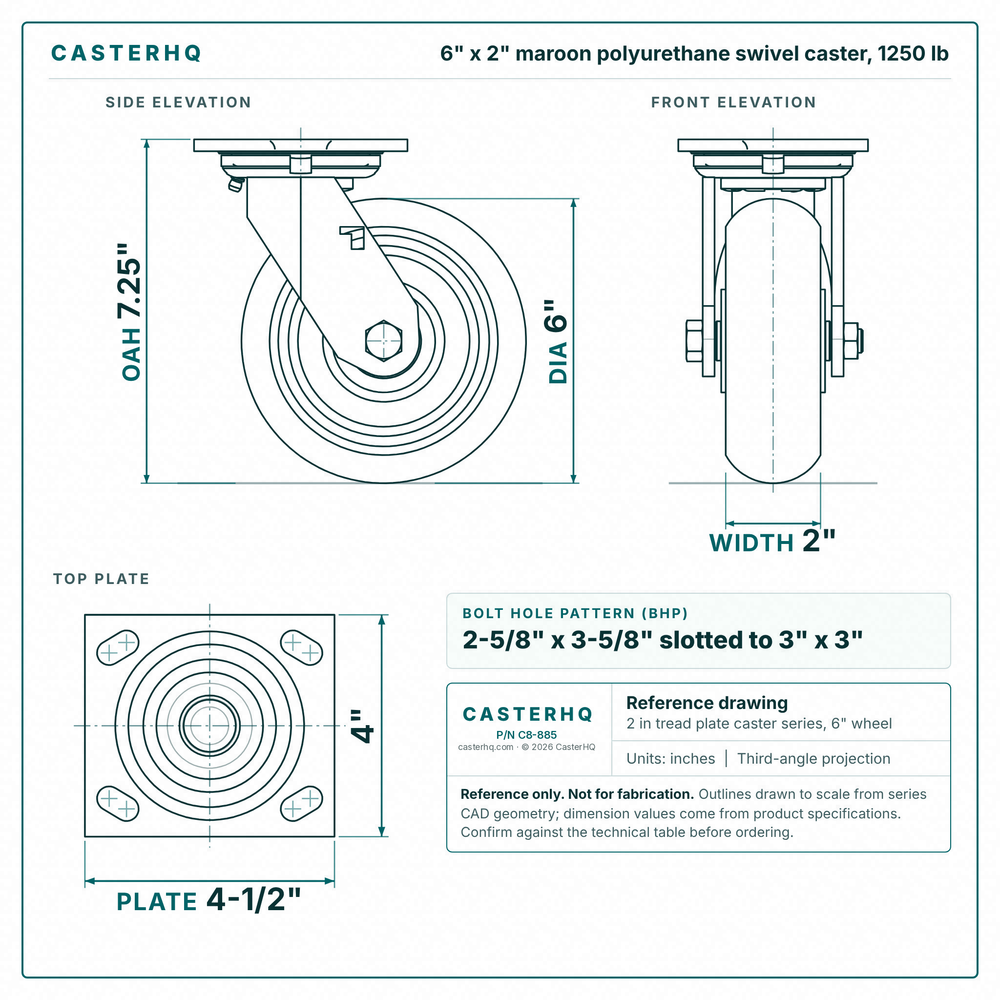

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1200 lbsLighter duty | 6" × 2"Polyurethane | Rigid | 7-1/2" | $45.00 | View → | |
| 1200 lbsLighter duty | 6" × 2"Polyurethane | Swivel | 7-1/2" | $65.00 | View → | |
| 1250 lbs | 6" × 2"Polyurethane | Swivel | 7.25" | $103.00 | Viewing | |
 Direct fit6" x 2" Phenolic Rigid Caster – 1250 lb |
1250 lbsSame capacity | 6" × 2"Phenolic | Rigid | 7-1/2" | $23.00 | View → |
| 1250 lbsSame capacity | 6" × 2"Polyurethane | Rigid | 7-1/2" | $73.00 | View → |
![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-885-top-plate-drawing_1000x.png?v=1792284171)
