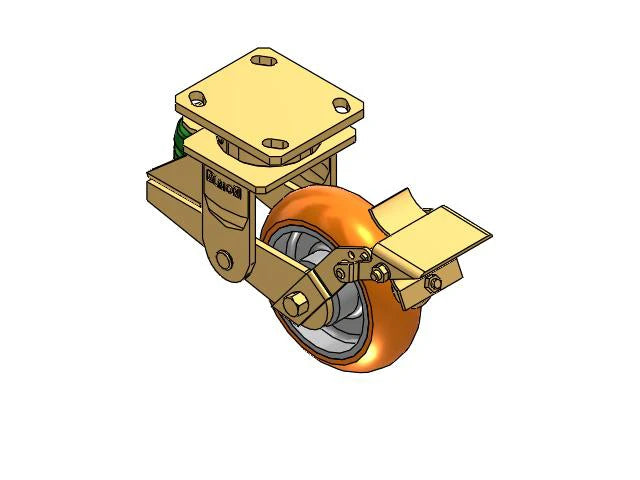

Experience top-tier performance with the Albion Casters Shock-Absorbing 6" x 2" MAX-Efficiency Caster. Engineered with high-visibility orange Poly-Spring material, this caster ensures superior shock absorption and durability, making it ideal for heavy-duty applications. The included top wheel lock provides enhanced stability, while the 4" x 4.5" plate offers a secure attachment to various surfaces. Perfect for industrial and commercial settings, this caster combines efficiency with robust design, making it a reliable choice for your equipment needs.
Boost your operational efficiency and ensure long-lasting performance with the Albion Casters Shock-Absorbing Caster. Perfect for industrial and commercial use, this caster delivers exceptional durability and stability.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 6" x 2" Shock-Absorbing Caster is engineered to provide superior performance and durability for a wide range of industrial and commercial applications. Featuring a high-visibility orange Poly-Spring design, this caster offers exceptional shock absorption, making it ideal for heavy-duty environments where vibration and impact need to be minimized. The robust top wheel lock enhances stability, while the 4" x 4.5" plate ensures a secure attachment to various surfaces. The MAX-Efficiency design ensures optimal mobility and durability, supporting significant loads and enhancing the efficiency of your equipment.
The Albion Casters Shock-Absorbing Caster is designed to improve operational efficiency by providing smooth and stable movement, even in high-impact environments. The shock-absorbing feature reduces strain on equipment and minimizes noise, while the high-visibility orange color ensures safety and easy identification. The caster's robust construction and top wheel lock contribute to its reliability and performance, making it a valuable addition to any industrial or commercial setup.
Upgrade your industrial equipment with the Albion Casters Shock-Absorbing Caster. Designed for maximum efficiency and durability, this caster ensures enhanced mobility and stability for a wide range of applications. Invest in high-quality performance with the Albion Casters 6" x 2" MAX-Efficiency Caster.
This Albion 141AN06228SB 6"x2" Orange Poly-Spring Caster with Brake – CasterHQ is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

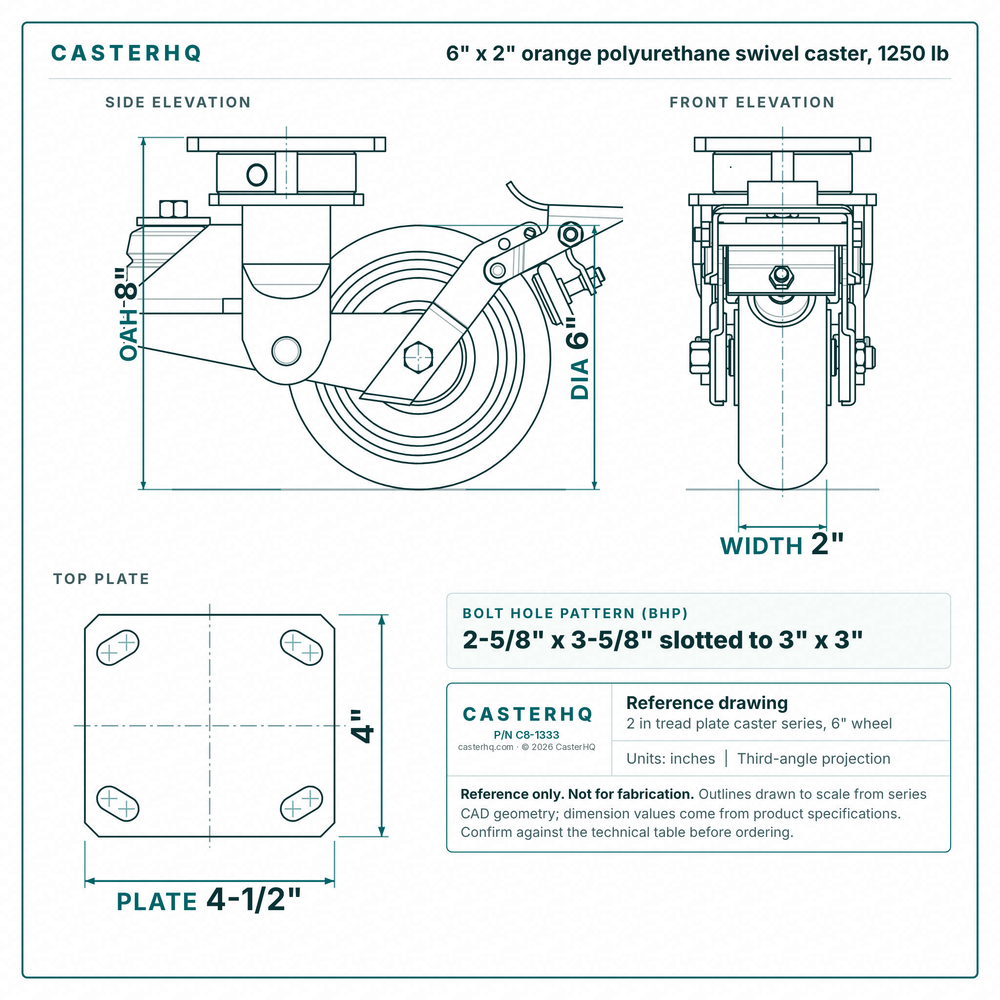

The overall height (floor to top of plate or stem) is 8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$246.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 2" |
| Overall Height | 8" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
6" x 2" Polyurethane on Aluminum Swivel Caster – 1,250 lb | CasterHQ
6" x 2" · 1250 lbs
$76
6" x 2" Phenolic Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
6" x 2" · 1250 lbs · Direct fit
$23
6" x 2" Polyurethane Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
6" x 2" · 1250 lbs · Direct fit
$73
View all 6′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1200 lbsLighter duty | 6" × 2"Polyurethane | Rigid | 7-1/2" | $41.00 | View → | |
| 1200 lbsLighter duty | 6" × 2"Polyurethane | — | 7-1/2" | $76.00 | View → | |
| 1250 lbs | 6" × 2"Polyurethane | Swivel | 8" | $246.00 | Viewing | |
 Direct fit6" x 2" Phenolic Rigid Caster – 1250 lb |
1250 lbsSame capacity | 6" × 2"Phenolic | Rigid | 7-1/2" | $23.00 | View → |
| 1250 lbsSame capacity | 6" × 2"Polyurethane | Rigid | 7-1/2" | $73.00 | View → |
